Touchstone SRV 2800 Pro Manual de usuario

2800/3900 SRV PRO 360-DEGREE SWIVEL TV LIFT

Model # :

32820 –2800 360-DEGREE SWIVEL TV Lift

33920 –3900 360-DEGREE SWIVEL TV Lift

OWNER’S MANUAL

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

2800/3900 SRV PRO 360-Degree Swivel TV Lift


 www.touchstonehomeproducts.com 800.215.1990
 rev. 20201214


3

Table of Contents
About Your Touchstone 2800/3900 360-Degree Swivel TV Lift............................................................................. 4
Lift Features.............................................................................................................................................................. 4
Safety Information...................................................................................................................................................... 5
FUNCTION OF SWIVEL LIFT............................................................................................................................... 5
IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS................................................................ 5
Lift Components & TV Installation Hardware........................................................................................................ 6
Components .............................................................................................................................................................. 6
Hardware................................................................................................................................................................... 6
Tools ......................................................................................................................................................................... 6
Dimensional Drawings................................................................................................................................................ 7
32820 –2800 SRV PRO 360-Degree Swivel TV Lift................................................................................................ 7
33920 –3900 SRV PRO 360-Degree Swivel TV Lift................................................................................................ 8
Assembling and Installing 2800/3900 SRV PRO 360-Degree Swivel TV Lift....................................................... 9
Fasten Lift To Cabinet.............................................................................................................................................. 9
Hooking Up Lift Components and Operating Lift ................................................................................................ 11
Hooking Up Control Box........................................................................................................................................ 12
Hooking Up Wired Handset Control ...................................................................................................................... 13
Hooking Up Swivel Sensor Cable .......................................................................................................................... 13
Hooking Up Power Supply..................................................................................................................................... 14
Operating the Lift.................................................................................................................................................... 15
Wired Handset Control....................................................................................................................................... 15
Wireless RF Control ........................................................................................................................................... 16
Pairing RF Remote Control to Control Box ....................................................................................................... 16
Mounting and Installing the TV.............................................................................................................................. 18
Attaching TV Mounting Brackets To Flat Panel TV.............................................................................................. 18
Assembling The Flat Panel TV Mount................................................................................................................... 20
Mounting Flat Panel TV Mount To The Lift.......................................................................................................... 21
Installing TV on Lift............................................................................................................................................... 23
Locking TV to Flat Panel TV Mount...................................................................................................................... 24
Installing C Bracket and Flat Top Lid Mount......................................................................................................... 25
Warranty ................................................................................................................................................................... 27











2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

About Your Touchstone 2800/3900 360-Degree Swivel TV Lift

Thank you for your purchase of the Touchstone 2800/3900 SRV PRO 360-Degree Swivel TV Lift. Touchstone

Home Products takes pride in the quality craftsmanship and smooth functionality of our TV lift mechanisms.

Please take a few minutes to learn about the features of your TV lift to ensure you get the optimum use and

performance from your new purchase.

Lift Features

- Durable steel construction with 24v motor for smooth, quiet and reliable operation

- Lift cycle fully raises or lowers in approximately 30 seconds.

- Universal quick connect installation takes just minutes. Includes hardware kit with the most common bolts for

mounting TV.

- 3-way adjustable mounting system to ensure that the 2800/3900 SRV PRO 360-Degree Swivel TV Lift is

compatible with almost all flat panel TVs in the market today.

- Modular design –all components can be easily replaced in just minutes

- Five (5) year worry-free warranty

32820 2800 SRV PRO 360-Degree Swivel TV Lift

With Flat Top Lid Mount

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

Safety Information

Mounting your flat screen TV to the Touchstone 2800/3900 SRV PRO Swivel Lift Upgrade Kit is fast and easy.

Operating your lift is very straightforward. However, to avoid the risk of personal injury and to ensure optimum

performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices

throughout this manual.

FUNCTION OF SWIVEL LIFT

The function of the 2800/3900 SRV PRO 360-Degree Swivel TV Lift is to rotate the TV 360-degree to optimize

viewing placement. The 2800/3900 SRV PRO 360-Degree Swivel TV Lift functions as follows:

1. To rotate the TV up to 360 degrees.

2. When the TV is not in the “home”position, the safety sensor light will turn red and lift will not move up and

down through the remote control unless the TV is rotated back into the home position.

3. When the TV is moving up or down, the lift will stop moving if the sensor is not in the home position.

4. For extra added safety, the remote control buttons must be held for the lift to operate.

IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS

1. DO NOT operate lift without the safety sensor plugged in.

2. Failure to comply could result in damage or serious injury.

3. Warranty is voided if failure to follow instructions listed in this manual.

Contact Touchstone Customer Service at 1-800-215-1990 with any questions regarding the operation of your

2800/3900 360-Degree Swivel TV Lift. We are also available on the web at

https://www.touchstonehomeproducts.com

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

Lift Components & TV Installation Hardware

Components

Lift Parts

Number

Part Number

Part Name

32820, 33920

Lift Column

32809

Lift Base

n/a

2800/3900 360-Degree Mounting Plate

32810a

TV Mounting Brackets

32810b

Horizontal Flat Panel Brackets

n/a

Flat Top Lift Mount

32810c

Vertical Flat Panel Bracket Rods

32802

Wired Handset Control

32803

Wireless RF Remote

32820, 33920

Control Box

32806

Power Supply

n/a

Control Box-Lift Transit Line

n/a

Power Supply Transit Line

32807

Power Cable

32804

IR Remote

32805

IR Sensor

Accessory Package

Part

Quantity

M8 Bolts and Nuts –For TV Bracket

M6x16 Bolts –Adjustable C Bracket

M6x8 Bolts –Flat Top Lid Mount

ST6x45 Screws –For Fastening Back of Lift

ST5x16 Screws –For Fastening Lift to Floor

ST4x10 Screws –For Fastening Cable Clips

TV Mounting Screws –Assorted Sizes

4 per size

Washers –Assorted Sizes

4 per size

1” Nylon Spacers

Cable Clip for Swivel Sensor Cable

Hardware

- TV Mounting Screws

-> Please consult your TV manufacturer for the size and length of the mounting screw for your TV. Included is a basic set of

mounting screws that accommodates most LCD/Plasma TVs. Depending on your television, the screws included in the kit may

not fit your television. If that is the case, these screws can be purchased at most hardware/home improvement stores.

Tools

In order to assemble the 2800/3900 360-Degree Swivel TV Lift, you will need the following tools:

- Philips-head screwdriver - size 5 metric hex wrench (included)

- size 4 metric hex wrench (included) - adjustable wrench or size 4 and size 5 metric socket wrench

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

Dimensional Drawings

32820 –2800 SRV PRO 360-Degree Swivel TV Lift

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

33920 –3900 SRV PRO 360-Degree Swivel TV Lift

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

Assembling and Installing 2800/3900 SRV PRO 360-Degree Swivel TV Lift

Fasten Lift To Cabinet

The 2800/3900 SRV PRO 360-Degree Swivel TV Lift has 8 mounting points (4 on the back of the lift and 6 on the

floor). Use the 4 rear mounting points and the 6 floor mounting points to mount the lift in your cabinet.

Parts Required:

- Screwdriver or cordless-drill

- Hex wrench

Instructions:

1. The 2800/3900 SRV PRO 360-Degree Swivel TV Lift ships with the 360-Degree Swivel TV Lift plate already

installed. For easier installation, remove the 4 bolts securing the TV Lift plate to the top of the lift and remove the

TV Lift plate from the lift.

2. Place lift in cabinet and align in center of cabinet so that the center of the lift is lined up with the midpoint of the

TV opening in the cabinet.

2800/3900 SRV PRO 360-Degree Swivel TV Lift

www.touchstonehomeproducts.com 800.215.1990

rev. 20201214

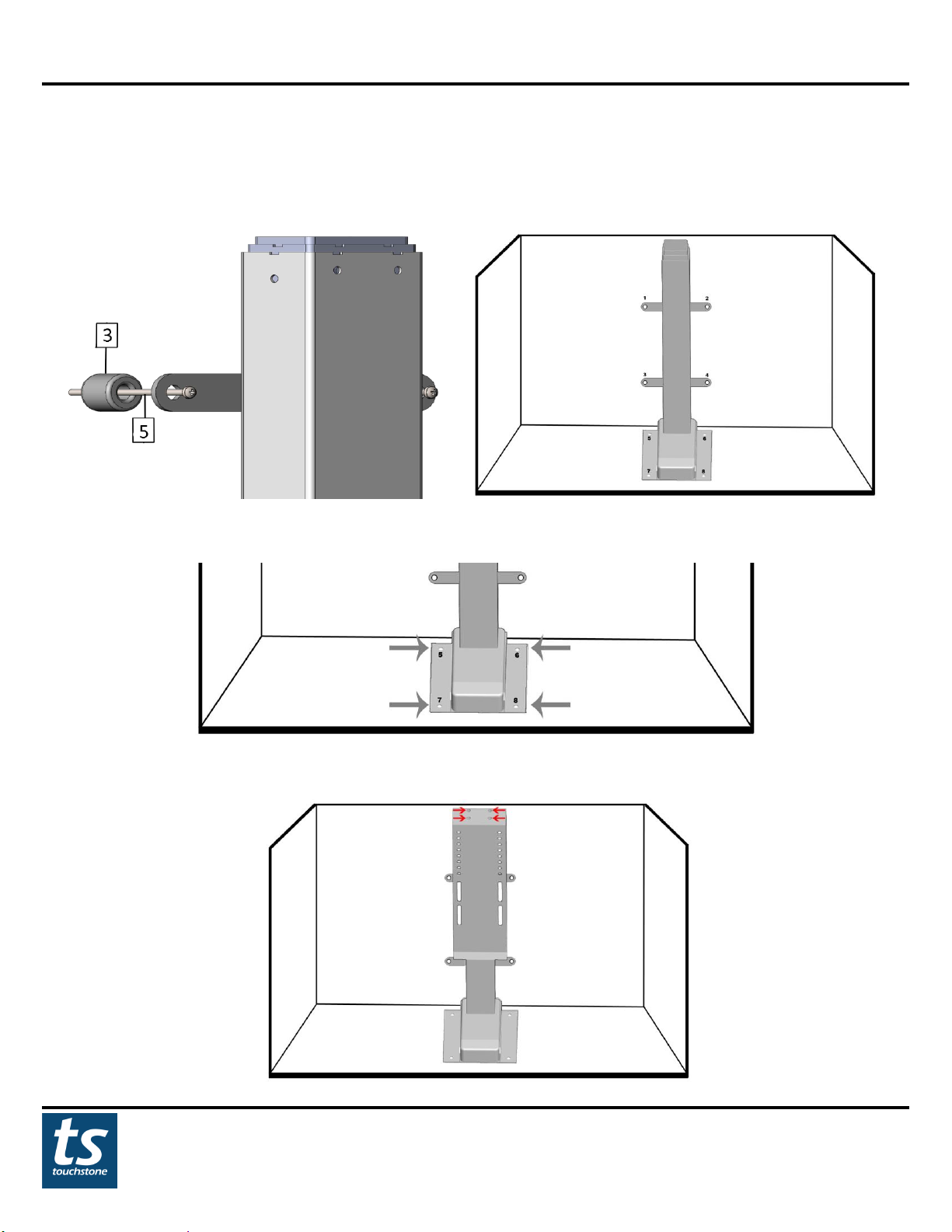

Fasten Lift To Cabinet –cont.

3. Once the lift is placed in the cabinet and aligned with the center of the cabinet, fasten the lift to the back wall of

the cabinet. Install 4 nylon spacers (#3) between the back mounting arms on the lift and the wall of the cabinet and

insert a ST6x45 Wood Screw (#5) through each back mounting arm and nylon spacer, securing the lift to the back

wall of the cabinet.

4. Fasten lift to floor of the cabinet, using the mounting holes in the base of the lift.

5. Once the lift is installed, reinstall the TV Lift plate that was removed in step 1.
