TOSHIBA

Color Televisiola

OWNER'S MANUAL

CX27F60/CX32F60

©TOSHIBA CORPORATION, 1996

Dear Customer

Congratulations! You have purchased one of the

finest Color TV's on the market!

This manual will help you use the many exciting and

useful features to make your TV viewing more enjoy-

able than ever before.

Before operating your TV set, please read all these

safety and operating instructions completely and

then retain for future reference.

Customer's Record

You will find the model number and serial number on

the back of your TV set.

Record these numbers in the spaces provided below.

Refer to them whenever you call upon your TOSHIBA

dealer regarding this product.

Model Number

Serial Number

Safety Precautions

_NARNING:

TO REDUCi: THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

/J_\ AVIS: mSOUEDECHOC

ELECTRIQUE-NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PER-

SONNEL. I

._-l:he ligl_tning symbol in the triangle tells

you that the voltage inside this product may

be _trong enough to cause an electric shock.

- DO NOT TRY TO SERVICE THIS PRODUCT

YOURSELF.

/_ .The exclamation point in the triangle tells

/'. | \ you that important operating and mainte-

L°_°---& nance _._tr,,_i_ns follow this symbol.

"l-his TV set maybe used only with TOSHIBA stand

shown on page 44. Use with other stands may

result in instability causing possible injury.

CAUTIONS:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS

POLARIZED PLUG WITH AN EXTENSION CORD

RECEPTACLE OR OTHER OUq'LET UNLESS THE

PRONGS CAN BE FULLY INSERTED liNT() THE

OUTLET TO PREVENT AI_Y EXPOSURE! OF THE

PRONGS ON THE POLARIZED PLUG.

AI-rENTION:

POUR PRI_VENIR LES CHOCS t_L.ECTRIQUES, NE

PAS UTILISER CE-FFEFICHE POLARISf_E AVEC UN

PROLONGATEUR, UNE PRISE DE COURANT OU

UNE AUTRE SORTIE DE COURANT, SAUF SI LES

LAMES PEUVENT ETRE INSEFLE'S_, FOND SANS

EN LAISSER AUCUNE PARTIE _, DECOUVF_-RT.

NOTE TO CATV SYSTEM INSTALLER IN THE USA:

This reminder is provided to call the CATV system

installer's attention to Article 82C-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding syst,_m of the building,

as close to the point of cable entry as practical.

Table of Contents

Set Up

Introduction ...................................................... 4

Installing Your "IV Set ...................................... 4

Antenna/Cable TV General Information .......... 5

Antenna/Cable TV Connection ........................ 6

Antenna/Cable -IV and VCR Connections ....... 7

Preparation

L_cation of Controls (TV Set) .......................... 8

Location of Controls (Remote Control) ......... 10

Before Using the Remote Control ................. 11

Using the Remote with VCR or Cable TV

Converter ...................................................... 12

Programming tl_e Remote Control ................ 13

Menu Function (General Instructions) .......... 16

Selecting the Antenna Input .......................... 18

Programming Channel Memory ................... 19

Basic Operation

Watching TV Programs ................................... 21

Convenient Remote Functions ...................... 22

Adjusting the Picture ...................................... 24

Adjusting the Sound ...................................... 25

Selecting Stereo/SAP Broadcasts ................. 26

Enhancing the Surround Sound Effect ......... 27

Advanced Operation

Watching Picture-in-Picture ........................... 28

Setting the Off-Timer (Sleep Timer) .............. 30

Programming Your Favorite Chan qels ......... 31

Locking Channels ........................................... 32

Using Closed-Captioned Function .................. 34

Labeling Channels .......................................... 36

Changing On-Screen Display Language ....... 38

Demonstration Mode ..................................... 39

Equipment Connections

Connecting a Standard VCR .......................... 40

Connecting a VCR with an S-Video Jack _.'... 41

Connecting an Audio Amplifier ..................... 42

Reference Section

Cleaning and Care ........................................... 43

Specifications ................................................... 44

Before Calling Service Personnel .................. 45

Limited United States Warranty .................... 46

Introduction

This manual applies to models CX27F60 and CX32F60, and there are slight differences among them.

The front and rear panel illustrations are based on CX32F60. Check the model of your -IV before using this manual.

CX27F60 CX32F60

Installing your TV

Where to install

Place the TV on the floor or on a sturdy platform.

The mounting surface should be flat and steady.

Lighting

Do not place the TV in a room where direct lighting

strikes the screen. Use soft and indirect lighting.

Air circulation

.Place the TV far enough from the walls to allow

oroper ventilation. This will prevent the TV from

overheating and avoid possible damage to the TV.

,&void _lusty places too.

Power supply

Plug into an _l_'_ctrical outlet with standard house-

hold power (120 voltAC, 60Hz). Do not change the

plug's safety prong. See the right column.

WARNING :

TO AVOID PERSONAL INJURY

•Do not stand or climb on the TV.

• Do not put aVCR or any heavy object on top of

the TV.

CAUTION :

As a safety feature, the plug has one prong wider

than the other. It will fit only one way into a stand-

ard electrical outlet. If the plug will not fit into the

outlet, try turning it around. If the plug will not fit

either way, the outlet is probably old and non-

standard.

You will need to Wide, prong

have a new outlet

installed by an

electrician.

DO NOT CHANGE

THE SAFETY

FEATURE OF THE

PLUG.

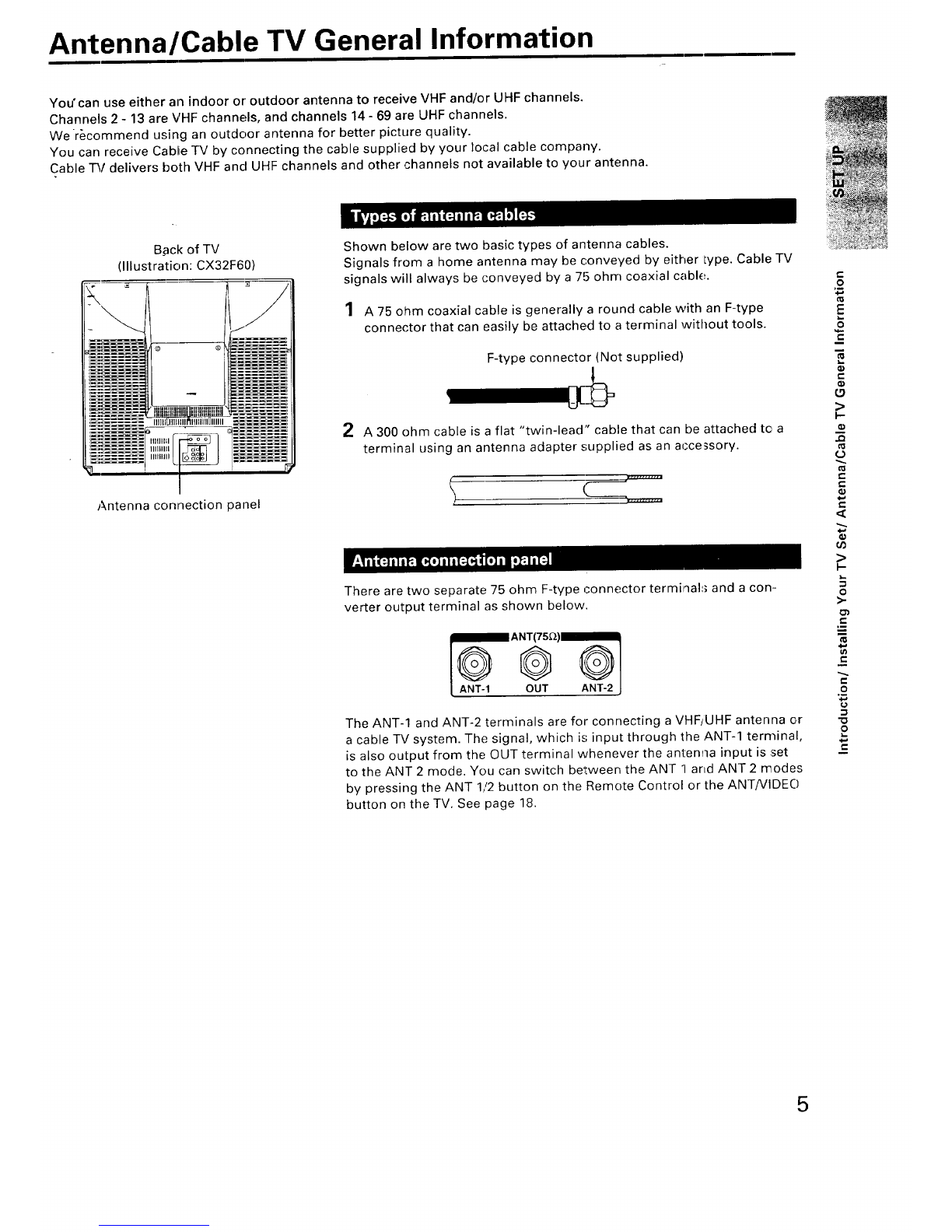

Antenna/Cable TV General Information

You'can use either an indoor or outdoor antenna to receive VHF and/or UHF channels.

Channels 2 - 13 are VHF channels, and channels 14 - 69 are UHF channels.

We recommend using an outdoor antenna for better picture quality.

You can receive Cable TV by connecting the cable supplied by your local cable company.

Cable TV delivers both VHF and UHF channels and other channels not available to your antenna.

B_qckof TV

(Illustration: CX32F60)

IIl]lll.ll]lllllnllllllllUIIIIII

"_ IlJfllfil _o-oo

_,_ IIIllllll

_ IIIIIllll

Antenna connection panel

Shown below are two basic types of antenna cables.

Signals from a home antenna may be conveyed by either Iype. Cable TV

signals will always be conveyed by a 75 ohm coaxial cable.

1A 75 ohm coaxial cable is generally a round cable with an F-type

connector that can easily be attached to a terminal without tools.

F-type connector (Not supplied)

2A 300 ohm cable is a flat "twin-lead" cable that can be attached to a

terminal using an antenna adapter supplied as an m;ce_sory.

There are two separate 75 ohm F-type connector terminal:; and a con-

verter output terminal as shown below.

NANT(75_)_

@®@

ANT-1 OUT ANT-2

The ANT-1 and ANT-2 terminals are for connecting a VHFjUHF antenna or

a cable TV system. The signal, which is input through the ANT-1 terminal,

is also output from the OUT terminal whenever the antenna input is :set

to the ANT 2 mode. You can switch between the ANT 1 and ANT 2 modes

by pressing the ANT 1/2 button on the Remote Control or the ANT/VIDEO

button on the TV. See page 18.

2£

t,,,

I-

t,-

Antenna/Cable TV Connection

VHF,

UHF

or.Cable*

VHF

UHF

-75-ohm coaxial cable

/ 300-ohm twin-lead cable .... \

Antenna adapter ANT 5_1)

OR (Sup I_

L_ANT-1 OUT ANT-2 j

j/ (Not supplied)

Notes:

* Generally, the incoming cable for a Cable TV system can be connected directly to the TV antenna terminal just like a

home antenna connection. You will be able to receive unscrambled cable channels.

• You can connect another source such as a home antenna or video game to-the ANT-2 terminal.

Some cable companies offer "premium pay channels". Since the signals of these premium pay channels are scram-

bled, a cable TV conw._rter/decoder is generally provided to the subscriber by the cable "iV company. This decoder box

is necessary for normal viewing the scrambled channels. For more specific instructions on installing cable TV, consult

your cable TV company.

You can choose between viewing unscrambled channels Cable

and scrambled channels by pressing the ANT 1/2 button or lead-in

the ANT/VIDEO button. See page 18.

Unscrambled channels will come through the ANT-1

.terminal w_fen the ANT 1 mode is selected.

.-The scrambled channels from the decoder box will come

through the ANT-2 terminal when the ANT 2 mode is

selected. Select channel 3 or 4 on your -IV to match your

converter's output channel and select channels using the

conver]er's channel keys.

Note: The des£,,j,arr_er device may or may not be a part of

the cabFe converter.

ANT-1 OUT ANT-2

IN OUT

Cable IV converter/-

decorcer

Antenna/Cable TV and VCR Connections

After antenna cable connections are made, you are still required to connect the VCR using avideoJaudio connecting

cable,.; for (stereo) playback of good quality from the VCR. See page 40.

VCR

Note: On many VCR's, playing tapes causes the VCR's TV/VCR switching to disconnect the antenna signals from the rv.

If you cannot select a certain channel, try pressing the TV/VCR button on the Remote Control.

Antennaor [_

(;able splitter ANT-1 OUT

lead-in

(Not supplied)

VCR

Notes:

•When connecting-a cabLe "IV converter/decorder ®:

The unscrambled_han, p.els will come through the ANT-1 terminal whenever the antenna input is set to the ANT 1

mode.

_-he scrambled channels from the decoder box will come through the VCR and the ANT-2 terminal whenever the-

antenna input is set to the ANT 2mode. Select channel 3 or 4 on your'IV and VCR to match your converter's €iutp_t

channel. See page 18.

•The cable ®connection is necessary only when the cable -IV converter/decorder ®is conpected.

I-

€11

€

,.o

€-

Location of Controls (TV Set) CX27F60

For specific use of each control, consult the corresponding page numbers in brackets.

Front view Rear view

Press to open

the door.

Behind the door

VIDEO/AUDIO terminals [40]

-- POWER indicator

r_°"e_I..

POWER button [21]

Remote sensor

MENU button [16]--

ANT/VIDEO button [18]_

ADV button [16]

?TCHANNEL Y/i buttons [21]

---- VOLUME Y/A buttons [21]

-/+ buttons [16]

CX32F60

Front view Rear view

_1 l I II U

I Inn I1! u

....I=,,,t=tliU$,,,==,,,,,!

',l IIIIIIIII

VIDEO/AUDIO terminals [40]

..I

HENU ANT _¢IDEO _,'O[[JMEI ICHANNELA

0 000

e-_ADV--- --÷

MENU button [161--

ANT/VIBEO button [181--

ADV button [161

) POWER indicator

POWER button [211

-- Remote sE_nsor

CHANNEl_ Y/• butl:on_ [211

-- VOLUME T/• buttons [21]

-/+ buttons [161

Location of Controls (Remote Control)

Only the buttons that are used to operate the TV set are described here.

For details on the use of each control, refer to pages in brackets.

Aim at the remote sensor on the TV

Transmit indicator

EDS button* [23]

TV/CABLENCR .';witch

Set to "TV" to control the -IV.

TVNIDEO [40]

Channel Number buttons* [21]

PIP function buttons* [28]

AUDio button* [17]

PiCture button* [17]

RESET button* [25]

C.CAPT button* [34]

EXIT button* [17]

ANT 1/2 button [18]

To operate buttons inside the

cover, slide the cover down and

toward you.

PIC. AUD. _ET U PTION

- 113

TIMER button* [30]

POWER butl:on [21]

MUTE button* [22]

RECALL but-:on* [22}

CHANNEL ,,/_' buttons [21]

VOLUME _/_ buttons [21]

RTN bu_iDn _ [22]

SET UP button* [17]

OPTION butlon* [17]

-/+ buttons [I 6]

FAV -/+ buttons* [31]

DSP/SUR button* [27]

CYC/SBS bu:_ton* [27]

* These functions do no1:h&ve

duplicate locations on the I"V set.

They can be controlled only with

the Remote Control.

Otros manuales para CX27F60

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Toshiba

Toshiba

Toshiba MD20FP1 Manual de usuario

Toshiba

Toshiba VTW2185 Manual de usuario

Toshiba

Toshiba 50HX70 Manual de usuario

Toshiba

Toshiba 53N21F2 Manual de usuario

Toshiba

Toshiba 57WH36P Manual de usuario

Toshiba

Toshiba CF35F40 Manual de usuario

Toshiba

Toshiba 57HLX82 Manual de usuario

Toshiba

Toshiba 32A36C Manual de usuario

Toshiba

Toshiba TCL M28LG2 Manual de usuario

Toshiba

Toshiba 26DL933B Manual de usuario

Toshiba

Toshiba 43A62 Manual de usuario

Toshiba

Toshiba 19SL738B Manual de usuario

Toshiba

Toshiba 20A23 Manual de usuario

Toshiba

Toshiba REGZA 26LV47 Manual de usuario

Toshiba

Toshiba MV19K2 Manual de usuario

Toshiba

Toshiba 28ZH46P Manual de usuario

Toshiba

Toshiba CN36G90 Manual de usuario

Toshiba

Toshiba MV20FM3 Manual de usuario

Toshiba

Toshiba 49L1763DA Manual de usuario

Toshiba

Toshiba MV13N2 Manual de usuario

Toshiba

Toshiba 23WL46B Manual de usuario

Toshiba

Toshiba 21N21E2 Manual de usuario

Toshiba

Toshiba 43 QF5D Series Manual de usuario

Toshiba

Toshiba MV13L3 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario

Sanyo

Sanyo CE19LD90N-B Manual de usuario
