TOSHIBA

Color Television

OWNER'S MANUAL

CE35E15

iiii!ii!ii'ii!iiii!iii!ii_iii!ii!iiiiiiiiiiiiiiiiii_iii!iiii!!iiii_ii

_!_iiiili_iiiiiiiiiii!ililiiii!iiiiiiiii_iiiiiiiii_iiiiiiii_!iiiiiiiiiiii'ii_

iiii!iaiiiiiiiiiii_iiiiiii!iii!iiiiiiiiiiiiiiii

@TOSHIBA CORPORATION, 1995

Dear Customer

Congratulations! You have purchased one of the

finest Color -rv's on the market!

This manual will help you use the many exciting and

useful features to make your TV viewing more enjoy-

able than ever before.

Before operating your TV set, please read all these

safety and operating instructions completely and

then retain for future reference.

Customer's Record

You will find the model number and serial number on

the back of your TV set.

Record these numbers in the spaces provided below.

Refer to them whenever you call upon yourTOSHIBA

dealer regarding this product.

Model Number

Serial Number

Safety Precautions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

WARNING

AVIS: RISQUE DE CHOC

ELECTRIQUE-NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

The lightning symbol in the triangle tells

you that the voltage inside this product may

be strong enough to cause an electric shock.

DO NOT TRY TO SERVICE THIS PRODUCT

YOURSELF.

The exclamation point in the triangle tells

you that important operating and mainte-

nance instructions follow this symbol.

This TV set may be used only with TOSHIBA stand

model ST3501. Use with other stands may result in

instability causing possible injury.

CAUTIONS:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS

POLARIZED PLUG WITH AN EXTENSION CORD

RECEPTACLE OR OTHER OUTLET UNLESS THE

PRONGS CAN BE FULLY INSERTED INTO THE

OUTLET TO PREVENT ANY EXPOSURE OF THE

PRONGS ON THE POLARIZED PLUG.

ATTENTION:

POUR PRI_VENIR LES CHOCS I_LECTRIQUES, NE

PAS UTILISER CETTE FICHE POLARISI_E AVEC UN

PROLONGATEUR, UNE PRISE DE COURANT OU

UNE AUTRE SORTIE DE COURANT, SAUF SI LES

LAMES PEUVENT €:TRE INSC:R¢:S,&FOND SANS

EN LAISSER AUCUNE PARTIE A DI_COUVERT.

NOTE TO CATV SYSTEM INSTALLER IN THE USA:

This reminder is provided to call the CATV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building,

as close to the point of cable entry as practical,

Table of Contents

Set Up

Installing Your TV Set ...................................... 4

Antenna/Cable TV Connection ........................ 5

Antenna/Cable TV and VCR Connections ....... 6

Preparation

Location of Controls (TV Set) .......................... 7

Location of Controls (Remote Control) ........... 8

Before Using the Remote Control ................... 9

Using the Remote with VCR or Cable TV

Converter ..................................................... 10

Programming the Remote Control ................ 11

Menu Function (General Instructions) .......... 14

Programming Channel Memory ................... 15

Basic Operation

Watching TV Programs .................................. 17

Convenient Remote Functions ...................... 18

Adjusting the Picture ...................................... 20

Adjusting the Sound ...................................... 22

Selecting Stereo/SAP Broadcasts ................. 23

Advanced Operation

Enhancing the Surround Sound Effect ......... 24

Watching Picture-in-Picture ........................... 25

Setting the Off-Timer (Sleep Timer) .............. 28

Setting the Clock ............................................ 29

Locking Channels ........................................... 30

Programming Your Favorite Channels ......... 32

Using Closed-Captioned Function ................. 34

Labeling Channels .......................................... 36

Activating Noise Reduction/

Flesh Tone Functions .................................. 38

Changing On-Screen Display Language ....... 39

Equipment Connections

Connecting a Standard VCR .......................... 40

Connecting a VCR with an S-Video Jack ...... 41

Dubbing/Editing Video Tapes Using

2 VCRs .......................................................... 42

Connecting an Audio Amplifier ..................... 43

Connecting External Speakers ...................... 44

Reference Section

Cleaning and Care .......................................... 45

Specifications ................................................. 45

Before Calling Service Personnel .................. 46

Limited United States Warranty .................... 47

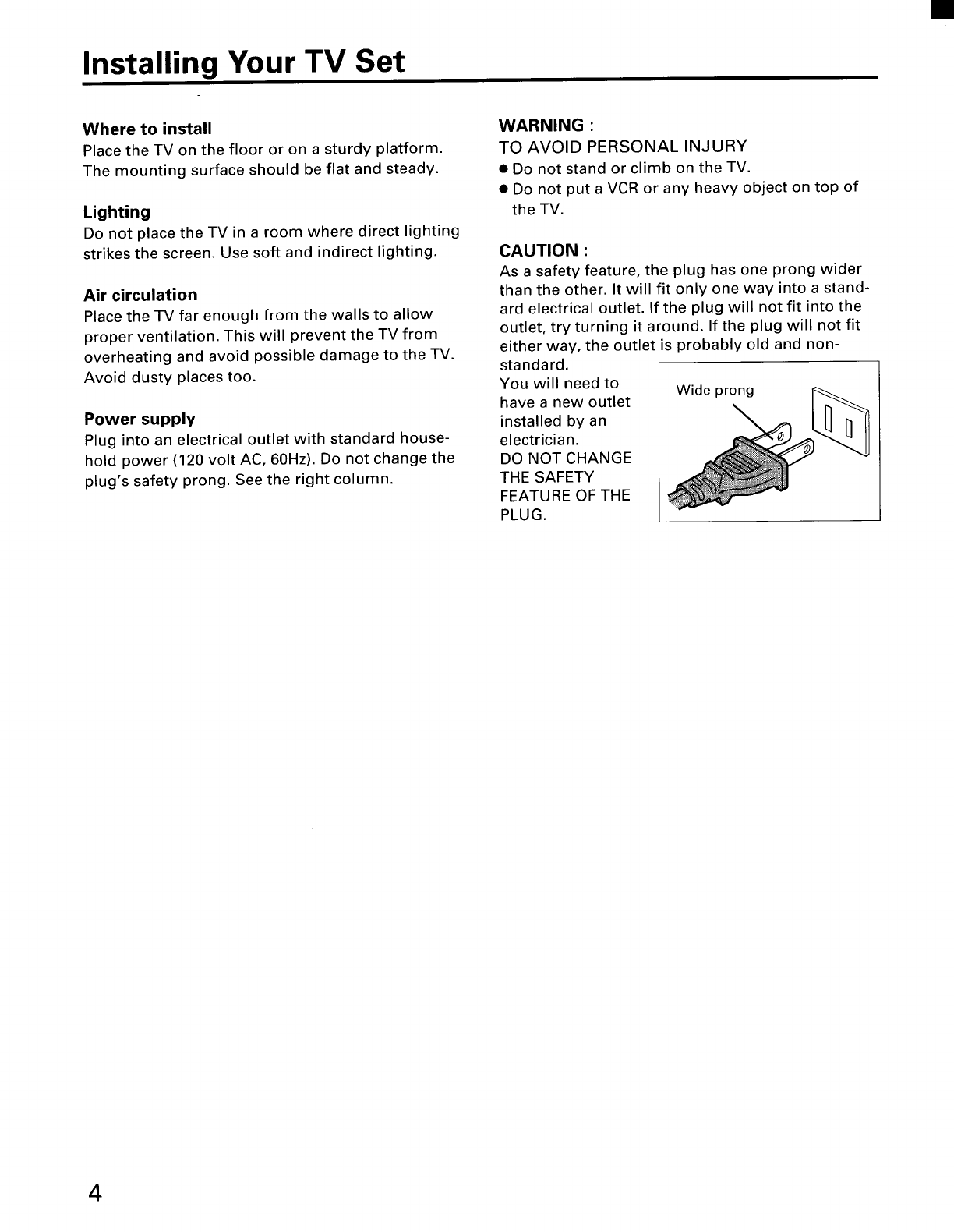

Installing Your TV Set

Where to install

Place the TV on the floor or on a sturdy platform.

The mounting surface should be flat and steady.

Lighting

Do not place the TV in a room where direct lighting

strikes the screen. Use soft and indirect lighting.

Air circulation

Place the TV far enough from the walls to allow

proper ventilation. This will prevent the TV from

overheating and avoid possible damage to the TV.

Avoid dusty places too.

Power supply

Plug into an electrical outlet with standard house-

hold power (120 volt AC, 60Hz). Do not change the

plug's safety prong. See the right column.

WARNING :

TO AVOID PERSONAL INJURY

•Do not stand or climb on the TV.

• Do not put a VCR or any heavy object on top of

the TV.

CAUTION :

As a safety feature, the plug has one prong wider

than the other. It will fit only one way into a stand-

ard electrical outlet. If the plug will not fit into the

outlet, try turning it around. If the plug will not fit

either way, the outlet is probably old and non-

standard.

You will need to Wide prong

have a new outlet

installed by an

electrician.

DO NOT CHANGE

THE SAFETY

FEATURE OF THE

PLUG.

Antenna/Cable TV Connection

You can use either an indoor or outdoor antenna to receive VHF and/or UHF channels.

Channels 2- 13 are VHF channels, and channels 14- 69 are UHF channels.

We recommend using an outdoor antenna for better picture quality.

You can receive Cable TV by connecting a cable supplied by your local cable company.

Cable TV delivers both VHF and UHF channels and other channels not available from your antenna.

F-type connector Back of TV

(Not supplied)

75-ohm coaxial cable |

VHF, '"'"'"

IIIIIIIII IIIIIIIII

IIIIIIIII

UHF OR

or Cable 300-ohm twin-lead cabk

Antenna adapter

(Supplied)

VHF

_U/V mixU_er J

(Not supplied)

€

l--

€-

Cable TV

lead-in 2-way A

signal IN

splitter B

(Not supplied)

IIN OUT

Cable TV converter/

decoder

*A/B switch

(Not supplied)

Notes:

*"A" position on the A/B switch allows you to select unscrambled channels using the TV's channel keys.

"B" position allows you to select scrambled channels via the converter/decoder box using the converter's channel

keys. Place your TV on channel 3 or 4 to match the converter's output channel.

• If you use a VCR, connect its antenna in/out between the decoder box and A/B switch.

Antenna/Cable TV and VCR Connections

After antenna cable connections are made, you are still required to connect the VCR using a video/audio connecting

cables for (stereo) playback of good quality from the VCR. See page 40.

Antennaor

Cable

lead-in

.....

OUT

@OANT O

IN OUT

VCR

Note: On many VCR's, playing tapes causes the VCR's TVNCR switching to disconnect the antenna signals from the TV.

If you cannot select a certain channel, try pressing the TVNCR button on the Remote Control.

Antenna

Cable

lead-in

2-way

signal

splitter

(Not supplied)

IN I_] OUT

A/B Switch

(Not supplied)

I ;ooo.....

ROUTL

@@ ,. A"To_

VCR

Notes:

• When connecting a cable TV converter/decoder ®:

"A" position on the A/B switch allows you to select unscrambled channels using the TV's channel keys.

"B" position on the A/B switch allows you to select scrambled channels via the cable TV converter/decoder using the

converter's channel keys, Place your TV and VCR on channel 3 or 4 to match the converter's output channel.

•The cable ®connection is necessary only when the cable TV converter/decoder ®is connected.

Location of Controls (TV Set)

For specific use of each control, consult the corresponding page numbers in brackets.

Front view Rear view

Press to open

the door. o

Behind the door

:HANNEL A/V buttons [17]

A_r buttons [17]

+/- buttons [14]

button [40]

ADV button [14]

button [14]

IIIIIIIII

IIII1|111

IIIIIIIII

|llllllll

111111111

Illllllll

IIIIIII1!

IIIIIIlll

IIIIIIIII

IIlllllll

Illllllll

Illlillll

VIDEO/AUDIO terminals [40]

i i

POWER indicator (Red)

Remote sensor

POWER button [17]

€

t.)A

-o I-,-

€_

:,8

f- o

r- 0

button [14]

Location of Controls (Remote Control)

Only the buttons that are used to operate the TV set are described here.

For details on the use of each control, refer to pages in brackets.

Aim at the remote sensor on the TV.

C.CAPT button* [34]

TV/CABLENCR switch

Set to "TV" to control the TV

TV/VIDEO button [40]

Channel Number buttons* [17]

EDS button* [19]

MENU button [14]

RESET button* [22]

FAV V/• buttons*[32]

-/+ buttons [14]

ADV

TOSHIBA

RECALL button* [11, 18]

POWER button [17]

MUTE button* [18]

CHANNEL •/V buttons [17]

VOLUME •/V buttons [17]

CH RTN button* [18]

SUR button* [24]

ADV+/- buttons* [14]

EXIT button* [14]

PIP functions* [25]

*These functions do not have

duplicate locations on the TV set.

They can be controlled only with

the Remote Control.

Before Using the Remote Control

With this Remote Control, you can operate your TV and

most models of remote-controlled VCR's and Cable TV

converters even if they are different brands.

However, this Remote Control must be programmed to

control other brands of VCR's and/or Converters. If you

will be using your TV set with a TOSHIBA VCR, your

remote has already been preprogrammed for you.

•Before attempting to operate your Remote Control,

install the batteries according to the section "Installing

and replacing batteries" shown below.

• For more detailed instructions, see the section "Pro-

gramming the Remote Control" on page 11.

Place the Remote Control with the face down. Press

down on the ridged area of the battery cover and

slide it off.

Press and slide to remove.

2Place two "AAA" size batteries, matching the + and -

signs on each battery to the + and - signs of the

battery compartment.

3 Replace the battery cover until the lock snaps.

Notes:

•After installing new batteries, the Remote Control will

set itself to the codes for TOSHIBA's TV and VCR. If

you are using the Remote Control to operate equip-

ment that uses different codes, it will have to be

reprogrammed for those codes.

• This Remote Control may have functions not available

on the original remote control.

• These functions may or may not operate your VCR or

Cable TV Converter. Refer to the owner's manuals

supplied with the equipment to see which functions

are available.

• The remote control supplied with your VCR or Cable

TV Converter may have keys not duplicated on this

Remote Control. If these functions are desired, the

original remote will have to be used.

CAUTION:

• Do not throw your batteries into a fire. Dispose of your

batteries in a designated disposal area.

• Do not combine used old batteries with new ones.

• Do not mix battery types.

Tips for Best Operation

• For optimum performance, aim the Remote Control

directly at the TV from a distance of no more than 16 ft

(5m) and be sure there is no obstruction between the

Remote Control and the TV.

• If your Remote Control does not always adjust the TV

as you wish, you probably need to replace the batter-

ies.

• Remove dead batteries immediately to prevent battery

acid from leaking into the battery compartment.

• If you do not intend to use the Remote Control for a

long period, remove the batteries.

€

Using the Remote with VCR or Cable TV Converter

• To control TOSHIBA VCR, first set the TV/CABLENCR switch to "VCR" position. The buttons shown below will then

control the VCR. The rest of the buttons operate the TV as usual.

If you have another brand of VCR, you can probably program your Remote to control it.

Details are on page 11.

• To control a cable TV converter, this Remote Control must be programmed to recognize the brand of your converter.

See page 11.

Set the TV/CABLENCR switch to "CABLE" position whenever you control the cable TV converter.

Aim at the VCR or cable TV converter

TV/CABLENCR switch

"CABLE" : To control cable

TV converter

"VCR" : To control VCR

Channel number buttons

Press the numbers

desired for direct access.

STOP button

Press to stop the tape.

REC button

Press to start recording.

TV/VCR button

Press to select the TV mode

to view one program while

recording another program.

EDS ADV

REC TV/VCR REW FF

TOSHIBA

-- POWER button

Press the button to turn the

VCR (or converter) on.

Press again to turn off.

CHANNEL A/• buttons

Press • button to select next

higher channel.

Press • button to select next

lower channel.

CH RTN button

See page 18.

PLAY button

Press to begin tape playback.

FF button

Press to rapidly advance the tape. In

playback mode, press to view the picture

moving rapidly in forward direction.

REW button

Press to rewind the tape.

In playback mode, press to

view picture moving rapidly in

reverse.

Shaded buttons can be used to control

the cable TV converter.

Otros manuales para CE35E15

Tabla de contenidos

Otros manuales de TELEVISOR de Toshiba

Toshiba

Toshiba Stasia 17WL46 Manual del instalador

Toshiba

Toshiba UA3D63DA Manual de usuario

Toshiba

Toshiba 32A41 Manual de usuario

Toshiba

Toshiba 29CJZ6DR Manual de usuario

Toshiba

Toshiba 32ZP18P, 36ZP18P Manual de usuario

Toshiba

Toshiba 32SL738G Manual de usuario

Toshiba

Toshiba 32SL863B Manual de usuario

Toshiba

Toshiba 21S23D Manual de usuario

Toshiba

Toshiba CX35F60 Manual de usuario

Toshiba

Toshiba TL969 Digital Series Manual de usuario

Toshiba

Toshiba REGZA RV74 Series Manual de usuario

Toshiba

Toshiba WL76 Digital Series Manual de usuario

Toshiba

Toshiba 55U7763DB Manual de usuario

Toshiba

Toshiba 19SL738B Manual de usuario

Toshiba

Toshiba 29CZ5DE Manual de usuario

Toshiba

Toshiba 34HD82 Manual de usuario

Toshiba

Toshiba 43VJ22P Manual de usuario

Toshiba

Toshiba 26WL36P Guía de inicio rápido

Toshiba

Toshiba 32UL863G Manual de usuario

Toshiba

Toshiba CX32C80 Manual de usuario

Toshiba

Toshiba CF32H40 Manual de usuario

Toshiba

Toshiba 32SL410U Instrucciones de montaje

Toshiba

Toshiba 55UL605U Manual de usuario

Toshiba

Toshiba 219X6M Guía del usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario

Sanyo

Sanyo CE19LD90N-B Manual de usuario
