MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes P/N 480065-A0 P/N 480065-A0 MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes

05/05 05/05

TOSHIBA STORAGE DEVICE DIVISION

MK4007GAL & MK8007GAH

HDD INSTALLATION NOTES

Contents subject to change without prior notice.

GENERAL DESCRIPTION

Toshiba’s MK4007GAL (HDD1622) and MK8007GAH (HDD1584) hard disk drive is

an ultra-slim fast 1.8 inch Winchester disk drive. The drive is ATA-6 compliant.

SPECIFICATIONS MK4007GAL MK8007GAH

HDD1622 HDD1584

FORMATTED CAPACITY 40.0GB 80.012GB

HEIGHT 5mm 8mm

WEIGHT 1.64 ounces (51g) 2.18 ounces (62g)

NO. OF DISKS (PLATTERS) 1 2

NO. OF DATA HEADS 2 4

FUNCTIONAL SPECIFICATION

LOGICAL DRIVE MK4007GAL MK8007GAH

PARAMETERS HDD1622 HDD1584

NO. OF CYLINDERS (user) 62,640

BYTES PER SECTOR 512

BUFFER SIZE 2MB

ROTATION SPEED (±0.1%) 4,200rpm

TRANSFER RATE INTERNAL 164.3 –341 Mbits/sec.

NO. OF CYLINDERS (logical) 16,383

NO. OF HEADS (logical) 16

NO. OF SECTORS/TRACK 63

HOST TRANSFER RATE

PIO/ULTRA DMA (ATA mode) 16.6/100MB/s

SEEK TIME

AVERAGE 15ms

TRACK-TO-TRACK 3ms

MAXIMUM 26ms

TEMPERATURE

OPERATING 41°F - 140°F (5°C - 60°C)

NON-OPERATING -4°F - 149°F (-20°C - 65°C)

HUMIDITY

OPERATING/NON-OPERATING 8 - 90% R.H. (No condensation)

SHIPPING 5 - 90% R.H. (No condensation)

WET BULB 29°C(operating)/40°C(non-operating)

CONNECTOR CABLING INFORMATION

PIN SIGNALS PIN SIGNALS

1 -RESET 2 GROUND

3 DD7 4 DD8

5 DD6 6 DD9

7 DD5 8 DD10

9 DD4 10 DD11

11 DD3 12 DD12

13 DD2 14 DD13

15 DD1 16 DD14

17 DD0 18 DD15

19 GROUND 20 OPEN

21 DMARQ, -DIOW 22 GROUND

23 STOP 24 GROUND

25 -DIOR 26 GROUND

-DMARDY

HSTROBE

27 IORDY 28 CSEL

-DMARDY

-DSTROBE

29 DMACK 30 GROUND

31 INTRQ 32 -IOCS16

33 DA1 34 - PDIAG/-CBLID

35 DA0 36 DA2

37 -CS0 38 -CS1

39 DASP 40 GROUND

41 + 3.3V (LOGIC) 42 + 3.3V (MOTOR)

43 GROUND 44 RESERVED

Note: “-“ in front of signal name indicates negative logic.

MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes P/N 480065-A0 P/N 480065-A0 MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes

05/05 05/05

UNPACKING PROCEDURE

Visually inspect the shipping container prior to unpacking for any signs of damage to

the container or its contents (the carrier is responsible for any damage incurred during

shipment). Prior to opening the anti-static bag, it is recommended that the user ground

himself with a ground strap or by touching the PC chassis or other metal object. Re-

move the drive from the anti-static bag and check it for damage. Save the shipping

container and packing material for possible use later.

HANDLING AND MOUNTING CONSIDERATIONS

•Installation and mounting of these drives is specific to the application environment.

•Handle drive only by the edges. When handling or mounting, take care not to apply

any pressure to the top cover.

•Avoid subjecting the drive to excessive shock. Do not drop the drive, even a

small distance onto a tabletop or other hard surface can damage drive. When

mounting the drive, do so in such a fashion that the drive will be isolated from

excessive shock.

•Do not mount in an environment where the temperature of the drive’s top cover will

exceed 65°C. (During operation, the temperature of the top cover can rise 15°C

above ambient).

•Do not disassemble, modify or repair drive.

•A rattle heard when the drive is moved is normal and not a sign of failure.

•The MK4007GAL and MK8007GAH do not use a standard ATA connector cable

(see Drive Connectors/Pin-out section for additional information.)

INTERFACE CONNECTOR

FIGURE 1 – INTERFACE CONNECTOR JUMPERS

JUMPER P28 DRIVE

No Jumper - Master Drive

C-D Jumper - Slave Drive

B-D Jumper LOW Master Drive

B-D Jumper HIGH Slave Drive

A-B Jumper - Prohibit

A-C Jumper - Prohibit

Three (Type A, B and C) Interface Connectors are available from Fujikura America Inc./

DDK Connector Division To contact them visit their website at (http://www.ddknet.co.jp).

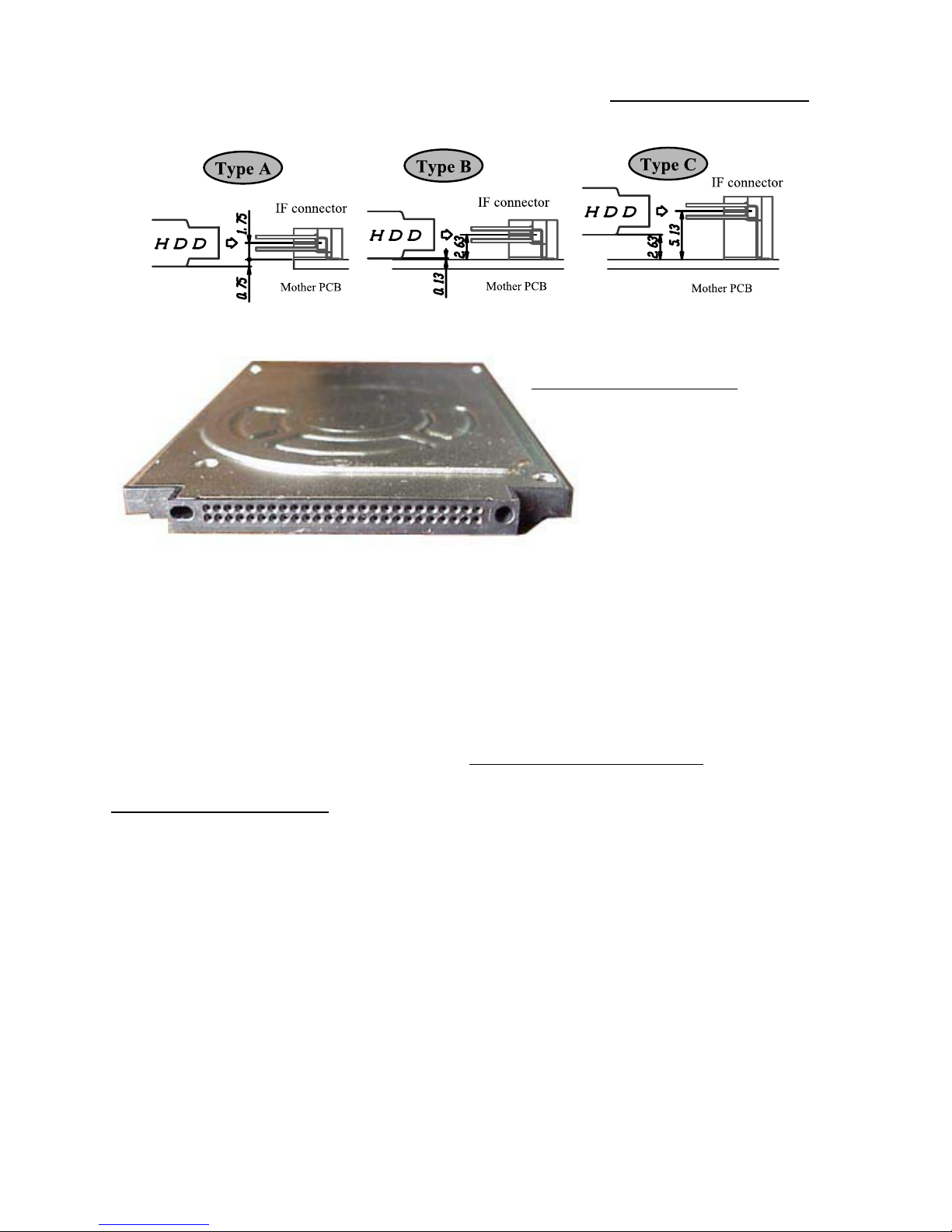

FIGURE 2 – CONNECTORS A, B & C

FIGURE 3 – INTERFACE CONNECTOR

TECHNICAL SUPPORT

Should you require technical sup-

port, contact your computer dis-

tributor. If your distributor is unable to answer your questions, have them call Toshiba

Storage Device Division Technical Support, on your behalf.

TOSHIBA STORAGE DEVICE DIVISON TECHNICAL SUPPORT

Phone: (510) 651-6798

E-mail: [email protected]

FAX: (510) 623-9893

You can also visit Toshiba’s web site at: http://www.sdd.toshiba.com

DEVELOPER SUPPORT

Toshiba Storage Device Division (SDD) the industry pioneer in small form factor

storage supports developers who are looking for small form factor HDD’s that deliver

the unbeatable combination of high-performance and high-capacity storage. Toshiba

HDD’s can be found “under the hood” of some of today’s hottest portable products. If

you are interested in discussing your product application with us please contact us.

E-mail: [email protected]

Phone: (949) 462-7502

Fax: (949) 588-7845

MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes P/N 480065-A0 P/N 480065-A0 MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes

05/05 05/05

UNPACKING PROCEDURE

Visually inspect the shipping container prior to unpacking for any signs of damage to

the container or its contents (the carrier is responsible for any damage incurred during

shipment). Prior to opening the anti-static bag, it is recommended that the user ground

himself with a ground strap or by touching the PC chassis or other metal object. Re-

move the drive from the anti-static bag and check it for damage. Save the shipping

container and packing material for possible use later.

HANDLING AND MOUNTING CONSIDERATIONS

•Installation and mounting of these drives is specific to the application environment.

•Handle drive only by the edges. When handling or mounting, take care not to apply

any pressure to the top cover.

•Avoid subjecting the drive to excessive shock. Do not drop the drive, even a

small distance onto a tabletop or other hard surface can damage drive. When

mounting the drive, do so in such a fashion that the drive will be isolated from

excessive shock.

•Do not mount in an environment where the temperature of the drive’s top cover will

exceed 65°C. (During operation, the temperature of the top cover can rise 15°C

above ambient).

•Do not disassemble, modify or repair drive.

•A rattle heard when the drive is moved is normal and not a sign of failure.

•The MK4007GAL and MK8007GAH do not use a standard ATA connector cable

(see Drive Connectors/Pin-out section for additional information.)

INTERFACE CONNECTOR

FIGURE 1 – INTERFACE CONNECTOR JUMPERS

JUMPER P28 DRIVE

No Jumper - Master Drive

C-D Jumper - Slave Drive

B-D Jumper LOW Master Drive

B-D Jumper HIGH Slave Drive

A-B Jumper - Prohibit

A-C Jumper - Prohibit

Three (Type A, B and C) Interface Connectors are available from Fujikura America Inc./

DDK Connector Division To contact them visit their website at (http://www.ddknet.co.jp).

FIGURE 2 – CONNECTORS A, B & C

FIGURE 3 – INTERFACE CONNECTOR

TECHNICAL SUPPORT

Should you require technical sup-

port, contact your computer dis-

tributor. If your distributor is unable to answer your questions, have them call Toshiba

Storage Device Division Technical Support, on your behalf.

TOSHIBA STORAGE DEVICE DIVISON TECHNICAL SUPPORT

Phone: (510) 651-6798

E-mail: [email protected]

FAX: (510) 623-9893

You can also visit Toshiba’s web site at: http://www.sdd.toshiba.com

DEVELOPER SUPPORT

Toshiba Storage Device Division (SDD) the industry pioneer in small form factor

storage supports developers who are looking for small form factor HDD’s that deliver

the unbeatable combination of high-performance and high-capacity storage. Toshiba

HDD’s can be found “under the hood” of some of today’s hottest portable products. If

you are interested in discussing your product application with us please contact us.

E-mail: [email protected]

Phone: (949) 462-7502

Fax: (949) 588-7845

MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes P/N 480065-A0 P/N 480065-A0 MK4007GAL/MK8007GAH Hard Disk Drive Installation Notes

05/05 05/05

TOSHIBA STORAGE DEVICE DIVISION

MK4007GAL & MK8007GAH

HDD INSTALLATION NOTES

Contents subject to change without prior notice.

GENERAL DESCRIPTION

Toshiba’s MK4007GAL (HDD1622) and MK8007GAH (HDD1584) hard disk drive is

an ultra-slim fast 1.8 inch Winchester disk drive. The drive is ATA-6 compliant.

SPECIFICATIONS MK4007GAL MK8007GAH

HDD1622 HDD1584

FORMATTED CAPACITY 40.0GB 80.012GB

HEIGHT 5mm 8mm

WEIGHT 1.64 ounces (51g) 2.18 ounces (62g)

NO. OF DISKS (PLATTERS) 1 2

NO. OF DATA HEADS 2 4

FUNCTIONAL SPECIFICATION

LOGICAL DRIVE MK4007GAL MK8007GAH

PARAMETERS HDD1622 HDD1584

NO. OF CYLINDERS (user) 62,640

BYTES PER SECTOR 512

BUFFER SIZE 2MB

ROTATION SPEED (±0.1%) 4,200rpm

TRANSFER RATE INTERNAL 164.3 –341 Mbits/sec.

NO. OF CYLINDERS (logical) 16,383

NO. OF HEADS (logical) 16

NO. OF SECTORS/TRACK 63

HOST TRANSFER RATE

PIO/ULTRA DMA (ATA mode) 16.6/100MB/s

SEEK TIME

AVERAGE 15ms

TRACK-TO-TRACK 3ms

MAXIMUM 26ms

TEMPERATURE

OPERATING 41°F - 140°F (5°C - 60°C)

NON-OPERATING -4°F - 149°F (-20°C - 65°C)

HUMIDITY

OPERATING/NON-OPERATING 8 - 90% R.H. (No condensation)

SHIPPING 5 - 90% R.H. (No condensation)

WET BULB 29°C(operating)/40°C(non-operating)

CONNECTOR CABLING INFORMATION

PIN SIGNALS PIN SIGNALS

1 -RESET 2 GROUND

3 DD7 4 DD8

5 DD6 6 DD9

7 DD5 8 DD10

9 DD4 10 DD11

11 DD3 12 DD12

13 DD2 14 DD13

15 DD1 16 DD14

17 DD0 18 DD15

19 GROUND 20 OPEN

21 DMARQ, -DIOW 22 GROUND

23 STOP 24 GROUND

25 -DIOR 26 GROUND

-DMARDY

HSTROBE

27 IORDY 28 CSEL

-DMARDY

-DSTROBE

29 DMACK 30 GROUND

31 INTRQ 32 -IOCS16

33 DA1 34 - PDIAG/-CBLID

35 DA0 36 DA2

37 -CS0 38 -CS1

39 DASP 40 GROUND

41 + 3.3V (LOGIC) 42 + 3.3V (MOTOR)

43 GROUND 44 RESERVED

Note: “-“ in front of signal name indicates negative logic.
