Versatile.

Toshiba’s TLP-X3000U LCD projector offers an incredibly bright display with 3,000 ANSI

lumens in a highly portable form factor. Designed for mobile professionals, educators,

corporate customers and small-to-medium sized businesses, this compact projector also

features built-in anti-theft security, automatic digital keystone correction and “blackboard”

function with wall color adjustment for projecting on a non-screen surface.

Sharp and Bright Display

Toshiba’s TLP-X3000U projector is ideal for

presenters who demand quality, versatility

and performance. Packaged in a compact

form factor, the high-performance

TLP-X3000U features 3LCD technology for

excellent color reproduction, an impressive

3,000 ANSI lumens for a bright display in any

setting, native XGA 1024x768 resolution, and

400:1 contrast ratio to deliver superior image

quality and performance for presentations in

larger settings, from the boardroom to the

lecture hall.

Easy to Use

Ready to go out of the box, the

feature-packed TLP-X3000U is easy to setup

and operate. It features an automatic digital

keystone correction system, allowing

presenters to adjust keystone errors quickly

and easily for a proportional, square picture.

The TLP-X3000U also features a built-in

“blackboard” function with wall color

adjustment for projecting on a non-screen

surface. Simply select a wall color in

accordance with the projecting surface, such

as green, black, brown, blue or beige, to

display properly on a non-screen surface.

Eye-Catching Design and Extensive

Multimedia Features

Toshiba’s sleek and compact TLP-X3000U

includes a host of multimedia capabilities and

connectivity options such as composite and

S-video inputs, audio in/out capabilities, and

a special monitor output connector that

allows users to view presentations from an

external display in addition to what is

projected on the screen.

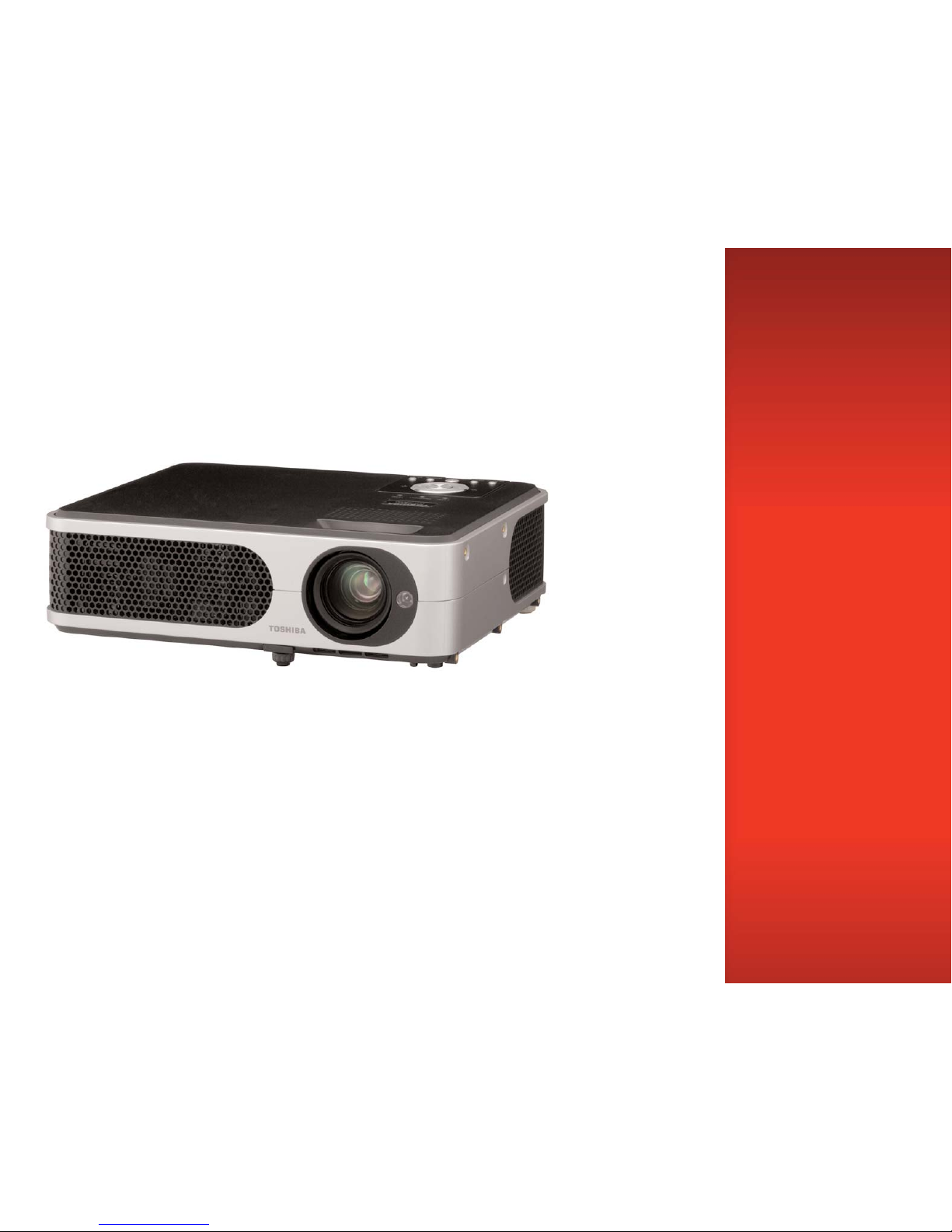

TLP-X3000U

Brightness that goes the distance.

TLP-XC3000U Detailed Product Specifications

Power Source

• 100-240V, 50/60Hz

Replacement Lamp

• TLP-LW12

Box Contents

• Mouse remote control with laser pointer

• Mouse remote control receiver

• Two size AAA batteries

• Power cord

• RGB cable

• CD-ROM

• User's Manual

• Soft Carrying Bag

Other Terminals

• 1x RS-232 (mini DIN 8-pin)

Natural Color Enhancer3

• Yes

Digital Keystone Correction

• Auto Vertical +/- 30°

Auto Set

• Yes

Noise Level

• 36dB (33dB in low mode)

Internal Speaker

• 1.0W Monaural

External Dimensions

• 11.3" x 3.6" x 9.7"

Weight1

• 6.2 lbs.

Power Consumption

• 320W

Product Specifications

Display Technology

• Shape: 0.7" LCD

• No. of Pixels: 786,432 (1024 x 768)

Projection Lens

• Standard Lens: 1.2x manual zoom/manual focus

• F/f (mm): F = 1.8 - 2.1, f = 26.5 - 31.5mm

Light Source

• 220W (160W in low mode)

Brightness

• 3000 ANSI lumens

Native Resolution

• XGA 1024 x 768

Color Reproduction

• Full 16.7 Million Colors

Contrast Ratio

• 400:1

Projection Screen Size (Diagonal)

• 33 - 300 inches

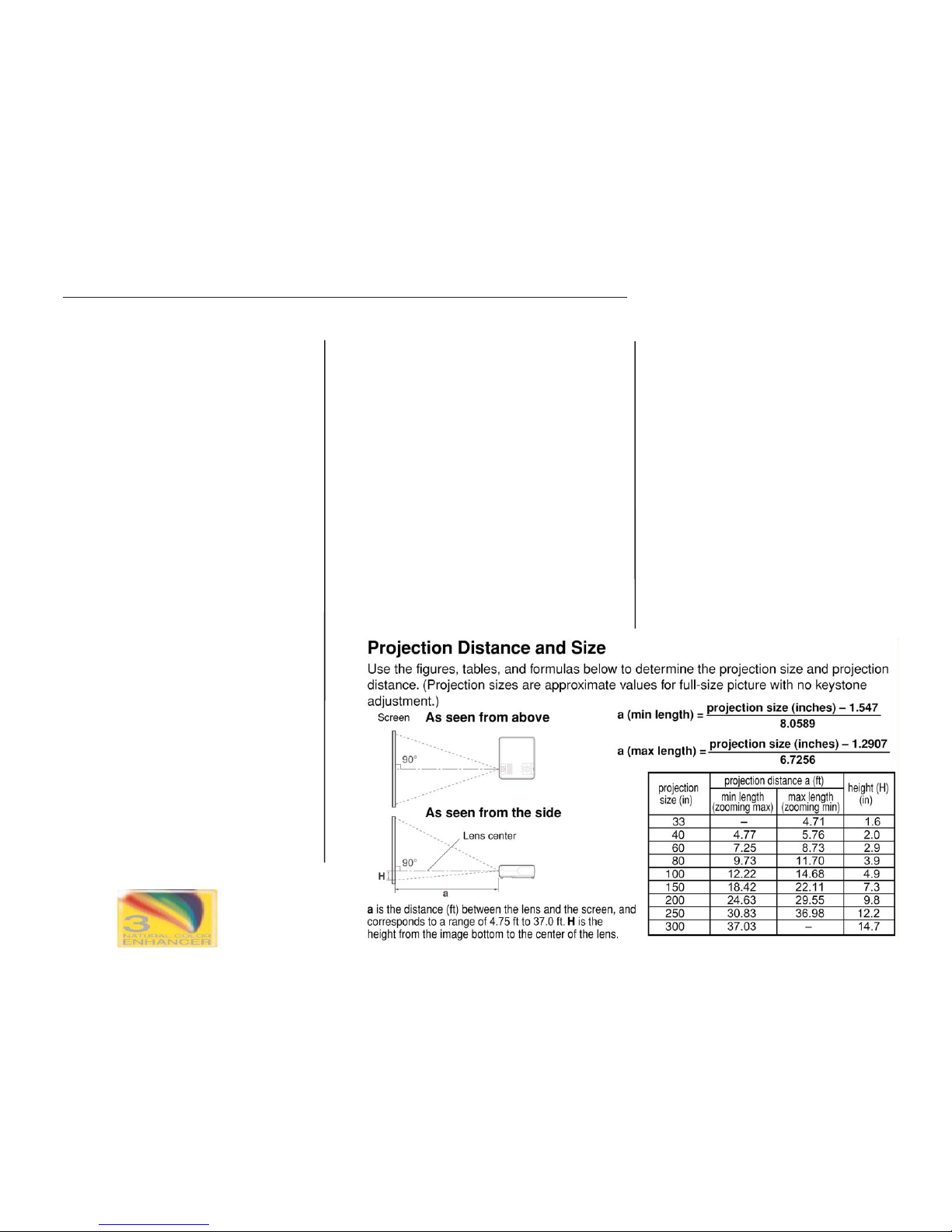

Projection Distance

• 4.8 ft - 37.0 ft

Compatible Scanning Frequency

• Horizontal (kHz): 15.63 - 106.25kHz

• Vertical (Hz): 50 - 85Hz

Input Terminals

• RGB: 1 x D-sub 15

• Video: 1x S-video; 1x RCA for Composite Video

• RGB Audio: 1x stereo mini-jack

• Video Audio: 1x RCA (L/R)

Input Signal Format

• Video: NTSC, PAL, SECAM

• Color Difference: HDTV/DTV (480p/480i/576i/576p/720p/1080i)

• RGB: VGA, SVGA, XGA (native), SXGA (compressed), UXGA

(compressed)

Output Terminal

• Audio: 1x stereo mini-jack (variable output)

• RGB: 1x D-sub 15 terminal share with In/Out

© 2006 Toshiba America Information Systems, Inc. All trademarks are the property of their respective owners. While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.

1 Weight may vary. See Weight Legal Footnote at www.info.toshiba.com.
