PRINTED IN JAPAN

TOSHIBA Thermal Printer

B-SA4T SERIES

Document No. EO15-33001A

Original Jul., 2005

(Revised Sep., 2005)

Option Installation Manual

EO15-33001A

(Revision Date: Feb. 14, 2008)

TABLE OF CONTENTS

Page

1. Cutter Module------------------------------------------------------------------------------------------------------1- 1

1.1 B-SA204-QM/ B-SA204-QM-R ----------------------------------------------------------------------------1- 1

1.2 B-SA204P-QM-R----------------------------------------------------------------------------------------------1- 4

2. Strip Module--------------------------------------------------------------------------------------------------------2- 1

2.1 B-SA904-H-QM-R---------------------------------------------------------------------------------------------2- 1

2.2 B-SA904P-H-QM-R-------------------------------------------------------------------------------------------2- 5

3. Wireless LAN Module: B-SA704-WLAN-QM-------------------------------------------------------------3- 1

4. Serial Interface Board: B-SA704-RS-QM-R --------------------------------------------------------------4- 1

5. 300 dpi Print Head Kit: B-SA704-TPH3-QM-R-----------------------------------------------------------5- 1

6. Real Time Clock: B-SA704-RTC-QM-R --------------------------------------------------------------------6- 1

7. Expansion I/O Board: B-SA704-IO-QM-R-----------------------------------------------------------------7- 1

8. RFID Module: B-SA704-RFID-U2-EU-R--------------------------------------------------------------------8- 1

CAUTION!

1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA

TEC.

2. The contents of this manual may be changed without notification.

3. Please refer to your local Authorised Service representative with regard to any queries you

may have in this manual.

by TOSHIBA TEC CORPORATION

ll Rights Reserved

570 Ohito, Izunokuni-shi, Shizuoka-ken, JAPAN

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

1. Cutter Module

1- 1

INSTALLATION PROCEDURE FOR OPTIONAL

EQUIPMENT

1. Cutter Module

1.1 B-SA204-QM / B-SA204-QM-R

B-SA204-QM/ B-SA204-QM-R is an optional cutter module for the B-SA4TM Series (Metal cover).

•Packing List

The following parts are supplied with the kit. Make sure you have all items shown below.

Cutter Unit (1 pc.)

Cutter Module Cover (1 pc.)

Installation Manual (1 copy)

•Installation Procedure

1. Open the Front Cover, and remove the B-3x6 screw to detach the Connector Cover.

WARNING!

1. Turn the printer power off and disconnect the power cord before installing an optional

equipment.

2. Be careful not to pinch your fingers or hands with the covers.

3. Be careful not to injure your fingers when installing the cutter module.

CAUTION

Do not connect/disconnect the cutter harness to/from the printer within one minute from a power off

rotect the internal electrical circuit of the

rinter.

Front Cove

Connector Cover

B-3x6 Screw

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

1. Cutter Module

1- 2

2. Open the Front Cover wider. Remove the Front Cover by lifting it to disengage the hinge pins from the

hinge. The Front Cover cannot be removed unless it is opened at an angle of over 100 degrees as the

stoppers of the hinge prevent disengagement.

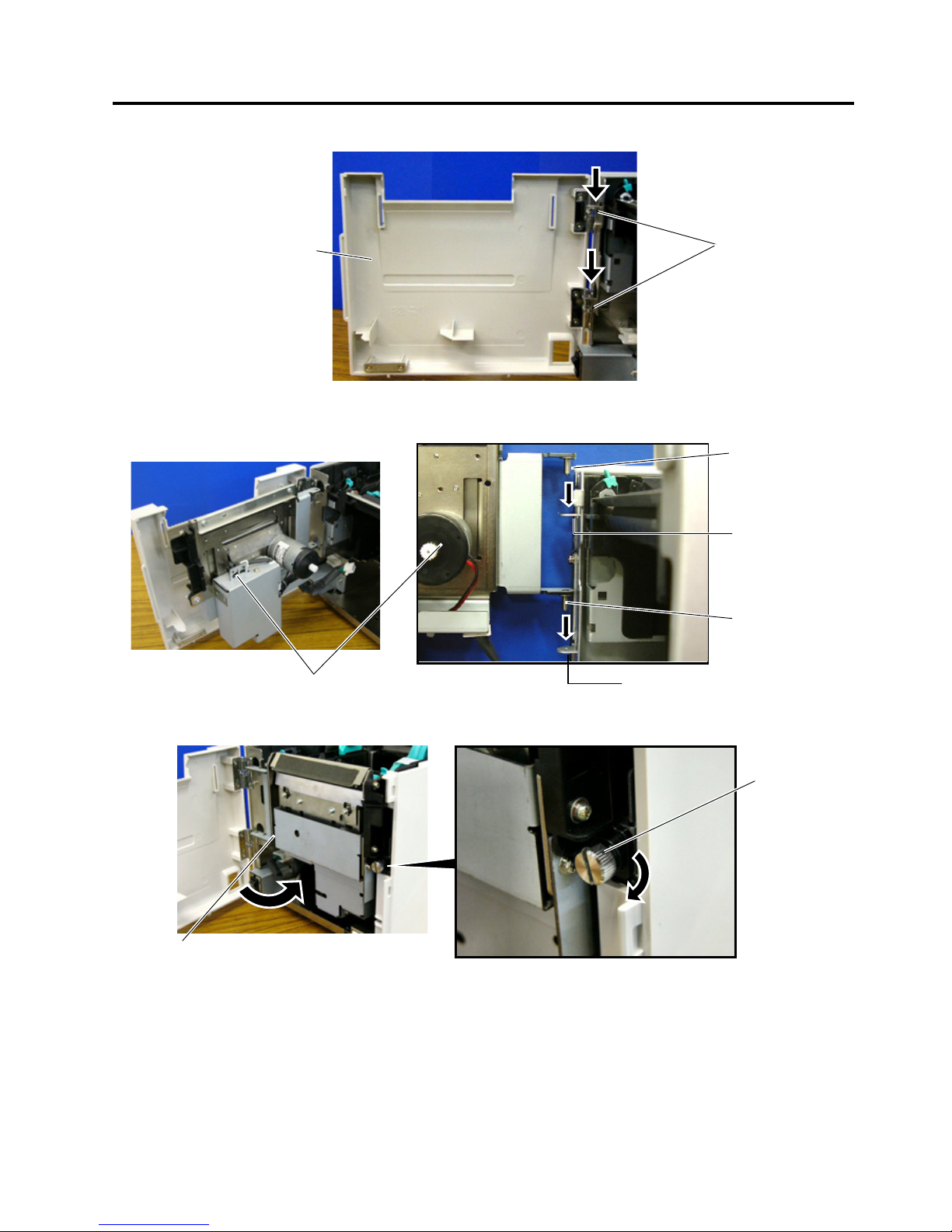

3. Mount the Cutter Module Cover by inserting the hinge pins into the hinges.

4. Fit the Cutter Unit to the front of the printer by inserting the Hinge Pins into the Hinge Pin Holes.

Cutter Module Cove

Hinge

Front Cove

Scre

100°

Cutter Unit

Hinge Pin Hole

Hinge Pin

Hinge Pin Hole

Hinge Pin

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

1. Cutter Module

1- 3

5. Connect the Cutter Harness to the connector at the front of the printer.

6. Close the Cutter Unit and secure it to the printer with the Set Screw.

7. Close the Cutter Module Cover.

• Media loading procedure------------- Owner’s Manual, Section 2.3

• Operation check------------------------ Owner’s Manual, Section 2.9

• System mode setting------------------System Mode Manual

• Cleaning --------------------------------- Owner’s Manual, Section 4.1.3

Cutter Harness

Connector

Cutter Unit

Set Screw

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

1. Cutter Module

1- 4

1.2 B-SA204P-QM-R

B-SA204P-QM-R is an optional cutter module for the B-SA4TP Series (Plastic cover).

•Packing List

The following parts are supplied with the kit. Make sure you have all items shown below.

Cutter Unit (1 pc.)

Cutter Module Cover (1 pc.)

Installation Manual (1 copy)

•Installation Procedure

1. Open the Front Cover, and remove the Connector Cover.

2. Open the Front Cover wider. Remove the Front Cover by lifting it to disengage the hinge pins from the

hinge. The Front Cover cannot be removed unless it is opened at an angle of over 100 degrees as the

stoppers of the hinge prevent disengagement.

CAUTION

Do not connect/disconnect the cutter harness to/from the printer within one minute from a

ower of

rotect the internal electrical circuit of the

rinter.

Front Cove

Connector Cover

B-3x6 Scre

Front Cove

Hinge

100°

Stopper

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

1. Cutter Module

1- 5

3. Mount the Cutter Module Cover by inserting the hinge pins into the hinges.

4. Fit the Cutter Unit to the front of the printer by inserting the Hinge Pins into the Hinge Pin Holes.

5. Close the Cutter Unit and secure it to the printer with the Set Screw.

Cutter Module Cove

Hinge

Cutter Unit

Hinge Pin

Hinge Pin Hole

Cutter Unit

Set Screw

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

1. Cutter Module

1- 6

6. Secure the ground wire of the cutter unit to the printer with the B-3x6 screw removed in Step 1, as shown

in the picture.

7. Connect the cutter harness to the connector at the front of the printer.

8. Close the Cutter Module Cover. After that, perform an operation check for a proper cut issue.

• Media loading procedure------------- Owner’s Manual, Section 2.3

• Operation check------------------------ Owner’s Manual, Section 2.9

• System mode setting------------------System Mode Manual

• Cleaning --------------------------------- Owner’s Manual, Section 4.1.3

Cutter Harness

Ground Wire

B-3x6 Screw

Ground Wire

Cutter Harness

Connecto

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

(Revision Date: Jan. 19, 2006)

2. Strip Module

2- 1

2. Strip Module

NOTE: Make sure that the firmware version is V1.1 or greater. Firmware V1.0 does not support the strip module.

2.1 B-SA904-H-QM-R

B-SA904-H-QM-R is an optional strip module for the B-SA4TM Series (Metal cover).

•Packing List

The following parts are supplied with the kit. Make sure you have all items shown below.

Strip Unit (1 pc.)

Strip Module Cover (1 pc.) SMW-3x6 Screw (4 pc.)

Cutter (1 pc.)

Guide Roller (1 pc.)

Installation Manual (1 copy)

NOTE: When issuing labels in batch mode even though the strip module is fitted, please use the provided cutter

to tear off the issued labels. Do not attach the cutter when labels are stripped one by one.

•Installation Procedure

1. Open the Top Cover and the Front Cover. Remove the B-3x6 screw to detach the Connector Cover.

Front Cove

Top Cover Connector Cover

B-3x6 Scre

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A

2. Strip Module

2- 2

2. Open the Front Cover wider. Remove the Front Cover by lifting it to disengage the hinge pins from the

hinge. The Front Cover cannot be removed unless it is opened at an angle of over 100 degrees as the

stoppers of the hinge prevent disengagement.

3. Mount the Strip Module Cover by inserting the hinge pins into the hinges.

4. Fit the Shaft Holders of the Backing Paper Feed Roller into the cuts of the printer.

Hinge

Strip Module Cove

Shaft Holder

Strip Unit

Cut

Backing Paper Feed Roller

Hinge

Front Cove

Scre

100°
