FormNo.3424-532RevA
Fold-DownRearFacingSeat
Workman®GTXUtilityVehicle
ModelNo.07123
InstallationInstructions
Safety

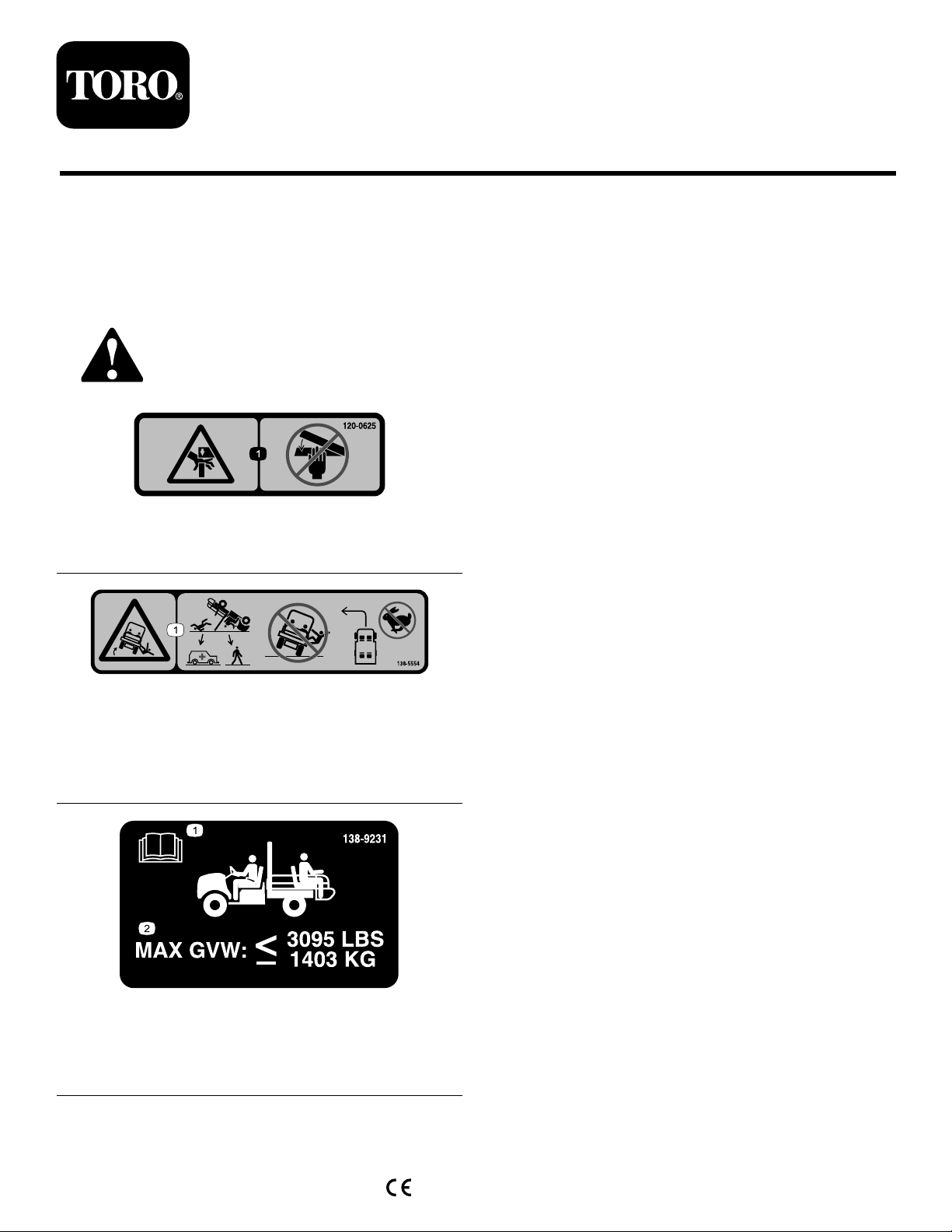

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal120-0625
120-0625
1.Pinchpoint,hand—keephandsaway.
decal138-5554
138-5554
FormachineswithaROPSinstalledonly
1.Tippinghazard—thereisnoROPSprotectionforrear
passengers;avoidtippingthemachine;donotturncorners
quickly.
decal138-9231
138-9231
1.ReadtheOperator’s
Manual.
2.Maxgrossvehicleweight
mustbelessthan1,403
kg(3,095lb).
©2018—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3424-532*A
Installation
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
DescriptionQty.Use
Nopartsrequired–Preparethemachineforinstallation.
Nopartsrequired–Removetheplasticcargobed.
Flatbed1
Footrest1
Carriagebolt(3/8x3inches)10
Hexnut(3/8inch)17
Button-headscrew(3/8x1inch)7
Rear-seathandle1
Hold-downstrap1
Countersunkscrew(1/4inch)2
Locknut(1/4inch)2
Siderail2
Rivet10
Rubbergrommet8
Installtherear-facingseat.
Nopartsrequired–Foldtherear-facingseat(whendesired).
Decal120-06252
Decal138-55542Applythedecals.
PreparingtheMachine
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.
g038447
Figure1
2
RemovingthePlasticCargo
Bed
1.Usinganoverheadhoist,raisetheplasticcargo
bed.
2.Removethe3ange-headscrews(5/16x3/4
inch)andU-bracketfromtheproprod(Figure2).
Note:Retainthehardwaretoinstalltheplastic
cargobedinthefuture.
g244196
Figure2
1.Proprod3.Flange-headscrew(5/16
x3/4inch)
2.U-bracket
3.Slidetheproprodforwardoutofthedetentslot
andremovetheproprod(Figure3).
g037393
Figure3
1.Detentslot2.Proprod
4.Usinganoverheadhoist,lowerthecargobed.
5.Removethe2pivotbolts(1/2x4-1/2inches)
and2locknuts(1/2inch)fromthepivotbracket
locatedattherearofthemachine(Figure4).
Note:Retainthehardwareforinstallation
oftheatbedassemblyin1inInstallingthe
Rear-FacingSeat(page4).
g037303
Figure4
1.Pivotbolt(1/2x4-1/2
inches)
3.Locknut(1/2inch)
2.Pivotbracket
6.Releasethecargo-bedlever,thenraiseand
removethecargobedusinganoverheadhoist.
7.Removethe2bedlatchesfromtheframeofthe
machinebyremovingthe4ange-headscrews
(3/8x2-1/2inches)and4nuts(3/8inch)as
showninFigure5.
Note:Retain2ange-headscrews(3/8x2-1/2
inches)and2nuts(3/8inch)forinstallation
oftheatbedassemblyinstep1inInstalling
theRear-FacingSeat(page4).Retainthe
remaininghardwaretoinstalltheplasticcargo
bedinthefuture.
g243577
Figure5
1.Flange-headscrew(3/8x
2-1/2inches)
3.Nut(3/8inch)
2.Bedlatch
3
InstallingtheRear-FacingSeat
1.Installtheatbedontotheframeofthemachineusingthe2pivotbolts(1/2x4-1/2inches),2locknuts(1/2
inch),2ange-headscrews(3/8x2-1/2inches),and2nuts(3/8inch)previouslyremovedinsteps5and
7ofRemovingthePlasticCargoBed(page3).RefertoFigure6.
g243601
Figure6
1.Nut(3/8inch)3.Locknut(1/2inch)
2.Flange-headscrew(3/8x2-1/2inches)4.Pivotbolt(1/2x4-1/2inches)
2.Attachthefootrestontotheatbedusing2carriagebolts(3/8x3inches),7button-headscrews(3/8x1
inch),and9hexnuts(3/8inch)asshowninFigure7.
g243647
Figure7
1.Carriagebolts(3/8x3inches)3.Hexnut(3/8inch)
2.Button-headscrew(3/8x1inch)
4
3.Install4rubbergrommetsontotherear-seathandle(AofFigure8).
4.Install2countersunkscrews(1/4inch)and2locknuts(1/4inch)ontotherear-seathandle(BofFigure8).
5.Feedthehold-downstrapthroughthebottomofthefootrest(CofFigure8).
6.Installtherear-seathandleontothefootrest(DofFigure8).
7.Securetherear-seathandletothefootrestbypullingthehold-downstrapupandaroundthecountersunk
screw(EofFigure8).
g243744
Figure8
8.Installthesiderailstotheatbedassemblywith8carriagebolts(3/8x3inches)and8hexnuts(3/8
inch)asshowninFigure9.
g258079
Figure9
1.Carriagebolt(3/8x3inches)2.Hexnut(3/8inch)
5
FoldingtheRear-FacingSeat
1.Removetherear-seathandleandlayitatonthefootrestliningupthetabonthehandlewiththehandle
holeonthefootrest(Figure12).
2.Securethehandletothefootrestusingthehold-downstrapandcountersunkscrewontherear-seat
handle(Figure12).
g244241
Figure12
1.Rear-seathandle4.Notch
2.Hold-downstrap5.Countersunkscrew
3.Handlehole
3.Rotatetheseatforwardandremovethequickpin(Figure13).
g244252
Figure13
1.Quickpin
7

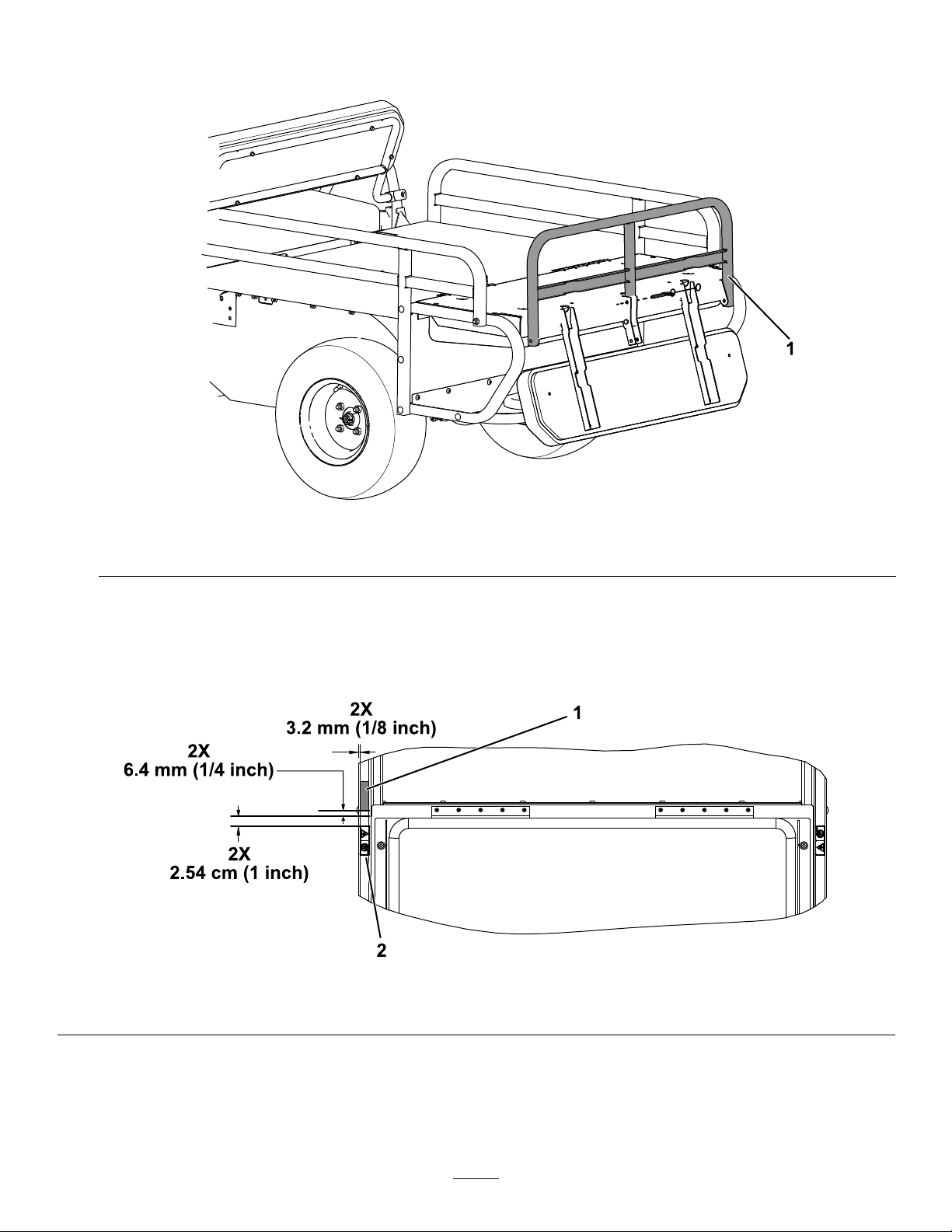

4.FoldthebackrestsupportupandreplacethequickpinasshowninFigure14.
Note:Thebackrestsupportactsasabacktailgate.
g244254
Figure14
1.Backrestsupport
ApplyingtheDecals
Applythe2pinch-pointwarningdecals(120-0625)and2tippinghazarddecals(138-5554)totherear-facing
seatframeusingthemeasurementsshowninFigure15.
g258505
Figure15
1.Tippinghazarddecal(138-5554)2.Pinch-pointwarningdecal(120-0625)
8
