TorcUP RAPTOR RP Series Guía de configuración
Repair Instructions
2nd Stage Raptor Replacement
Tools required:
3/16 inch allen wrench, pliers & bin for balls

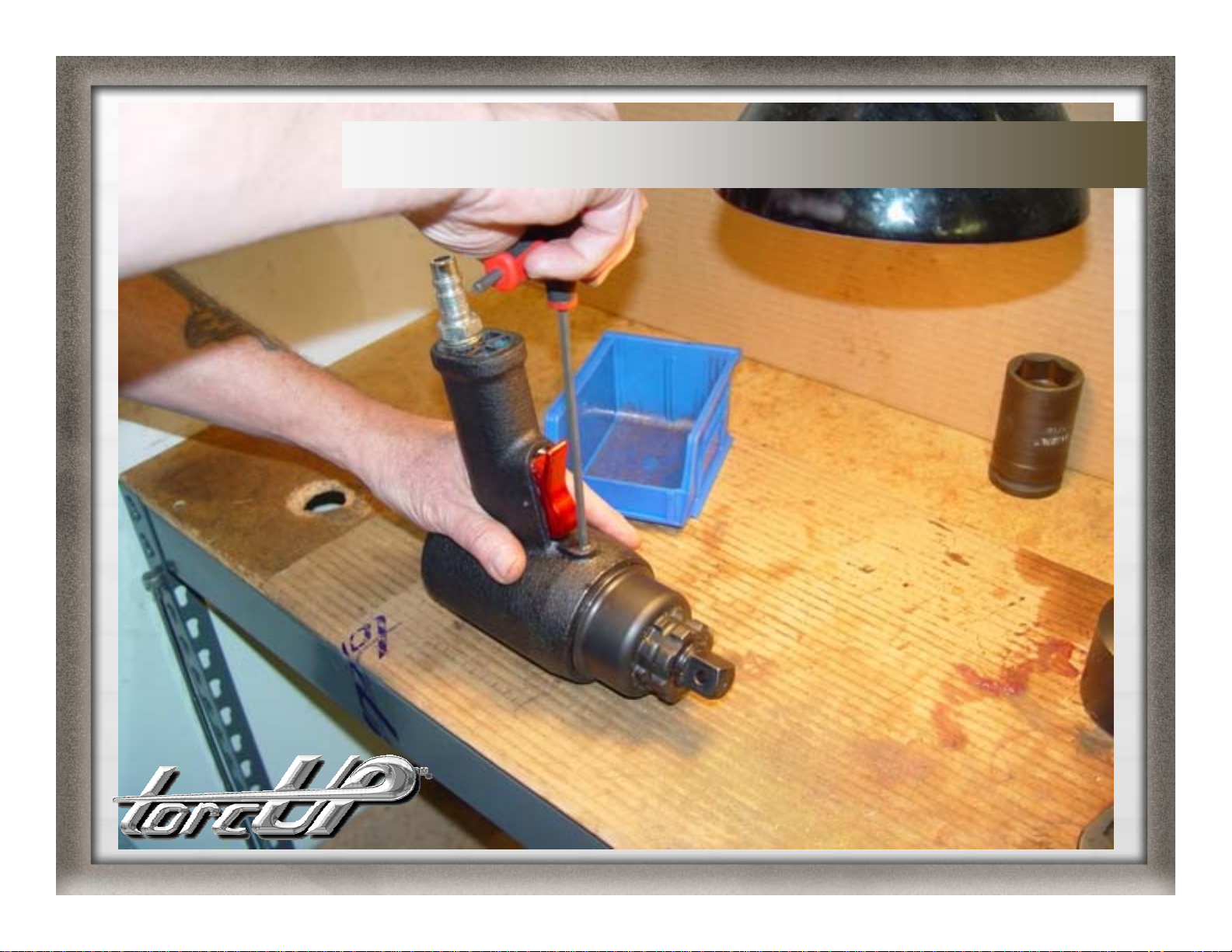

Remove ball plug with allen wrench
Showing plug removed
Place Raptor over bin so balls will drop into bin
Write here
Rotate annulus alternately counter clockwise
allowing balls to drop out
•G:\Raptor_BreakApart\expor\Raptor_Asse
mble (10).jpg
Write here
Showing a ball dropping out
Write here
Continue turning until all balls are out and annulus
comes from motor
Write here
Pull apart gearbox from motor and check to ensure
gears are in gear housing as shown
Write here
Use socket to position gearbox vertically for stability
