6V/12V Wireless Battery and System Tester

USER MANUAL

BT MOBILE

Welcome

About

Package List

Compatibility

Features

APP Installation & Setup

Operation Introduction

Technical Specication

Warranty

Warnings

Cautions

FAQ

Content

English

Welcome

Thank you for purchasing the TOPDON BT MOBILE wireless battery tester.

Please read and understand this manual carefully before using this product.

About

BT MOBILE is a 6V/12V wireless battery and system tester, adopting the

most advanced conductance detection technology and reverse polarity

protection technology to provide key information about battery health for

technicians, professionals, so as to quickly, easily and accurately identify

battery and charging problems.

Package List

1.BT MOBILE Wireless Battery Tester 2.User Manual

4 5

Compatibility

Please be noted that battery type and CCA values (Cold Cranking Amp)

marked on the battery label. Please refer to it before using BT MOBILE.

1. Regular Flooded

2. AGM Flat plate

3. AGM Sprial

4. GEL

5. EFB

NOTE: If your vehicle battery is not the battery mentioned above and you

are not sure about which type it is, please choose AGM to conduct test, and

the error is within 10%.

Features

Bad battery connect - green light on

Normal battery connect - green light off

Bluetooth connection successfully - blue light on

Fault red light

Green Light

Blue Light

Red Light

LED Indicator

Indicator Display

Battery Status

6 7

APP Installation & Setup

Installation:

Download and install the App: “BT MOBILE” in Apple Store or Google Play.

NOTE: For Apple devices, update to iOS 8.0 or later; Android devices, OS 4.3

or later.

For the rst time, you can

choose to register with

email or skip login.

Setup:

Drop-down Menu Function:

8 9

Operation Introduction

Before Test:

Before you test a battery in a vehicle, turn off the ignition, all accessories

and loads. Close all of the vehicle’s doors and trunk lid.

Make sure the battery terminals are clean. Use a wire brush to clean

them, if necessary.

NOTE: This tester works best if the battery connectors have been

removed and the battery posts have been cleaned. Any corrosion

between the tester clamps and the battery connectors, or between

the battery connectors and the battery posts, will degrade the tester’s

efciency.

Connect the RED (+) Positive Battery Clamp to the (+) positive battery

terminal, and connect the BLACK (-) Negative Battery Clamp to the (-)

negative battery terminal. Ensure that the clamps are securely attached

to the correct terminals.

Open the Bluetooth on mobile phone.

Test Introduction

• BATTERY TEST: Display SOH (State of Health), SOC (State of Charge),

Voltage, Current, Rating, and the readable analysis results on App;

• CRANKING TEST:Analyze the actual cranking voltage and the cranking

time to help you quickly gure out the whole state of the starting system;

• CHARGING TEST: Test different parts of charging system, including

generator, rectier, rectier diode, and so on for a reliable charging volt

value.

1. Battery Test (for 12V battery)

Open the APP on your mobile device and log in.

Click the flashing Bluetooth logo in the upper right corner of the home

screen to enter the connection interface and search for the matching

device name (If the Bluetooth connection is successful, the Bluetooth

logo stops flashing).

10 11

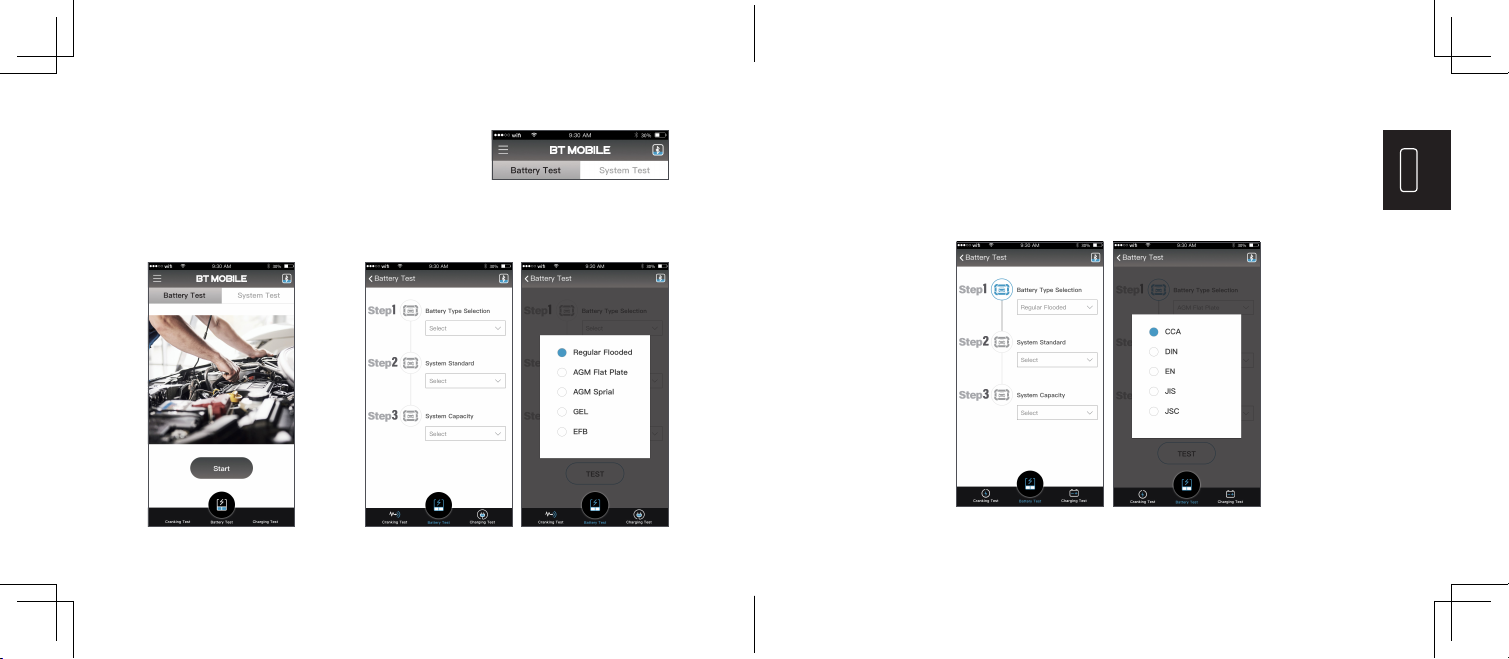

Click “Battery Test”

on the home screen

and click “Start”.

Click the matching device name to connect.3) Select the standard value marked on the battery label, and click “OK” to

conrm.

NOTE: If the battery is JIS standard, please refer to the table for value

and select CCA (SAE) as the test standard (please Google JIS to CCA).

Select battery type and click “OK”

to conrm.

12 13

Select standard value marked on the battery label and click “OK”

to conrm.

Click “Next” and wait a few seconds for results.

Drop down to share the results.

14 15

2. Cranking Test

Click “Cranking Test” on the home screen, and then click “Start”.

NOTE: The engine and all other accessory loads must be OFF during test.

Follow the steps and start vehicle.2)

16 17

Click “Test” to get the results.

Drop down to share the results.

3. Charging Test

Click “Charging Test” on the home screen, then click “Start”.

NOTE: The engine must be ON during test.
