TOORX TRX SMART COMPACT Manual de usuario
Ed : 03/17 Rev : 00
INSTRUCTION
2
The treadmill has been designed and constructed to provide trouble free usage and enjoyable exercise.
You can greatly improve your understanding and benefits of exercising by carefully reading the instructions
given in this manual. Please familiarize yourself with the maintenance advice provided for you.
•Drive Motor: 1.2 HP
•Speed Range: 1.0 –12kmph
•Running Surface: 420 m/m x 1200 m/m
•Folding Design: Yes
INTRODUCTION
MAX.USER WEIGHT 100 KGS
SPECIFICATIONS
Handrail
Running Belt
Main Frame
Safety Key
Console
Inclination Adjustor
Handpulse
3
ASSEMBLY
PACK
CHECK
LIST
ASSEMBLY PACK CHECK LIST
#99. M5 × P0.8 × 12L
Phillips Head Screw (2 pcs) #111. Lubricant (1 pc)
#112. L Allen Wrench (1pc)
#115. Short Phillips Head Screw Driver (1pc)
4
ASSEMBLY
Step 1.
Place the treadmill on level ground.
Step2.
Install Front Frame Base Cover (L)(R) (37) and (38) on the treadmill and use Short Phillips Head
Screw Driver (115) to tighten 2 pcs of M5 × P0.8 × 12L_Phillips Head Screw.
99
99
37
38
115
NOTE: Please Tighten All Screw After All Components Assembly Complete.
ASSEMBLY
5
Unfolding Procedure
Step 1.
Place the treadmill on level ground.
Step 2.
Press and hold the Release To Push A Button (Bottom)(48) and pull Uprights (L, R) (3,2) as the
arrow indicates to the end position.
48 3
2
UNFOLDING
FOLDING
TRANSPORT
6
Step 3.
Press and hold Release To Push A Button (Top) (23) and turn Console Support (4) as indicated
below and unfold console Assembly (26) into place.
4
23
26
UNFOLDING
FOLDING
TRANSPORT
7
Folding Procedure
Step 1.
Fold Console Assembly (26).
26
Step 2.
Press and hold the Release To Push A Button (Top) (23) and pull Console Support (4) up to the
end.
4
23
UNFOLDING
FOLDING
TRANSPORT
8
Step 3.

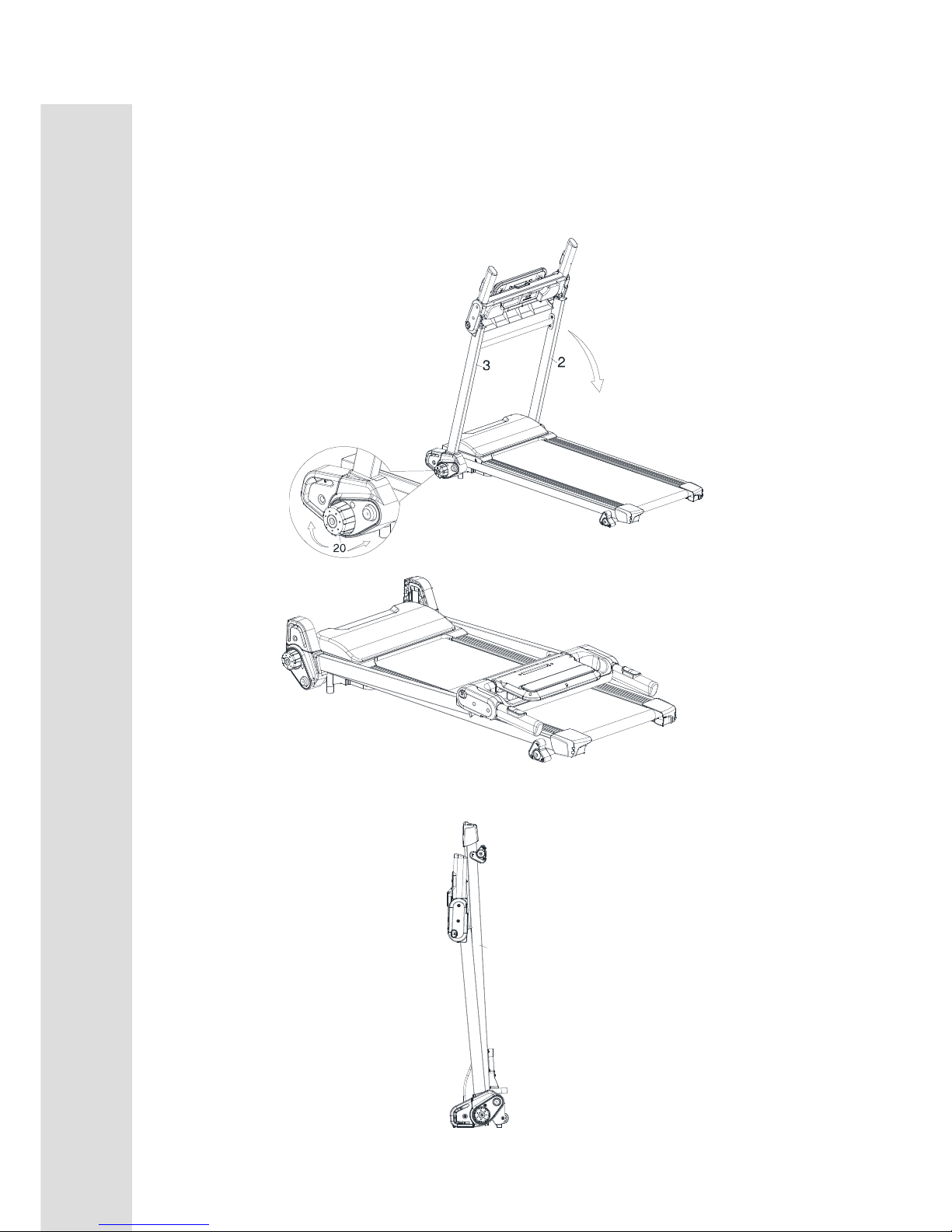

Press and turn Brake Tension Knob (20) clockwise and pull Uprights (L, R) (3,2) as the arrow
indicates to the end position.
Step 4.
Pull up the Main Frame (1) to fold up the treadmill.
1
UNFOLDING
FOLDING
TRANSPORT
9
FUNCTIONS
COMPUTER OPERATION INSTRUCTIONS
Button Function
A > “START/ STOP” Button
Press this button to start the operation of the treadmill with the starting speed at 1.0 KPH.
Press it again to stop the treadmill with the speed gradually slow down until full stop.
B > “CLEAR/SET” Button
Pressing this button resets TIME, DISTANCE, CALORIE .When in the manual mode, press this
button to set parameters TIME, DISTANCE, CALORIE . Although three parameters can be set,
only the last parameter set is accepted . press mode key will reset and go to idle mode.
D > “MODE” Button
In ready mode, Press "MODE" button to select the training mode. There are 12 built-in programs
to select.
E > “FAST” Button
1. Press the "FAST" button to increase the speed until the proper speed. Hold this key for 3
seconds will quickly increase the speed.
2. In setting mode, pressing "FAST" button changes the parameter (increases).
F> “SLOW” Button
1. Press the "SLOW" button to decrease the speed until the proper speed. Hold this key for 3
seconds will quickly decrease the speed.
2. In setting mode,pressing "SLOW" button to change the parameter(decreases).
G> “RAPID SPEED” Button
Press quick buttons 3, 6 and 9(KPH) or WALK for low speed, JOG for medium speed and RUN
for high speed,
10
FUNCTIONS
Get prepared before using the treadmill
Be sure that the power complies with product specification prior to turning on the treadmill. The red
light of the switch comes on and the console shows E0 when the treadmill turns on. Put the safety
key in place and clip on the other end to the cloth and be ready for the workout.
Quick Start
1.Place the safety key and the treadmill is in manual mode. Press START/STOP button to begin the
workout.
2.The initial speed is 1.0KPH. You can adjust the speed by pressing “FAST”, “SLOW” and “RAPID
SPEED” buttons.
3.You can press START/STOP button or pull out the safety key, in case of emergency, any time when
the treadmill is operating. The speed will slow down gradually till fully stop.
4.While in manual mode, pressing “CLEAR/SET” button sets time, distance and calorie. Pressing
FAST and SLOW buttons changes the value. When finish setting, press START/STOP to begin the
workout. (The system accepts only the last item set. When the value of the set item is reached, the
treadmill stops.)
Handgrip pulse feature
Any time when the treadmill is operating, grasping handgrip shows treadmill pulse feature
and the heart beat value is displayed. Grasp firmly while using this feature otherwise the
value fluctuates.
Calorie Display
The calorie display shows the value of heat energy consumed during the workout.
Built-in programs
Pressing MODE and there are 12 build-in programs, P1, P2, P3 … and P12, to choose. The speed
varies automatically and hence these programs are not recommended for the beginners or children.
