Toastmaster TB208 Manual de operación

Middleby Cooking Systems Group  1400 Toastmaster Drive  Elgin, IL 60120  (847)741-3300  FAX (847)741-4406

P/N 30858

Price $30.00

Rev. C  V1  2/99

OWNER'S OPERATING

& INSTALLATION

MANUAL

TB208/TB240/

TW208/TW240

Eng (UL)

Conveyor Toaster

Models TB208, TB240, TW208, TW240

NO QUIBBLE LIMITED WARRANTY

TOASTMASTER, HEREINAFTER REFERRED TO AS THE SELLER, WARRANTS

EQUIPMENT MANUFACTURED BY IT TO BE FREE FROM DEFECTS IN MATERIAL

AND WORKMANSHIP FOR WHICH IT IS RESPONSIBLE. THE SELLERS OBLIGATION

UNDER THIS WARRANTY SHALL BE LIMITED TO REPLACING OR REPAIRING, AT

SELLERS OPTION, WITHOUT CHARGE, ANY PART FOUND TO BE DEFECTIVE AND

ANY LABOR AND MATERIAL EXPENSE INCURRED BY SELLER IN REPLACING OR

REPAIRING SUCH PART. SUCH WARRANTY SHALL BE LIMITED TO THE ORIGINAL

PURCHASER ONLY AND SHALL BE EFFECTIVE FOR A PERIOD OF ONE YEAR

FROM DATE OF ORIGINAL INSTALLATION, OR 18 MONTHS FROM DATE OF

PURCHASE, WHICHEVER IS EARLIER; PROVIDED THAT TERMS OF PAYMENT

HAVE BEEN FULLY MET.

As part of Toastmasters no quibble warranty, all in-warranty Toastmaster products that require service,

are to be serviced on site.

The warranty period for Accu-Miser griddles shall be 24 months from the date of installation or 30 months

from the date of purchase, whichever is earlier.

Normal maintenance functions, including lubrication, cleaning, or customer abuse, are not covered by this

no quibble warranty.

Seller shall be responsible only for repairs or replacements of defective parts performed by Sellers authorized

service personnel. Authorized service agencies are located in principal cities throughout the contiguous

United States, Alaska, and Hawaii. This warranty is valid in the 50 United States and is void elsewhere

unless the product is purchased through Middleby International with warranty included.

The foregoing warranty is exclusive and in lieu of all other warranties, expressed or implied. There

are no implied warranties of merchantability or of fitness for a particular purpose.

The foregoing shall be Sellers sole and exclusive obligation and Buyers sole and exclusive remedy for any

action including breach of contract or negligence. In no event shall Seller be liable for a sum in excess of the

purchase price of the item. Seller shall not be liable for any prospective or lost profits of Buyer.

Toastmaster  1400 Toastmaster Drive  Elgin, IL 60120  USA  (847)741-3300  FAX (847)741-4406

Middleby Corp 24-Hour Service Hotline 1-800-238-8444

www.middleby.com

WARNING: IN CASE OF FIRE

Disconnect the toaster from its power source IMMEDIATELY. Shutting down the electrical heating

elements allows the unit to cool, making it easier to put out the fire.

WARNING: FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS OR LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE

WARNING

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR

MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ

THE INSTALLATION AND OPERATING INSTRUCTIONS THOROUGHLY BEFORE

INSTALLING OR SERVICING THIS EQUIPMENT.

WARNING

DO NOT OPERATE THE CONVEYOR TOASTER:

ON EITHER OF ITS SIDES

ON ITS REAR SURFACE

WITHOUT LEGS

PREMATURE FAILURE OF THE HEATING ELEMENTS WILL OCCUR.

WARNING

DISCONNECT THE TOASTER FROM ITS ELECTRICAL POWER SUPPLY BEFORE

CLEANING OR SERVICING.

CAUTION

Using any parts other than genuine Toastmaster factory parts relieves the

manufacturer of all liability.

IMPORTANT

Contact your authorized service agent to perform maintenance and repairs. A service agency

directory is supplied with your oven.

IMPORTANT

Toastmaster (manufacturer) reserves the right to change specifications and product design

without notice. Such revisions do not entitle the buyer to corresponding changes, improvements,

additions or replacements for previously purchased equipment.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

This manual provides detailed information for the installation and operation of your Conveyor Toaster. It

also contains information to assist the operator in diagnosing problems in the event of a malfunction. This

manual is an important tool for the operator and should be kept readily available.

TABLE OF CONTENTS

SECTION 1

DESCRIPTION ..................................................................................................................................................... 1-1

A. Features .................................................................................................................................................. 1-1

B. Component Location................................................................................................................................ 1-1

C. Component Function ............................................................................................................................... 1-1

D. Toaster Specifications ............................................................................................................................. 1-2

SECTION 2

INSTALLATION ................................................................................................................................................... 2-1

A. Unpacking ............................................................................................................................................... 2-1

B. Assembly ................................................................................................................................................. 2-1

C. Electrical Connection ............................................................................................................................... 2-2

D. Checking the Installation.......................................................................................................................... 2-2

SECTION 3

OPERATION ........................................................................................................................................................ 3-1

A. Location and Function of Controls ........................................................................................................... 3-1

B. Operation Procedure ............................................................................................................................... 3-1

C. Shutdown Procedure ............................................................................................................................... 3-1

D. Clearing Jams ......................................................................................................................................... 3-2

E. Daily Cleaning ......................................................................................................................................... 3-2

SECTION 4

WIRING DIAGRAM .............................................................................................................................................. 4-1

iii

1-1

SECTION 1 - DESCRIPTION

Figure 1-1

Component location

SECTION 1

DESCRIPTION

A. FEATURES

Toastmaster Model TB208, TB240, TW208, and

TW240 Toasters are:

 Conveyor toasters.

 Equipped with an entry rack used to deliver the food

product into the toaster.

 Equipped with an internal slide-out crumb tray

 Equipped with an exit rack and a return crumb tray.

 Equipped with a Standby mode that saves energy

during slow periods and allows a quick return to

normal operation.

B. COMPONENT LOCATION

The major components of the toaster are shown in Figure

1-1 below.

C. COMPONENT FUNCTION (see Figure 1-1)

ON/OFF/STANDBY knob - see Section 3, Operation.

DARKER/LIGHTER knob - see Section 3, Operation.

3. Entry rack - Loaded with the product to be toasted.

The product then slides onto the conveyor. The entry

rack can be removed for cleaning.

4. Conveyor - Transports the product through the

toaster, and between the top and bottom heating

elements. The conveyor is driven by its own motor.

3. Entry rack

4. Conveyor

5. Heating elements

(inside toaster)

7. Return crumb tray

6. Exit rack

1. ON/OFF/STANDBY knob

2. DARKER/LIGHTER knob

5. Heating elements - Toast the food product. Three

elements are located above the conveyor, while one

is located below it.

6. Exit rack - Receives the toasted product as it leaves

the conveyor, then delivers the product underneath

the front of the toaster. The exit rack can be removed

for cleaning.

7. Return crumb tray - Collects crumbs from the toasted

product. The tray can be removed for cleaning.

1-2

SECTION 1 - DESCRIPTION

D. TOASTER SPECIFICATIONS

Overall Dimensions: TB208 TB240 TW208 TW240

Width 16-1/2 (419mm)

Depth (includes 2-1/4 / 57mm back guard) 25-1/4 (641mm)

Height (includes 4 / 102mm legs) 16-1/4 (413mm)

Toasting Chamber Dimensions:

Width 11-1/2 (292mm)

Length 15 (381mm)

Height of Opening

1-3/4 (44mm) 1-3/4 (44mm) 2-1/2 (64mm) 2-1/2 (64mm)

Toaster Information:

Approximate Net Weight 75 lbs. (34.0kg)

Approximate Shipping Weight 80 lbs. (36.3kg)

Construction Formed and welded sheet steel

Finish Stainless steel

Pre-Heat Time 20 Minutes

Delivery Time for First Bagel/Muffin 1 Minute 40 Seconds

Production Capacity 400 Bagels/Muffins per hour

Electrical Specifications:

Operating Voltage 208V 240V 208V 240V

Frequency 50/60Hz

Phase 1 Ph

kW Rating 2.7kW 2.9kW 2.7kW 2.9kW

Current Draw 13.1A 12.1A 13.1A 12.1A

Plug Type NEMA 6-15P (USA) or NEMA 6-20P (Canada)

2-1

SECTION 2 - INSTALLATION

SECTION 2

INSTALLATION

A. UNPACKING

IMPORTANT

IT IS THE CUSTOMERS RESPONSIBILITY TO

REPORT ANY CONCEALED OR NON-CONCEALED

DAMAGE TO THE FREIGHT COMPANY.

1. Remove the staples from the shipping carton.

2. Lift out the foam packaging and poly bag from around

the toaster.

3. Carefully lift the toaster out of the carton.

4. Remove all loose materials from the carton, including

the information packet.

5. Remove any parts or packaging materials from inside

the toasting chamber.

6. Retain all shipping materials until it is certain that

the toaster has not suffered concealed shipping

damage.

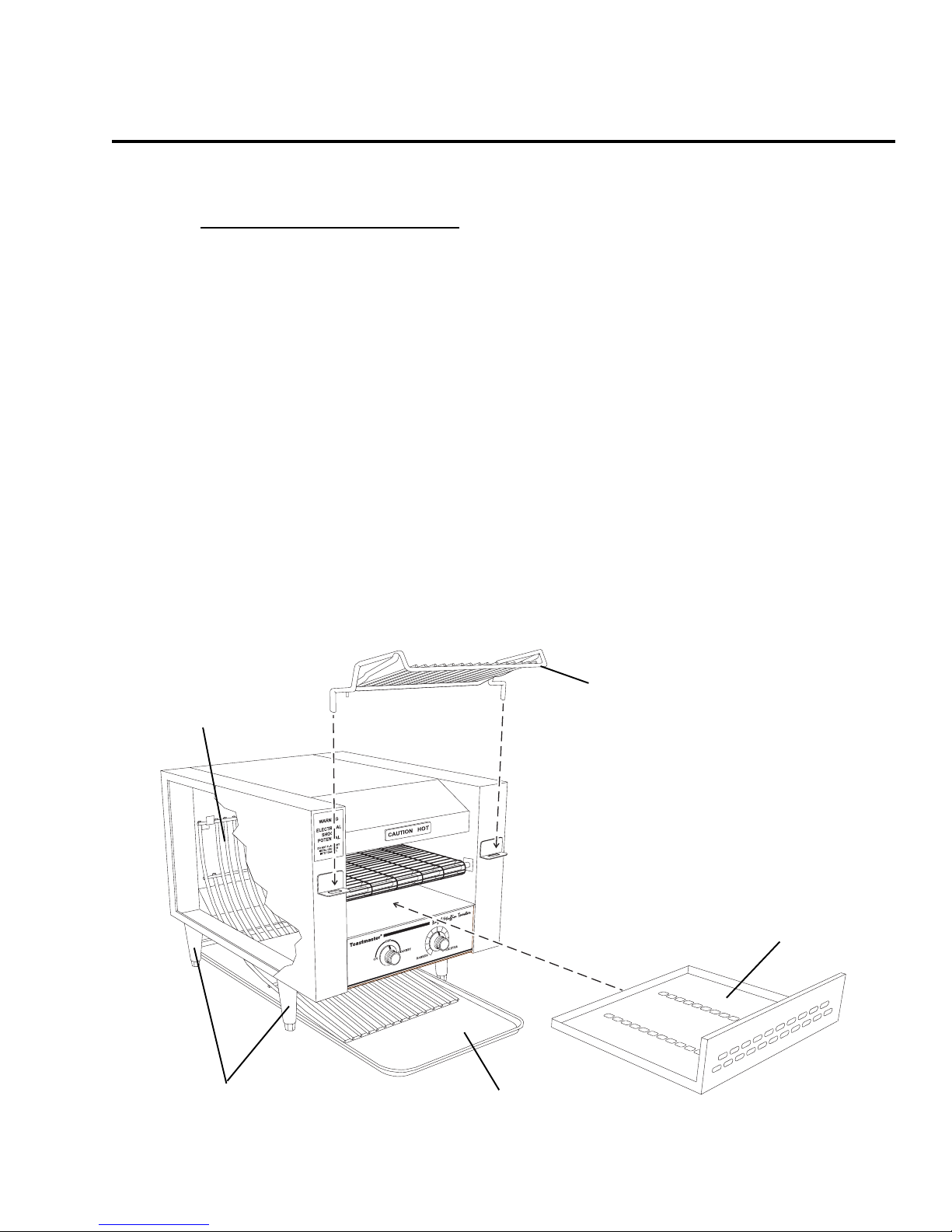

Figure 2-1 - Assembly

Exit rack

secures on hooks

on inside rear wall

of toaster

Legs (4)

thread into holes

in bottom of toaster

Entry rack

drops into holes

on brackets

Slide-out crumb tray

slides into opening

in front of toaster

Return crumb tray

slides underneath

exit rack

B. ASSEMBLY

1. Thread the 4 (102mm) legs into the four holes on

the bottom of the toaster. See Figure 2-1. Then,

place the toaster in the desired location.

2. Install the entry rack, exit rack, return crumb tray,

and slide-out crumb tray as shown in Figure 2-1.

2-2

SECTION 2 - INSTALLATION

C. ELECTRICAL CONNECTION

IMPORTANT

THE ELECTRICAL CONNECTION TO THE TOASTER

REQUIRES A CIRCUIT BREAKER/FUSED

DISCONNECT. ELECTRICAL SPECIFICATIONS ARE

LISTED ON THE SERIAL PLATE (SHOWN IN FIGURE

2-2), AND IN THE

TOASTER SPECIFICATIONS TABLE

(PAGE 1-2).

CONSULT ALL APPLICABLE NATIONAL AND LOCAL

CODES FOR FURTHER ELECTRICAL CONNECTION

REQUIREMENTS.

1. Before proceeding with the electrical connections,

check the following:

a. Check that the supply wire size is adequate.

b. Check that the circuit breaker/fused disconnect

is present, and of the correct rating.

c. Check that the appropriate receptacle is available

for the power cord plug.

If necessary, refer to the toasters serial plate (Figure

2-2) and to the Toaster Specifications table (Page 1-

2).

WARNING

ENSURE THAT BOTH THE CIRCUIT

BREAKER/FUSED DISCONNECT AND THE

ON/OFF/STANDBY KNOB ARE IN THE OFF

POSITION BEFORE PROCEEDING.

Figure 2-2 - Serial Plate Location

WARNING

ENSURE THAT ANY PACKING MATERIAL

RESIDUE HAS BEEN REMOVED FROM

INSIDE THE TOASTING CHAMBER.

2. Insert the power cord plug into its receptacle.

D. CHECKING THE INSTALLATION

1. Restore power to the toaster at the circuit breaker/

fused disconnect.

2. Switch the ON/OFF/STANDBY knob to the ON

position.

3. Check that the conveyor is moving forward into the

toaster.

4. Check that all heating elements are heating and

glowing red.

5. Switch the ON/OFF/STANDBY knob to the OFF

position.

6. Visually check that the heating elements are no

longer on, and that the conveyor has stopped moving.

3-1

SECTION 3 - OPERATION

SECTION 3

OPERATION

A. LOCATION AND FUNCTION OF

CONTROLS

This section provides a basic description of the toaster

controls, their location, and the functions they perform.

The operator MUST be familiar with the controls. See

Figure 3-1.

1. ON/OFF/STANDBY Knob

 When set to ON, switches the heating elements

and conveyor on.

 When set to OFF, switches the heating

elements and conveyor off.

 When set to STANDBY, switches the top

heating elements off to conserve energy during

slow periods. The bottom heating element

remains on, allowing quick recovery.

2. DARKER/LIGHTER Knob

Adjusts the speed of the conveyor. This controls

the amount of toasting that the food product receives.

B. OPERATION PROCEDURE

1. Restore electrical power to the toaster at the circuit

breaker/fused disconnect.

2. Switch the ON/OFF/STANDBY knob to the ON

position.

3. Allow the toaster to pre-heat for at least 20 minutes.

4. Adjust the DARKER/LIGHTER knob to the desired

setting to provide correctly toasted food products.

5. Load the entry rack with the product to be toasted.

The food product will slide off the entry rack and onto

the conveyor.

6. During slow periods, switch the ON/OFF/STANDBY

knob to the STANDBY position. The top heating

elements will turn off, saving energy. The bottom

heating element remains on to allow quick recovery.

7. To return the toaster to normal operation from

STANDBY mode, switch the ON/OFF/STANDBY

knob to the ON position. Then, allow the toaster to

pre-heat. The top heating elements should reach

their normal temperature within 5 minutes.

C. SHUTDOWN PROCEDURE

1. Switch the ON/OFF/STANDBY knob to the OFF

position.

2. Disconnect electrical power to the toaster at the

circuit breaker/fused disconnect.

Figure 3-1 - Controls

ON/OFF/STANDBY

knob

DARKER/LIGHTER

knob

3-2

SECTION 3 - OPERATION

D. CLEARING JAMS

WARNING

NEVER INSERT YOUR HANDS INTO THE

TOASTING CHAMBER TO CLEAR A JAM.

SERIOUS INJURY MAY RESULT.

CAUTION

NEVER use a plastic object to clear a jam. If the toaster

is not completely cool, damage to the toaster may result.

CAUTION

When clearing a jam, use care to avoid damaging the

heating elements.

1. Switch the ON/OFF/STANDBY knob to the OFF

position.

2. Disconnect electrical power to the toaster at the

circuit breaker/fused disconnect.

3. Allow the toaster to cool.

4. Carefully clear the jam using a long object as a probe.

This object should preferably be made of wood, which

is less likely to damage the heating elements.

E. DAILY CLEANING

WARNING

WHEN CLEANING THE TOASTER, NEVER

APPLY ENOUGH LIQUID TO STAND IN

PLACE ON THE UNIT. DO NOT SPRAY,

RINSE, OR SUBMERGE THE TOASTER.

EXCESSIVE MOISTURE IN THE UNIT WILL

CAUSE A SEVERE ELECTRICAL HAZARD

AND MAY OTHERWISE DAMAGE THE

TOASTER.

CAUTION

DO NOT clean your toaster using abrasive cleaners or

pads. Both will scratch and dull the finish.

1. With the conveyor running, use a brush to clean any

crumbs off the conveyor into the slide-out crumb tray.

2. Switch the ON/OFF/STANDBY knob to the OFF

position.

3. Disconnect electrical power to the toaster at the

circuit breaker/fused disconnect.

4. Allow the toaster is cool.

WARNING

DO NOT TOUCH HOT SURFACES ON THE

TOASTER, OR REACH INTO THE TOASTING

CHAMBER, UNTIL THE UNIT HAS COOLED

THOROUGHLY.

5. Wipe the exterior of the toaster with a sponge or cloth

soaked in hot or warm detergent water. Wipe with a

clean, damp cloth to remove the excess detergent,

and then wipe again to dry the toaster.

6. Remove both the slide-out crumb tray and the return

crumb tray from the toaster, and empty them. Wash

the crumb trays in warm detergent water, and rinse

them.

CAUTION

Never remove the slide-out crumb tray while the conveyor

is moving.

7. Remove the entry and exit racks from the toaster.

Wash the racks in warm detergent water, and rinse

them.

8. Towel the trays and racks dry. Reassemble all parts

onto the toaster.

Este manual sirve para los siguientes modelos

Otros manuales de Tostadora de Toastmaster

Toastmaster

Toastmaster TC13 Manual de usuario

Toastmaster

Toastmaster TC2000 Manual de operación

Toastmaster

Toastmaster 1D3 Manual de operación

Toastmaster

Toastmaster T75B Manual de usuario

Toastmaster

Toastmaster T2010F Manual de usuario

Toastmaster

Toastmaster MBT208 Manual de usuario

Toastmaster

Toastmaster TPI 20 Manual de operación

Toastmaster

Toastmaster 358 Manual de usuario

Toastmaster

Toastmaster TM120 Manual de usuario

Toastmaster

Toastmaster TC17A Manual de operación

Toastmaster

Toastmaster TM-41TS Manual de usuario

Toastmaster

Toastmaster TCT1 Manual de usuario

Toastmaster

Toastmaster BTW09 Manual de operación

Toastmaster

Toastmaster T2050BC Manual de usuario

Toastmaster

Toastmaster TC13A3663 Manual de usuario

Toastmaster

Toastmaster 1079P Manual de usuario

Toastmaster

Toastmaster TP209 Manual de usuario

Toastmaster

Toastmaster TMT2RET Manual de instrucciones de instalación

Toastmaster

Toastmaster T2060W Manual de usuario

Toastmaster

Toastmaster T230/T230B Manual de usuario

Toastmaster

Toastmaster TC17D3674 Manual de usuario

Toastmaster

Toastmaster B604ABCAN Manual de usuario

Toastmaster

Toastmaster TMT2CMW Manual de usuario

Toastmaster

Toastmaster T2010CTW Manual de usuario

Manuales populares de Tostadora de otras marcas

Taurus

Taurus ARCTIC 960648 Manual de usuario

Redfox

Redfox TO 920 G Manual de usuario

Moulinex

Moulinex LS340D11 Manual de usuario

Amica

Amica TD 3021 Manual de usuario

Electrolux

Electrolux EAT978 Manual de usuario

SEVERIN

SEVERIN SA 9275 Manual de usuario

Breville

Breville the Big One BTS100 Manual de usuario

Sunbeam

Sunbeam TA2540 Manual de usuario

ARENDO

ARENDO 305716 Manual de usuario

Life

Life Crispy AT-001 Manual de usuario

Beko

Beko TAM 6201 I Manual de usuario

Zephir

Zephir ZHC485 Manual de usuario

H.Koenig

H.Koenig TOS9 Manual de usuario

ZIEGELMULLER

ZIEGELMULLER Ritter ET 10 Guía del producto

HURAKAN

HURAKAN HKN-TOP3 Manual de usuario

Philips

Philips HD2565 Manual de usuario

Bosch

Bosch DesignLine Plus TAT4P44 GB Series Manual de usuario

Panasonic

Panasonic NT-ZP1-V Manual de usuario
