Thank you for purchasing TOA's Speaker System.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

SR-F05

SR-M05L

SR-M05R

SPEAKER SYSTEMS

INSTRUCTION MANUAL

1. HANDLING PRECAUTIONS

To use this speaker system, TOA's DP-0206 Digital Processor (optional) is required.

2. FEATURES

• Developed for the sound reinforcement (SR) market, the speaker features high power handling capacity,

high quality sound, and heavy-duty construction.

• The SR-F05 is a compact, trapezoidal, full-range speaker system and can be used as a main speaker or

sub-speaker. The SR-M05L and SR-M05R are floor monitor speakers, and they are symmetrical.

• An internal passive network enables the speaker to be driven by a single power amplifier. (The DP-0206

Digital Processor must be used together.)

• The speaker has a high-efficiency 25 cm (10") woofer with a large magnet (180 mm or 7" in diameter), and a

tweeter with a high power driver employing a titanium diaphragm.

• The SR-F05's HF horn is a constant directivity (CD) horn to provide a 90

° horizontal by 40° vertical dispersion.

The SR-M05's

HF horn

is a CD horn to provide a 40° horizontal by 40° vertical dispersion.

• The SR-F05 can be installed on an optional speaker stand without using any extra mounting device.

In addition, it can be mounted to the ceiling, wall, and ceiling pipe if optional mounting kits are used.

• The rugged MDF (medium density fiber) board enclosure (18 mm or 0.7" in thickness) is finished with shock-

resistant urethane coating.

• Input connectors are Neutrik NL4MPs. The SR-F05 also comes with a screw terminal besides the Neutrik

connectors if it is used for permanent installation applications (engineering sound market).

315 (12.4")

120 (4.7")

241 (9.49")

241 (9.49") 444 (17.48")

444 (17.48") 404 (15.91")

274 (10.79")

[SR-F05] [SR-M05L]

Note

SR-M05L and SR-M05R

are symmetrical.

Unit : mm (in)

(17.5°)

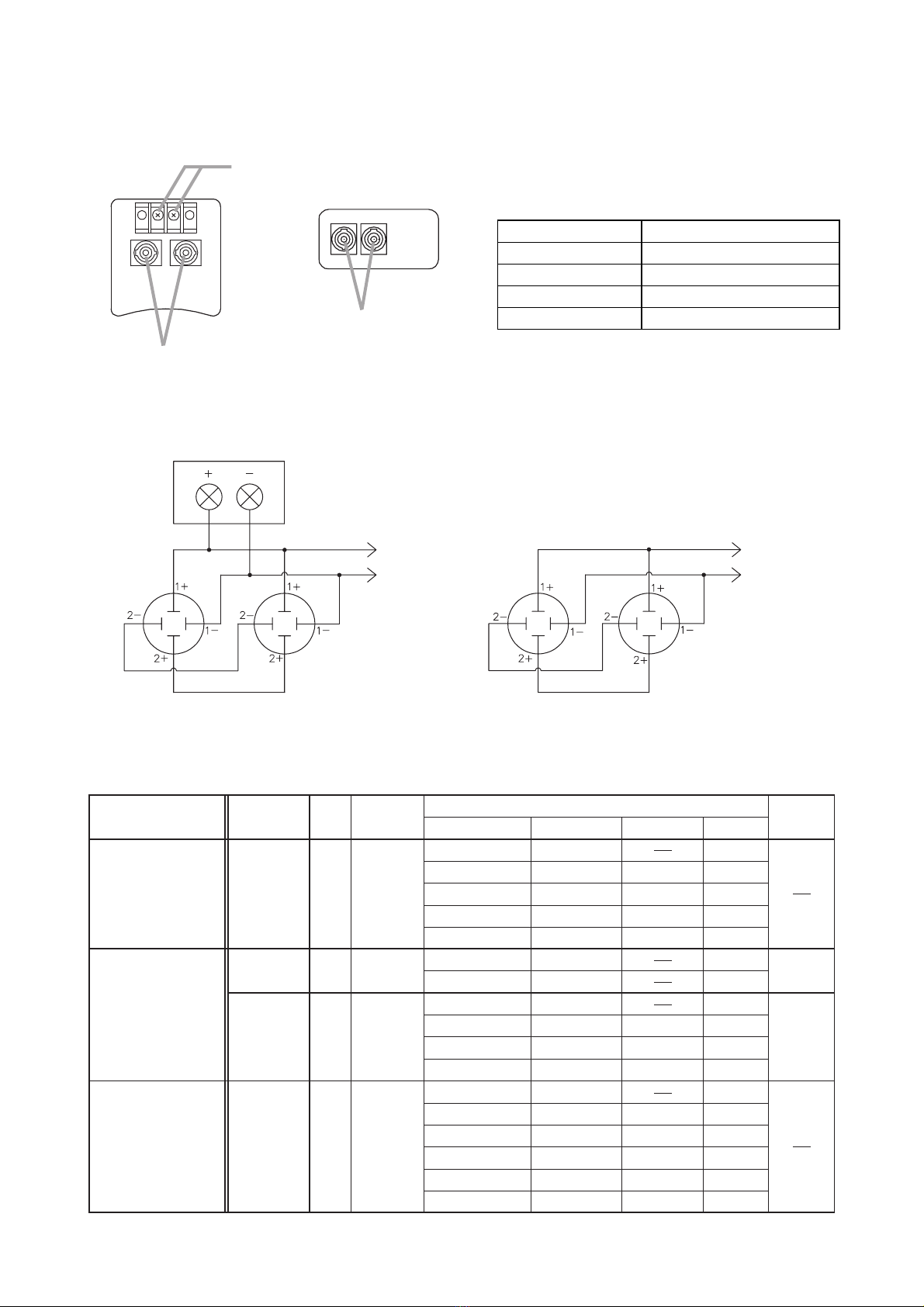

3. INPUT CONNECTORS

Each speaker's input connectors are as follows. Because each connector is internally connected in parallel,

connections may be made from any connector.

• Each pin of the Neutrik connector is connected as

shown below.

4. INPUT CONNECTOR CONNECTION

Pin number SR-F05/M05L/M05R

1+ Speaker +

1– Speaker –

2+ –

2– –

Screw terminal

SR-M05L/R

SR-F05

Speaker +

Speaker –

Speaker +

Speaker

–

Neutrik NL4MP

connector x 2

Neutrik NL4MP

connector x 2

Screw terminal

SR-M05L/R

SR-F05

Neutrik NL4MP

connector

Neutrik NL4MP

connector

ChannelSpeaker System Gain

(dB) Polarity Delay

(msec)

TYPE

Filter

HPF (12dB) 63 0.707

0.979

0NORMAL

NORMAL

SR-F05

SR-F05+SR-L05

SR-M05L/R

PEQ

−5.0

−3.0

3.134

4.318

1.707

INVERSE

4.0k

8.0k

0.707

SR-L05

HPF (12dB)

LPF (12dB)

Gain (dB)

Freq. (Hz)

100

355

−3.0

4.0k

0.707

PEQ

8.0k −5.0

−5.0

4.318

PEQ 14.0k

14.0k

+6.0

+5.0

+6.0

+9.5

+5.5

+9.5

3.134

04.0k

2.016

8.0k

14.0k

SR-F05

SR-M05L/R

• Applicable cable connector is Neutrik NL4FC.

5. DIGITAL PROCESSOR SETTINGS

7. FLOOR MONITOR SPEAKER INSTALLATION

The SR-M05L and SR-M05R are designed for installation on

the flat floor surface.

The parameters set on the DP-0206 Digital Processor permit

the speaker systems to reproduce the best quality of sound

under this installation condition. If installed above the floor, the

speaker systems cannot provide the intended sound quality.

6. CONNECTIONS

6.1. Basic Connection Diagram

6.2. Usable Power Amplifiers

As a principle, the output power of the power amplifier needs to be over 300 W (per channel and 8 Ωload).

If the amplifier rating is below 300 W, then the speaker cannot be operated to the fullest of its capability.

6.3. Parallel Operation of Two Speaker Systems

Cascade connection is possible for parallel operation of two speaker systems as shown in the figure below.

In this case, the power amplifier output must be over 450 W (per channel and 4 Ωload).

Parallel operation of two SR-F05s Parallel operation of SR-M05L and SR-M05R

DP-0206

INPUT

INPUT MAIN OUT

MAIN OUT

BASS OUT

SR-M05L/R

SR-F05

Power Amp.

Subwoofer

Digital Processor

9. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

Model No. SR-F05 SR-M05L/R

Enclosure Bass-reflex type

Power Handling Capacity 450 W (continuous program)

150 W (continuous pink noise)

Nominal Impedance 8 Ω

Sensitivity 99 dB (1 W, 1 m)

Frequency Response 60 Hz – 18 kHz

Crossover Frequency 2 kHz

Low Frequency Speaker 25 cm (10") cone speaker

High Frequency Speaker Compression driver and Compression driver and

CD horn (90° H x 40° V) CD horn (40° H x 40° V)

Input Connector M5 screw terminal, distance between

barriers : 13 mm (0.51") Neutrik NL 4MP x 2

Neutrik NL 4MP x 2

Finish Enclosure MDF, dark gray, urethane coating MDF, black, urethane coating

Front grille Black, acrylic paint

Dimensions 315 (w) x 444 (h) x 241 (d) mm 444 (w) x 274 (h) x 404 (d) mm

(12.4" x 17.48" x 9.49") (17.48" x 10.79" x 15.91")

Weight 18 kg (39.68 lb) 17.8 kg (39.24 lb)

133-01-377-7D

URL: http://www.toa.jp/

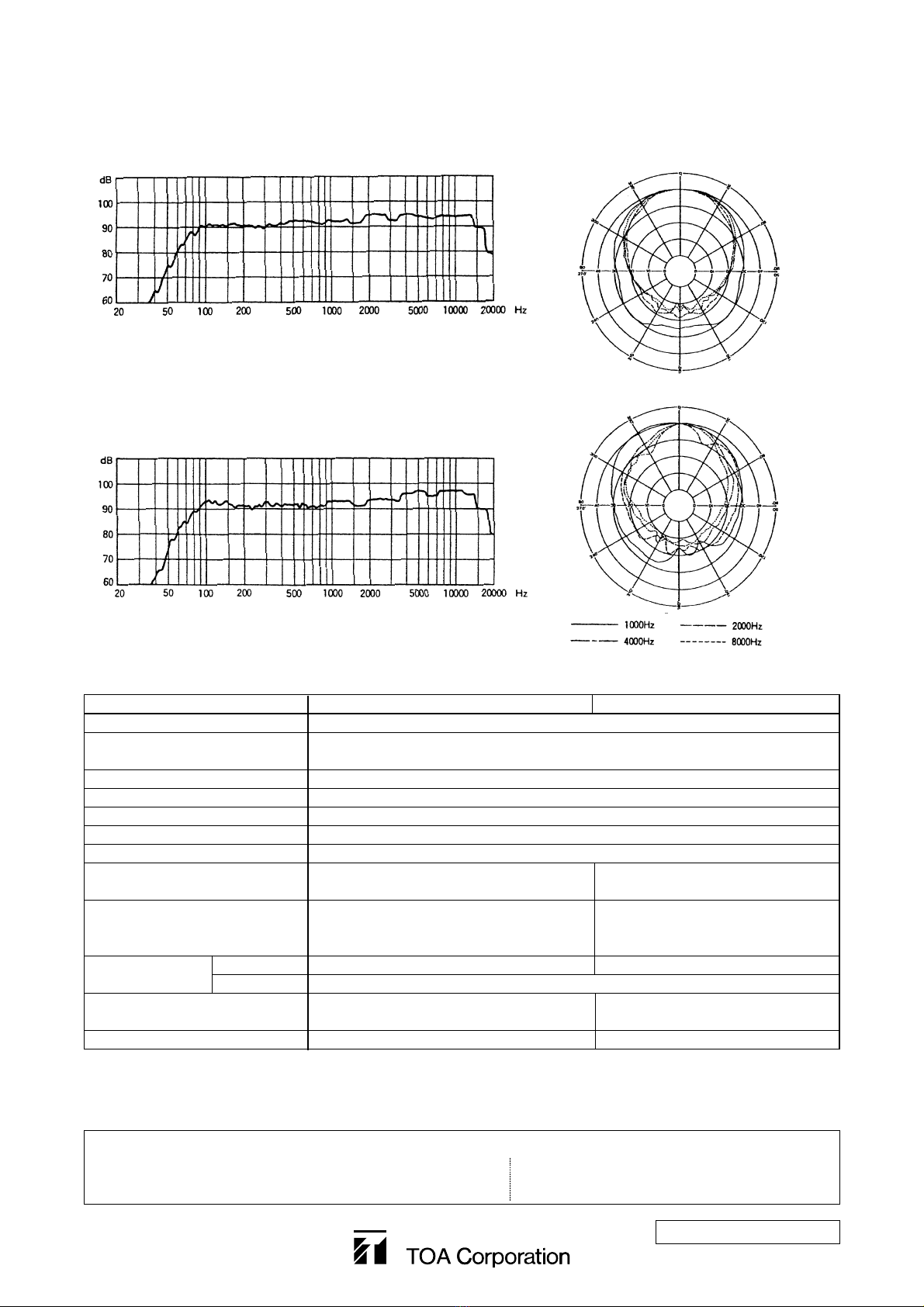

8. CHARACTERISTIC DIAGRAMS

[SR-F05 Frequency response]

(1 kHz, 1/4 W input reference)

[SR-M05L/R Frequency response]

(1 kHz, 1/4 W input reference, speaker installed on floor)

[SR-F05 Directivity characteristics]

• Vertical

• Horizontal

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,Germany

• Optional product

Stand : ST-34B
