Connect devices. Position the two Sub-Units

at speaker face height.

Adjust the Base Unit sound

volume.

Base Unit (rear)

Sub-Unit (bottom)

Dedicated cable

To AC mains

(accessory) (accessory)

Note

When mounting to a partition, use the Sub-Units’ built-in

magnets to sandwich (mount on either side of) the partition.

Notes Notes

When no sound is being output, check if:

•The MIC MUTE button is switched ON.

•

Headset switch

Magnets (2 places)

Sub-Unit

Sub-Unit

MIC MUTE buttons

Locations with

ambient noise, such

as supermarkets

Hospitals and other

quiet locations

Recommended volume control settings

Base unit (front)

Convenient Tool

The label of Speak Here is for Sub-Units

Download the template provided on the TOA DATA Library to create new label.

Continues on the reverse side.

Follow step  - to install Window Intercom System. For information on Safety precautions, please refer to the instruction manual.

(accessories)

WINDOW INTERCOM SYSTEM

NF-2S

When the Sub-Units are positioned too far away from

the speaker whose voice may not be picked up accurately.

(Refer to the page on the back.)

To prevent howling, mount the Sub-Units at least 15 cm

away from the edge of the partition.

Avoid setting the volume too high, as howling could result.When using a headset, set the Base Unit’s

headset switch to ON.

The recommended settings for the volume controls

are as follows:

https://www.toa-products.com/international/detail.php?h=NF-2S

Power cord* AC adapter*

* Not supplied with

the version W

All connection cables are not firmly connected.

133-21-00654-00

(accessory)

(accessory)

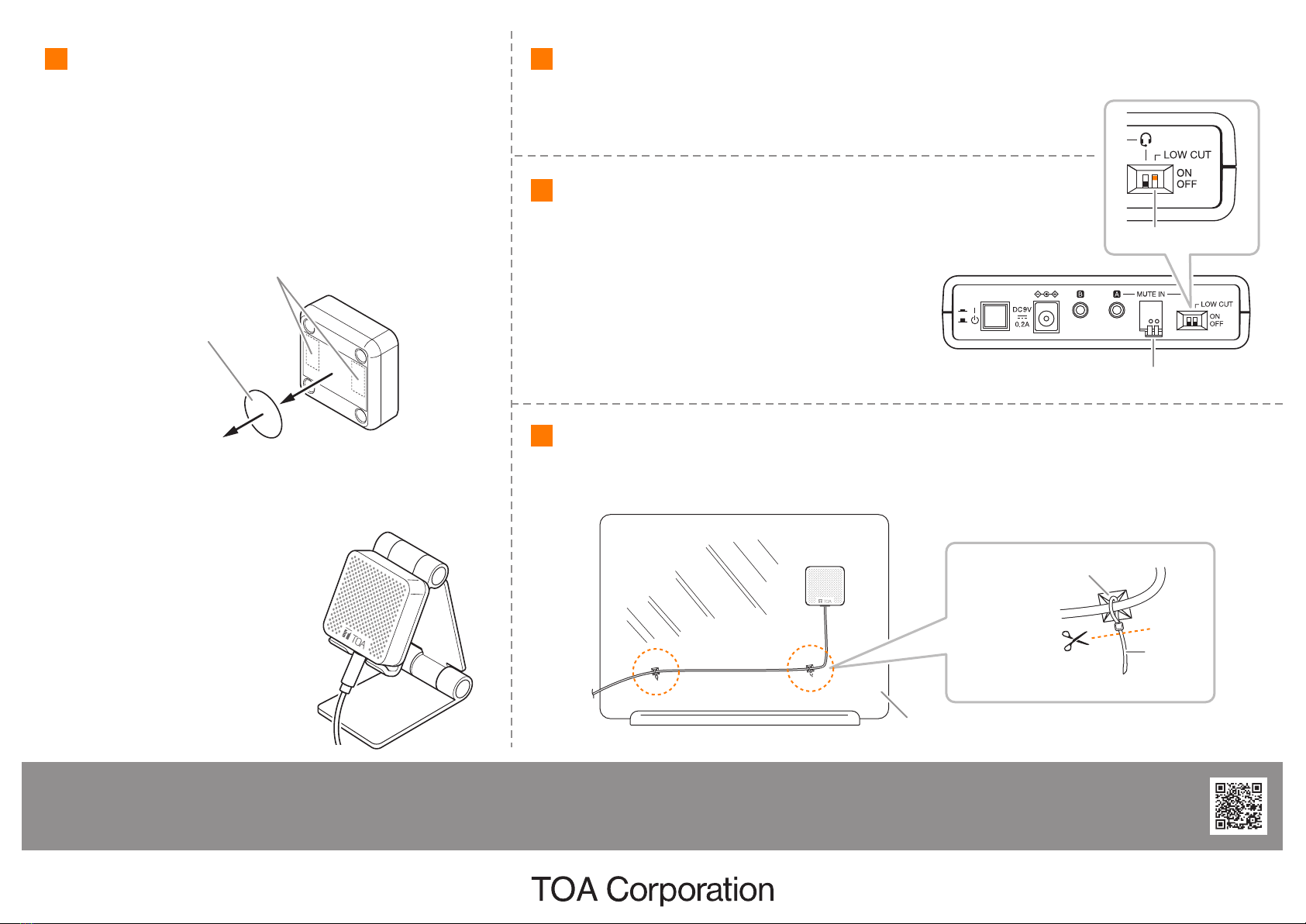

If the speaker is too far from

the Sub-Unit:

For cable arrangement:

Muting sound output with an external switch

For Increased Privacy:

To mounting position

Sub-Unit

Metal Plate

(accessory)

Magnets (2 places)

LOW CUT switch

Base Unit (rear)

[Change the mounting position of the Sub-Units]

[Use a commercially available stand]

Sub-unit

Partition

Zip tie

Mounting base

For details, please read the instruction manual.

Normally, the distance between the speaker’s mouth and the

Sub-Unit should be between 20 – 50 cm.

If this distance is greater, there are two things that can be done:

Even if the Sub-Units cannot be mounted to the partition,

they can be installed in appropriate locations using the

supplied metal plates.

The Sub-Units can be installed in closer proximity

to the speaker(s) with the use of commercially

available stands or the like.

Cables can be neatly arranged during installation by using the supplied mounting bases and zip ties.

After securing the cables,

cut the zip ties at the base.

Sound can be prevented from being heard outside the

periphery of the Sub-Units by setting the Base Unit’s rear

panel LOW CUT switch to ON.

Sound can be muted as desired by connecting a commercially available

switch or similar device to the external control input terminal of MUTE IN.

“QR Code” is registered trademark of DENSO WAVE INCORPORATED in Japan and other countries.

The instruction manual can be accessed on the TOA DATA Library. Download the manual from QR code* with smartphone or tablet.

External control input terminal
