ANALOGUE QUARTZ

TECHNICAL GUIDE

PARTS CATALOGUE

Cal.VJ5 Series

(VJ52B/53B/55B)

31032022

Version-01

Cal.VJ5 Series

(VJ52B/53B/55B)

φ28.60 mm

25.70 mm ：between 12 o'clock and 6 o'clock sides

25.70 mm ：between 3 o'clock and 9 o'clock sides

φ27.80 mm

25.70 mm ：between 12 o'clock and 6 o'clock sides

24.10 mm ：between 3 o'clock and 9 o'clock sides

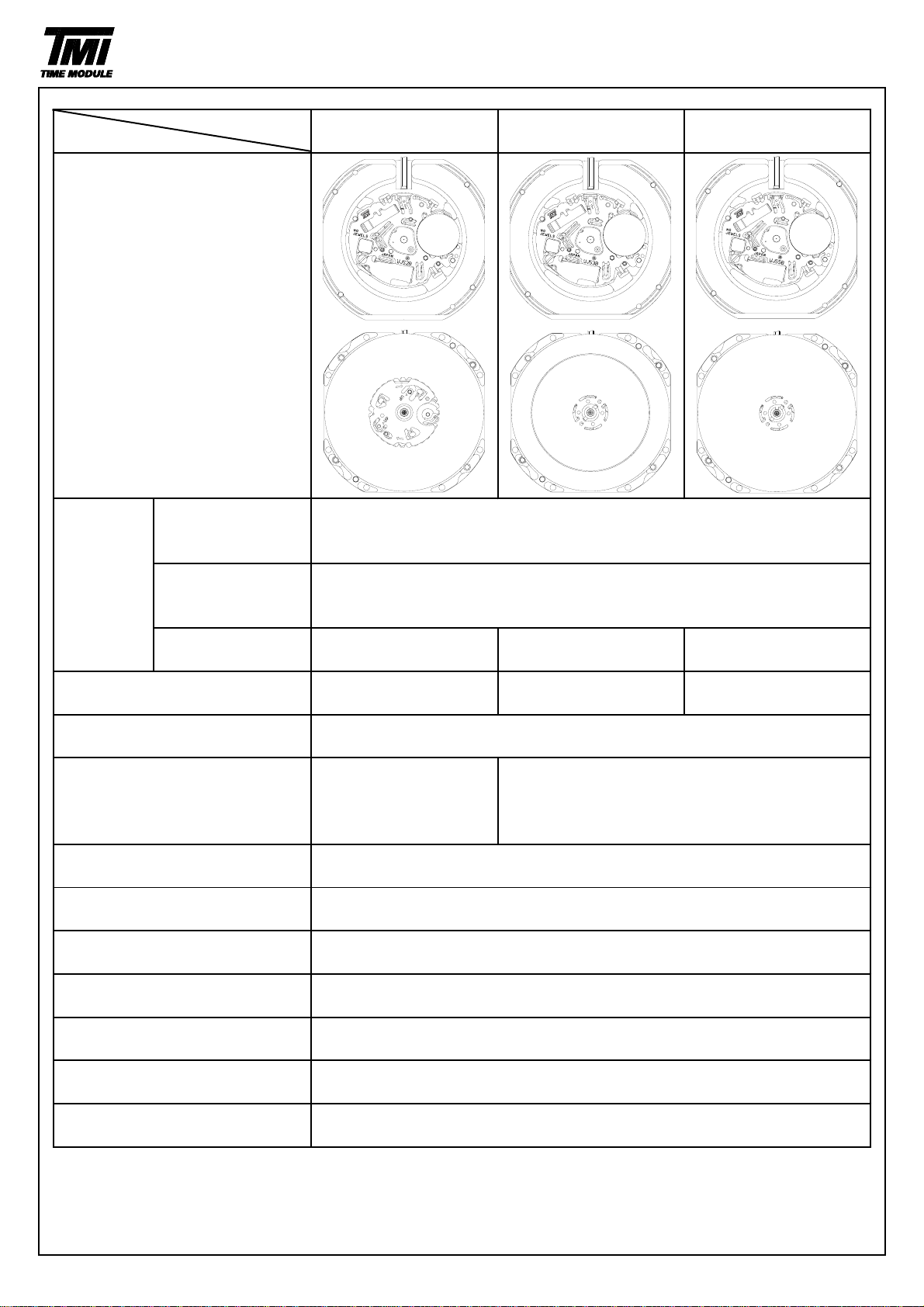

SPECIFICATION

Movement

size

Movement

Casing diameter

Total height

3 Hands Calendar

3 Hands Day & Wide

Date Calendar

Time indication

3 Hands Day &

Date Calendar

Electronic circuit

reset switch

Second setting device

Date setting

Driving system

Less than ± 20 seconds at normal temperature range

32,768 Hz

Step motor （Load compensated driving pulse system type）

Loss/Gain (Monthly rate)

Frequency of crystal oscillator

Antimagnetic

≧1600 A/m

Additional mechanism

Electronic circuit reset switch

Second setting device

Date setting

Day setting

Cal. No.

Item

2.71 mm

(including the battery)

2.94 mm

(including the battery)

2.94 mm

(including the battery)

VJ52B

VJ53B

VJ55B

Outside diameter

Jewels

0 Jewel

- 5 ℃～+ 50 ℃

Regulation system

Nil

Operational temperature range

Battery

SR621SW (Silver oxide battery)

Battery life is approximately 3 years

Measuring gate by quartz tester

Use 10 second gate

* Set the winding stem with crown at the normal position

Version-02

Cal.VJ5 Series

(VJ52B/53B/55B)

Lubricating : Types of oil

Disassembling procedures Figs.

① → ㉝

A3a / Moebius 9010

A2a / Moebius 9030

Reassembling procedures Figs. ㉝

→ ①

Oil quantity

Normal quantity

Hour, minute and second hands

Dial

0808 044

Date dial guard

*Date dial

0810 890

Date jumper

0273 021

Hour wheel

0802 030

Date driving wheel

*Refer to page 6 for each parts code

⑦

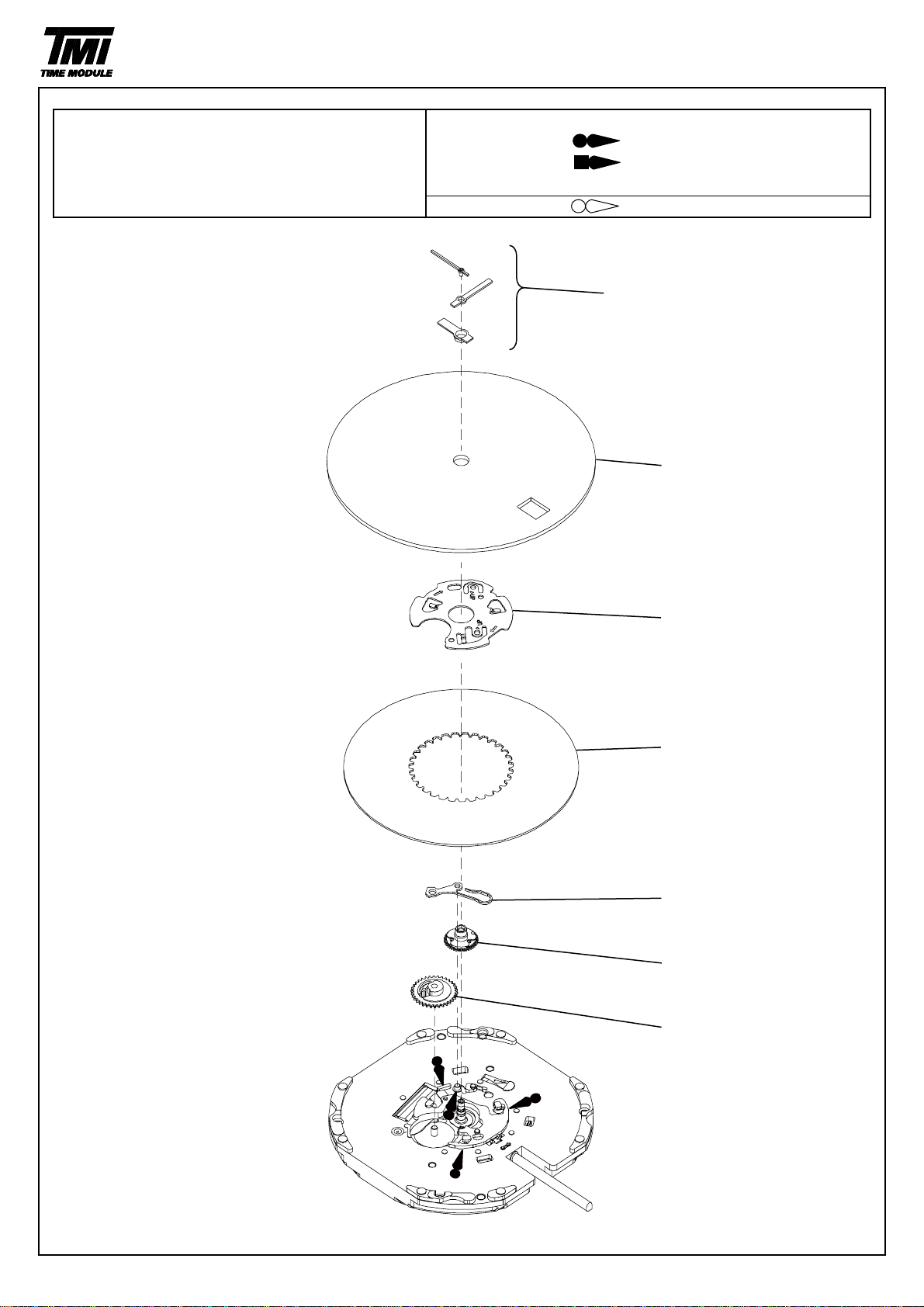

PARTS CATALOGUE

<<VJ52B>>

②

③

④

⑤

①

⑥

Version-02

Cal.VJ5 Series

(VJ52B/53B/55B)

Lubricating : Types of oil

Disassembling procedures Figs.

① → ㉝

A3a / Moebius 9010

A2a / Moebius 9030

Reassembling procedures Figs. ㉝

→ ①

Oil quantity

Normal quantity

Hour, minute and second hands

Dial

0963 230

Snap for day star with dial disk

*Day star with dial disk

0989 011

Intermediate wheel for day corrector

0808 175

Date dial guard

*Date dial

0962 033

Second intermediate wheel

for calendar corrector 0737 012

Day-date corrector wheel

0273 017 0810 890

Hour wheel Date jumper

0802 031

Date driving wheel

*Refer to page 6 for each parts code

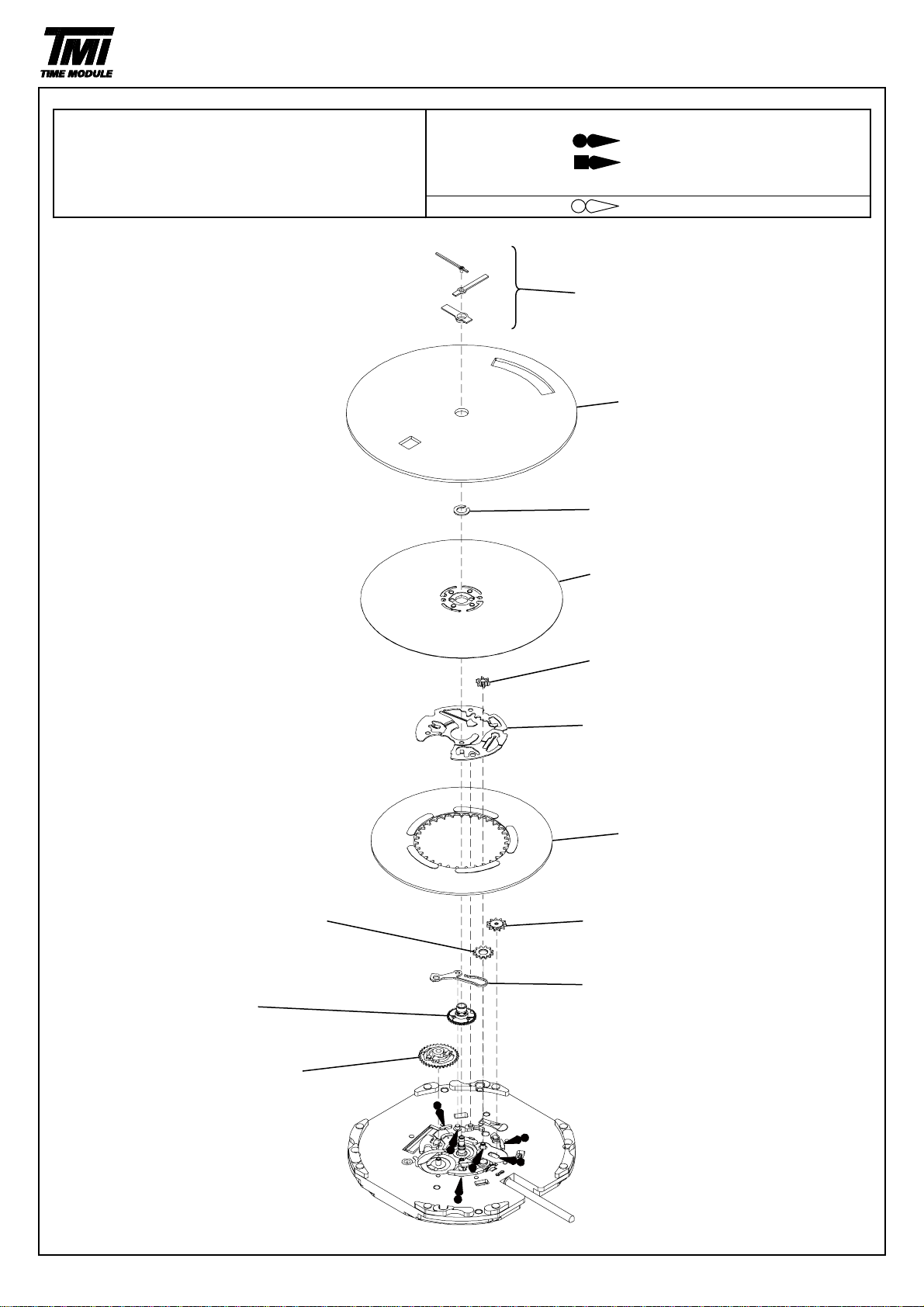

PARTS CATALOGUE

<<VJ53B>>

①

⑦

②

⑩

⑨

⑪

⑫

③

④

⑤

⑥

⑧

Version-02

Cal.VJ5 Series

(VJ52B/53B/55B)

Lubricating : Types of oil

Disassembling procedures Figs.

① → ㉝

A3a / Moebius 9010

A2a / Moebius 9030

Reassembling procedures Figs. ㉝

→ ①

Oil quantity

Normal quantity

Hour, minute and second hands

Dial

0963 230

Snap for day star with dial disk

*Day star with dial disk

0989 011

Intermediate wheel for day corrector

⑥0808 175

Date dial guard

*Date dial

0962 033

Second intermediate wheel

for calendar corrector ⑧0737 012

Day-date corrector wheel

0273 017 ⑩0810 890

Hour wheel Date jumper

0802 031

Date driving wheel

*Refer to page 6 for each parts code

⑫

⑤

⑦

⑨

⑪

④

①

PARTS CATALOGUE

<<VJ55B>>

②

③

Version-02

Cal.VJ5 Series

(VJ52B/53B/55B)

Lubricating : Types of oil

Disassembling procedures Figs.

① → ㉝

A3a / Moebius 9010

A2a / Moebius 9030

Reassembling procedures Figs. ㉝

→ ①

Oil quantity

Normal quantity

Battery 4004 303

Circuit block with coil block

0351 001

Winding stem

0016 121

Screw for battery

* Fourth wheel and

connection (+) pinion

* Battery connection (+) 0231 066

0701 170 Third wheel and pinion

Fifth wheel and

pinion 0033 219

Reset pin

4146 126

Step rotor

*Refer to page 6 for

4216 088 each parts code

Insulator 4239 062 ㉘0391 041

Rotor stator

Train wheel setting

lever

4270 385

Battery connection (-) ㉙0033 220

Pin for setting wheel

0281 041

Setting wheel ㉛0261 291

Minute wheel and

pinion

*Center wheel and

pinion ㉜0282 089

Clutch wheel

0125 297

Train wheel bridge

*1 Oiling position *2 Oiling position

*Refer to page 6 for each parts code

⑲

PARTS CATALOGUE

⑬

⑭

⑳

㉑

㉒

㉓

㉔

㉕

㉖

㉗

㉝

⑮

⑯

⑰

⑱

㉚

Version-01

Cal.VJ5 Series

(VJ52B/53B/55B)

Remarks:

O Date dial

<VJ52B>

<VJ53B>

<VJ55B>

O Day star with dial disk

<VJ53B>

<VJ55B>

O Different parts for each CAL.

O The part which is not common in Cal.VJ52B/VJ53B/VJ55B

*All parts code are subject to change without notice.

Language

12H

White

English

Monolingual

Black

White

Positing of

crown

Positing of

date frame

Color of figure

Color of

background

Part code

0878 415

Part code

0150 290

Positing of

crown

0150 280

Part code

Fourth wheel and pinion

0144 105

0144 125

㉑

Parts name

VJ52B

VJ53B

VJ55B

Battery connection(+)

⑯

4268 060

4268 061

4268 062

－

0962 009

0221 065

0221 066

First intermediate wheel for calendar

corrector

㉗

Center wheel and pinion

㉝

0806 142

－

Parts name

VJ52B

VJ53B

VJ55B

Date corrector wheel

White

0878 285

Black

White

0878 455

Black

White

0878 435

Black

Color of

background

Language

English &

Spanish

White

Positing of

date frame

Color of figure

MON～SAT:Black

SUN :Red

Positing of

date frame

Color of figure

Color of

background

Black

Color of

background

PARTS CATALOGUE

Part code

Positing of

crown

Positing of

date frame

Color of figure

Color of

background

Part code

Positing of

crown

Positing of

date frame

Color of figure

Positing of

crown

0878 475

Version-01

Cal.VJ5 Series

(VJ52B/53B/55B)

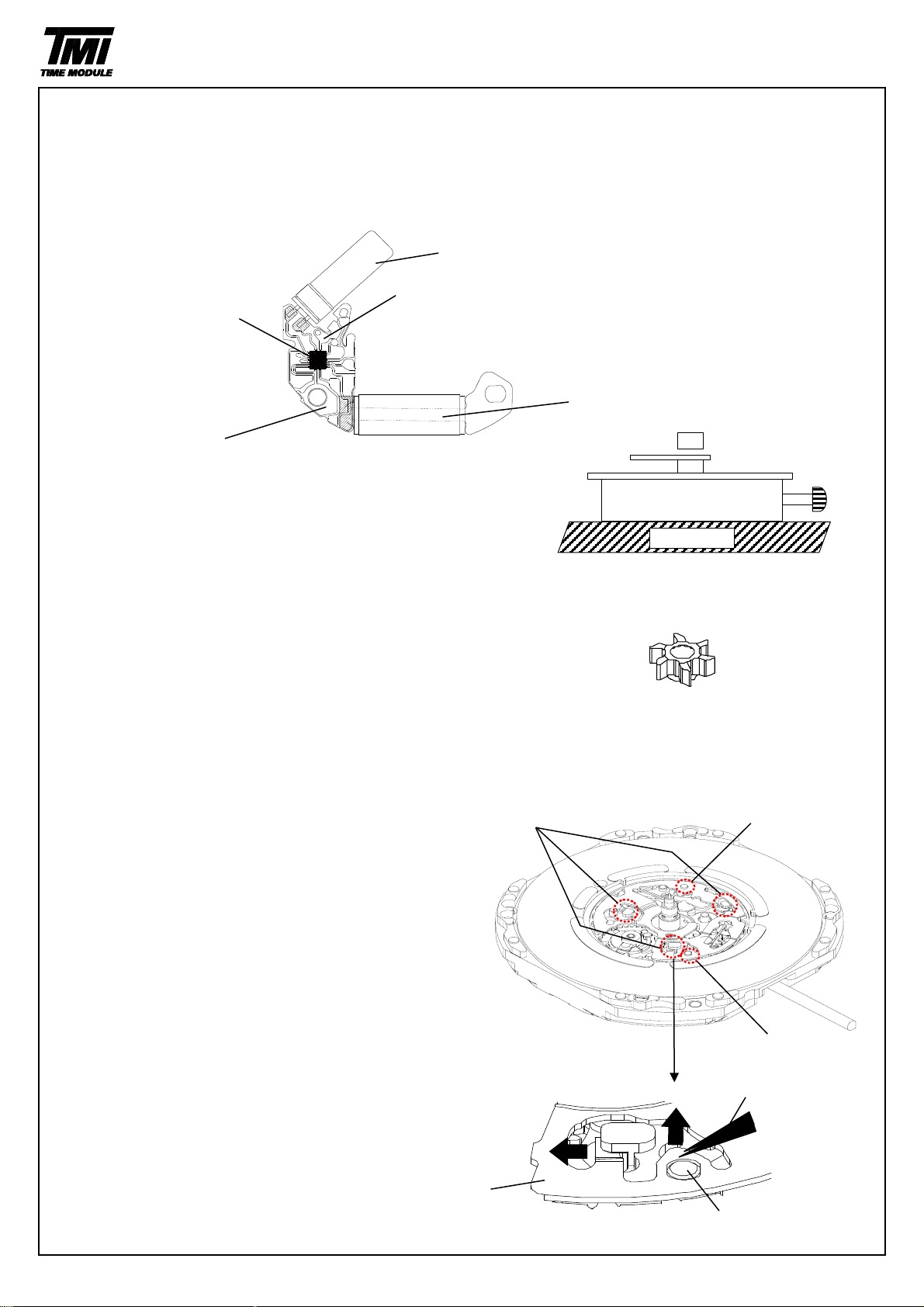

The explanation here is only for the particular points of Cal.VJ52B /VJ53B/ VJ55B

Ⅰ.STRUCTURE OF THE CIRCUIT BLOCK

Notes: Since the circuit block and coil block are made by one piece, in disassembling and

reassembling take care not to cut the coil line.

Crystal unit

Input terminal(+)

C-MOS-IC

Coil block

Input terminal(-)

Ⅱ. REMARKS ON DISASSEMBLING AND REASSEMBLING

①Hands

・How to install

Place the movement directly on a flat metal plate or the like

to install the hands.

②Intermediate wheel for day corrector

Set the intermediate wheel for day corrector in the

direction as shown in the illustration at right.

*Cal.VJ52B not Intermediate wheel for day corrector.

③Date dial guard

The date dial guard has three protrusions to be caught under the main plate, and it is also fixed

by two guide pins.

・How to remove

Lightly lift the A portion of the date dial guard with

tweezers to release it from the guide pin, and then

move it in the clockwise direction until it gets off

the guide pin.

Release the B portion of the date dial guard in the

same way as described above, and then move it in

the clockwise direction until gets off the guide pin.

Check that all the three protrusions of the date dial

guard have come off from the main plate, and then

remove the date dial guard.

TECHNICAL GUIDE

Main plate side

Dial side

Metal plate

B portion

Protrusion

A portion

Date dial guard

Guide pin

Tweezers

Version-01

Cal.VJ5 Series

(VJ52B/53B/55B)

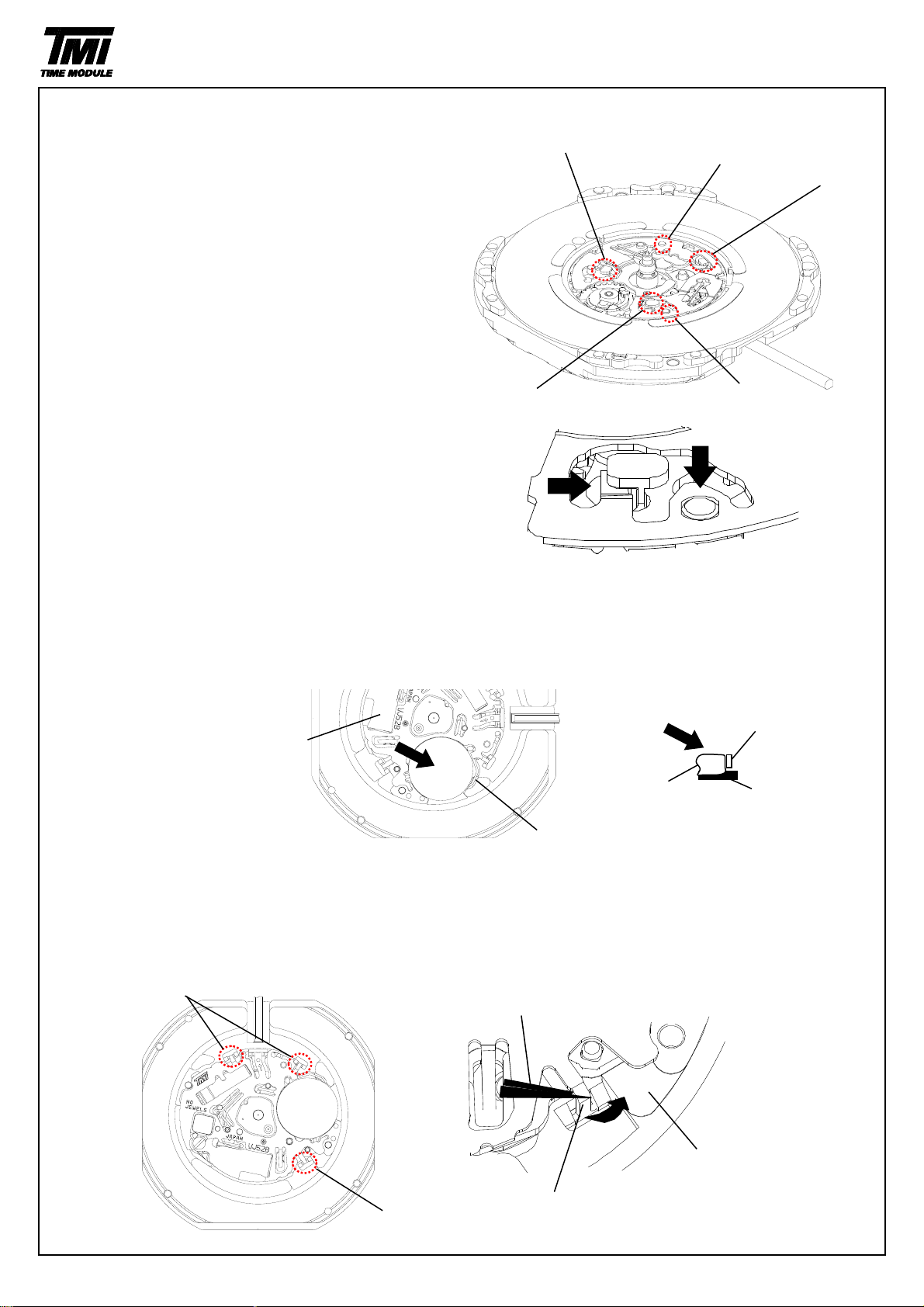

・How to install

Put the date dial guard on the main plate so that

the A and B portion are over the guide pins,

as shown in the illustration at right.

Move the protrusion D of the date dial guard in the

counterclockwise direction so that it is caught

under the main plate.

Slightly move the protrusions C and E in the

counterclockwise direction alternately to set

them under the main plate. Then, set the

A and B portions of the date dial guard to

the guide pins.

Check that the date dial guard is fixed

securely to the main plate.

④Battery

・How to install battery

Insert the battery aslant in the direction shown by the arrow.

Check the battery connection (+) securely touches the side

face of the battery.

Correct

Battery Main plate

⑤Battery connection (+)

・How to install

Have the hook portions (3 places) catch the main plate (Fig.1 & Fig.2).

In disassembling and reassembling, take care not to deform the hook portion.

After installing the battery connection (+), check that the three hook portions securely catch the main plate.

Hook position

Tweezers

Main plate

Hook portion

TECHNICAL GUIDE

[Fig.1]

[Fig.2]

Protrusion C

B portion

Protrusion D

Protrusion E

A portion

Battery connection (+)

Coil block

Hook position

Version-01

Cal.VJ5 Series

(VJ52B/53B/55B)

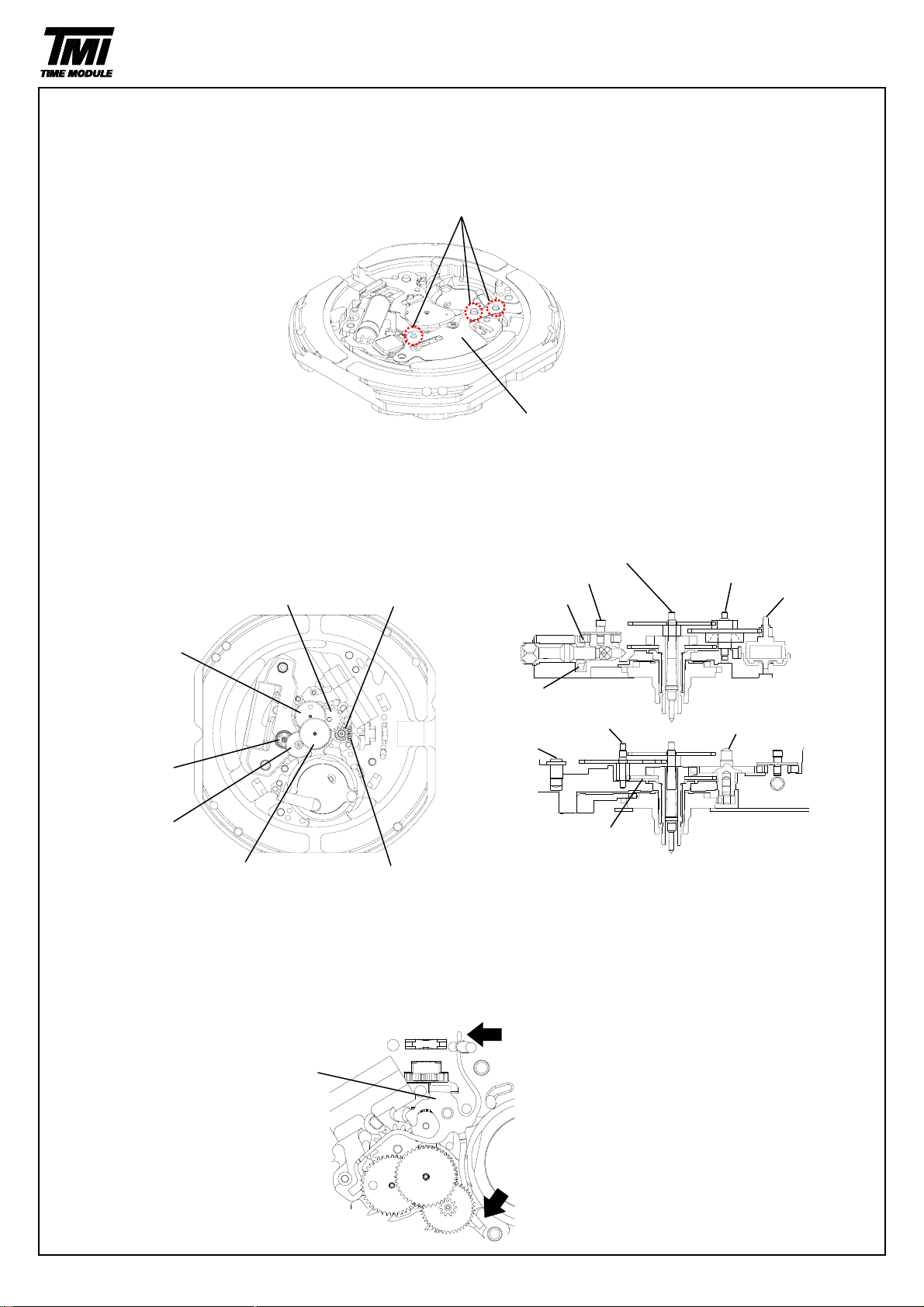

⑥Insulator

・Setting position

Notes: To Insulate between the battery connection (+) and the battery connection (-),

Insulator should be put at the three pin securely as bellow.

Insulator

⑦Train wheel bridge

・Setting position

Notes: Since the fifth wheel and pinion and step rotor are made of plastics, take care not to damage

them in disassembling and reassembling.

Fourth wheel and pinion

Pin for setting wheel Fifth wheel and pinion

Minute wheel and pinion Setting wheel Setting wheel

Step rotor

Third wheel and pinion

Third wheel and pinion Minute wheel and pinion

Reset pin

Step rotor

Fifth wheel and pinion Center wheel and pinion

Fourth wheel and pinion Clutch wheel

⑧

Train wheel setting lever

・Setting position

Notes:

・Catch the part of spring of the Train wheel setting lever to the pin like as below.

・Take care not to deform the spring potion of the Train wheel setting lever.

Train wheel setting lever

TECHNICAL GUIDE

Clutch wheel

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Mirar de TMI Products

TMI Products

TMI Products VJ4 Series Guía de inicio rápido

TMI Products

TMI Products VD31 Manual de usuario

TMI Products

TMI Products VD77 Manual de usuario

TMI Products

TMI Products Cal.VD3 Series Manual de instrucciones

TMI Products

TMI Products vk61 Manual de usuario

TMI Products

TMI Products VD35 Manual de usuario

TMI Products

TMI Products VD8 Series Guía de inicio rápido

TMI Products

TMI Products NE20C Manual del instalador

TMI Products

TMI Products vk61 Guía de inicio rápido

TMI Products

TMI Products VD74 Manual de usuario

TMI Products

TMI Products VD33 Manual de usuario

TMI Products

TMI Products NE86A Manual del instalador

TMI Products

TMI Products SII VH83A Manual de usuario

TMI Products

TMI Products VD7 Series Guía de inicio rápido

TMI Products

TMI Products Aegis 134W Manual de instalación

TMI Products

TMI Products VJ32B Manual del instalador

TMI Products

TMI Products VJ1 Series Guía de inicio rápido

TMI Products

TMI Products VD35 Manual de usuario

TMI Products

TMI Products VK68A Manual del instalador

TMI Products

TMI Products VD33 Manual de usuario

TMI Products

TMI Products VH67A Manual de usuario

TMI Products

TMI Products VD33A Manual de usuario

TMI Products

TMI Products VJ76B Manual del instalador

TMI Products

TMI Products NH0 B Series Manual del instalador

Manuales populares de Mirar de otras marcas

Pandora

Pandora WATCH2 Manual de usuario

Casio

Casio QW-4343 Manual de usuario

Suunto

Suunto X6 Manual de usuario

Seiko

Seiko N830 Manual de usuario

MotionX

MotionX 365 Manual de usuario

Garmin

Garmin VENU SQ 2 Manual de usuario

QCY

QCY Watch GTC Manual de usuario

Canyon

Canyon Cindy CNE-KW41WP Manual de usuario

Esq

Esq Watches Guía de instalación

Crane

Crane AA5-CDSM-3A Manual de usuario

Timex

Timex W-214 Manual de usuario

DETOMASO

DETOMASO MATERA Manual de usuario

Geemarc

Geemarc Watch N Shake Manual de usuario

LORUS

LORUS W590 Manual de usuario

STENLILLE

STENLILLE Actío Manual de usuario

Casio

Casio 5594 Manual de usuario

Sinn

Sinn HUNTER'S WATCH 3. Edition Manual de usuario

Slazenger

Slazenger SLZ800 Manual de usuario
