TMG PRO Series Manual de usuario

►www.tmgindustrial.com 0/27 TOLL FREE:1-877-761-2819

ddddddddddddddddddddddddddddddddddddd

►www.tmgindustrial.com 1/27 TOLL FREE:1-877-761-2819

MAIN SPECIFICATIONS :

Assembly size : W12.2 x L24 x H6.4 (m) / 40 x 78.7 x 21 (ft)

Outside width : 12.2 m / 40ft, inside width : 11.4 m / 37.4ft, length : 24m / 78.7ft

Ridge peak height : 6.4 m / 21 ft

Peak clearance height : 5.8 m / 19 ft

Front roll up door : 4.6 x 4.7 (m) / 15 x 15.4 (ft)

Rear roll up door : 6 x 4.2 (m) / 19.7 x 13.8 (ft) (wider door side)

Shoulder wall clearance height : 3.5 m / 11.5 ft

PRIOR TO ASSEMBLY

Please read the instructions carefully before installation. It is very important to follow your local safety regulations and

industry standards during installation. Regulations may include but are not limited to:

•

Safety helmets, protective eyewear, and clothing

•

Safety harnesses for all elevated workers

•

Proper ladder, cage, and safety operation

Check all components and parts before installation. All parts are marked with a part number, please refer to the parts

list to make sure you have all parts.

Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make any alterations to the structure.

Do not hang any weights on the frame during installation, including parts. We are not responsible for any damages or

injuries caused by inappropriate installation, unauthorized modifications or extreme weather.

This building is not intended for human occupancy.

It is recommended to tape or add foam/rubber on the frame where joints connect and where it touches the cover. This

will help extend the life span of the cover.

Read the following item list carefully and count the number of items to ensure that all parts are included prior to setup.

►www.tmgindustrial.com 2/27 TOLL FREE:1-877-761-2819

INSTALLATION STEPS

STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE

Choose a solid flat level ground area to set up the building. Do not install the building on soft ground, wetland, uneven

surfaces, sloped surfaces, or on top of structures that are not rated to hold its weight.

We strongly recommend that you put the containers on hard foundations before installing the shelter.

Be aware of the surrounding area. Do not set up the building near snowdrifts, open flames or exposed electrical wires.

Do not keep heat sources near the fabric cover. Keep the building surroundings clear at all times.

Check the parts list below to make sure all parts are received prior to assembly.

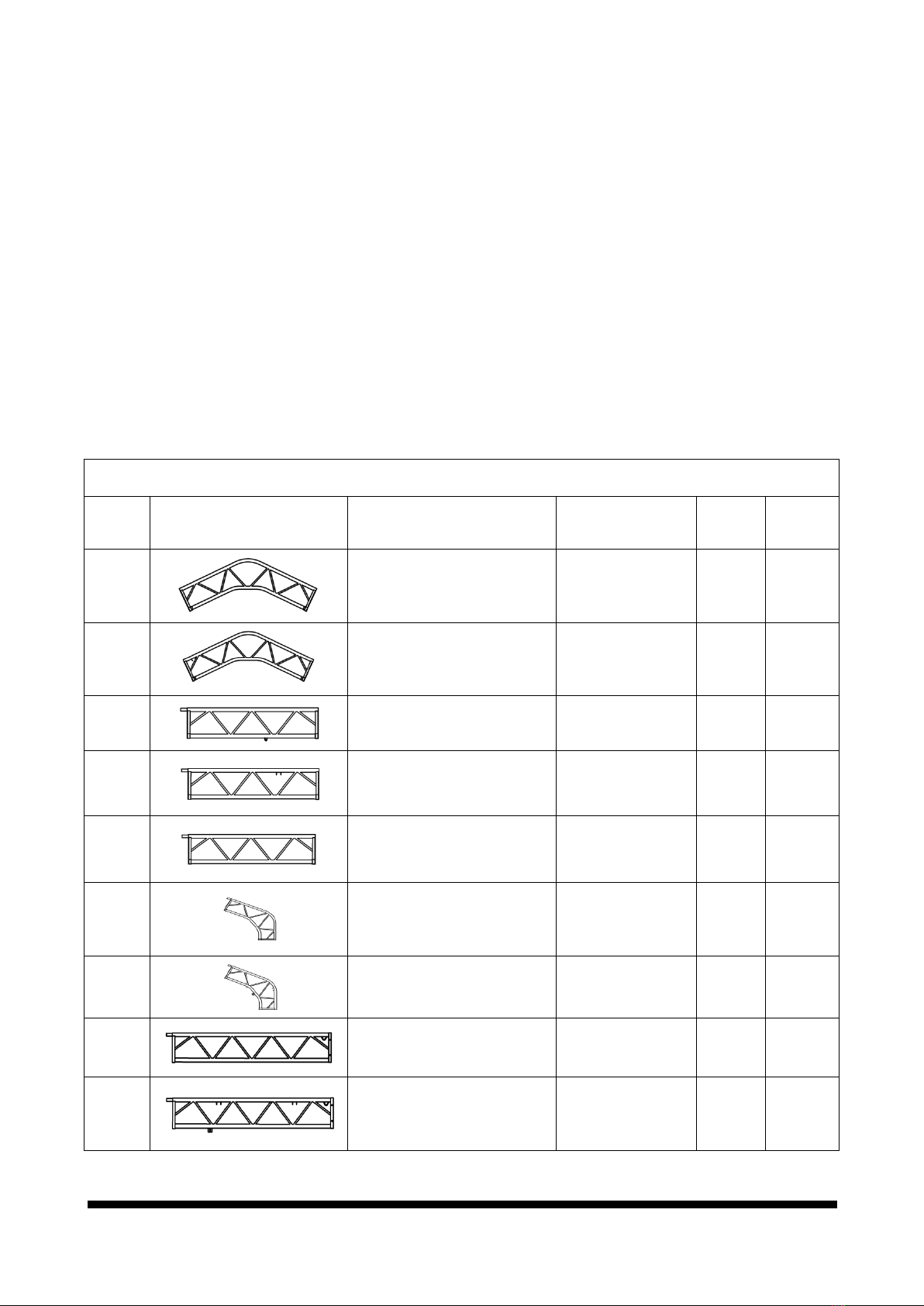

TMG-DT4081-PRO PART LIST

PARTS

CODE

GRAPHICAL

DESCRIPTION

LENGTH

QTY

BOX

Peak arch tube

(for 9 middle trusses )

L2550mm

Peak arch tube

(for front and rear truss)

L2550mm

Upper rafter tube

(for middle truss)

L2113mm

Up and low rafter tube

(for front and rear truss)

L2113mm

Lower rafter tube

(for middle truss)

L2113mm

Cx14

Dx4

Shoulder tube

(for middle truss)

L1987mm

Ax8

Bx6

Dx4

Shouldertube

(front and rear truss)

L1987mm

Sidewall tube

(middle truss)

L2758mm

Sidewall tube

(left and right for front truss

and left for rear truss)

L2758mm

►www.tmgindustrial.com 3/27 TOLL FREE:1-877-761-2819

Sidewall tube

(right for rear truss）

L2758mm

Roof purl in

(horizontal tube)

L2440mm

Base plate for front and rear

truss left corners

L520xW260mm

Base plate for front and rear

truss right corners

L520xW260mm

Left base plate of front and

rear door frame

L200xW150mm

Right base plate of front and

rear door frame

L200xW150mm

Base plates for middle truss

L480xW260mm

Ratchets

3.0T

Expansion bolts

φ16x150mm

108

Front door right column base

plate

L200xW150mm

Side door left tube

L2027mm

Side door right tube

L2027mm

Side door

L2005xW925mm

Front vertical door rail

(left side upper part)

L2515mm

Front vertical door rail

(right side upper part)

L2515mm

Left lower vertical tubes for

front trusses

L2180mm

10A

Right lower vertical tubes for

front trusses

L2180mm

10B

Upper vertical tubes for front

truss (connect to #10 and

#10A)

L1875mm

10L

Front and rear vertical door

rail

(left side lower part)

L2255mm

►www.tmgindustrial.com 4/27 TOLL FREE:1-877-761-2819

10R

Front and rear vertical door

rail(right side lower part)

L2255mm

11L

Rear vertical door rail

(left side upper part)

L2190mm

11R

Rear vertical door rail

(right side upper part)

L2190mm

Front door cross tubes

(left and right)

L1664mm

12A

Front door upper crossing

tubes (connect #12 left and

right)

L1513mm

12B

Front door lower crossing

tubes (connect #12 right)

L1639mm

12C

Rear truss upper cross tubes

(left and right)

L2493mm

12D

Rear truss lower cross tubes

(right)

L2646mm

12E

Side door upper tube (front)

L1638mm

12F

Side door upper tube (rear)

L2630mm

Front door cross beam (left）

L2289mm

13A

Front door cross beam (right)

L2289mm

13B

Front door center vertical

supporting rod for cross beam

L1097mm

13C

Rear door cross beam (left)

L2989mm

13D

Rear door cross beam (right)

L2987mm

13E

Rear door center vertical

supporting rod for cross beam

L1422mm

Front door hand winch

crossing tube

L1660mm

14A

Rear door hand winch cross

tube

L2663mm

►www.tmgindustrial.com 5/27 TOLL FREE:1-877-761-2819

Tarp cover tension tubes on

both sides

L1993mm

15A

Tarp cover tension tubes on

both sides (shorter tube, can

be on either end)

L900mm

Front roll up door dropping

tubes

(to connect #16A)

L2355mm

16A

Front roll up door dropping

tubes

(to connect #16)

L2353mm

16B

Rear roll up door dropping

tubes

(to connect #16C)

L3060mm

16C

Rear roll up door dropping

tubes

(to connect #16B)

L3058mm

Sidewall frame steel tension

cables

L3800mm

17A

Ridge steel tension cables

(front and rear trusses)

L3240mm

17B

Rafter steel tension cables

( Front and rear trusses)

L2860mm

17C

Shoulder steel tension cables

( Front and rear trusses)

L3000mm

18A

Front truss left steel cables

L4180mm

18B

Rear truss left right cables

L3700mm

18C

Middle truss crossing steel

tension cables

L4100mm

Front fabric panel tension

tubes

L1610mm

19A

Front fabric panel tension

tubes

L440mm

19B

Rear fabric panel tension

tubes

L1430mm

Rear fabric panel tension

tubes

L2620mm

►www.tmgindustrial.com 6/27 TOLL FREE:1-877-761-2819

Tie down straps

(for #7A and front and rear

arches)

W38xL800mm

Cable connection plate

L91mm

22A

Pressing plate

L2000mm

22B

Pressing plate

L1000mm

Roll up door hand winch

1200lb

23A

Wire rope for front door hand

winch

φ4xL15m

23B

Wire rope for rear door hand

winch

φ4xL14.2m

23C

Left pulley system for front

and rear doors

L149mm

23D

Right pulley system for front

and rear doors

L149mm

Front and rear vertical door

rail connection plate

L240mm

24A

Front and rear vertical door

rail end plate (floatable to

keep door rail straight)

L215mm

24B

Pipe clamps for front and rear

vertical tubes to connect to

truss frame

φ58mm

Tension tube end water plug

φ32mm

Self locking bolt and nuts

M10x80mm

Self locking bolt and nuts

M8x80mm

Hex bolt and nuts

M12x30mm

440

Hex bolt and nuts

M10x30mm

29A

Hex bolt and nuts

M10x50mm

Hex bolt and nuts

M10x60mm

►www.tmgindustrial.com 7/27 TOLL FREE:1-877-761-2819

Hex bolt and nuts

M10x80mm

Tension ropes

(tie to front and back doors)

φ8xL160m

bundle

Roof fabric tarp cover

L24.62xW21.12m

Front truss fabric tarp panel

L12.2xW6.55m

34A

Front roll up door fabric tarp

panel

L4.82xW4.56m

Rear truss fabric tarp panel

L12.2xW6.55m

35A

Rear roll up door fabric tarp

panel

L5.96xW4.53m

Front and rear fabric tarp

secure pin

φ6x200mm

Plastic hose

(in grooves at both ends of

#33)

φ25x4000mm

37A

Connector (for connection

#37)

φ25

Scratch resistant tape

L10m

Tapping screw

M5x25mm

104

►www.tmgindustrial.com 8/27 TOLL FREE:1-877-761-2819

STEP 2 : BASE PLATE POSITIONING AND INSTALLATION.

PARTS

CODE

PART

QTY

PARTS

CODE

PART

QTY

100

►www.tmgindustrial.com 9/27 TOLL FREE:1-877-761-2819

STEP 3 : INSTALL THE FRONT TRUSS.

PARTS

CODE

PART

QTY
