TJERNLUND AIRESHARE R2RP Manual de usuario

DESCRIPTION

The Tjernlund AireShare™ Room-to-Room Ventilators distribute air from one space to another. Virtually every home has a room that is

uncomfortably hot or cold from which some of that room’s air can be shared with an adjacent room, making the temperature of both

rooms more comfortable. The AireShare™ transfers air through the wall cavity created between two wall studs. The AireShare’s unique

option of moving the air up or down within the wall cavity allows for optimum heat transfer between rooms – a typical application will

affect the temperature 3° F per hour. In addition, locating the Grille and Diffuser, one high the other low, prevents the transfer of light

and sound between these adjacent rooms.

SPECIFICATIONS & COMPONENTS

GENERAL INFORMATION

Every Tjernlund AireShare™ Room-to-Room Ventilator is electrically factory line tested before shipment.

After opening carton, inspect thoroughly for shipping damage. Impeller should rotate freely and all electrical wires and connections

should be secured. If any damage is found, notify freight carrier and your distributor immediately and file a concealed damage claim.

INSTALLATION RESTRICTIONS

The AireShare™ Ventilator must be installed by a qualified installer in accordance with these instructions and all local codes or in their

absence in accordance with the latest editions of the International Residential Code and International Electrical Code. Improper installa-

tion can create a hazardous condition such as fire, electric shock or personal injury. To reduce these risks significantly, use this device

only in the manner intended by the manufacturer. If you have questions about proper usage of this device, call Tjernlund Products.

Always disconnect the AireShare™ Ventilator from its power source before installation and servicing.

IMPORTANT: An in depth investigation of the wall layout is required prior to installation. Avoid a stud wall section that is a path for

plumbing supply lines, drains and vents. Avoid a stud wall section that is insulated or being used as a return air duct for a forced air

system. If stud walls are constructed with metal studs the Diffuser must be mounted within 3” of the Blower opening since metal studs typical-

ly are not solid throughout. If diffuser is not mounted within 3” of Blower any metal stud openings must be plugged or sealed.

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

READ OWNERS INSTRUCTIONS CARE-

FULLY PRIOR TO INSTALLATION.

THESE INSTRUCTIONS MUST REMAIN

WITH EQUIPMENT. DO NOT DESTROY.

AIRESHARETM ROOM-TO-ROOM VENTILATOR

MODEL R2RP

Blower: 75 cfm

Motor: 115 Volts ~ 60 Hz

0.50 amps maximum

Impeller: Transtangental, cross-flow

Dimensions: Diffuser: 3” x 15 1/8” (flush) Diffuser Rough Opening: 1 1/4” Height x 13 5/8” Width

Blower Grille: 7 3/4” x 15 7/8” x 1 1/4” Blower Rough Opening: 4 7/8” Height x 12” Width

Color: Neutral White

Power Cord: 12” long, grounded

On/Off Switch: 120 Volts; rated to 100,000 cycles

• The AireShare™ may not be used to exhaust hazardous or explosive materials or vapors.

• The AireShare™ may not be installed in a ceiling.

• The AireShare™ may not be installed in an outside wall.

• The AireShare™ may not be installed in a wall rated as a “fire wall.”

• The AireShare™ may not be used to move air from one floor (story) to another floor.

• The AireShare™ may not be used to move moisture-laden air from sources such as

bathrooms and kitchens.

• The AireShare™ may not be used in a window.

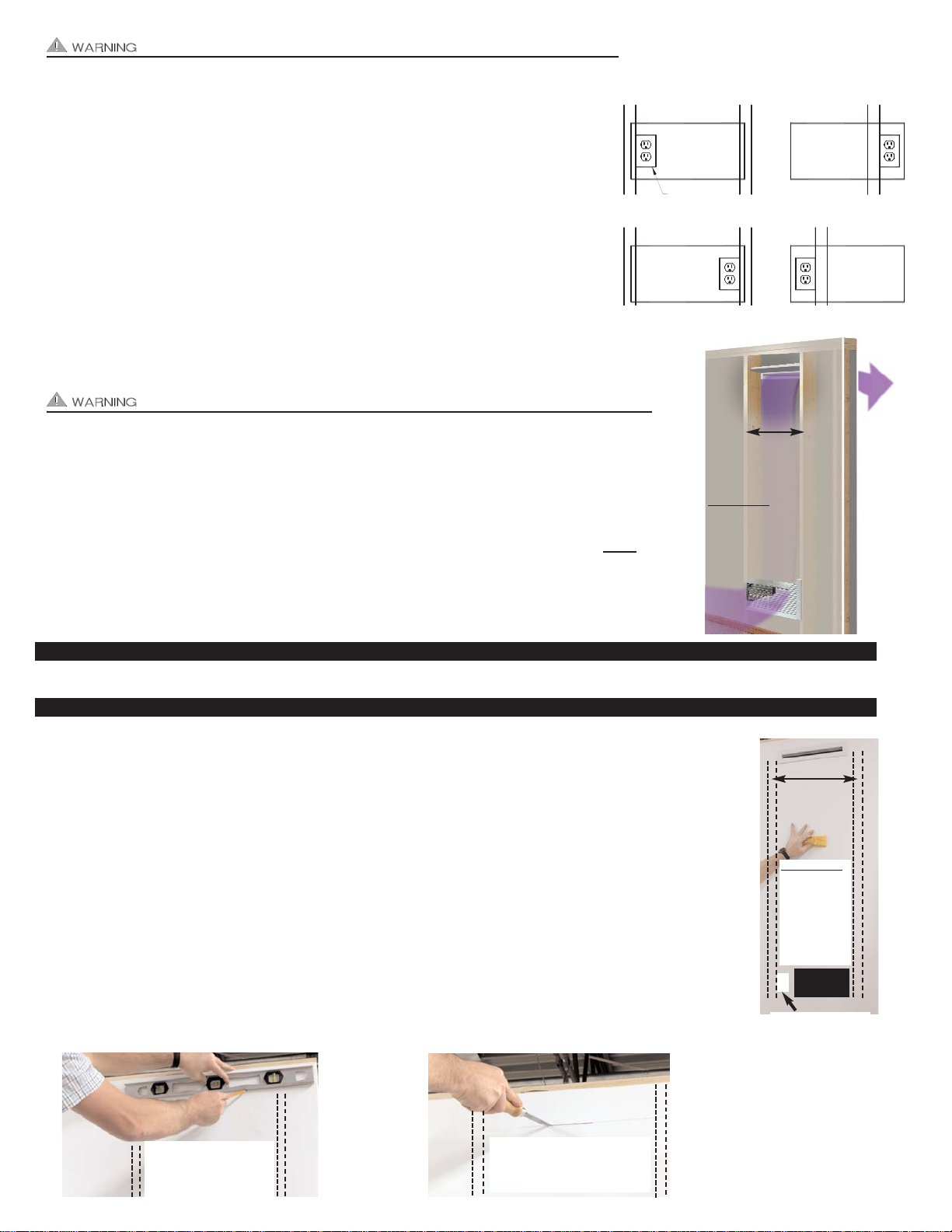

WARNING: To reduce the risk of fire, electrical shock and injury to persons, the

AireShare™ must be installed with the R2RP Diffuser that was provided with the R2RP.

Do not use this product without the R2RP Diffuser or with any Diffuser other than the

R2RP Diffuser.

WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid state

speed control devices.

Disrupt power at circuit breaker to outlets within the stud wall you will be working.

When sawing through sheetrock you must stop if you detect the saw blade coming in contact with any

wiring or plumbing. Investigate further to determine if it is possible to safely continue to use this wall cavity

space. Switch to another stud wall cavity if necessary.

BEFORE YOU START:

Determine the stud wall section that you want to use to mount the Blower and Diffuser. You must select a

stud wall section that contains an electrical outlet, (See Diagram A). IMPORTANT: Wall studs must be

spaced a minimum of 16” o.c., (See Diagram B). Mark inside edges of studs the AireshareTM will be

installed between and verify there is at least 14” between the inside edges. Slide a stud finder down the wall

between the studs to verify the stud wall cavity is completely open, (See Diagram C).

TOOLS REQUIRED

Sheetrock Saw Philips & Straight Screwdrivers Level Tape Measure Utility Knife or Scissors

INSTALLING DISCHARGE DIFFUSER

IMPORTANT: Install Diffuser first if mounting the Blower down low and the Diffuser high so sheetrock from the

Diffuser cut out does not fall into wall cavity and damage Blower. Install the Blower first if mounting the Blower high

and Diffuser low so sheetrock from the Blower cut out does not fall into wall cavity and damage Diffuser.

NOTE: Since electrical outlets are usually not up high, typical installations of the model R2RP will have the Diffuser

high and the Blower low, but there may be instances where it is desireable to have the Blower mounted

high and the Diffuser low to take air from the ceiling level.

1.The Diffuser may be mounted as close as 3" above the top of Blower cut out opening or as close as 3" to the ceiling.

2. Level and mark a line between studs for top of the Diffuser cut out, (See Diagram D)

3. Using a hand sheetrock saw carefully make a horizontal cut along the line. Cut the sheetrock completely until you

come in contact with the opposite stud. NOTE: If studs are spaced greater than 16” o.c., the horizontal cut line

should not exceed 14”, (See Diagram E).

DIAGRAM B

Wall studs must be

spaced a minimum

of 16” o.c.

IMPORTANT: Wall cavity

between studs must be com-

pletely open between Blower

intake and Diffuser

DIAGRAM D DIAGRAM E

LEVEL AND MARK A

LINE BETWEEN STUDS

WHERE DIFFUSER IS

TO BE INSTALLED.

CAREFULLY MAKE A LEVEL

HORIZONTAL CUT IN SHEET-

ROCK BETWEEN STUDS NO

LONGER THAN 14”.

DIAGRAM C

Wall studs must

be spaced a

minimum

of 16” o.c.

BLOWER

OPENING

DIFFUSER

IMPORTANT:

Wall cavity

between studs

must be com-

pletely open

between

Blower intake

and Diffuser

Electrical box must

be installed inside

stud wall section

WALL STUD OUTLET

AIRESHARE

WALL STUD

ELECTRICAL

WRONG

CORRECT

ELECTRICAL OUTLET SIDE OF THE WALL STUD.

THE AIRESHARE MUST BE LOCATED ON THE

CORRECT

WRONG

AIRESHARE

WALL STUD

DIAGRAM A

4. Cut Diffuser template on dashed lines. Align the top of template with the wall cut and center it so that there is an equal space

between the right and left edges of the template and ends of the cut in the sheetrock. Mark all 4 corners of template, connect with

a straight edge and cut Diffuser opening in wall (Diffuser opening should be 1 1/4” high x 13 5/8” wide), (See Diagram F).

5. Insert Diffuser with the air scoop on the back pointing towards the Blower. Adjust tangs on the sides if necessary to secure a tight fit

into the wall opening, (See Diagram G).

BLOWER INSTALLATION

IMPORTANT: Install Diffuser first when mounting the Blower down low and the Diffuser high so sheetrock from the Diffuser cut out does

not fall into wall cavity and damage Blower.

1. You must select a stud wall section that contains an electrical outlet, (See Diagram H). Mark a vertical line down the side of the outlet

box opposite stud. Mark a spot 3/4” above electrical outlet top mounting screw on outlet side opposite stud, (See Diagram H).

2. From the mark made in Step 1, use a level to draw a horizontal line across to opposite stud, (See Diagram I).

3. Using a hand sheet rock saw carefully make a horizontal cut along the line going away from outlet. Cut the sheetrock until you

come in contact with the opposite stud. NOTE: If studs are spaced greater than 16” o.c., the horizontal cut line should not

exceed 12 1/2”, (See Diagram J).

4. Align the top corner of R2RP Blower template with horizontal wall cut and vertical line. Mark all 4 corners of template, connect with a

straight edge and cut rectangular opening in wall (Model R2RP Blower opening should be 4 7/8” high x 12” wide), (See Diagram K).

5. With the Blower discharge pointing towards Diffuser rotate the mounting flange so that the electrical outlet cutout is positioned on the

side of the Blower housing nearest the electrical outlet. With the bent tabs facing the front of the Blower, slide the mounting flange

from the rear of the Blower to the front until the four tabs line up with the holes in the Blower housing. Secure Blower housing to

mounting flange with included 8/32 self tapping screws. NOTE: If electrical outlet is on the right side of Blower, loosen (2) power

switch bracket screws and slide power switch bracket completely over to the right to allow for proper alignment of switch opening on

Grille. Tighten (2) switch bracket screws, (See Diagram L).

6. Carefully insert the Blower into the cutout. Level the top flange and mark the larger Blower flange mounting holes. Using the provided

wood screws, secure the blower to the wall studs. Use provided wall anchors if not installing into studs, (See Diagram M).

DIAGRAM I

DIAGRAM L DIAGRAM M

ALIGN TOP CORNER OF R2RP BLOWER

TEMPLATE WITH HORIZONTAL WALL CUT

AND ELECTRICAL BOX. CUT OUT R2RP

BLOWER OPENING. (4 7/8” HIGH x 12” WIDE)

MARK A HORIZONTAL LEVEL LINE

ACROSS TO THE OPPOSITE STUD

DIAGRAM F DIAGRAM G

DIAGRAM J

CAREFULLY MAKE CUT MOVING AWAY

FROM OUTLET TOWARDS OPPOSITE STUD.

CUT LINE SHOULD NOT EXCEED 12 1/2”.

DIAGRAM H

MARK WALL 3/4” ABOVE

ELECTRICAL OUTLET

TOP MOUNTING SCREW

MARK A VERTICAL LINE

ALONG ELECTRICAL

BOX APPROX. 1” BELOW

OUTLET ON LEFT

SWITCH SHOULD BE

POSITIONED ON LEFT

FOR SWITCH OPENING

ON GRILLE

OUTLET ON RIGHT

SLIDE SWITCH TO

RIGHT SIDE FOR

SWITCH OPENING

ON GRILLE

DIAGRAM K

4 BENT

TABS 4 BENT

TABS

7. Replace the electrical outlet cover. Route the power cord as depicted and plug into outlet, (See Diagram N).

8. Install intake Grille to Blower with provided screws. Notch on bottom must align with on/off switch, (See Diagram O).

FACTORY WIRING

MAINTENANCE

The AireShareTM Blower wheel should be inspected annually and carefully cleaned or vacuumed with a bristle brush head if necessary.

The motor is permanently lubricated and requires no maintenance.

REPLACEMENT PARTS AND WARRANTY

Component Part Number Component Part Number

R2RP Intake Grille 950-3301 R2R/R2RP Blower Assembly 950-3303

R2R/R2RP Diffuser 950-3302 R2RP On/Off Switch 950-3304

WARRANTY

TJERNLUND LIMITED TWO YEAR WARRANTY

Tjernlund Products, Inc. warrants to the original purchaser of this product that the product will be free from defects due to faulty material or workmanship for a period of (2)

years from the date of original purchase or delivery to the original purchaser, whichever is earlier. Remedies under this warranty are limited to repairing or replacing, at our

option, any product which shall, within the above stated warranty period, be returned to Tjernlund Products, Inc. at the address listed below, postage prepaid. THERE ARE

NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF, AND TJERNLUND PRODUCTS, INC. EXPRESSLY DISCLAIMS LIABILITY

FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF THIS PRODUCT. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WAR-

RANTIES AND NO AGENT IS AUTHORIZED TO ASSUME FOR US ANY LIABILITY ADDITIONAL TO THOSE SET FORTH IN THIS LIMITED WARRANTY. IMPLIED

WARRANTIES ARE LIMITED TO THE STATED DURATION OF THIS LIMITED WARRANTY. Some states do not allow limitation on how long an implied warranty lasts,

so that limitation may not apply to you. In addition, some states do not allow the exclusion or limitation of incidental or consequential damages, so that above limitation or

exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from State to State. Send all inquiries

regarding warranty work to Tjernlund Products, Inc. 1601 9th Street, White Bear Lake, MN 55110-6794. Phone (651) 426-2993 • (800) 255-4208 • Fax (651) 426-9547 •

Email [email protected].

ELECTRICAL BOX

GRN

8050008

MOTOR

GRN

REDBLK

BLK WHT

GRAY BLK

GND

= FACTORY WIRE CONNECTIONS

120 VAC

50/60 Hz

L1N

BLOWER 120 VAC

OUTLET

PROVIDED WITH UNIT

POWER CORD

OFF

AIRESHARETM MODEL R2RP FACTORY WIRING

DIAGRAM N DIAGRAM O
