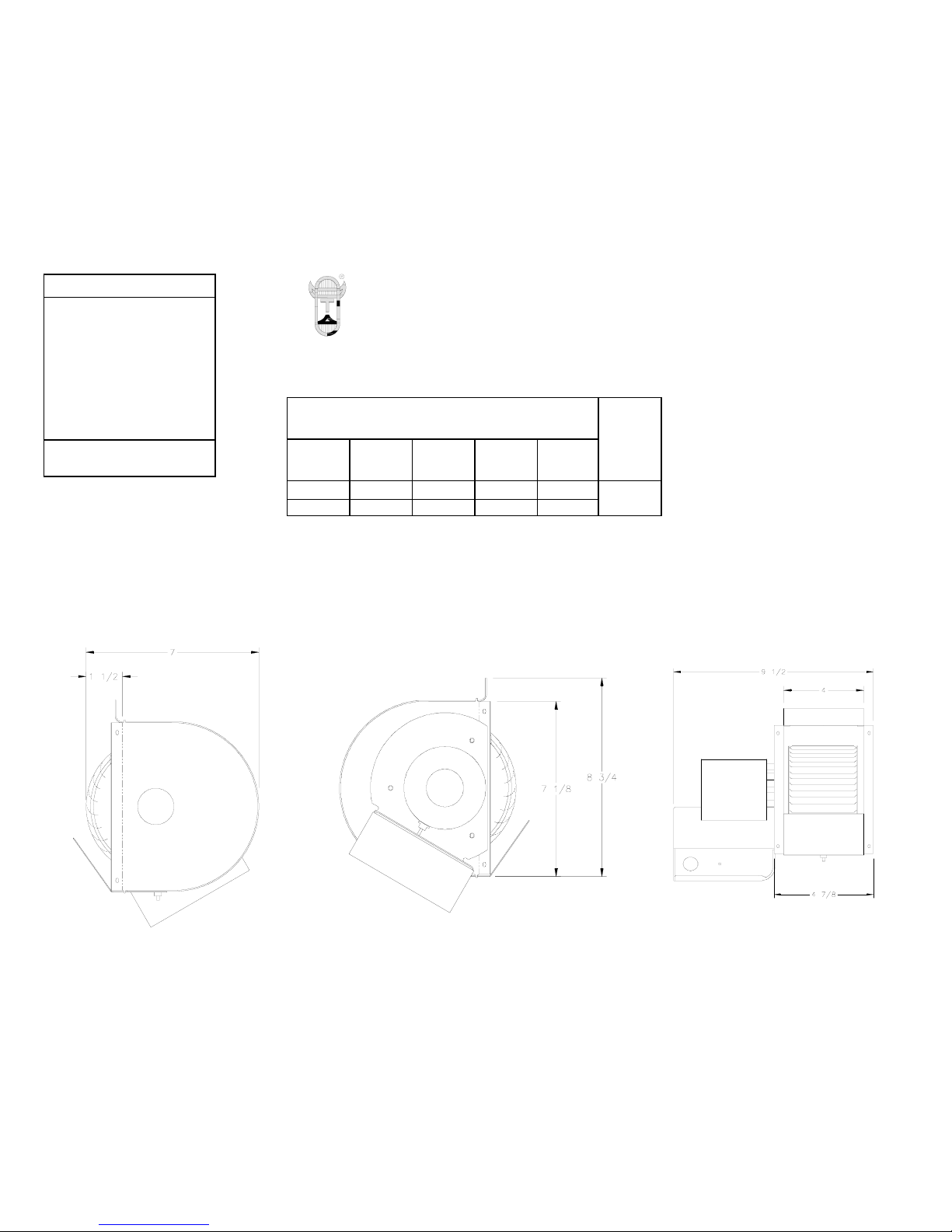

TJERNLUND DB2 DUCT BOOSTER Manual de usuario

APPLICATION:

For boosting air flow in heating or

air conditioning ducts, or for pow-

ered ambient air intake or exhaust.

Easy installation in both round and

rectangular ducts. Can be installed

in a section of metal duct and

spliced into a section of flex duct.

Installs in round metal ducts from

5” - 8” diameter or rectangular

ducts as shallow as 3 1/4”.

Maximum ambient room temp. 100oF.

Maximum duct air temp. 200oF.

ACCESSORIES:

DB-2 can be activated with the

optional model PS1503 Duct Airstat.

CAUTION: This device is not

designed to vent bi-products of

combustion or combustible fumes.

Note: Tjernlund Products reserves

the right to make changes to

specification without notification.

Table is based on straight metal duct. 90 degree elbows are equivalent

to 10 feet of straight duct. Performance is based on 70 degrees F.

standard air.

P/N 8506013

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

Duct Length in Feet

Maximum

Air Temp

Degrees F.

Duct

Diameter

Free Air

CFM

25 Feet

CFM

50 Feet

CFM

75 Feet

CFM

6” Duct 200 150 100 95 200OF.

8” Duct 275 250 220 180

MODEL DB-2 PERFORMANCE

MOTOR SPECIFICATIONS

ELECTRICAL DATA

Volts 120

Amps .51

Watts 40

Phase 1

Hertz 60

Drip Proof - Non ventilated

Therm. Protection Imp.

UL FILE NUMBER E67265
