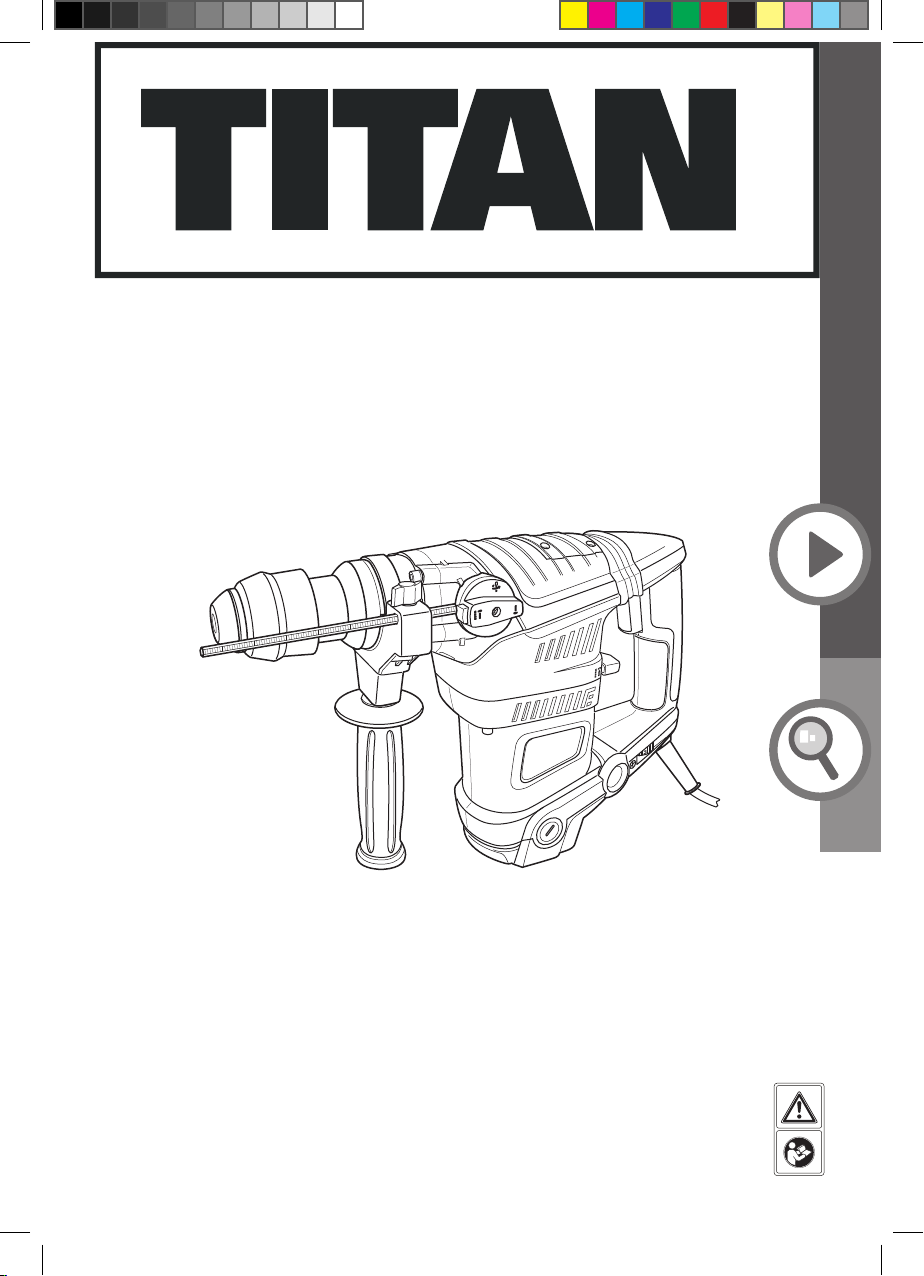

Titan TTB653SDS Manual de usuario
Original Instructions_TTB653SDS_GB_V3_160614
TTB653SDS
1500W SDS Plus
Rotary Hammer
Barcode: 5052931538713
Ref. No.: 6846H
WARNING: Read the instructions before using the product!
MNL_TTB653SDS_TIT_GB_V02_150819.indd 1 8/19/15 9:47 AM
Congratulations on your purchase of a power tool from
Titan Power Tools (UK) Ltd. We want you to continue getting the
best performance from it so this handbook includes information on
safety, handling and care. Please retain this handbook in case you
need to refer to any of the information in the future.
Your power tool comes with a 2 year guarantee, so should
it develop a fault within this period contact your retailer.
GUARANTEE
This product carries a guarantee of 2 year. If your product develops a
fault within this period, you should in the rst instance contact the retailer where
the item was purchased.
This guarantee specically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (Such as chains, bars and sprockets)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in
the UK.
For any enquiries relating to the guarantee please refer to your retailer.
ROTARY HAMMER 1500W - TTB653SDS
MNL_TTB653SDS_TIT_GB_V02_150819.indd 2 8/19/15 9:47 AM
05
TTB653SDS by TITAN
Safety information
Getting started...
EN
>Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
>Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
>When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
>If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
Personal safety
>Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
>Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
>Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
MNL_TTB653SDS_TIT_GB_V02_150819.indd 5 8/19/15 9:47 AM
06
TTB653SDS by TITAN
Safety information
Getting started...
EN
Safety warnings
>Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
>Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
>Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
>If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
Power tool use and care
>Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
>Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
>Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
>Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
MNL_TTB653SDS_TIT_GB_V02_150819.indd 6 8/19/15 9:47 AM
07
TTB653SDS by TITAN
Safety information
Getting started...
EN
>Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
>Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
>Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
Service
>Have your power tools serviced by a qualied repair
person using only identical replacement parts. This
will ensure that safety of the power tool is maintained.
Hammer safety warnings
>Wear ear protectors. Exposure to noise can cause
hearing loss.
>Use auxiliary handle supplied with the tool. Loss of
control can cause personal injury.
>Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
>The SDS MAX drill is not commended for core drilling.
For core drilling, always select suitable core drill.
>When using this product it is essential that the following
rules for use are followed:
MNL_TTB653SDS_TIT_GB_V02_150819.indd 7 8/19/15 9:47 AM
08
TTB653SDS by TITAN
Safety information
Getting started...
EN
Safety warnings
• When drilling it is common that the core / drill bit jams in
the material being drilled. This will result in the product
trying to rotate around the drill bit and potentially
come out of your grip. This product has a safety clutch
mechanism. This safety clutch mechanism will be
activated and stop the drive to the drill bit BUT only if
you resist the initial forces caused by the jamming by
securely holding the product with both hands. As this
is a very powerful product these forces are signicant.
• ALWAYS ensure that the auxiliary handle is rmly
afxed and secured.
• The auxiliary and main handle must be rmly held to
resist any movement of the product when the core drill
or drill bit becomes jammed.
• ALWAYS use this product when standing on a rm
and secure platform or the ground. (DO NOT USE ON
LADDERS OR STEPS.)
• NEVER start the product with the core or drill bit
jammed in position.
• DO NOT stretch to hold the product. Do not work
above shoulder height or below knee height, as the
product cannot be securely held.
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
MNL_TTB653SDS_TIT_GB_V02_150819.indd 8 8/19/15 9:47 AM
