Titan ParaMax Manual de usuario

Titan ParaMax Suspension, Self Steering,

High Lift Suspension System

1129 Highway #3

Delhi, Ontario, Canada, N4B 2W6

Phone: 519-688-4826

Fax: 519-688-6453

www.titantrailers.com

Owner's Manual

Table of Contents

Table of Contents.................................................................................................................................2

General Information.............................................................................................................................2

Introduction..........................................................................................................................................3

Suspension Operation..........................................................................................................................3

Suspension Alignment..........................................................................................................................4

Maintenance Schedule.........................................................................................................................9

Parts List & Illustrations.......................................................................................................................9

Warranty.............................................................................................................................................10

General Information

Suspension Identification: The Titan ParaMax Suspension can be identified by a metal tag attached

on the left-hand hanger that indicates the serial number, model number and suspension load

capacity.

Parts: For best performance and reliability order only Titan replacement parts. Replacement parts

and instructions are shown on page 8 and 9 of this manual.

Service & Warranty: If you need assistance regarding this suspension, please contact us and we will

pleased to help you.

Titan Trailers Inc.

1129 Highway #3

Delhi, Ontario, Canada

www.titantrailers.com

Phone: 519-688-4826

Fax: 519-688-6453

Email: [email protected]

Introduction

The Titan ParaMax suspension has be designed to give extreme suspension travel, high lift, vertical

king pin position through entire suspension travel as well as allowing freedom of the axle to

displace different heights vertically from side to side. These benefits allow for improved ride

comfort, increased ground clearance when lifted, reduced tire wear, minimal maintenance, less

stress on axle, suspension and trailer all increasing the longevity of the trailer and its components.

Suspension Operation

The controls of the Titan ParaMax Suspension are in the stainless steel box on the driver's side.

There is a push/pull knob or switch to raise or lower the suspension depending on the vehicles load

requirements which can manually raise and lower the suspension from ride height to the lifted

position. There is also a pressure regulator and air gauge to control the load carried by the

suspension. The following pressure versus load charts are shown below in Table 1 for each ride

height. RH=Ride Height.

Table 1

Titan ParaMax Suspension - TP-01-1650

Titan ParaMax Suspension - TP-01-1675

Pressure

Load on Ground @ 16.50" RH

Pressure

Load on Ground @ 16.75" RH

psig

5950

2699

5950

2699

8150

3697

8150

3697

10150

4604

10150

4604

12350

5602

12350

5602

14450

6554

14450

6554

16850

7643

16850

7643

18950

8596

18950

8596

21150

9594

21150

9594

100

23750

10773

100

23750

10773

Titan ParaMax Suspension - TP-01-1700

Titan ParaMax Suspension - TP-01-1725

Pressure

Load on Ground @ 17" RH

Pressure

Load on Ground @ 17.25" RH

psig

5750

2608

5750

2608

7550

3425

7550

3425

9750

4423

9750

4423

11950

5420

11950

5420

14150

6418

14150

6418

16350

7416

16350

7416

18350

8324

18350

8324

20550

9321

20550

9321

100

22950

10410

100

22950

10410

Titan ParaMax Suspension - TP-01-1750

Titan ParaMax Suspension - TP-01-1775

Pressure

Load on Ground @ 17.50" RH

Pressure

Load on Ground @17.75" RH

psig

5550

2517

5550

2517

7350

3334

7350

3334

9450

4286

9450

4286

11650

5284

11650

5284

13850

6282

13850

6282

15950

7235

15950

7235

17850

8097

17850

8097

20150

9140

20150

9140

100

22450

10183

100

22450

10183

Titan ParaMax Suspension - TP-01-1800

Titan ParaMax Suspension - TP-01-1825

Pressure

Load on Ground @ 18" RH

Pressure

Load on Ground @ 18.25" RH

psig

5450

2472

5450

2472

7250

3289

7250

3289

9350

4241

9350

4241

11350

5148

11350

5148

13350

6056

13350

6056

15350

6963

15350

6963

17550

7961

17550

7961

19350

8777

19350

8777

100

22050

10002

100

22050

10002

Titan ParaMax Suspension - TP-01-1850

Titan ParaMax Suspension - TP-01-1875

Pressure

Load on Ground @18.50" RH

Pressure

Load on Ground @ 18.75" RH

psig

5350

2427

5350

2427

7150

3243

7150

3243

9150

4150

9150

4150

11150

5058

11150

5058

13250

6010

13250

6010

15050

6827

15050

6827

17150

7779

17150

7779

18950

8596

18950

8596

100

21550

9775

100

21550

9775

Titan ParaMax Suspension - TP-01-1900

Titan ParaMax Suspension - TP-01-1925

Pressure

Load on Ground @ 19" RH

Pressure

Load on Ground @ 19.25" RH

psig

5250

2381

5250

2381

6950

3152

6950

3152

8750

3969

8750

3969

10550

4785

10550

4785

12750

5783

12750

5783

14550

6600

14550

6600

16550

7507

16550

7507

18450

8369

18450

8369

100

20850

9457

100

20850

9457

Titan ParaMax Suspension - TP-01-1950

Titan ParaMax Suspension - TP-01-1975

Pressure

Load on Ground @ 19.50" RH

Pressure

Load on Ground @ 19.75" RH

psig

5150

2336

5150

2336

6750

3062

6750

3062

8450

3833

8450

3833

10350

4695

10350

4695

12350

5602

12350

5602

14050

6373

14050

6373

16050

7280

16050

7280

18050

8187

18050

8187

100

20150

9140

100

20150

9140

Titan ParaMax Suspension - TP-01-2000

Titan ParaMax Suspension - TP-01-2025

Pressure

Load on Ground @ 20" RH

Pressure

Load on Ground @ 20.25" RH

psig

4950

2245

4950

2245

6550

2971

6550

2971

8250

3742

8250

3742

10050

4559

10050

4559

11950

5420

11950

5420

13550

6146

13550

6146

15550

7053

15550

7053

17350

7870

17350

7870

100

19550

8868

100

19550

8868

Titan ParaMax Suspension - TP-01-2050

Pressure

Load on Ground @ 20.50" RH

psig

4850

2200

6150

2790

8050

3651

9750

4423

11750

5330

13350

6056

15250

6917

16950

7688

100

19150

8686

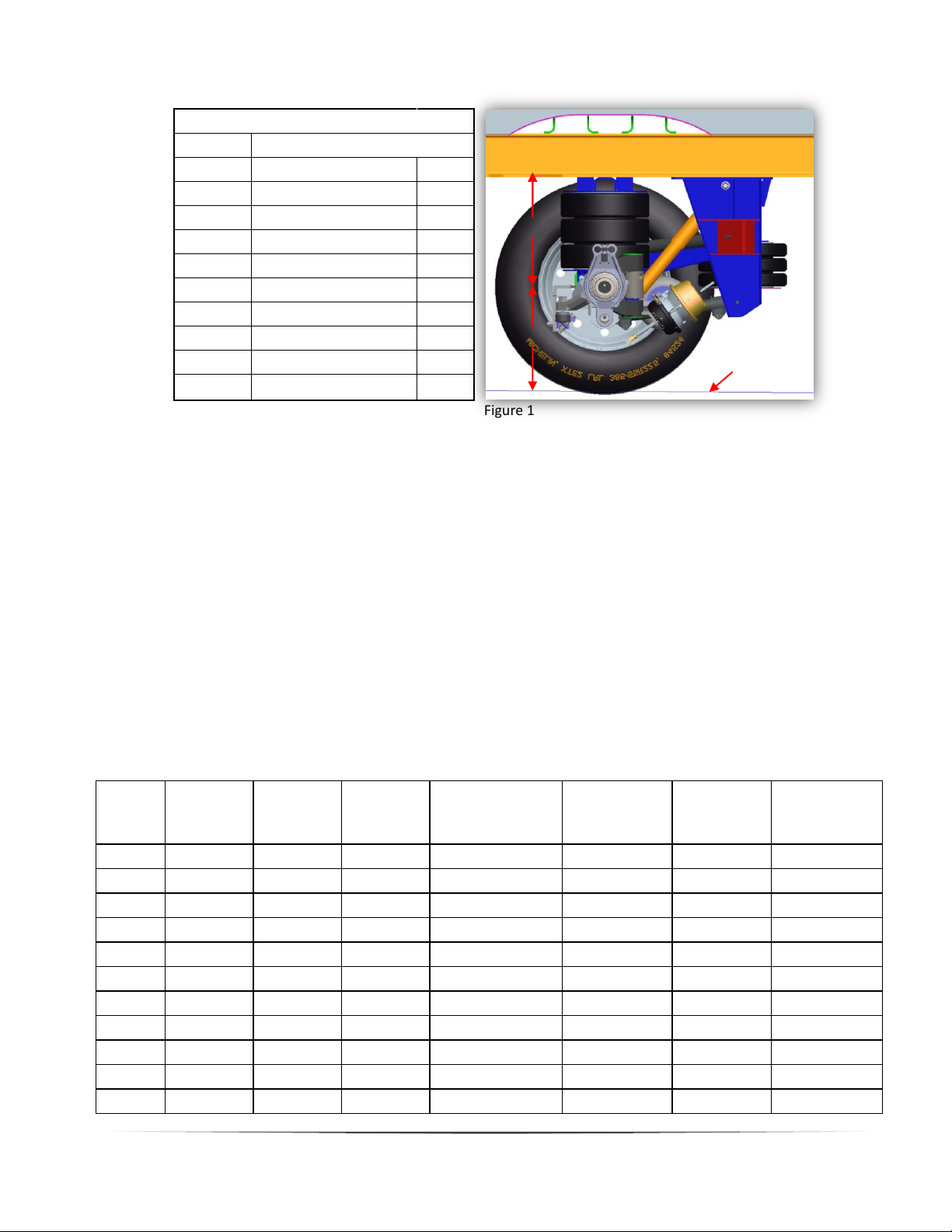

Figure 1

To achieve more accurate pressure vs. load charts for your exact trailer suspension place self-steer

axle on certified scales under the lowered steer axle and adjust the pressure regulator by 10psi

increments to adjust gauge pressure and record the load on the scales at these pressure

increments. This should give more accurate table results for each specific axle on your trailer. Make

sure the axle is at the ride height that it will be riding at when riding down the highway. See

Figure 1 for illustrations.

For SPIF trailers weigh the load on the primary axles and divide the load by the number of axles.

Next weigh the load on the steer axles and divide by number of axles. Then adjust proportional

pressure regulator to steers until each steer axle has same load on them as each primary axle and

therefore they equalize. All axles must equalize to within 500kg. See SPIF Vehicle and Weight Limits

manual for more information. Below in Table 2 the ParaMax suspension parameters for each ride

height is shown. These numbers can be used to verify that the suspension components are

operating within their allowable ranges.

Table 2

Ride

Height

(in)

Ride Bag

Height

(in)

Lift Bag

Height

(in)

Up travel

(Lift) (in)

Required

Clearance

Above Tire (in)

Down travel

(Rebound)

(in)

Shock

Length at

Ride Height

Hanger

Height From

Ground (in)

16.5

11.625

6.5

8.5

23.55

16.75

11.25

11.375

6.75

8.75

6.75

23.74

11.25

11.5

11.125

6.5

23.92

11.5

17.25

11.75

10.875

7.25

9.25

6.25

24.1

11.75

17.5

10.625

7.5

9.5

24.28

17.75

12.25

10.375

7.75

9.75

5.75

24.47

12.25

12.5

10.125

5.5

24.65

12.5

18.25

12.75

9.875

8.25

10.25

5.25

24.83

12.75

18.5

9.625

8.5

10.5

18.75

13.25

9.375

8.75

10.75

4.75

25.18

13.25

13.5

9.125

4.5

25.36

13.5

Ride Height

Loaded Tire Radius

Ground

19.25

13.75

8.875

9.25

11.25

4.25

25.54

13.75

19.5

8.625

9.5

11.5

25.72

19.75

14.25

8.375

9.75

11.75

3.75

25.9

14.25

14.5

8.125

3.5

26.07

14.5

20.25

14.75

7.875

10.25

12.25

3.25

26.25

14.75

20.5

7.625

10.5

12.5

26.42

Suspension & Axle Alignment

To setup the alignment, caster, and toe-in/toe-out of suspension axle follow procedure IN015,

IN016, IN020 of the Ingersoll Axles Installation and Maintenance Manual in conjunction with this

paragraph. To adjust the caster of the axle, loosen the 5/8" pinch bolts on the lower torque rods

and turn the torque rod in or out to increase or decrease caster angle whichever is desirable.

Maintenance Schedule

Below in Table 3, we recommend the following maintenance schedule to keep your Titan

ParaMax suspension in optimum working condition. It should also be noted that the lift bag not

exceed 60 psi. It is preset at the factory at this pressure.

Table 3

Suspension

First 1000 Miles

First 6000 Miles

First 12000 Miles

Every 36000 Miles

Bushings

Air Springs

Shocks

Structure

Fastener Torque

I = Inspect, T=Tighten

Notes:

(1) The above intervals are minimum requirements. More frequent intervals are

recommended for severe applications.

(2) 1 mile = 1.6 km

Below in Table 4 shows the torque specification for the suspension fasteners.

Table 4

Fastener Size

Location

Torque (ft-lbs)

Torque (in-lbs)

5/8" - 11 NC

Torque Rod Joint Bolts

135

N/A

5/8" - 11 NC

Torque Rod Pinch Bolts

135

N/A

3/4" - 16 NF

Shock Bolts

295

N/A

3/8" - 16 NC

Airbag Connection

240

1/2" - 16 NC

Airbag Connection

360

3/4" - 16 NC

Airbag Connection

480

5/8" - 11 NC

Hanger Bolts

150

N/A

Parts List & Illustrations

Below in Figure 2 shows an exploded view of the ParaMax Suspension and on the next page a Table

5 shows a list of the components with part numbers and descriptions.

Figure 2

Table 5

Item

Description

Part Number

86" TRACK AXLE ASSEMBLY

04SWF_000065_01

HANGER ASSEMBLY, RIGHT

04SWF_000078

HANGER ASSEMBLY, LEFT

04SWF_000080

UPPER BAG PLATE ASSEMBLY

04SWF_000084_06

PLATE, ANTI-CORROSION

04SWF_000089

LIFT MOUNT ASSEMBLY

04SWF_000095_01

UPPER SHOCK SPACER

04SWF_000103

FIRESTONE TRIPLE CONVULTED AIRBAG

W01-358-7850

BRAKE CHAMBER, GOLD SEAL 3030, 2.5" STROKE, 4.88" ROD

AIR_139030120_SW

NUT, 1/2" HEX

HDW_120_000_105Z

LOCK WASHER, 1/2" GR 5 Z

HDW_120_000_255Z

NUT 3/4" HEX

HDW_340_000_105Z

LOCKNUT, 3/4" - 16" NC GR 8 Z, ALL METAL

HDW_340_000_108Z

LOCKNUT, 3/4" - 16 ALL METAL, ZINC, GR 8, NF

HDW_340_000_156Z

WASHER 3/4", 1.50" OD

HDW_340_000_208Z

LOCKWASHER, 3/4" GR 5

HDW_340_000_255Z

BOLT 3/4"-16 - 4 1/2"

HDW_412_000_006YZ

BOLT 3/4"-16 - 4"

HDW_400_000_006YZ

LOCKNUT, 5/8"-11 NC GR 5 FLANGE HEX CAP

HDW_379

WASHER 3/8" FLAT, GR 8

HDW_380_000_208Z

LOCK WASHER, 3/8" GR 5 Z

HDW_380_000_255Z

BOLT 3/8" - 16 X 1-1/4" NC GR 5 ZINC PLATED HEX CAP

HDW_380_114_005Z

BOLT, 5/8"-11 X 5" NC GR 8 FLANGE HEX CAP

HDW_381

MUNROE SHOCK ABSORBER, 65482

SUP_65482

TORQUE ROD, ADJUSTABLE ASSEMBLY, 24" LG

SUP_216240

TORQUE ROD, FIXED, 27.88" LG

SUP_223277

#1 SPIGOT

SUP_800201

TORQUE ARM RUBBER BUSHINGS

SUP_22128

BOLT, 5/8"-11 X 3-1/2" NC GR 8 ZINC FLANGE HEX CAP

HDW_380

24" ADJUSTABLE TORQUE TUBE

SUP_21924

ADJUSTABLE TORQUE ROD EYE

SUP_22045

Warranty

Titan Trailers warrants the suspension systems manufactured by it to be free from defects in

material and workmanship under proper use, installation, application and maintenance for a

period of 3 years after delivery to the original buyer.

Written permission for any claim return must be first obtained from an authorized Titan Trailer

Personnel. All returns must have transportation charges prepaid by the customer and accompanied

with a complete written explanation of claimed defects and the circumstances of suspension

failure. On all parts not manufactured by Titan Trailers, their warranty is to the extent that the

manufacturer of such parts warrant them to Titan Trailers. In no event will Titan Trailers be liable

for business interruptions, loss of profits, personal injury, cost of delay or for other special, indirect,

incidental or consequential losses, costs or damages.

Subject to all the above conditions, if repair or replacement of any defective part is made by Titan

Trailers, Titan Trailers will return the repaired or replaced parts to the original purchaser with

transportation charges prepaid. Table 6 below shows the timeline for warranties.

Table 6

Timeline

Warranty Coverage

1-12 months

100% Parts & Labour

13-24 months

100% Parts Only

25-36 months

50% Parts Only

Tabla de contenidos

Manuales populares de Equipos industriales de otras marcas

ABB

ABB Unifix AD Manual

Mark 7

Mark 7 Evolution Manual de usuario

Husky

Husky HyPET Manual de usuario

bora

bora PM-1800 Manual de usuario

Grizzly

Grizzly T32428 Manual de usuario

Siemens

Siemens 8MF1 Series Manual de usuario

ABB

ABB HT610965 Manual de usuario

ABB

ABB SafeLink Manual de usuario

Phoenix

Phoenix PHX-150 Manual de usuario

ABB

ABB A165-L32 Manual de usuario

ABB

ABB HT842936 Manual de usuario

Rioned

Rioned UrbanJet Manual de usuario

Hermetica

Hermetica 10 Series Manual de usuario

HORNER

HORNER OEE Solution Manual de usuario

Hammerhead

Hammerhead HG375 Manual de usuario

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instrucciones de uso

ABB

ABB HT566657 Manual de usuario

Webasto

Webasto GSE CAN Manual de usuario
