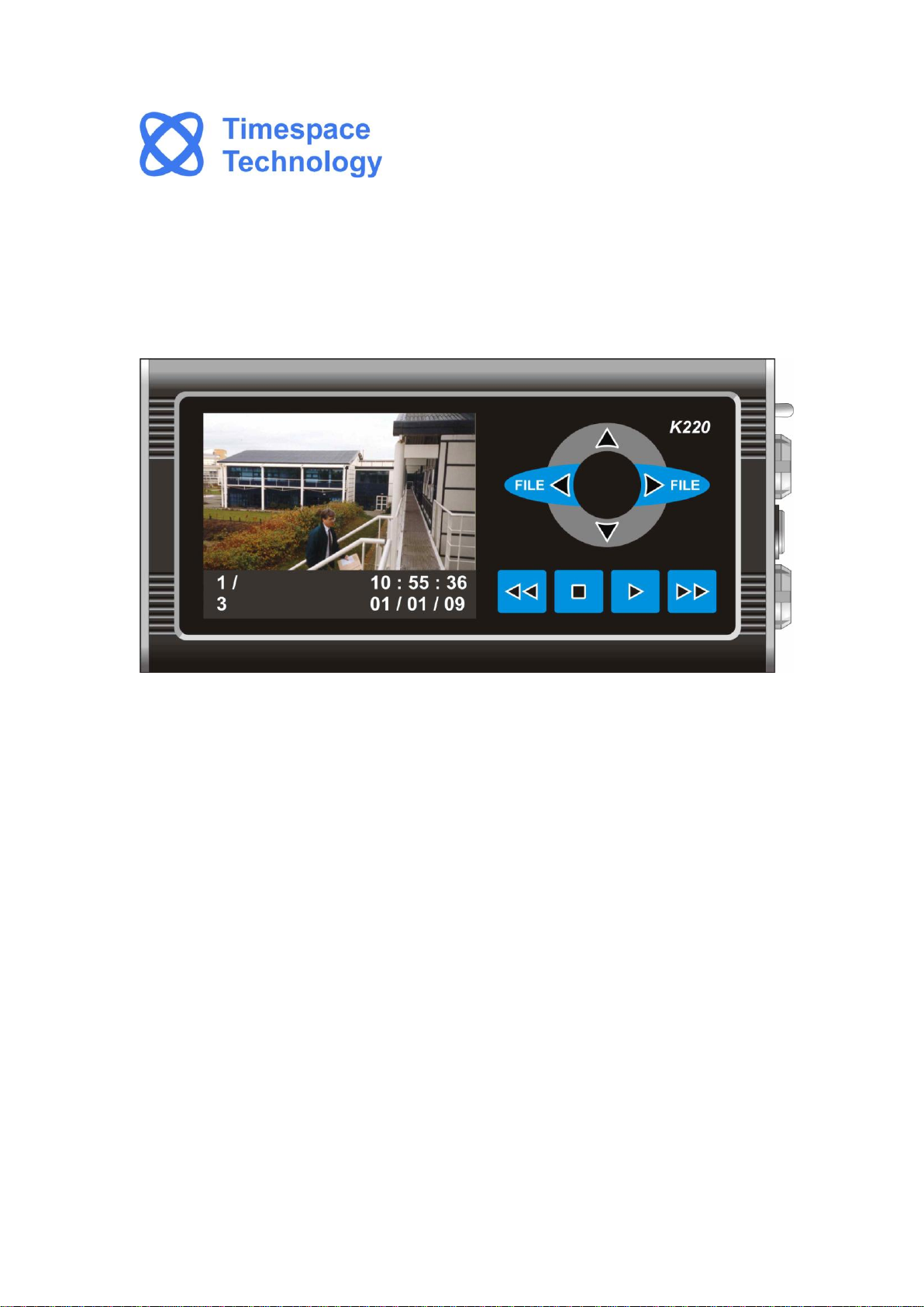

Timespace K210 Manual de usuario

K210 / K220

Digital Video Recorder

Instruction Manual

K210 / K220 Configuration Utility V1.0.0

PCLink Suite V 7.0

K210 / K220

Digital Video Recorder

Instruction Manual

CONTENTS

SAFETY .......................................................................................................................... 3

ENVIRONMENTAL........................................................................................................... 4

SYSTEM OVERVIEW ....................................................................................................... 7

CONNECTIONS AND CONTROLS ................................................................................... 8

K210............................................................................................................................ 8

K220............................................................................................................................ 9

K210/K220 Camera Wiring Recommendations ............................................................. 10

K210/K220 Power Connector ...................................................................................... 13

CONFIGURATION –K210.............................................................................................. 14

K210 PC Configuration Utility ...................................................................................... 15

Recording .............................................................................................................. 16

Timer ..................................................................................................................... 17

Audio ..................................................................................................................... 18

Text ....................................................................................................................... 19

File System ............................................................................................................ 20

Vibrator.................................................................................................................. 21

Advanced............................................................................................................... 22

CONFIGURATION –K220.............................................................................................. 23

K220 PC Configuration Utility ...................................................................................... 24

Recording .............................................................................................................. 25

Timer ..................................................................................................................... 26

Audio ..................................................................................................................... 27

Text ....................................................................................................................... 28

File System ............................................................................................................ 29

Vibrator.................................................................................................................. 30

Advanced............................................................................................................... 31

TOUCH SCREEN CONTROLS (K220) ............................................................................ 32

Configuration.......................................................................................................... 32

Playback ................................................................................................................ 33

THE MENU SYSTEM (K220) .......................................................................................... 34

General.................................................................................................................. 34

Audio ..................................................................................................................... 34

Video ..................................................................................................................... 35

Advanced............................................................................................................... 35

UPDATING THE K210/K220 OPERATING SOFTWARE .................................................. 36

PCLINK SUITE .............................................................................................................. 38

K210/K220 SPECIFICATION .......................................................................................... 40

SAFETY

WARNING: Designed for use in the temperature range 0° to 45°C, 20% to 80% RH (non-

condensing).

WARNING: Do not wet the product when cleaning.

WARNING: Do not open the K210/K220 series case - no user serviceable parts inside.

WARNING: The maximum rating for a camera connected to a K210/K220 unit is 2W.

Connecting a higher power camera will result in permanent damage to the unit.

WARNING: Ensure camera voltage setting in Advanced Menu is the same as the voltage of

the camera actually being used; for example: if the menu voltage is set to 12V and a 5V

camera is connected, the camera can be damaged.

WARNING: K210/K220 should be safely removed from Windows operating system

environment prior to removing usb cable. Data loss or corruption may occur if this is not

followed.

ENVIRONMENTAL

Temperature

The K210/K220 is designed for indoor use in the temperature range 0° to 45°C, 20% to 80%

RH (non-condensing).

Shock and Vibration

Although the K210/K220 is constructed from a robust extrusion, every care should be taken to

avoid extremes of shock and vibration.

Conformity

EMC Conformity (CEMark)

Meets the European Council Directive 89/336/EEC (EMC Directive) relating to EMC

Emissions - EN61000-6-3(2001) and EMC Immunity –EN61000-6-1(2001).

EC Declaration of Conformity (CE)

We Timespace Technology Ltd.

Blackstone Rd

Huntingdon

PE29 6TT

United Kingdom

declare that the

K210/K220 Digital Video Recorder

Meets the intent of the European Council Directive 89/336/EEC referred to as the

Electromagnetic Compatibility (EMC) Directive. The product conforms to the following

standards which have been listed in the Official Journal of the European Union.

EMC

Emissions: EN61000-6-3(2001) EMC Generic Emission Standard for residential, commercial

and light industrial. Referring to:

a) EN55022(2006) Conducted, Class B

b) EN55022(2006) Radiated, Class B

Immunity: EN61000-6-1(2001) EMC Generic Immunity Standard for residential, commercial

and light industrial. Referring to:

a) EN55024(1998) Information Technology Equipment –Immunity Characteristics

b) IEC 61000-4-6(2006) RF Field

c) IEC 61000-4-2(2001) Electrostatic Discharge

d) IEC 61000-4-4(2004) Fast Transient

e) IEC 61000-4-3(2006) Radiated Field Immunity

f) IEC 61000-4-5(2005) Surge

g) IEC 61000-4-8(2001) Power Frequency Magnetic Field

h) IEC 61000-4-11(2004) Voltage Dips and Interruptions

...............................................................................

Dr ROBERT HEYLEN

TECHNICAL DIRECTOR –2nd October 2008

Certificate of Registration

The Waste Electrical and Electronic Equipment Regulations

This is to certify that

Timespace Technology Ltd

is a registered member of the

Transform WEEE Compliance Scheme

for the compliance period

1 January 2008 to 31 December 2008

EA Producer Registration Number: WEE/CA0066TW

Transform is approved by the Environment Agency : WEE/MP3238PG/SCH

It is part of Biffa Waste Services Limited

Head Office: Coronation Road, Cressex, High Wycombe, Bucks. HP12 3TZ

Telephone: 01494 521221

SYSTEM OVERVIEW

Overview

The K210/K220 is a stand-alone digital video recorder only requiring the addition of power, a

suitable camera and/or microphones to record both video and audio.

The K210/K220 is powered externally (6-18V regulated mains/battery supply).

The K210/K220 is connected to a PC via the supplied USB2 cable. This allows access to

stored recordings and configuration of the K210/K220.

Recording with the K210/K220

Simply attach a suitable camera and/or microphone(s) to the K210/K220 ‘Input’ connector

which is detailed in the Connections and Controls section of this manual.

Recording is activated either by moving the K210/K220 toggle switch to the ‘On’ position or by

using an external trigger (as detailed in the Connections and Controls section of this manual).

When the K210/K220 is recording the ‘Rec ord’ LED will be lit. The amount of disk capacity

used is displayed by the ’25, 50, 75 and 100%’ LED indicators.

Reviewing recorded footage

The K210/K220 toggle switch must first be moved to the ‘Off – USB2’ position. The supplied

USB2 cable can then be used to connect the K210/K220 to a PC with PCLink Suite software

installed.

Recorded files can then be viewed and archived using PCLink200 software. Please refer to

the PCLink200 section of this manual for further details.

For the K220, recorded files can be played back on the integral LCD screen by moving the

toggle switch to the ‘play’ position and pressing the blue play button.

Configuring the K210/K220

The K210/K220 toggle switch must first be moved to the ‘Off – USB2’ position. The supplied

USB2 cable can then be used to connect the K210/K220 to a PC.

Once connected, the K210/K220 contents window should automatically appear within the

Windows environment. If it does not, double click ‘My Computer’ or use Windows Explorer to

locate the newly attached Removable Disk. Double clicking the new Removable Disk icon will

open the K210/K220 contents window.

This window displays the contents of the K210/K220 including any recorded .xba files and the

K210/K220 Configuration Utility.

In order to set up the K210/K220 double click on the K210/K220 Configuration Utility. This

will then start in a new window. The K210/K220 Configuration Utility is covered in more detail

in the Configuring the K210/K220 section of this manual.

CONNECTIONS AND CONTROLS

Input / Output Connectors

The K210/K220 has three connectors one for power, one for USB2 and control and the other

for camera and microphone inputs.

A USB2 cable is supplied with the K210/K220 allowing it to be connected to a USB2 port on a

PC. This is used to allow configuration of the K210/K220 and access to any stored recording

files.

The input and power connector is supplied with the K210/K220, but appropriate cable

connections will have to be made in order to attach cameras and/or microphones.

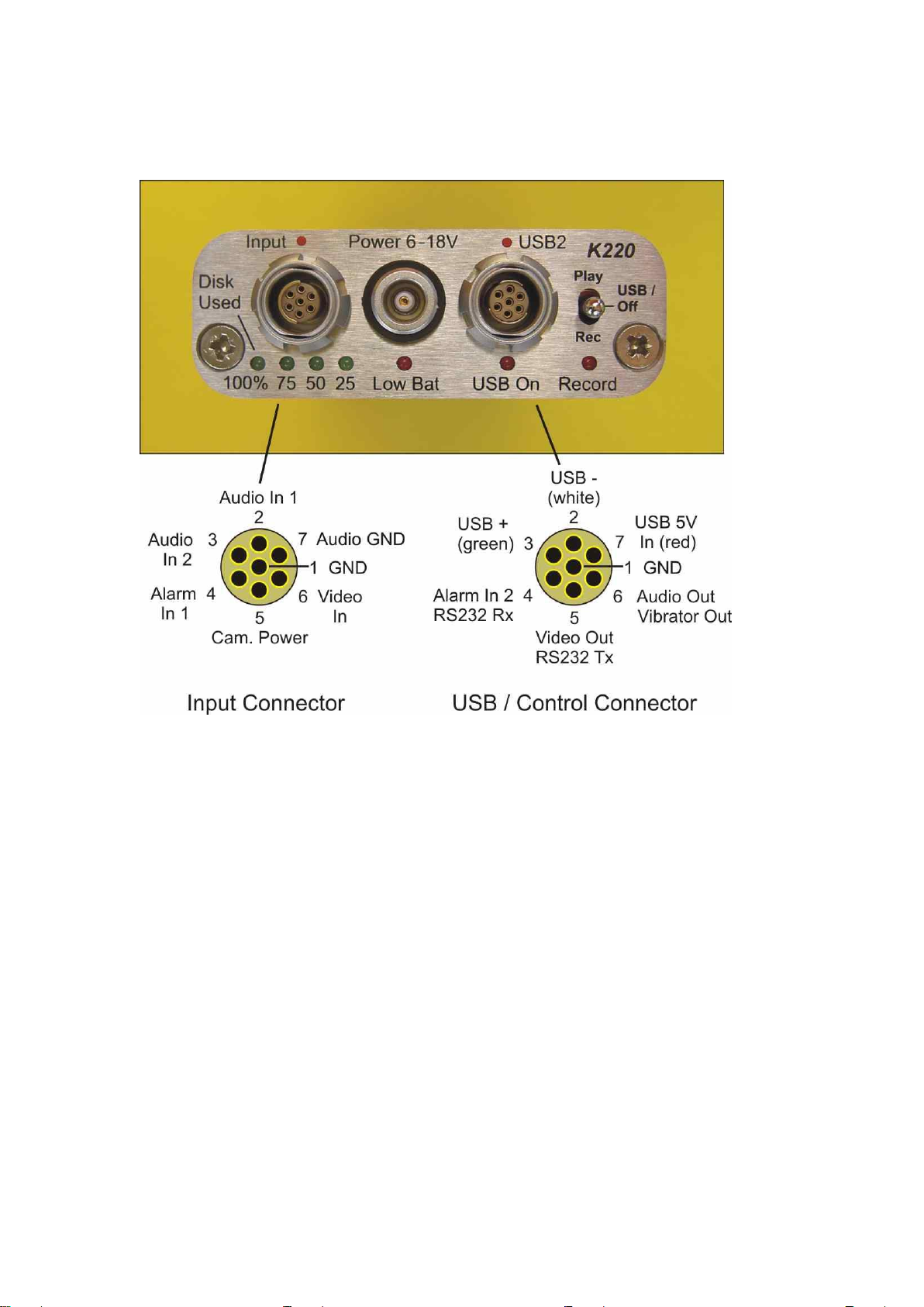

The pin assignments for each of the connectors are shown in the following diagram.

K210

K220

Record/USB2 Switch

The K210/K220 toggle switch controls whether the K210/K220 is recording (switch in the ‘On’

position) or whether it is connected to the PC (switch in the ‘Off’ position ).

LED Indicators

The K210/K220 has a number of LED’s to indicate certain conditions.

Record –Indicates that the K210/K220 is currently recording.

Low Bat –Indicates that the K210/K220 attached battery is low and will need charging soon

to avoid power down.

Memory Used –Gives an indication as to how much of the K210/K220 hard disk is full of

recording, LED’s will light at 25, 50, 75 and 100% full.

The K210/K220 LED’s can be software disabled by selecting ‘ LEDs Disabled’ in the

Advanced Menu of the K210/K220 Configuration Utility. If this is selected then none of the

K210/K220 LED’s will light at any time which may be of use in covert applications.

RS232 Tx/Rx –For future use. Currently no functionality in K210/K220.

Vibrator Output Diagram

K210/K220 Camera Wiring Recommendations

Introduction

The K210/K220 is supplied with a Fischer plug + 4.7mm collet, for connecting your choice of

camera to the K210/K220 unit. This plug mates with the Input connector of the K210/K220

and is the only plug suitable for use. This document provides some hints for preparing this

connector.

***Caution***

A high level of wiring and soldering skill is required to successfully connect to the plug

supplied. The contacts are very small and therefore there it is easy to short

connections together, possibly damaging your K210/K220. Please ensure you have

sufficient skills before attempting this task.

K Series internal circuit

Example external circuit

Current controlling resistor

if vibrator is < 3.3Vrated
