Tiger Electronics 88-308 Manual de usuario

To enhance the bass effect

Set the BASS BOOST switch to the ON position.

Note: The bass boost performance will be dependent on the VOLUME

control setting.

Remove the disc

Hold the edge and gently press the

center pivot as illustrated, then pick

up the disc.

Caution: Wait for the disc to stop

rotating before pressing the OPEN

button.

Note: This unit can play 3" (8cm)

single CDs without an adaptor. Do

not use a CD single adaptor for

these discs.

1.WARNING:

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to

qualified personnel only.

IMPORTANT NOTE

1.This product does not contain a separate Power On / Off switch. After 

inserting a disc and installing batteries / AC adaptor, simply press 

the Play button to switch on and play a disc.

2.In order to maximize battery life and provide optimum playing time, 

this product has an Auto Power Off function. The player will automatically 

switch off approximately 1 minute after a disc has finished playing or 

when the CD lid is opened.

INSTRUCTION

AGES 5 & UP

MODEL 88-308

883080001IWTI-01

7.LOCATION OF CONTROLS

TABLE OF CONTENTS

Warning & Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

Warning & FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4

Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Batteries

AC Adaptor

Headphone and Hi-Fi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Basic Disc Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

LCD Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Repeat / Play Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Intro Scan and Programmed Track Play . . . . . . . . . . . . . . . . . . . . . . . . 11

Random Play / Skip and Search Functions . . . . . . . . . . . . . . . . . . . . . . 12

Electronic Anti-Shock Operation . . . . . . . . . . . . . . . . . . . . . . . . 13

Player Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Disc Cleaning and Trouble-Shooting Guide . . . . . . . . . . . . . . . . . . . . . 15

90 - Day Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.SAFETY PRECAUTION

1.As the laser beam used in this compact disc player is harmful to the 

eyes, do not attempt to disassemble the casing.

2.Stop operation immediately if any liquid or solid object should fall into 

the cabinet. Unplug the unit and have it checked by qualified personnel.

3.Do not touch the lens or poke at it. If you do, you may damage the 

lens and the player may not operate properly.

4.Do not put anything in the safety slot. If you do, the laser diode will 

be ON when the lid is still opened.

5.If the unit is not to be used for a long period of time, make sure that 

all power sources are disconnected from the unit. Remove all batteries 

from the battery compartment, and unplug the AC adaptor from the 

wall outlet. Make it a practice to remove the AC adaptor by grasping 

the main body and not by pulling the cord.

6.This unit employs a laser. The use of controls or adjustment or 

performance of procedures other than those specified herein may result 

in exposure to hazardous radiation.

4.COMPLIANCE WITH FCC REGULATIONS

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

* Reposition or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that 

to which the receiver is connected.

* Consult the dealer or an experienced radio technician for help.

5.POWER SOURCES

Batteries

1.Open the battery compartment cover and insert two "AA" alkaline 

batteries inside the battery compartment. Follow the polarity as 

indicated in the battery compartment.

2.Close the battery compartment cover.

Note: When the unit is to be operated using batteries, always unplug

the AC adaptor from the AC power outlet and the DC input jack from the

set. Otherwise the player will not operate.

AC/DC (6V) Adaptor Operation ( Not Included )

9.LCD DISPLAY INFORMATION

During STOP mode

The total number of tracks and the

total playing time of the disc are

displayed.

During PLAY mode

The track number and the elapsed

playing time are displayed.

During PAUSE mode

The track playback is paused, the

elapsed time and track number is

flashing.

Note: When lid is opened during play mode ----- shows in the display

indication the door is open.

Note: A flashing indication

appears in the upper right of the

display when the batteries need to be

changed.

10.REPEAT / PLAY MODES

Every time the MODE button is pressed, the corresponding mode appears

in the display window, in the following sequence:

Push MODE button once and is shown in

the LCD display, the current track on the disc

will be repeated.

Push the MODE button twice and is

shown in the LCD display, all tracks on the disc

will be repeated.

Note: In normal mode none of the above

symbols appear in the display.

NORMAL PLAY

To play the entire disc, press PLAY once.

3.WARNING: 6.HEADPHONE AND HI - FI CONNECTION

Listening with the Headphones

Connect the plug of the stereo headphones (included)

into the PHONES (green) socket.

CAUTION: Avoid excessive volume levels for a long

period of time when using headphones, as this may

impair your hearing.

Connecting to Component Audio

Systems

Connect the stereo connection cable

(not included)) into the LINE OUT

(black) socket of the unit and the

CD / AUX inputs of an audio system.

Note: Always switch the power off

before making any connections

between the player and another unit.

8.BASIC DISC PLAY

1.Connect the headphones to the 

PHONES (green) socket.

2.Press the OPEN button to open the 

CD compartment lid.

3.Adjust the VOLUME to minimum.

4.Insert the disc with the label side 

facing up.

5.Close the lid securely until a click is 

heard.

6.Press the PLAY button to start playing.

Approximately

6 hours

Note: Carbon-zinc or Zinc Chloride type batteries are not recommended

for this unit as their use will result in extremely short playing times.

Wherever possible and for economy, it is recommended that the AC

adaptor (not included) be used.

Alkaline MN 1500,

LR6 or Equivalent

Battery Type Average Playing Time (continuous play)

Approximately

3.5 hours

Anti Shock Mode Normal Mode

3.For better performance and longer

operation time, wrecommend the use

of alkaline batteries.

4.a)Do not mix old and new batteries. 

b)Do not mix alkaline, standard 

(carbon-zinc) or rechargeable

(nickel-cadmium) batteries.

5.If the unit is not to be used for an

extended period of time, remove the

batteries. Old or leaking batteries can

cause damage to the unit and may

void the warranty.

Turning Power On and Off

This unit has no ON / OFF switch. To turn on and off, press the following

buttons.

To turn on: Press PLAY / PAUSE (playback starts)

To turn off: Press STOP button once for standby mode. Press STOP

button again to turn off the power.

Auto Power-Off Function

When the unit is stopped (standby mode) for approximately 1 minute,

the power is automatically turned off.

This product contains a low power laser device.

CLASS 1

LASER PRODUCT

CAUTION

INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCKS

DEFEATED

Total no. of tracks Total playing time

This sixth track has elapsed 2 min. 30 sec.

MODE MODE MODE MODE

MODE x 1press

During play

PLAY / PAUSE

x 1press

Press once to play

MODE x 2press

During play

Volume Control Knob

Headphone Socket

Line Out Socket

Door Open

Button

Skip / Search

Button

Bass Boost

Switch

Program

Button

Display Lens Mode

Button Stop Button

Play / Pause Button

ASP Button

DC Input

Socket

Incorporated into the design of this full-feature Compact Disc Player is a face

plate depicting the evil Sith Lord Darth Maul. Darth Maul learns the power

of the dark side from his master Darth Sidious. Darth Sidious is a Dark Lord

of the Sith and the mysterious power behind the Trade Federation's blockade

of Naboo.

TO CD / AUX

IMPUT

TO LINE OUT

DARTH MAUL

CDPLAYER

DARTH MAUL

CDPLAYER

1. Use an AC/DC (6V) Adaptor with 

a). A class 2 power source.

b). Input: 120V AC/60Hz

c). Output: 6V D.C., 500mA

d). Centre positive

e). Dimension 4mm

2. Insert the DC plug, at the end

of the AC/DC (6V) adaptor cord

into the DC input jack, on the

side of the unit.

3. Plug the AC/DC (6V) adaptor

into a 120V, 60Hz AC power

wall outlet socket. (Make sure

the input of the AC/DC (6V)

adaptor match with your local

supply, if you have any problem,

please consult with your dealer.)

PRINTED IN CHINA

980 Woodlands Parkway, Vernon Hills, Illinois 60061, U.S.A.

Belvedere House, Victoria Avenue,

Harrogate, North Yorkshire HG1 1EL, England.

www.tigertoys.com

12.RANDOM PLAY/SKIP AND SEARCH 

FUNCTIONS

RANDOM

This enables all the tracks on a disc to be played in a random (RAND)

sequence.

For example: if RAND is selected while playing track 8, the random

function will begin operating when track 8 has finished playing.

When all the tracks on the disc have been played in the random mode,

the CD player will automatically stop and power down in one minute to

conserve battery life.

To select RAND mode, push the MODE button four times during play.

Pressing MODE once more will return the unit to NORMAL play mode.

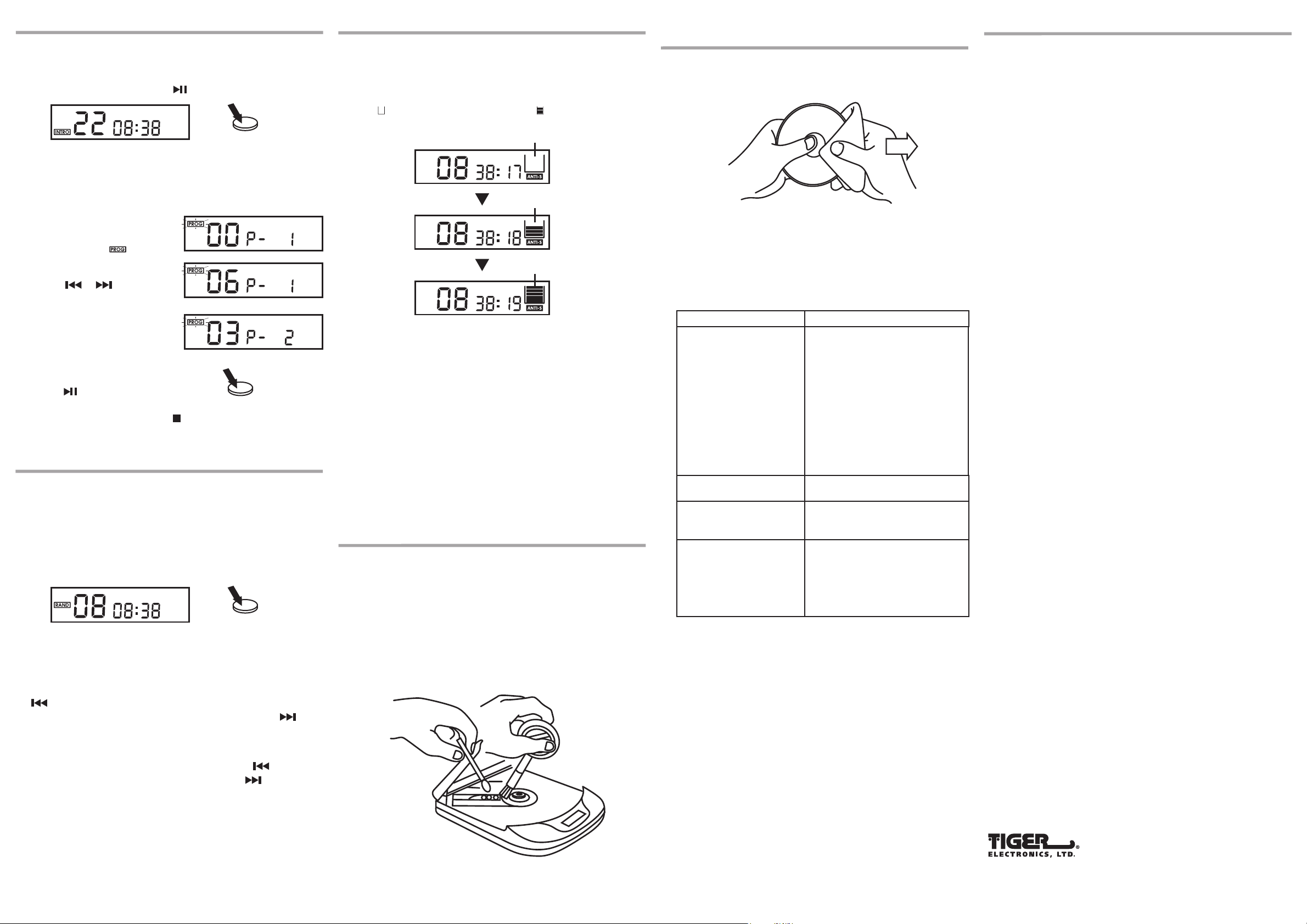

11.Intro Scan and Programmed Track Play

INTRO

To listen to the first 10 seconds of each song on the disc use the INTRO

feature. To initiate INTRO, press MODE button three times while the disc

is playing. If you wish to start the disc in INTRO mode, press MODE

button three times and then press

13.ELECTRONIC ANTI-SHOCK OPERATION

IThis player incorporates an electronic anti-shock circuit to help prevent

interruption of the sound output when the unit is subjected to shock or

vibration during disc playback. If in use the player is likely to be subjected

to shock or vibration (i.e. while walking or if used in a vehicle) press the

anti-shock button to provide uninterrupted playback.

When the anti-shock button is pressed in the play mode, the display will

show and the function is initialized. When shows in the display, the

data buffer is full.

14.PLAYER MAINTENANCE

Cleaning the Cabinet

Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with

a weak solution of neutral detergent and water, then wipe clean.

Dust or Dry Particles

Using a camera lens brush / blower, blow on the lens a couple of times,

then wipe it lightly with the brush to remove dust. Then, blow on the

lens once more.

Fingerprints

If the lens cannot be cleaned using the brush / blowing method, use a

cotton swab starting in the middle and work to the outside edge.

15.DISC CLEANING AND 

TROUBLESHOOTING GUIDE

When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc

from the center out.

PROGRAM

This allows selected tracks on the disc to by played in any desired order.

To set the program play

Note: Programs can be set in the STOP mode.

1. Press the PROGRAM button when

the unit is in the stop mode. The

track number will appear in the

display with the indicator

flashing.

2. Press or to select the

desired track.

3. Press the PROG button to enter

the track into memory.

4. Repeat steps 2 and 3 to program up

to 24 tracks into memory.

5. Press to start the programmed play.

6. To erase the program, press the STOP button twice.

Note: Do not use solvents such as benzene, thinner, commercially

available cleaners or anti-static spray intended for analog discs.

Should you experience difficulties in the use of this player, please refer

to the following chart or call 1- 888-844-7767 for customer service.

16.90-DAY LIMITED WARRANTY

Tiger Electronics, Ltd. (Tiger) warrants to the original consumer purchaser of

this product that the product will be free from defects in materials or

workmanship for 90 days from the date of original purchase. This warranty

does not cover damages resulting from accident, negligence, improper service

or use or other causes not arising out of defects in materials or workmanship.

During this 90-day warranty period, the product will either be repaired or

replaced (at Tiger’s option) without charge to the purchaser, when returned

with proof of the date of purchase to either the dealer or to Tiger.

Product returned to Tiger without proof of the date of purchase or after the

90-day warranty period has expired, but prior to one year from the original

date of purchase, will be repaired or replaced (at Tiger’s option) for a service

fee of U.S.$60.00. Payments must be by check or money order payable to

Tiger Electronics, Ltd.

The foregoing states the purchaser’s sole and exclusive remedy for any

breach of warranty with respect to the product.

All product returned must be shipped prepaid and insured for loss or damage

to: Tiger Electronics, Ltd. Repair Dept.

980 Woodlands Parkway, 

Vernon Hills, Illinois 60061, U.S.A.

The product should be carefully packed in the original box or other packing

materials sufficient to avoid damage during shipment. Include a complete

written description of the defect, a check if product is beyond the 90-day

warranty period, and your printed name, address and telephone number.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES AND NO OTHER

REPRESENTATIONS OR CLAIMS OF ANY NATURE SHALL BE BINDING ON

OR OBLIGATE TIGER IN ANY WAY. ANY IMPLIED WARRANTIES APPLICABLE

TO THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE NINETY (90)

DAY PERIOD DESCRIBED ABOVE. IN NO EVENT WILL TIGER BE LIABLE

FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

RESULTING FROM POSSESSION, USE, OR MALFUNCTION OF THIS TIGER

PRODUCT.

Some states do not allow limitations as to how long an implied warranty lasts

and/or exclusions or limitations of incidental or consequential damages, so

the above limitations and/or exclusions of liability may not apply to you. This

warranty gives you specific rights, and you may also have other rights which

vary from state to state.

For more information about Tiger Electronics, our products and special

promotions, please visit our Web Site at: www.tigertoys.com

Locating a Particular Track

To return to the beginning of the current or a previous track, press the

lightly and repeatedly.

To move to the beginning of each subsequent track, press the lightly

and repeatedly.

Locating a Particular Point in a track

To search backward at high speed, press and hold the button.

To search forward at high speed, press and hold the button.

Low level audio will be heard during the search process to assist in

locating the correct point in the track.

The sound will mute for approximately 1 second while the buffer fills.

Once filled the buffer will give approximately 10 seconds of protection

against interruption of sound output. If the player is subjected to shocks

of over 10 second duration some interruption of sound output will occur.

This is normal and to be expected and the sound will resume once the

player has stabilized from the shock.

To turn this function off, press the ANTI-SHOCK button again.

If you experience trouble with this equipment, please contact the following

address and phone number for information on obtaining service or repairs.

Company: Tiger Electronics, Ltd., Repair Dept.

Address: 980 Woodlands Parkway

Vernon Hills, IL 60061, U.S.A.

Tel. No. 847-913-8100

TROUBLESHOOTING GUIDE

PROBLEM THINGS TO CHECK

Player fails to function

Disc may be inserted upside down.

Disc not mounted correctly on chuck

Dirty or defective disc

Dirty pick up lens

Player lid is not closed properly

Moisture / condensation, slowly warm

player up to room temperature for 60

minutes

AC power to adaptor is switched off

Weak batteries

Auto power off has occurred, press

play button to restore power

No sound from Headphones Headphone plug is not firmly inserted

into the green PHONES socket.

No sound when played

through an external amplifier

Connection is incorrect

Power to external amplifier not

switched on

Intermittent sound

Dirty or defective disc

Dirty pick up lens

Player is subject to excessive vibration

or shock

Low battery power

Poor Headphone connection

MODE x 3press

During play

Track no. of the first desired selection

The second selection

MODE x 4press

During play

Notes:

1. When using the ANTI-SHOCK function the battery power consumption

increases because the disc rotates faster than normal and the dynamic

memory is active.

2. While the ANTI-SHOCK function provides for continuous sound output

when the unit is subjected to shock or vibration, it will not correct

errors arising from the use of defective, scratched or dirty discs.

3. When powering the player solely from batteries, only use the ANTI-

SHOCK function where necessary to preserve battery life.

PROG x 1press

During STOP mode

ASP Indicator

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de CD de Tiger Electronics

Tiger Electronics

Tiger Electronics Star Wars Darth Maul 88-308 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario
