THUNDER TIGER TITAN X50 - Manual de usuario

INSTRUCTION MANUAL

組裝說明書

INSTRUCTION MANUAL

組裝說明書

This radio control model is not a toy! Before beginning assembly, please read

this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

The contents are subject to change without prior notice due to product

improvements and specification changes.

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原

因，我們將保留產品規格變更權力，不再另行通知使用者。

No.4856

Torque-tube Version

-6-

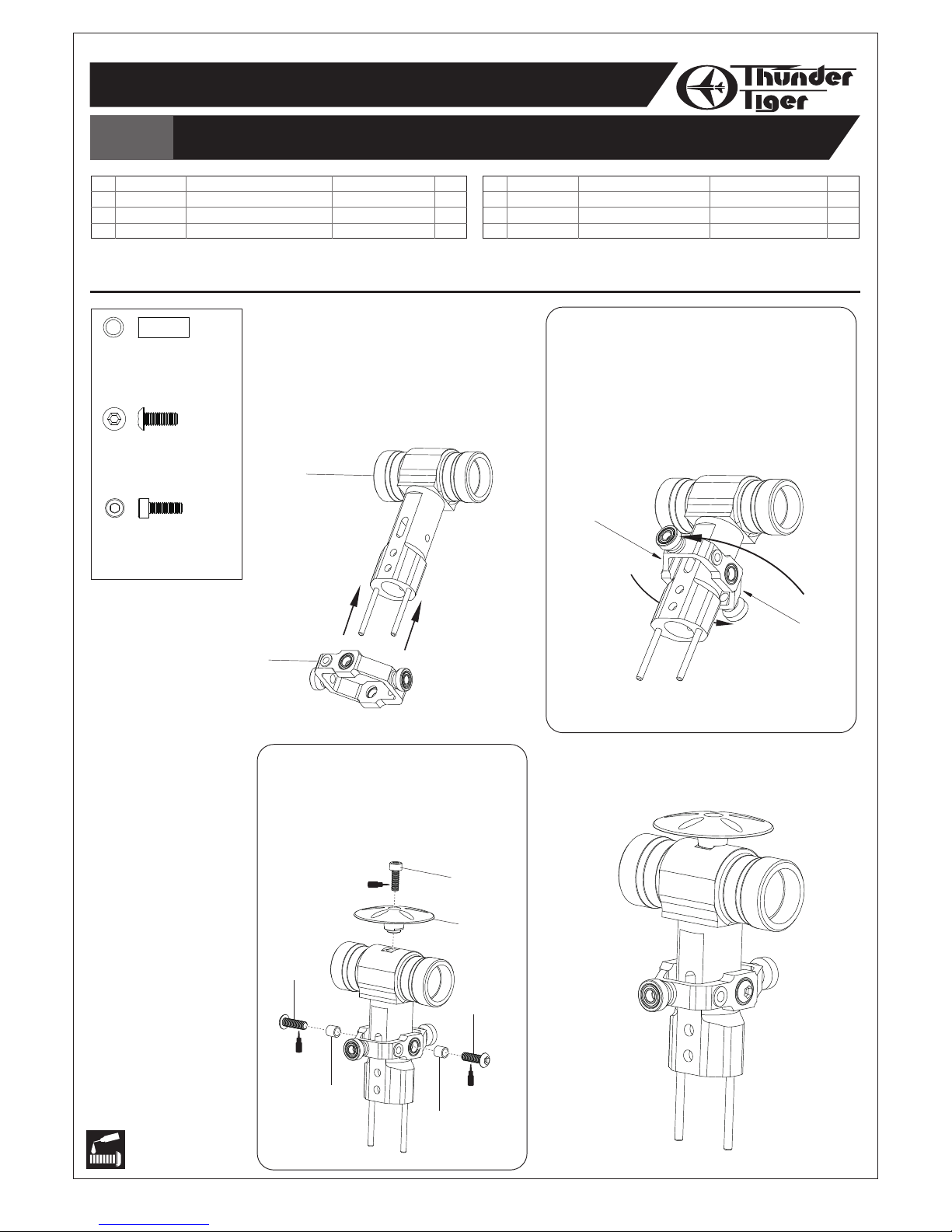

Main Rotor-1 /

主旋翼機構組裝

-1

Bag A

No.

QtyMaterial No. Description

HSA3-10

BUTTON HEAD SOCKET SCREW,M3x10

半圓頭內六角螺絲,M3x10

HMC25-8B

SOCKET SCREW,M2.5×8

內六角螺絲,M2.5×8

BK2187

COLLAR,d3xD4xW3.8

軸環,d3xD4xW3.8

名稱

No.

QtyMaterial No. Description

名稱

Step 1 / 步驟一

1. Slide the Metal Seesaw Hub into the Main

Rotor Hub.

2. Note the orientation of the Metal Seesaw

Hub.

1. 將主旋翼固定座穿過穩定桿固定座。

2. 注意穩定桿固定座安裝方向。

Step 2 / 步驟二

1. Rotate the Metal Seesaw Hub toward for

90 degree.

2. Note the orientation of the Chamfer on the

Metal Seesaw Hub.

1. 90度旋轉穩定桿固定座。

2. 注意金屬穩定固定座倒角方向。

(1)

(2)

(4)

(5)

(6)

(4)

(3)

Step 3 / 步驟三

Fit the Collar into the bearings, tighten

the screws and ensure the Metal

Seesaw Hub runs effortlessly.

如圖示，鎖緊固定螺絲，並確認穩定桿固

定座能自由活動。

Completed View

組裝完成

T22

chamfer

倒角

chamfer

倒角

Apply threadlocker

使用螺絲防鬆膠

BV2181

BV2186

BK2187

HSA3-10

HMC25-8B

BK2182

金屬主旋翼固定座

金屬穩定桿固定座

軸環,d3xD4xW3.8

半圓頭內六角螺絲,M3x10

內六角螺絲,M2.5×8

金屬旋翼頭制動器

METAL MAIN ROTOR HUB

METAL SEESAW HUB

COLLAR,d3xD4xW3.8

BUTTON HEAD SOCKET SCREW,M3x10

SOCKET SCREW,M2.5×8

METAL HEAD BUTTON

ASSEMBLY / 組裝步驟

-7-

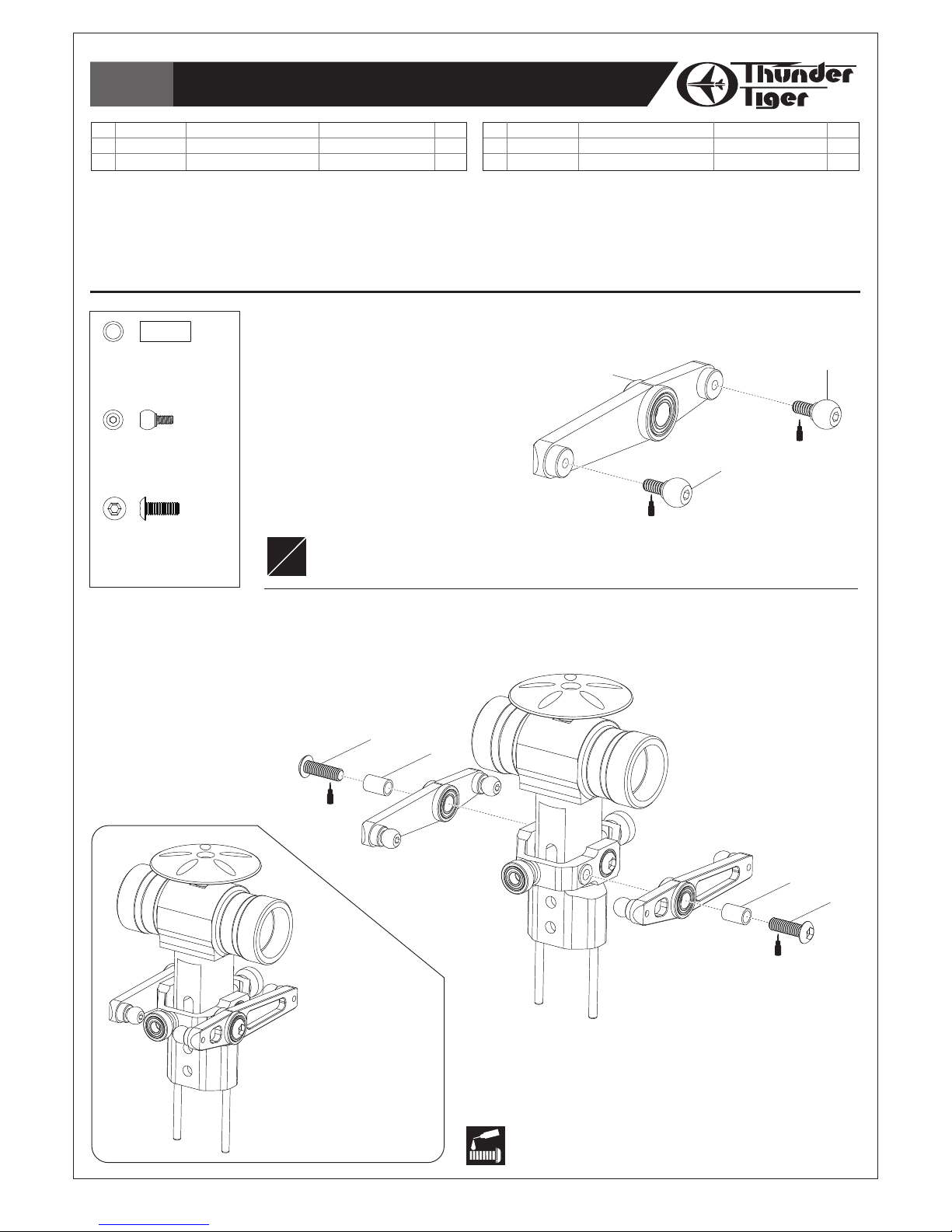

Main Rotor-2 /

主旋翼機構組裝

-2

Bag A

HSA3-10

BUTTON HEAD SOCKET SCREW,M3x10

半圓頭內六角螺絲,M3x10

BK0649-1

LINKAGE BALL(A)

內六角連接頭螺絲(A)

BK0077

COLLAR,d3xD4xW6

軸環,d3xD4xW6

Assemble left and right side the same way

左右側組件相同

No.

QtyMaterial No. Description

名稱

No.

QtyMaterial No. Description

名稱

(2)

(4)

(3)

Step 1 / 步驟一

Secure the Linkage Balls to the Mixing Lever.

依圖示，安裝控制臂球頭，並適量使用螺絲防鬆劑。

Step 2 / 步驟二

1. Secure the Metal Mixing Lever to the Metal Seesaw Hub.

2. Make sure the Metal Mixing Lever runs effortlessly.

1. 將金屬控制臂安裝於金屬穩定桿固定座，並適量使用螺絲防鬆劑。

2. 確認控制臂能自由動作，無干涉及過鬆現象。

Completed View

組裝完成

T22

(1)

Apply threadlocker

使用螺絲防鬆膠

BV2183

BK0649-1

BK0077

HSA3-10

金屬混控臂

內六角連接頭螺絲(A)

軸環,d3xD4xW6

半圓頭內六角螺絲,M3x10

METAL MIXING LEVER

LINKAGE BALL(A)

COLLAR,d3xD4xW6

BUTTON HEAD SOCKET SCREW,M3x10

-8-

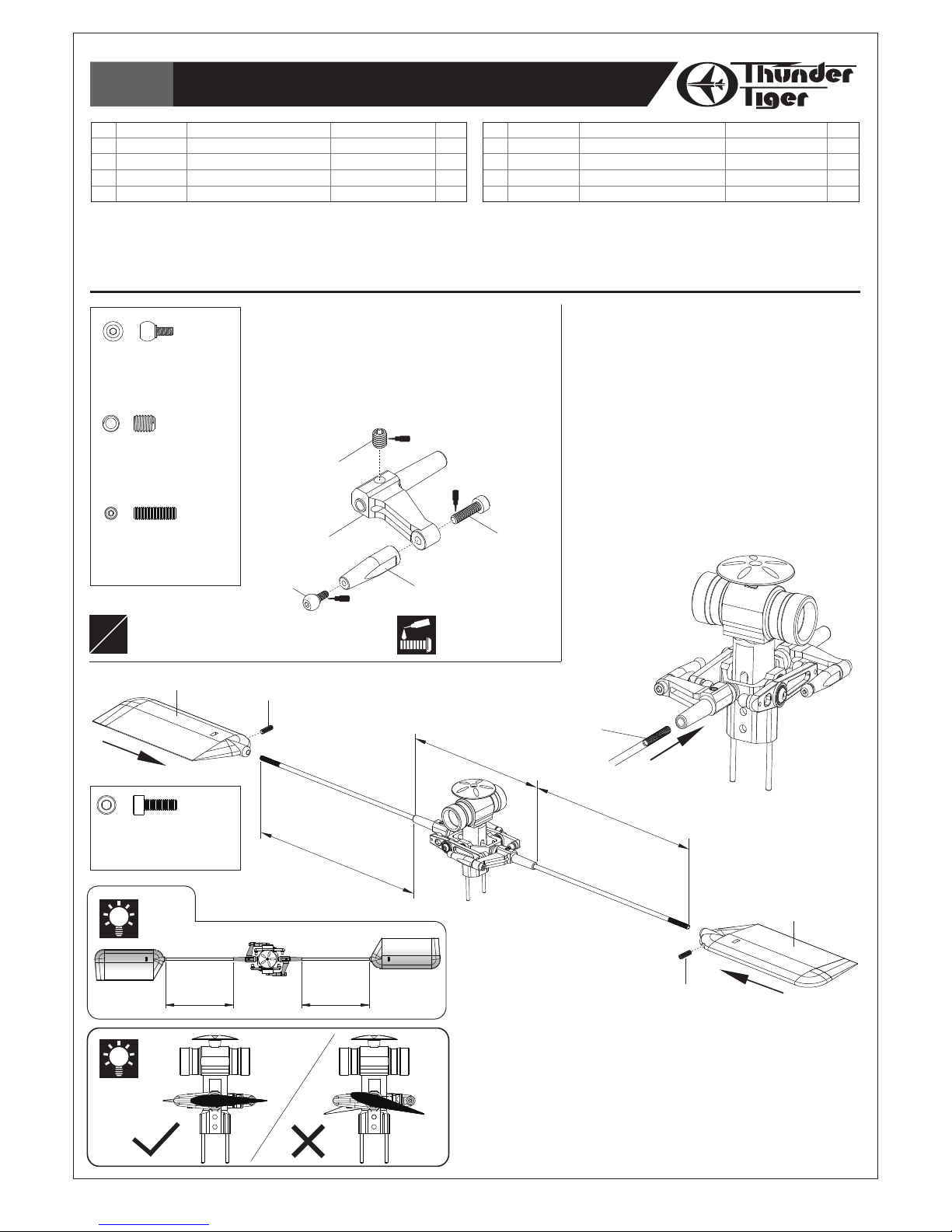

Main Rotor-3 /

主旋翼機構組裝

-3

Bag B

HME3-10B

SET SCREW,M3x10

無頭內六角螺絲,M3x10

BK0649-1

LINKAGE BALL(A)

內六角連接頭螺絲(A)

HMC2510B

SOCKET SCREW,M2.5×10

內六角螺絲,M2.5×10

No.

QtyMaterial No. Description

名稱

No.

QtyMaterial No. Description

名稱

T22

(1)

(6)

(8)

(7)

(8)

(3)

(4)

(5)

139.5mm

110mm 110mm

116mm

Step 3 / 步驟三

1. Thread the Paddles onto the Flybar Rod, equal the length to

the Flybar Control Arms of each side.

2. Ensure the leading edges of the Paddles are toward the

same side to the Metal Flybar Control Posts.

3. Line up the Paddles with the Flybar Control Arms.

1. 旋上穩定翼於穩定翼桿上，確認兩側的穩定翼至控制臂距離相等。

2. 確認穩定翼前緣與穩定翼控制轉臂方向相同。

3. 對正穩定翼與穩定翼控制臂呈水平狀態。

Step 1 / 步驟一

1. Secure the Linkage Ball to the Metal Flybar

Contorl Arm.

2. Assemble the Metal Flybar Control Post and

the Flybar Control Arm.

1. 牢固的將球頭安裝於金屬穩定翼轉臂上。

2. 將金屬穩定翼轉臂柱及穩定翼臂裝配完成。

Step 2 / 步驟二

1. I

nsert the Flybar Rod through the Flybar

Control Arms & the Metal Seesaw Hub.

2. Ensure the Flybar Rod have equal

protrusion from each side of the Metal

Flybar Control Post.

3. Line up the holes of the Flybar Control

Arms and the flat spot of the Flybar Rod,

and then screw the Flybar Control Arms &

the Flybar Rod tightly.

1. 將穩定桿穿過穩定翼控制臂、金屬穩定桿固定座

和金屬旋翼固定座。

2. 確認穩定桿凸出金屬穩定翼控制臂柱兩側等距。

3. 對正穩定翼控制臂上鎖固孔與穩定翼桿上平面凹

槽後，再鎖緊螺絲。

HME4-5B

SET SCREW,M4x5

無頭內六角螺絲,M4x5

Assemble left and right side the same way

左右側組件相同

(2)

Apply threadlocker

使用螺絲防鬆膠

BK2184

BK2185

HMC2510B

HME4-5B

BK0649-1

BK0631

HME3-10B

BK0067L

內六角連接頭螺絲(A)

穩定桿

無頭內六角螺絲,M3x10

穩定翼(藍)

金屬穩定翼轉臂

金屬穩定翼轉臂支柱

內六角螺絲, M2.5×10

無頭內六角螺絲, M4x5

LINKAGE BALL(A)

SUS FLYBAR

SET SCREW,M3x10

FLYBAR PADDLE(BLUE)

METAL FLYBAR CONTROL ARM

METAL FLYBAR CONTROL ARM POST

SOCKET SCREW, M2.5×10

SET SCREW, M4x5

-9-

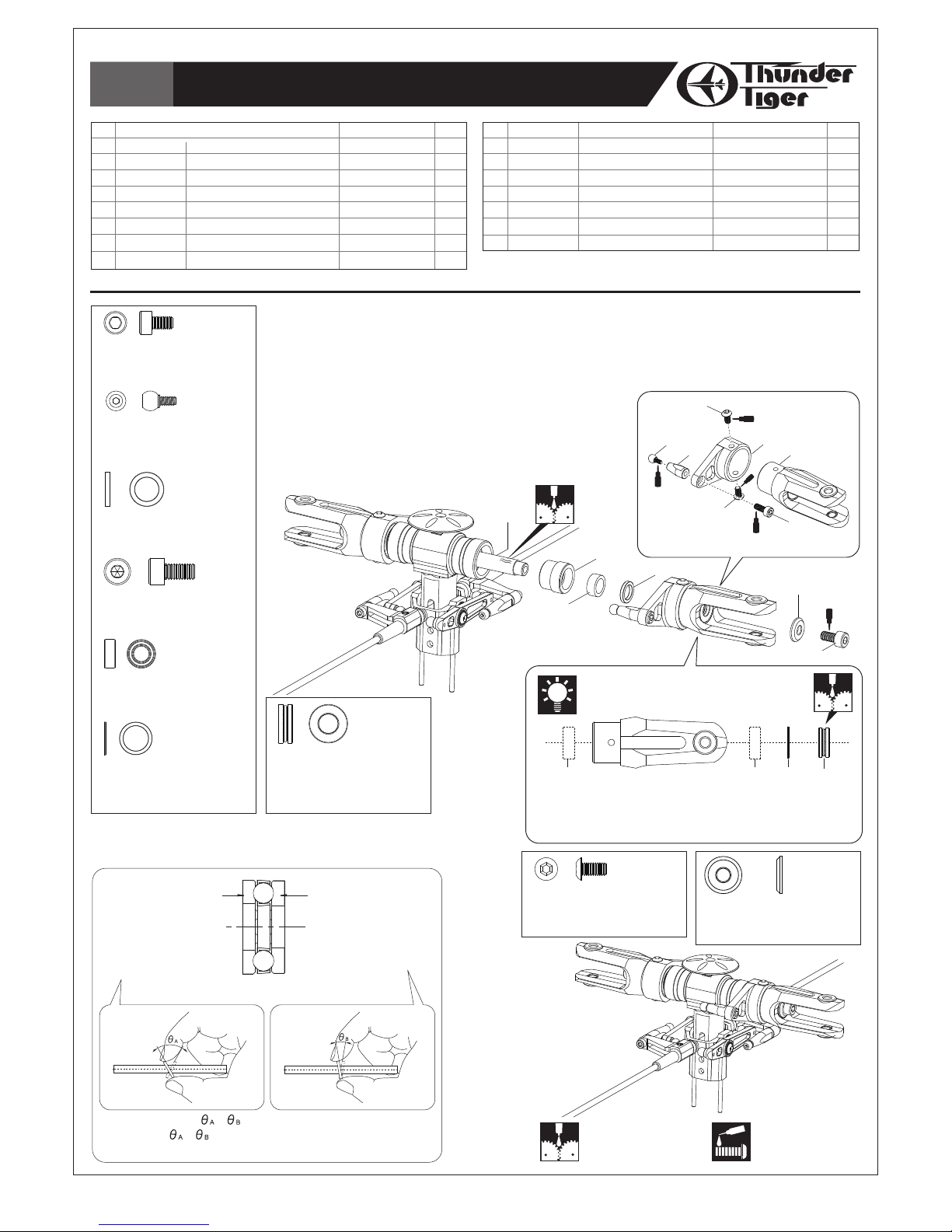

Main Rotor-4 /

主旋翼機構組裝

-4

Bag B

Large Internal

Diameter

always go toward the

Main Rotor Hub

內徑較大的一側，面向

主旋翼中心座組。（內

側）

Small Internal

Diameter

always go toward the

Blade

內徑較小的一側，面向

主旋翼組（外側）。

HMV1370ZZWY

BEARING,d7xD13xW5

滾珠軸承,d7xD13xW5

BK2216

THRUST WASHER,d10xD13xW0.5

止推墊片,d10xD13xW0.5

HMX0612

THRUST BEARING,d6xD12xW4.5

止推軸承,d6xD12xW4.5

BK2525

FLAP COLLAR,d7xD10xW1.5

避震軸環,d7xD10xW1.5

HMC4-8B

SOCKET SCREW M4×8

內六角螺絲M4×8

Apply threadlocker

使用螺絲防鬆膠

Completed View

組裝完成

Checking Tips: >

轉動角度： >

（轉動角度大者，內孔大；轉動角度小者，內孔小）

No.

Qty

Material No. Description

名稱

No.

QtyMaterial No. Description

名稱

T22

(10)

(9)

(11)

(13)

(14)

(6)

(1)

(5) (3) (2)

(6)

(4)

Diagram for Thrust Bearing Assembly

止推軸承安裝示意圖

1. Secure the Linkage alls to the Main Rotor Grips.

2. Insert the Flap Damper into the Main Rotor Hub.

3. Insert the Feathering Shaft through the Flap Dampers & the Main Rotor Hub with some

amount of silicon oil or Vaseline. Center the Feathering Shaft in the Main Rotor Hub.

4. Apply Locitite on the Socket Screw (M4x 8),and then secure the Main Rotor Grips on the

Feathering Shaft with bearings & washers tightly.

1. 將連桿接頭固定於主旋翼夾座。

2. 將旋翼橫軸避震套環置入主旋翼夾座內。

可塗抹些許矽膠油脂或凡士林於旋翼橫軸避震套環上，以便安裝。

4. 依圖示，組裝金屬主旋翼固定座，

使用M4X8內六角螺絲鎖入橫軸時需使用螺絲防鬆膠。

(12)

(7)(15)(15) (8)

Apply grease

使用潤滑油膏(黃油)

BV2574

BK2579

BK2578

HMC3-8B

BK0649-1

HSA3-6

BK2216

HMX0612

BK2214

BK2573

BK2572

BK2525

BK0435

HMC4-8B

HMV1370ZZWY

金屬旋翼轉座組

金屬轉座擺臂

金屬連接座

內六角螺絲, M3×8

內六角連接頭螺絲(A)

半圓頭內六角螺絲, M3x6

止推墊片, d10xD13xW0.5

止推軸承,d6xD12xW4.5

強化固定軸(D7)

外避震墊圈, 7mm

內避震墊圈,7mm

避震軸環,d7xD10xW1.5

墊圈,d4xD11xW1.7

內六角螺絲M4×8

滾珠軸承, d7xD13xW5

METAL MAIN ROTOR GRIP SET

METAL ROTOR GRIP LEVER

METAL ROTOR GRIP POST

SOCKET SCREW, M3×8

LINKAGE BALL(A)

BUTTON HEAD SOCKET SCREW, M3X6

THRUST WASHER, d10xD13xW0.5

THRUST BEARING,d6xD12xW4.5

HARDENED FEATHERING SHAFT

OUTER DAMPER, 7mm

INNER DAMPER, 7mm

FLAP COLLAR,d7xD10xW1.5

WASHER,d4xD11xW1.7

SOCKET SCREW M4×8

BEARING, d7xD13xW5

Assemble the main rotor pitch housing as drawing

主旋翼轉座組裝示意圖

BK2572

BK2573

BK2525

BV2574

BK2574

BK0560

HMV1370ZZWY

BK2578

BK2579

HMX0612

BK2216

BK0435

HMC3-8B

HMC4-8B

避震軸環(d7xD10xW1.5)

金屬旋翼轉座組

金屬旋翼轉座

主旋翼轉座軸環

滾珠軸承 (d7xD13xW5)

金屬連接座

金屬轉座擺臂

止推軸承 (d6xD12xW4.5)

止推墊片(d10xD13xW0.5)

墊圈 (d4xD11xW1.7)

內六角螺絲M3×8

內六角螺絲M4×8

FLAP COLLAR(d7xD10xW1.5)

METAL MAIN ROTOR GRIP SET

METAL MAIN ROTOR GRIP

MAIN ROTOR GRIP BUTTON

BEARING (d7xD13xW5)

METAL ROTOR GRIP POST

METAL ROTOR GRIP LEVER

THRUST BEARING (d6xD12xW4.5)

THRUST WASHER (d10xD13xW0.5)

WASHER (d4xD11xW1.7)

SOCKET SCREW M3×8

SOCKET SCREW M4×8

The bearings (#15) come with the grips which had

been assembled by Factory.

主旋翼夾座內軸承

(#15)

已由原廠壓配完成。

HMC3-10B

SOCKET SCREW,M3x10

內六角螺絲,M3x10

BK0649-1

LINKAGE BALL(A)

內六角連接頭螺絲(A)

HSA3-6

BUTTON HEAD SOCKET SCREW,M3x6

半圓頭內六角螺絲,M3x6

BK0435

WASHER,d4xD11xW1.7

墊圈,d4xD11xW1.7
