XBOX SERIES X|S — XBOX ONE — PC

User Manual

TECHNICAL FEATURES

2/24

1. Throttle quadrant axes #1, #2 and #3

2. Thrust levers

3. Thrust reverser mechanism on each

lever

4. 17 action buttons

5. Engine selector switch (1&2 or 3&4)

6. Crossbar

7. Attachment pieces for second TCA

Quadrant Boeing Edition (sold

separately)

8. Speed brake lever

9. Flaps lever

10. Type A USB connector for

Thrustmaster device

11. Type C USB connector

12. Female RJ12 connector for TFRP

rudder system (sold separately)

13. Crossbar location

14. USB port cap

3/24

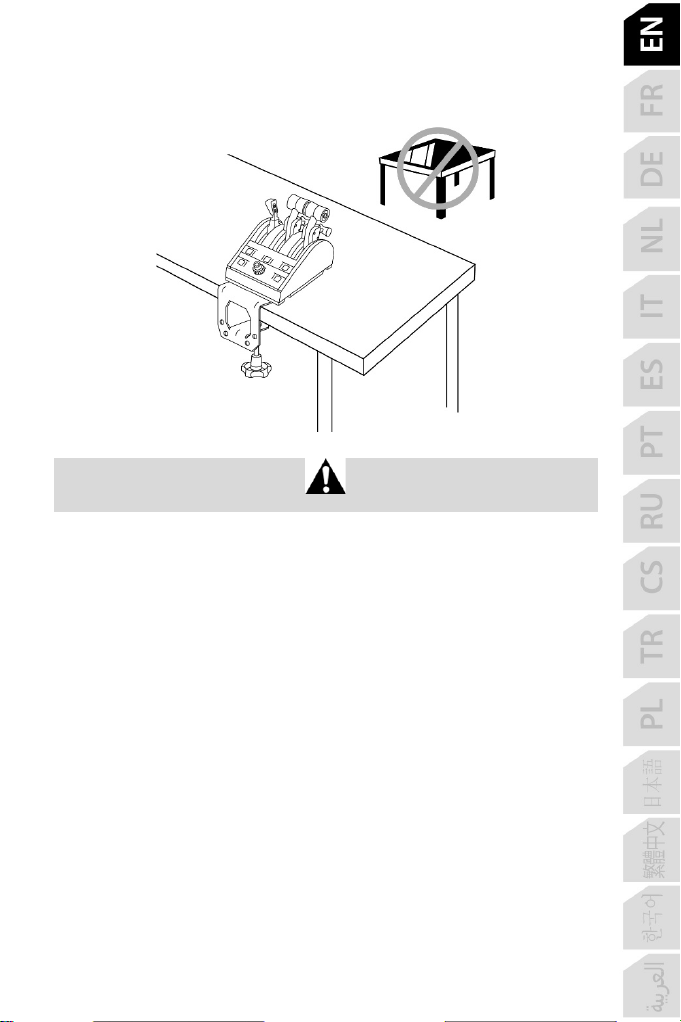

WARNING: MOUNTING TCA QUADRANT BOEING EDITION ON

A TABLE OR DESK

Do not attach TCA Quadrant Boeing Edition to a glass table or desk.

4/24

INSTALLATION ON PC

1. Go to https://support.thrustmaster.com. Click Joysticks / TCA Quadrant Boeing

Edition, and then click Drivers. Download and install the PC driver and its customized

interface for the Windows Control Panel.

2. Once the PC driver has been installed, connect the type C USB connector (11) to one of the

USB ports on your PC.

3. To access the Control Panel, select Start / Apps / Thrustmaster / Control Panel (in

Windows 10).

The Game Controllers dialogue box is displayed.

The device appears onscreen with the name TCA Q Boeing 1&2 (or TCA Q Boeing 3&4,

depending on the position of the engine selector switch (5)) and OK status.

4. In the Game Controllers dialogue box, click Properties to test and view all features.

You are now ready to play!

5/24

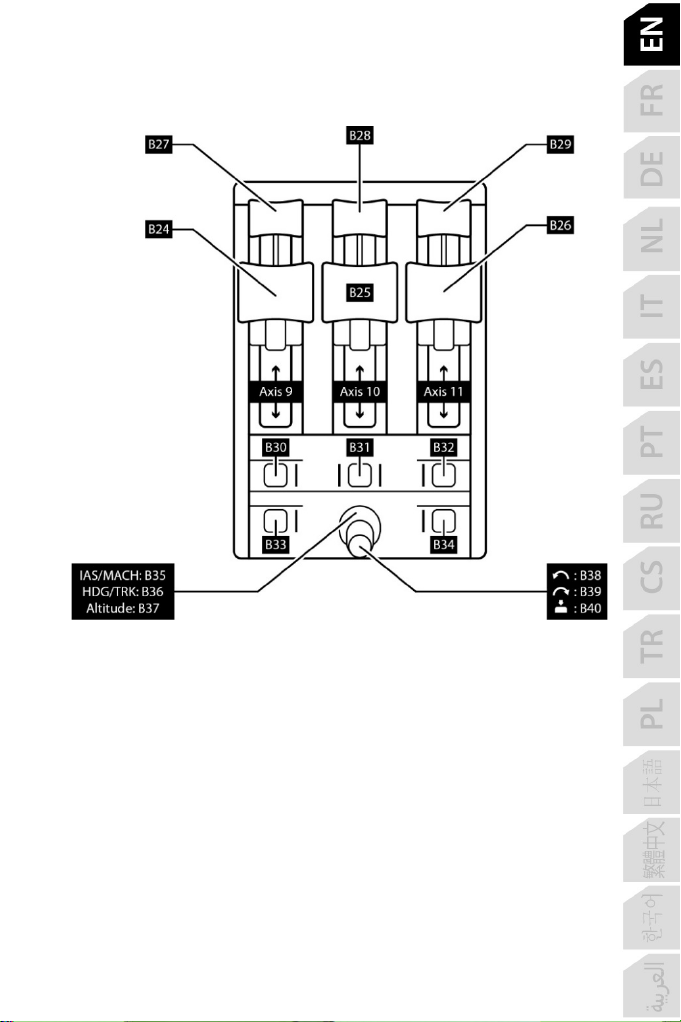

MAPPING FOR THE 17 BUTTONS AND 3 AXES ON PC

6/24

TCA Yoke Boeing Edition (sold separately) allows you to directly connect a throttle and a

rudder (both sold separately) at the back of the yoke. A second throttle can also be

connected at the back of TCA Quadrant Boeing Edition, allowing the yoke to access up to 9

additional axes. The devices appear independently in the Game Controllers dialogue box

as virtual device(s).

7/24

INSTALLATION ON XBOX SERIES X|S / XBOX ONE

On Xbox Series X|S / Xbox One, TCA Quadrant Boeing Edition must be connected at the

back of TCA Yoke Boeing Edition (sold separately) in order for the device to be recognized.

A second throttle can also be connected at the back of TCA Quadrant Boeing Edition (sold

separately), allowing the yoke to access up to 9 additional axes.

On Xbox Series X|S / Xbox One, compatible Thrustmaster devices connected via the type A

USB connector will be merged with the TCA Yoke Boeing Edition device.

8/24

MAPPING FOR THE 17 BUTTONS AND 3 AXES

9/24

USING A SECOND TCA QUADRANT BOEING EDITION

(SOLD SEPARATELY)
