THOMSON DPL911VD Instrucciones de montaje

Speakers

• Match the speaker cables’ color

to the speaker / receiver terminals

as shown on the illustration.

• Match the speakers to the

correct terminals on the receiver

(example: connect left speaker to

the left speaker terminal on the

receiver)

NOTE:

• Match the color of the cables

to the terminals on the receiver.

• Connect the black color cable

to the “-” (negative) terminal.

For details, please refer to the

Instruction manual.

(“Connecting the Speakers”)

Follow the illustration

below to hook up your

speakers.

Speakers and Tuner Antenna

RCA Audio cable

(Analog)

Not included

Composite Video

Cable (Usually yellow)

1Piece

S-Video cable

Not Included

SCART Cable

Not Included

Audio/Video components

ANTENNA HOOKUP

SPEAKER HOOKUP

Cables

Below illustrations are cables usually used for audio / video connections.

Follow the diagram to connect audio

and video components. Connections described below are also applicable for any component

having analog outputs (TV, Cable & Satellite boxes, CD

recorder/player.)

A. Connecting your audio device

1. Connect the Audio cable.

B. SCART Connections

1. Make sure your TV is equipped

with the SCART terminals.

2. Connect to the TV with the SCART

cable.

3. Connect the cable to the unit

terminals.

4. Select SCART output on the unit.

5. If your TV is not equipped with a

SCART jack, connect the composite

video cable as shown in the diagram.

C. Setup Video output

1. You can select either S-video or

SCART as your video output by

moving the switch at the back of

the unit (*), then turn off and on

the unit to validate selection.

When S-video output is selected,

only S-video and composite output

will function, SCART output will be

disabled.

When SCART output is selected, only

composite output will function, the

S-video output will be disabled.

TVVCROUTINAUDIO

VIDEO IN

S-VIDEO IN

(If available)

CENTER

+-+-

REAR

Green

Purple

Black

Grey

Black

Red

FR CSR SL SW

6 ohm

Black

White

Blue

FRONT RIGHT FRONT LEFT CENTER

SUBWOOFER

RIGHT

SURROUND

LEFT

SURROUND

FM 75Ω

SCART

ME67

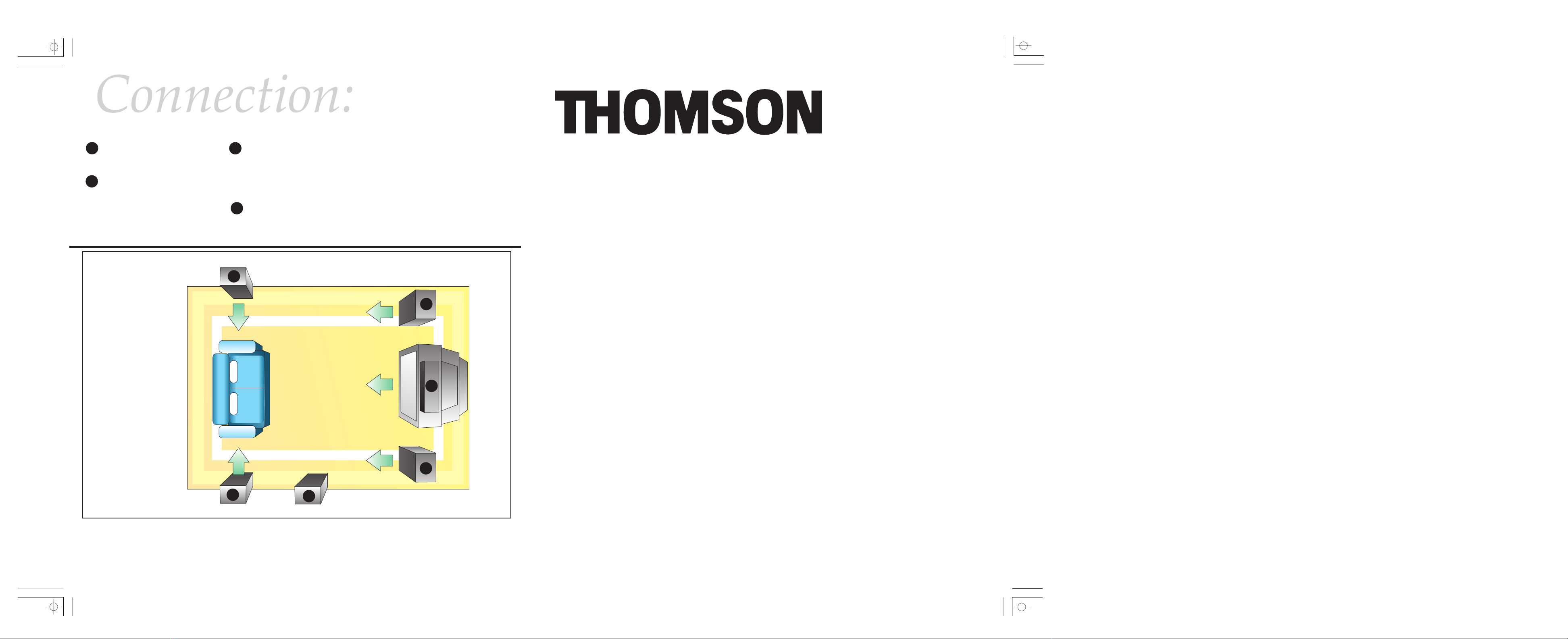

Speaker Hook-Up Placement

For optimized

performance, please

follow the

recommendations and

illustrations below.

Left Rear Speaker (Surround)

Right Rear Speaker (Surround)

Left Front Speaker

Center

Right Front Speaker

1Center Speaker:

Positioned on top of or below the

TV set.

2 Front Speaker:

Positioned on both sides of the TV

with equal distances away from the

TV.

3 Rear Speaker:

Positioned beside or slightly behind

your favorite viewing position. The

height should be a little above your

ear level.

Subwoofer:

Could be positioned anywhere

NOTE:

For the best SURROUND effect, rear

speakers need to be located beside

or behind your listening position.

Quick

Connect Guide

This guide will help you to set up your system

through several illustrations.

Thomson

46 quai Alphonse Le Gallo

92648 Boulogne Cedex

FRANCE

55937590

www.thomson.net DPL911VD
