Instruction Manual

Thermo Scientific Savant®

SPD131DDA SpeedVac Concentrator

“Suva®” is a registered trademark of DuPont.

All other trademarks are the property of Thermo Fisher Scientific Inc. and

its subsidiaries.

Contents

Section Overview Page

1.0 Overview of SPD131 DDA Unit 1

1.1 Cover LockOverride 2

1.2 Installation of the SPD131 DDA 3

1.3 How to Hook Up the SPD131 DDA 3

Section Control Panel Page

2.0 The Control Panel 4

2.1 Description of the Control Panel 4

Section Manual Run Page

3.0 The Manual Run 5-6

3.1 The Auto Run 6

Section Rotor Selection Page

4.0 Rotor Selection Guide 7

Section Guidelines Page

5.0 Guideline for Solvent Choice 8

Section Maintenance Page

6.0 Maintenance & Service 9

Section Specifications Page

7.0 Specifications & Warranty

Appendix 1 – Additional SPD131DDA System Set-ups

Appendix 2 – Additional SPD131DDA System Set-ups

For DMSO

Appendix 3 – RS232 Port Specifications

Disclaimer:

All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, or responsibility of any kind, expressed or implied. Statements or suggestions

possible use of our products are made without representation that any such use is free of patent infringement and are not recommendations to infringe any patent. The user should not assume that all

indicated, or that other measures may not be required.

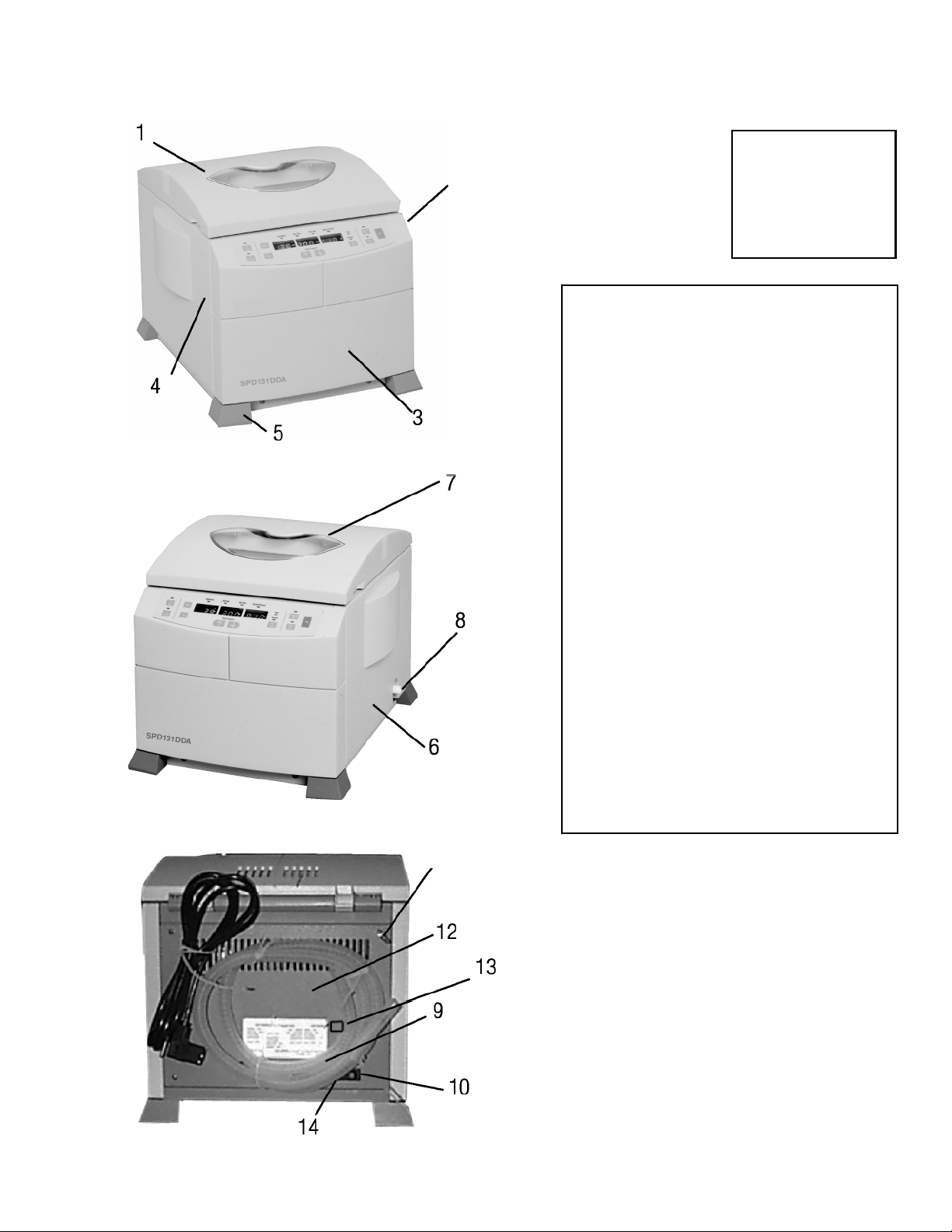

Overview of the SPD131 DDA Unit

Fig. 1

Figure 1 = Front View

Figure 2 = Side View

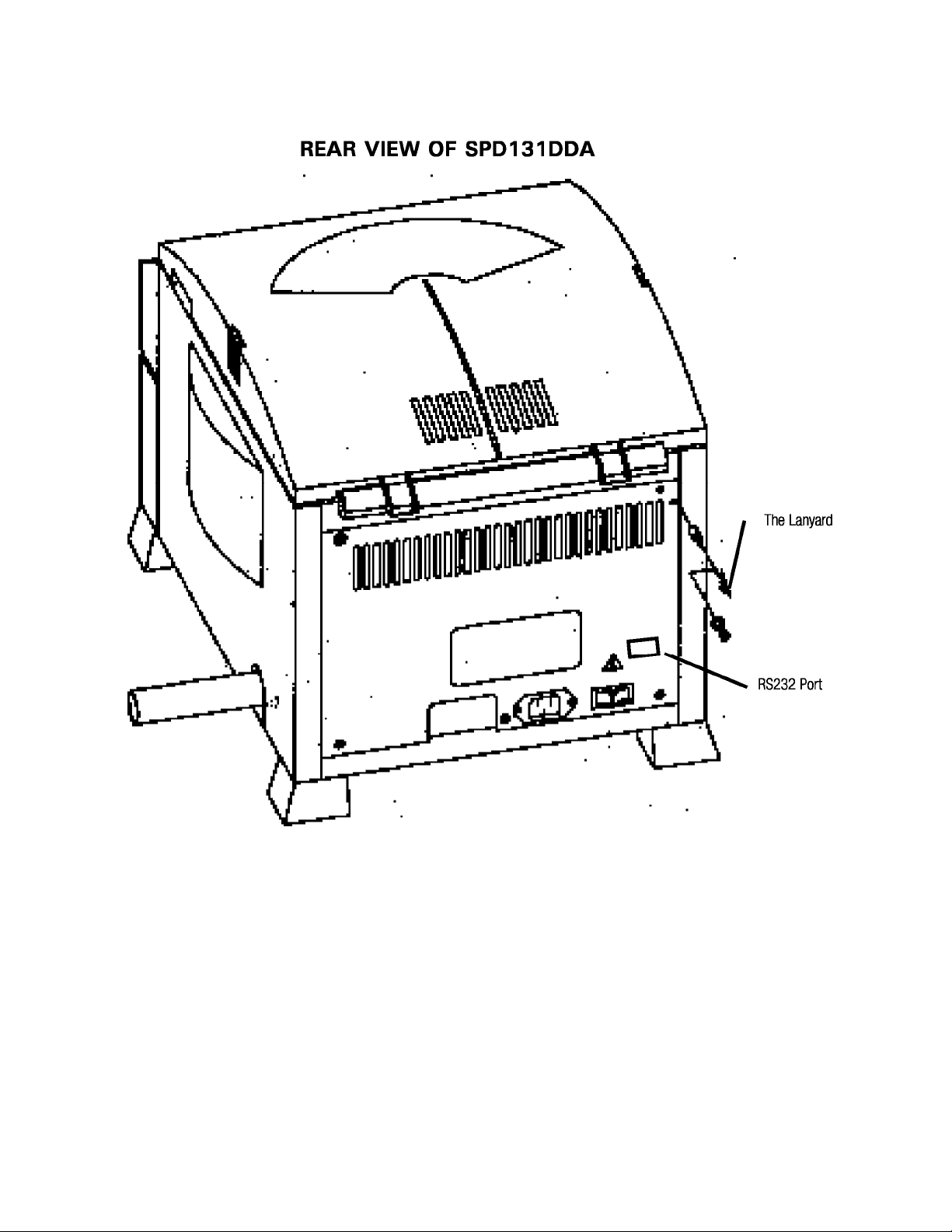

Figure 3 = Back View

1. Top Radiant Cover

2. Control Panel

3. Front Panel

4. Left Side Panel

5. Anti Skid/Vibration

6. Right Side Panel

7. Chamber View Window

8. Vacuum Port

9.* Vacuum Tubing

10. Main On/Off Switch

11. Manual Cover Lock Release

12. Rear Access Panel

13. RS232 Port

14. AC Receptacle

*Tubing that carries vapors to

cold trap is larger in diameter.

Fig. 2

(

See

e 2

)

Fig. 3

COVER LOCK OVERRIDE

To Open The Top Cover During Power Failure:

Remove the philips screw holding the cover lock, release cord and lightly pull it as shown, while lifting

the cover.

INSTALLATION OF THE SPD131DDA

Figure 4-Front View of System

UVS800DDA

Unviersal Vacuum Source

What it should look like:

How To Hook Up The SPD131DDA SpeedVac®System

1. Unpack unit from the box and verify that all the parts match packing list.

2. Read instruction manual carefully! If assistance is required, contact Customer Service.

3. If the unit is part of a larger system, use the vacuum tubing supplied to hook up unit (See Figure 4).

4. Vacuum clamps must be put on vacuum ports of pump and SPD unit (See item 8 on Figure 2 and

Figure 4).

5. If the unit is being connected to an existing system, attach vacuum tubing to various components as

illustrated above and in Appendix 1.

CAUTION - Cold trap should be in line between the vacuum source

and the SPD Unit.

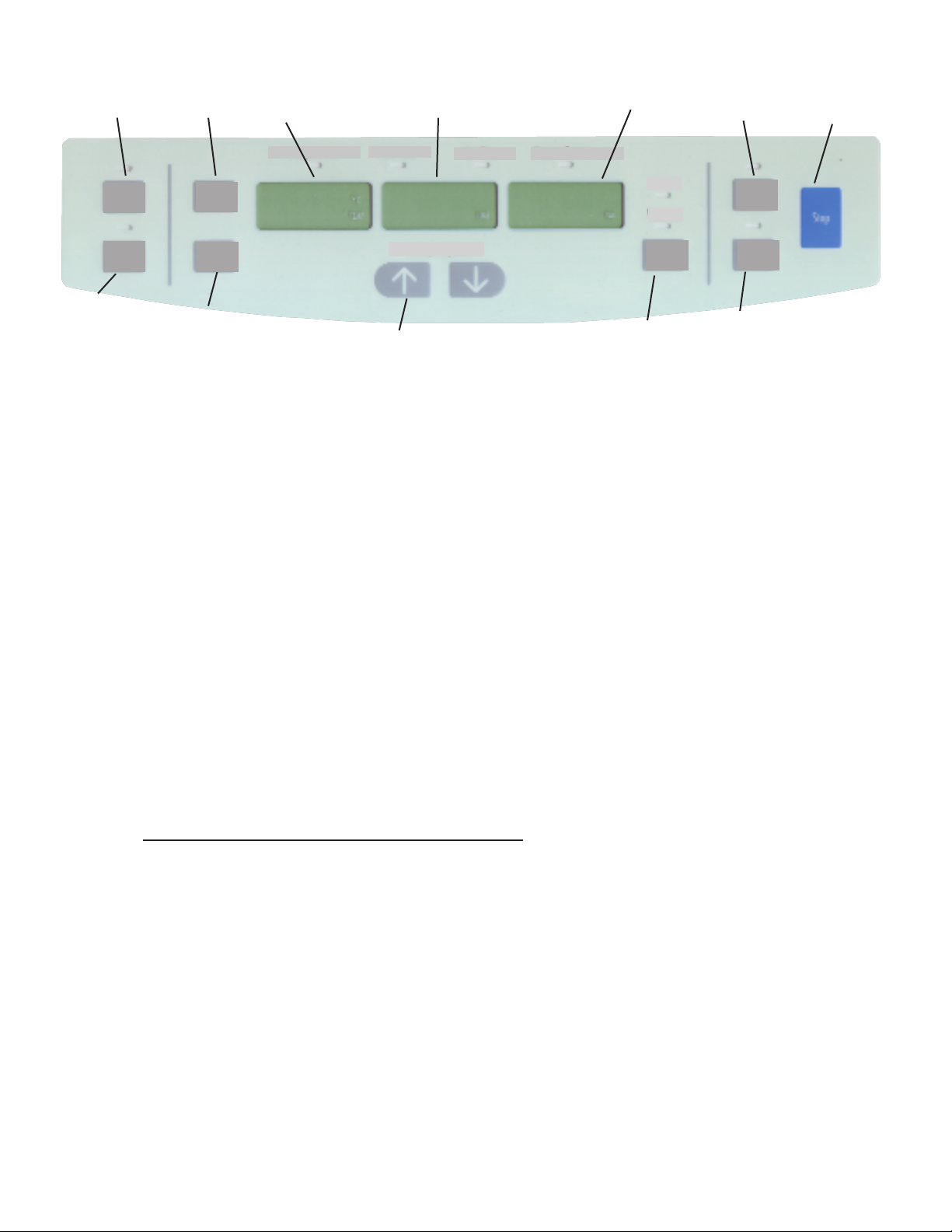

CONTROL PANEL

456

Vacuu

Ramp

Level

Auto

Ma ual

Select

View

O /Off

Pre-

Heat

Modify Setpoints

1. PRE-HEAT - use to pre-heat chamber to 45 °C prior to beginning or between runs.

Once run is initiated the pre-heat stops.

2. RC ON/OFF - Use to add radiant heat to chamber. Manually activate by pressing

ON/OFF at any point during run. Will activate as long as there is time left on the

heat timer. Will turn off when heat timer=0.00

3. SELECT - Press this button to select the parameters to be modified. Selection is

from left to right. GREEN light indicates the parameter to be modified.

4. MODIFY SET POINTS UP/DOWN - Modifies selected parameter.

5. ACUUM SET - ( ACUUM CONTROLLER) - Selects either “ evel” or “Ramp” in

the VAC display.

evel: Allows users to select a pre-set vacuum level. Once this level is obtained,

the microprocessor will regulate and maintain this vacuum level. The

vacuum level can be set from 20 torr to 100 mtorr.

Ramp:The rate at which vacuum is achieved can be set for preventing bumping.

5 adjustable levels can be set as required depending upon your solvent.

Setting Vacuum Rate (approximate)

5 70 torr/min (Maximum setting)

4 50 torr/min

3 40 torr/min

2 30 torr/min

1 5 torr/min

6. AUTO RUN - Starts an ‘Automated’ run.

7. MANUAL RUN - Starts a “Manual” run.

8. STOP - Terminates “Manual” or “Auto” run.

9. IEW - Press to view. Displays preset parameters when pressed during a run.

10. TEMPERATURE DISPLAY - Indicates set temperature or actual temperature

during a run in °C.

Description of Control Panel

1. Connect the unit to its required voltage.

2. The cover lock disengages, allowing the top cover to be opened.

The display lights up, showing the following default values:

Temperature: 45 °C in RED

Run Time: 2.00 HRS. in GREEN

Vacuum Pressure: 01.0 in AMBER

3. Using the “SE ECT” button and the up/down keys, set TEMPERATURE

between 45 °C and 80 °C, or “no”, for no heat.

4. Using the “SE ECT” button and the up/down keys select and modif

“HEAT TIME” to between 0.01 and 9.59 hours or CCC (for continual

heating). When the heat timer expires, the heater will shut off, no

matter what the temperature setpoint reads (except if CCC).

5. Select Run Time: Since this a manual run no time adjustment is needed.

6. To select a VACUUM EVE , press “VACUUM SET” to illuminate EVE

and use th up/down keys to set vacuum to desired level. To select a

vacuum ramp rate, press “Vacuum Set” to illuminate RAMP and use the

up/down keys to set a ramp rate (5=highest, 1=lowest).

7. Place the sample tubes in the rotor and ensure that the load is balanced.

Secure rotor with the supplied knob. Close cover.

8. Pre-heat may be selected at this time, to warm chamber to 45 °C.

9. Press the “MANUA RUN” button.The cover locks and rotor starts

turning. The decimal point blinks and the “RUN TIME” display counts up.

The temperature rises to the set temperature. The “HEAT TIME” will count

down and vacuum will be applied to the chamber. The vacuum level

begins falling.

NOTE: If the cover is not closed, the display will show “Lid” and the run

will not start.

EXAMPLE OF A MANUAL RUN

11. TIME DISPLAYS - Indicates heat timer or run timer set-points. In the

process of a run it indicates elapsed time or time left. Set from

0.01 [1 min.] to 9.59 [9 hours, 59 minutes] or “CCC” [continuous].

12. ACUUM PRESSURE DISPLAY - Displays vacuum level or ramp.

Chamber vacuum is displayed in torrs or millitorrs by shifting a decimal point.

“Hpr.” represents atmospheric pressure. No decimal point

indicates microns. Ramp can be set to five (5) adjustable levels.

NOTE - The unit will sound an audible beep, every time a button is pressed.

10. Press R/C for radiant chamber heat. Press at any time to turn OFF and ON.

(As long as there is time left in the heat timer).

11. To end the manual run, press “STOP” button.The display will show “End”, the

valves will click, isolating the chamber from the vacuum pump and also allowing

air to bleed into the chamber.

12. After the rotor stops spinning, the cover lock disengages and the display reverts

to last set parameters, and the unit will sound several audible beeps.

13. Open the cover and remove samples.

GENERA : During the run, display shows actual parameters. To check set parameters

press “VIEW” button and “SE ECT”. The display will revert temporarily to set points.

EXAMPLE OF AN AUTO RUN

1. Refer to the “MANUA RUN” section for start up.

2. To execute an AUTO “TIMED” RUN:

a) Use “SE ECT” button and the up/down keys to select and modify

“TEMPERATURE, “HEAT TIME, “RUN TIME” parameters. RUN and

HEAT TIME can be set from 0.01 to 9.59 hours (HEAT TIME also has

“CCC” for continuous use).

b) To set a VACUUM EVE , press “VACUUM SET” to illuminate

EVE up/down keys to set vacuum to desired level.

To select a vacuum ramp rate, press “Vacuum Set” to illuminate

RAMP and use the up/down keys to set a ramp rate (5=highest,

1=lowest).

3. Place the sample tubes in rotor so load is balanced. Secure rotor with

supplied knob. Close cover.

a) Press “AUTO RUN” button to start the run. The cover locks and the

rotor starts spinning. The time display is counting down in 1 minute

Intervals and the decimal point blinks. The heat time is counting

down (use select button to view “HEAT TIME”). The temperature

rises in 1 °C increments to set temperature. The vacuum pressure

begins decrementing down from “HPr” (atmospheric pressure),

after both SAV valves actuate, applying vacuum to the chamber.

b) The vacuum display will indicate vacuum pressure in the chamber.

NOTE: If the cover is not closed, the display will show “Lid” and

the run will not start.

c) Press R/C for radiant chamber heat. Press at any time to turn OFF and

ON. (As long as there is time left in the heat timer).

d) Once the time decrements to 0.00 HRS. the run will automatically stop,

the display will show “End”,the SAV valves will click, also allowing air to

bleed into the chamber.

e) After the rotor stops spinning, the cover unlocks and the display reverts

to last set parameters, and the UNIT will sound several audible beeps.

f) Open the cover and remove samples.

GENERA : During the run, display shows actual parameters. To check set parameters

press “VIEW” button and “SE ECT”. The display will revert temporarily to set points.
