Thermaltake VD6000BNS Manual de usuario

User Manual

VD6000 SERIES

Contents

Chapter l Product Introduction

1.1 Specification

Chapter 2 Case Mechanical Operation

2.1 How to open the side panel

2.2 Front fan Installation (Optional)

2.3 Installing 5.25" device

2.4 PCI slot tool-free function operation

2.5 Installing 3.5" HDD

2.6 Installing 3.5" device

Chapter 3 Motherboard & Leads Installation

3.1 Motherboard installation

3.2 Case LED connections

Chapter 4 Other

4.1 Purepower power supply(optional) 15

3.3 USB2.0 & IEEE1394 Firewire connection 13

3.4 Audio connections 14

VD6000BNS >>>

Features

6.15 kgNet Weight

Micro ATX , Standard ATX

Front (Intake) : 120 x 120 x 25 mm (optional)

Rear (Exhaust) : 120 x 120 x 25 mm, 1300rpm,

17dBA

410 x 190 x 510 mm

Black

Case Type

7Expansion Slots

Motherboards

Color

SECC Japanese steelMaterial

4 x 5.25 , 2 x 3.5

4 x 3.5

Drive Bays

- Accessible

- Hidden

Cooling System

Dimension

(H*W*D)

Model

Features

Net Weight

Micro ATX , Standard ATX

Front (Intake) : 120 x 120 x 25 mm (optional)

Rear (Exhaust) : 120 x 120 x 25 mm, 1300rpm,

17dBA

Black

Middle TowerMiddle TowerCase Type

7Expansion Slots

Motherboards

Color

SECC Japanese steelMaterial

4 x 5.25" , 2 x 3.5"

4 x 3.5"

Drive Bays

- Accessible

- Hidden

Cooling System

Dimension

(H*W*D)

Model

1.1 Specification

Chapter l Product Introduction

VD6000BNS

Simple and elegant

Piano-Mirror coating

Dual USB 2.0,IEEE 1394 Firewire,

HD Audioports

Tool-freeinstallation for all drive bays &

add-on cards

High efficiency ventilation:12cm silent

fan in rear(front 12cm fan is optional)

Side air ductfor superior thermal efficiency

Chapter2 Case Mechanical Operation

2.1 How to open the side panel 2.2 Front Fan Installation (Optional)

uTo remove the side

panel, please remove

upper and bottom

screws on the back

of the case.

Push the bottom then swing out the side panel.

ŒRemove the front panel first.

wSecure the fan by screws.

xFront fan installation completed.

•Place the fan as shown.

Please find the side

panel key in the back

of the chassis,and

open the side panel

as shown below.

Make sure the side

panel lock is opened.

2.3 Installing 5.25" Device

ŒRemove the front panel.

•Remove the 5.25" drive

bay metal cover.

‘Place 5.25" device into

the drive bay.

’Put back the lock device and turn lock device clockwise to lock.

“5.25" device installation complete.

•Turn lock device counterclockwise to unlock.

•Remove lock device.

•Unscrew the 5.25"

drive bay cover.

ŽRemove the 5.25"

drive bay cover.

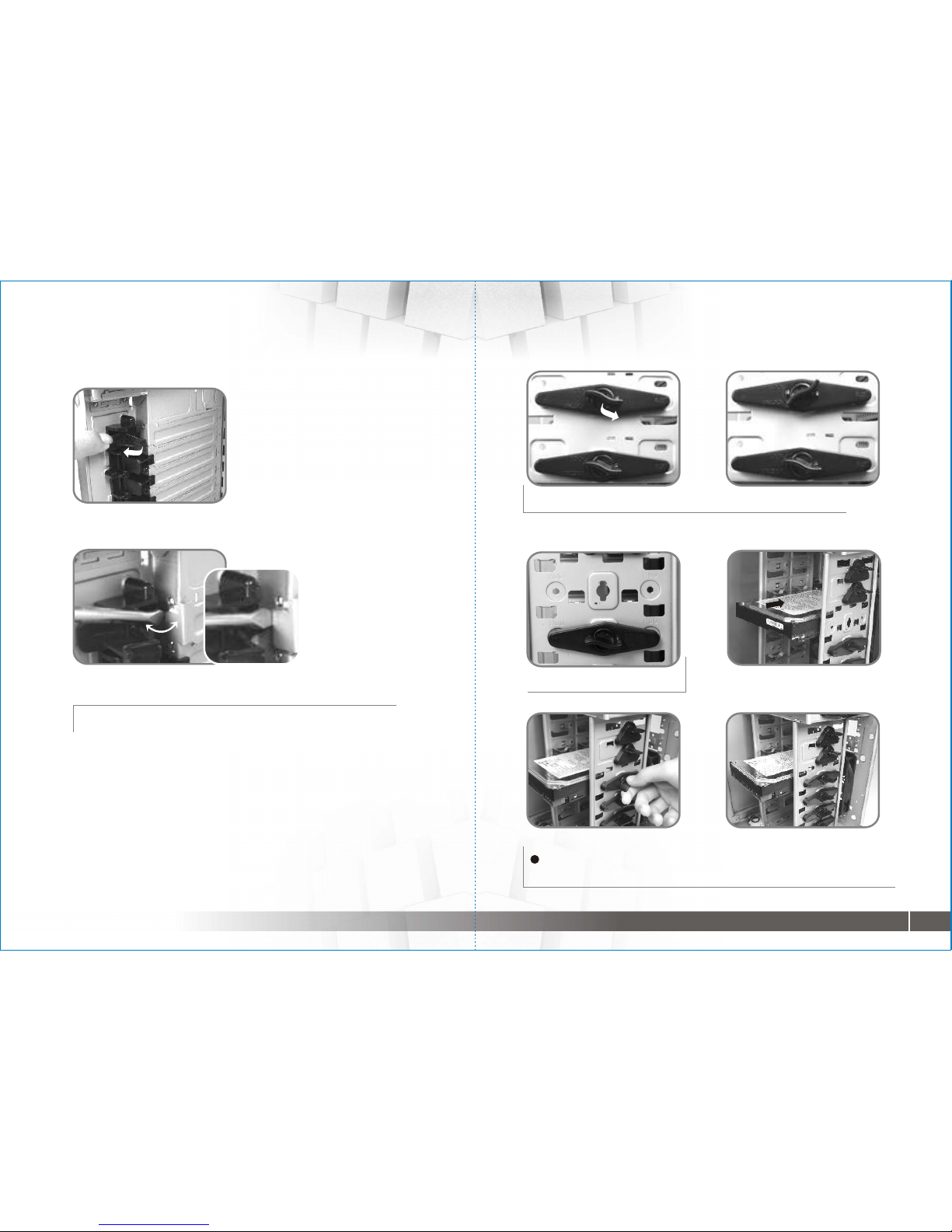

2.4 PCI slot tool-free function operation

ŒOpen the plasticclip then takeoff the PCI bracket.

2.5 Installing 3.5" HDD

uTurn lock device counter-clockwise to unlock.

vRemove lock device. wPlace HDD into the drive bay.

Put back the lock device and turn lock device clockwise to

secure the HDD.

ŽTurn lock device counter-clockwise to unlock.

•Remove lock deviceand insert drivefrom the front of

the chassis.

•

2.6 Installing 3.5" device

ŒRemove the front panel. •Remove the 3.5" drive

bay cover .

3.5" device installation complete.

910

Insert lock device and turn clockwise to secure the drive.

Each motherboard has different standoff layout. It is highly

suggested that you refer to your motherboard's manual when

installing motherboard into the Case. The cases are applicable with

Standard ATX, Micro ATX motherboards.

Your motherboard may require a special I/O Panel, which should be

included with your motherboard.

Placement Direction:

When installing the motherboard, make sure you follow the direction

provided by your motherboard manufacturer. On most standard

motherboards, the edge with external ports goes to the rear part of the

chassis. It is highly recommended that you install CPU, heat sink and

modular components before fixing the motherboard inside the chassis.

3.1 Motherboard Installation

= the locationsof

the screw holes. Note

these locations and

place included

standoffs on thechassis

first.

This side towards

the rear ofthe

chassis

Above illustration isa sample of what

the motherboard's layout.For more

detail screw holeplacement, please

refer to yourmotherboard manual.

Chapter3 Motherboard & Leads Installation

On the front of the case, you can find some LEDs and switch

leads (POWER SW*1, POWER LED*1, H.D.D. LED*1,

RESET SW*1, SPEAKER*1).

Please consult user manual of your motherboard manufacturer,

then connect these leads to the panel header on the

motherboard. These leads are usually labeled; if not, please

trace them back to the case front to find out their source.

- POWER LED connects to your M/B at the PLED

- POWER SW connects to the PWR connector on the

motherboard.

- H.D.D LED connects to the 2-pin labeled HDD LED

connector.

- RESET SW connects to the RSW connector on the

motherboard,

- SPEAKER connector: find out the 4-pin labeled SPEAKER

on the M/B then connect it.

3.2 Case LED connections

11 12

3.3 USB2.0 & IEEE1394 Firewire connection

IEEE1394 Firewire connection

Please consult your motherboard manual to find

out the section of "USB connection".

Please consult your motherboard manual to find

out the section of "IEEE1394 Firewire connection".

USB connection

3.4 Audio connections

13 14

IEEEE1394

USB

Please refer to the following illustration

of Audio connector and your motherboard

user manual.

Please select the motherboard which used AC'97 or HD Audio (Azalia),

(be aware of that your audio supports AC'97 or HD Audio (Azalia)) or

it will damage your device(s).

On some motherboards, the connectors for Audio are not the same as

the drawing below. Please check with your motherboard manual before

installing.

+D 2

-D 2

VCC 2

GROUND

+D 1

GROUND

-D 1

VCC 1

R-OUT

R-RET

L-OUT

L-RET

MIC POWER

MIC IN

GROUND

TPB+

TPA+

GROUND

TPB-

TPA-

PORT2 R

SENSE2_RETURN

SENSE_SEND

PORT1 R

PORT1 L

SENSE1_RETURN

GND

PORT2 L

AUDIO AZALIA AUDIO AC'97

The Thermaltake Silent Purepower specification meets Intel

Pentium 4 and AMD K7; it offers plenty of functions, which mainly

include:

4.1 Purepower power supply (optional)

4.Over current protection.

3.Over voltage protection / Under voltage protection.

2.Short circuit protection on all output.

1.Over thermal protection at 100 C-105 C

The functions can assure the Silent Purepower meet the balance in

noise control and heat exhausted. The Silent Purepower provides

complete protection function as follow:

2.Ultra Silent:Ball bearing fans with high reliability and super low

acoustic noise under all load condition.

1.Automatic Fan Speed Control: The Silent Purepower power

supply can detect the inside heat and automatically adjust the fan

speed to provide adequate airflow.

Chapter4 Other

Besides, Thermaltake enables the quality assurance of the Silent

Purepower : 100% Hi-POT and ATE Function Test, 100% Burn-In and

AC Input cycled on/off under high temperature condition. Furthermore,

it has been approved by UL, CSA, TUV, VDE, NODIC, CB, FCC, CE,

CNS.

There are three main products of Thermaltake PSU, it is divided into

standard, VR and specialty power supply unit. Please refer to

http://www.thermaltake.com/purepower/main.htm

15 16
