THE WORLD MODELS Super Chipmunk-90 RF Manual de usuario

0.60-0.75 cu. in. displacement 2-stroke

Wing Span

Wing Area

Flying Weight

Fuselage Length

64.0 in / 1620 mm

682 sq in / 44.0 sq dm

7 lbs / 3300 g

53.0 in / 1340 mm

Warning !This model is not a toy.

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of engine powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

* Specifications are subject to change without notice.*

Specifications

Super Chipmunk-90 RF

INSTRUCTION MANUAL

Requires: 5-channel radio w/ 6 standard servos

(Optional inboard flap)

0.91 cu. in. displacement 4-stroke

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

A004NPO31351603

Super Chipmunk-90 RF

P.1

Apply thread locker

Apply epoxy glue.

Pierce the shaded portion

covering film.

Apply instant glue

(C.A.glue, super glue.)

Ensure smooth non-bindin g

movement while assembling .

Do not overlook this symbol !

P. 3 -11

Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT

and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you

find to be defective after the gluing process may be difficult to remove for warranty replacement. The

manufacturer will replace any defective parts, but will not extend to the parts that are good before

gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P. 1

P. 2

P.11

BEFORE YOU BEGIN

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual comprise of the following : -

Assemble left and right

sides the same way.

Peel off shaded portion

covering film.

Drill holes with the specified

diameter (here: 3mm) .

Pay close attention here!

Cut off shaded portion.

Must be purchased separately !

Warning!

3mm

A004NPO31351603

Parts List

TOUGHLON:--

TOUGHLON STL 100 WHITE

TOUGHLON STL 312 BRIGHT RED

TOUGHLON STL 350 CORSAIR BLUE

TOUGHLON STL 004RWIG

TOUGHLON STL 004RFU

P.2

1. MAIN WING -- 1 pair

2. MAIN LANDING GEAR -- 1 pair

MOUNTING PLATE 12x20mm -- 4 pcs

SCREW PA2.6x10mm -- 8 pcs

SCREW PM2x8mm -- 8 pcs

MAIN LANDING GEAR COVER -- 2 sets

WASHER 2mm -- 16 pcs

M2 NUT -- 8 pcs

3. SCREW PA2.6x10mm -- 4 pcs

COLLAR Ø4.1mm set/ screw -- 4 sets

WHEEL Ø76mm -- 2 pcs

WHEEL PANTS -- 1 pair

MOUNTING PLATE 12x20mm -- 2 pcs

4. SCREW PWA2x8mm -- 8 pcs

SERVO MOUNTING PANEL (For Aileron) -- 1 pair

5. SCREW PB2x16mm -- 2 pcs

SCREW PB2x20mm -- 4 pcs

FUEL TUBE Ø6x5mm -- 4 pcs

STRAPER -- 2 pcs

CLEVIS -- 2 pcs

TRI-HORN M3x9mm (L) (For Aileron Servo) -- 2 sets

PUSHROD Ø1.8x100mm w/ Threads (For Aileron) -- 2 pcs

6. WING JOINER 9x24x223mm -- 1 pc.

7. RING Ø2.3mm PL4112023 -- 2 pcs

8. STRAPER -- 1 pc.

CLEVIS -- 2 pcs

FUEL TUBE Ø6x5mm -- 3 pcs

Y-TYPE PUSHROD Ø1.8x126mm w/ Threads (For Flap) -- 1 pc.

9.COVERING 20x50mm – 1 pc.

FUSELAGE -- 1 pc.

10. STABILIZER & ELEVATOR -- 1 set

11. VERTICAL FIN & RUDDER -- 1 set

TAIL LANDING GEAR -- 1 set

SCREW PA3x12mm -- 2 pcs

COLLAR Ø2.1mm set/ screw -- 1 set

WHEEL Ø23mm -- 1 pc.

BALSA 8x20x247.5mm -- 1 pc.

12. FUEL TANK 380cc PL1111380 -- 1 set

DOUBLE- SIDED TAPE – 40x100mm – 1 pc.

CABLE TIE 1.5x5x400mm – 1 pc.

13. ENGINE MOUNT PL5111070 -- 1 set

SOCKET HEAD SCREW M4x25mm -- 4 pcs

WASHER d4xD9mm -- 4 pcs

14. SCREW PM4x30mm -- 4 pcs

WASHER d4xD9mm -- 8 pcs

M4 NUT -- 8 pcs

SPINNER Ø57mm -- 1 pc.

THROTTLE PUSHWIRE Ø1.2x450mm -- 1 pc.

PLASTIC TUBE d2xD3x250mm -- 1 set

15. COWLING -- 1 pc.

TRANSPARENT 3D TEMPLATE -- 1 pc.

SCREW PWA2.6x12mm -- 6 pcs

SILICON GROMMET d1.5xD6.5mm -- 6 pcs

16. SCREW PB2x16mm -- 6 pcs

TRI-HOR M3x22mm (L) (For Elevator) -- 2 sets

FUEL TUBE Ø6x5mm -- 2 pcs

CLEVIS -- 2 pcs

PUSHROD 1.8x630mm w/ Threads (For Elevator) -- 2 pcs

17. FUEL TUBE Ø6x5mm -- 1 pc.

CLEVIS -- 1 pc.

SCREW PB2x16mm -- 3 pcs

TRI-HORN 3x14mm (For Rudder) -- 1 set

PUSHROD Ø1.8x635mm w/ Threads (For Rudder) -- 1 pc.

18. LINKAGE CONNECTOR Ø2.1mm -- 1 set

19. STRAPER PL4112102 -- 2 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

SPONGE 10x80x200mm -- 2 pcs

PUSHROD CONNECTOR PL4410010 (For Elevator) -- 1 set

PUSHROD Ø1.8x70mm (For Elevator) -- 1 pc.

20. CANOPY -- 1 pc.

PILOT PC001085A -- 1 set

SCREW PWA2.3x8mm -- 4 pcs

SILICON GROMMET d1.5xD6.5mm -- 4 pcs

COCKPIT – 1 pc.

21. SCREW HM4x40mm -- 2 pcs

WASHER d4xD15mm -- 2 pcs

22. DECALS A004RFDEC-- 1 set

A004NPO31351603

P.3

Aileron Servo Lead

Main Landing Gear

Aileron

PA2.6x10mm Screw

Bottom View

Pre-glued

Bottom View

1mm

PM2x8mm Screw

2mm Washer

2mm Nut

PA2.6x10mm

PM2x8mm

Main Landing Gear Cover

Landing Gear

PA2.6x10mm Screw

3mm Set Screw

4.1mm Collar 3mm Set Screw

PA2.6x10mm

4.1mm Collar

Wheel Ø76mm

2mm Nut

2mm Washer

A004NPO31351603

Wing joiner

9x24x223mm

Aileron Servo

5Aileron Servo

PWA2 x 8mm Screw

PB2x16mm Screw

PB2x20mm Screw

Ø1mm pilot holes for World Models tri-horn

pre-drilled.Please look for pin-hole marks

at under side of control surfaces.

P.4

2mm

1mm

PWA2x8mm

PB2x20mm

PB2x16mm

PB2x20mm

Fuel Tube

Tri-Horn

M3x9mm

Please dry fit wing joiner into left and right wing to make sure they fit with the proper

dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of

all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner sleeve,

and apply the glue to wing joiner before putting them together. Wing joiner not glued

properly will lead to wing failure and plane crash.

6Main Wing

For Flap Servo

Lead to Aileron Servo

Straper

Fuel Tube

A004NPO31351603

P.5

Flap Servo

1.5mm

Straper

Clevis

Fuel Tube

Ring

Flap Servo

Fuselage

Covering 20x250mm

A004NPO31351603

Vertical Fin / Rudder

Pre-glued

P.6

Vertical Fin & Rudder

2mm

Pre-glued

PA3x12mm Screw

3mm Set Screw

2.1mm Collar

PA3x12mm

2.1mm Collar

3mm Set Screw

Fuel Tank

Bottom View

Fuel Tank

380cc

Install Balsa 8x8x112mm

(For ixing) Fuel Tank Position F

Fuel Tank

Temporary install the main wing,

adjust leveling of the stabilizer to

make it as parallel to the main

wing as possible.

(Stabilizer)

(Main Wing)

B B'

B=B'

Pre-glued

Stabilizer & Elevator

CableTie

1.5x5x400mm

Double-sided Tape

40x100mm

A004NPO31351603

P.7

4mm

PM4x30mm Screw

d4xD9mm Washer

M4 Nut

14 Engine

118mm

4.65in.

Spinner

Ø57mm

Installed Engine Position

Fire

Wall

PM4x30mm

Cowling

PWA2.6x12mm Screw

d1.5xD6.5mm Silicon Grommet

1mm

PWA2.6x12mm

d1.5xD6.5mm

Silicon Grommet

Please refer to the attached sheet for

usage of the transparent 3D template.

First insert the grommet to

the cowling then apply screw.

M4 Nut

d4xD9mm Washer

Engine Mount

PL5111070

Blind nuts are off-centered to keep

the spinner at the fuselage axis.

Apply thread locker to screws.

Engine Mount

d4xD9mm Washer

M4x25mm Socket Head Screw

d4xD9mm

Washer

A004NPO31351603

P.8

Rudder Pushrod

PB2x16mm Screw

Ø1mm pilot holes for World Models tri-horn

are pre-drilled. Please look for pin-hole

marks at side of control surfaces.

Servo Set

3x3mm Set Screw

Linkage Connector

M2 Nut

2mm Washer

Please refer to the attached sheet for linkage connector installation.

Throttle Pushwire

3mm

Throttle Servo.

2mm

Washer

M2 Nut

2mm

Washer

Tri-Horn

M3x14mm

Fuel Tube

PB2x16mm

Elevator Pushrod

PB2x16mm Screw

Tri-Horn

M3x22mm

Fuel Tube

Clevis

Ø1mm pilot holes for World Models tri-horn

are pre-drilled. Please look for pin-hole

marks at under side of control surfaces.

PB2x16mm

Elevator Tri-horn

A004NPO31351603

Receiver

Battery

P.9

Canopy

d1.5 x D6.5mm Silicon Grommet

PWA2.3 X 8mm Screw

Pilot PC001085A

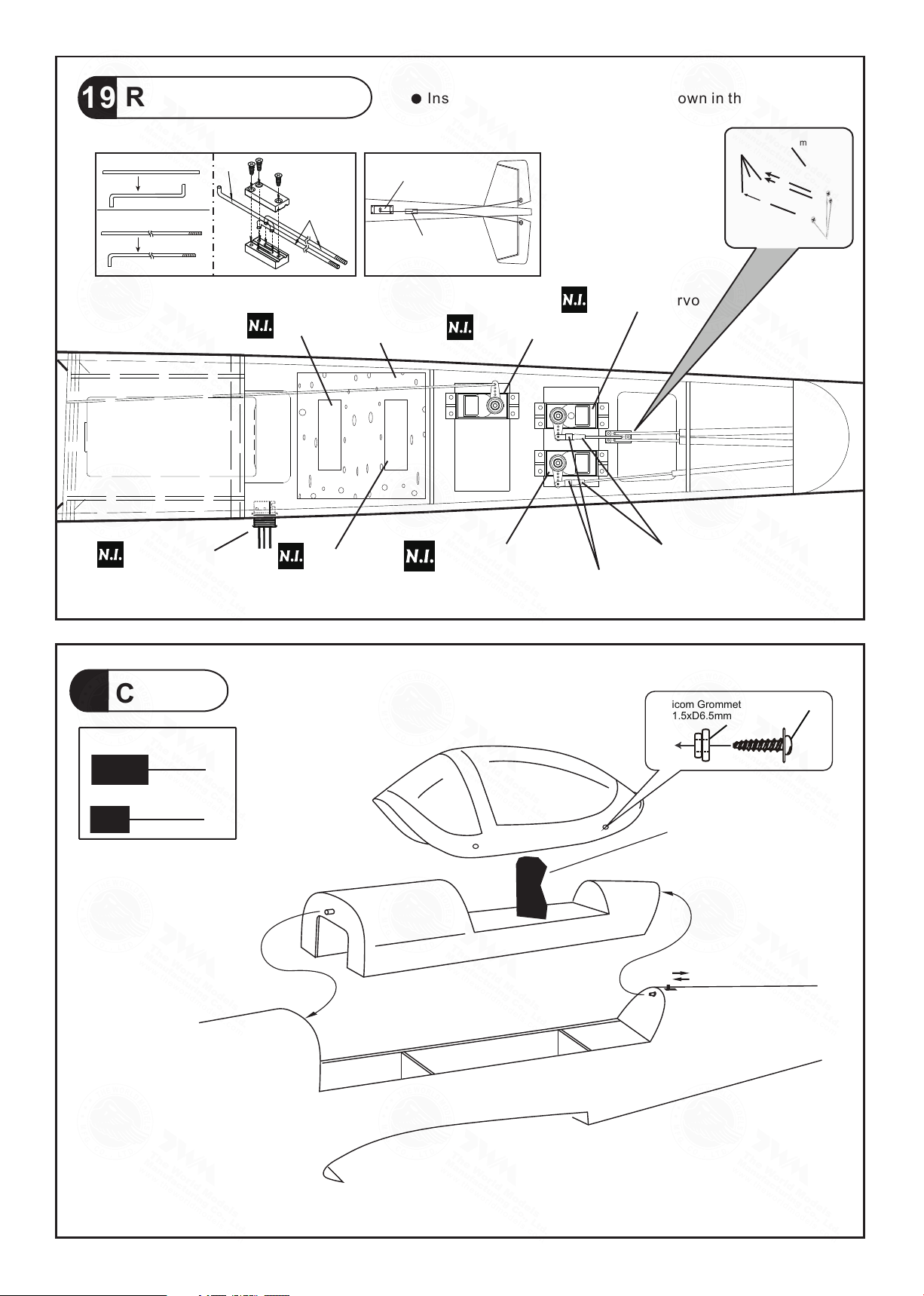

Radio Equipment

19 Install and arrange the servo as shown in the diagram.

Rudder Servo

Elevator Servo

J2(Pushrod Ø1.8x645)

J1(Pushrod Ø1.8x70) J1

KM2x8mm

M2 Nut

Elevator Pushrod

Ø1.8x70mm

Throttle Servo

Elevator Servo

Fuel Tube Ø6x5mm

Straper

Pushrod

Connector

Fuel

Tank

320cc

Sponge

Silicom Grommet

d1.5xD6.5mm

PWA2.3x8mm

Charge Receptacles

A004NPO31351603
