THEGIGRIG GENX 14 MANUAL
Power Path Diagram Service
Power can be complicated. With so many pedals operating on different voltages, different current draw demands,
different plug sizes and polarities, its east to get confused. We offer a service where we will tell you exactly what
is needed to power everything on your board. Click the link, enter the details and we’ll respond with a diagram and
a link through to get everything you need.
https://shop.thegigrig.com/custom-power-path-diagram-service/
Thank You
By buying this GigRig product you are supporting a small team of ridiculously talented engineers, tech advisers,
production heroes, admin legends and their families. If you need anything please contact us through our support
page at thegigrig.com/support and don’t forget to check out our YouTube channel for more info.
Technical Specifications:
Input Voltage: 9-34Vdc 2.1mm centre negative

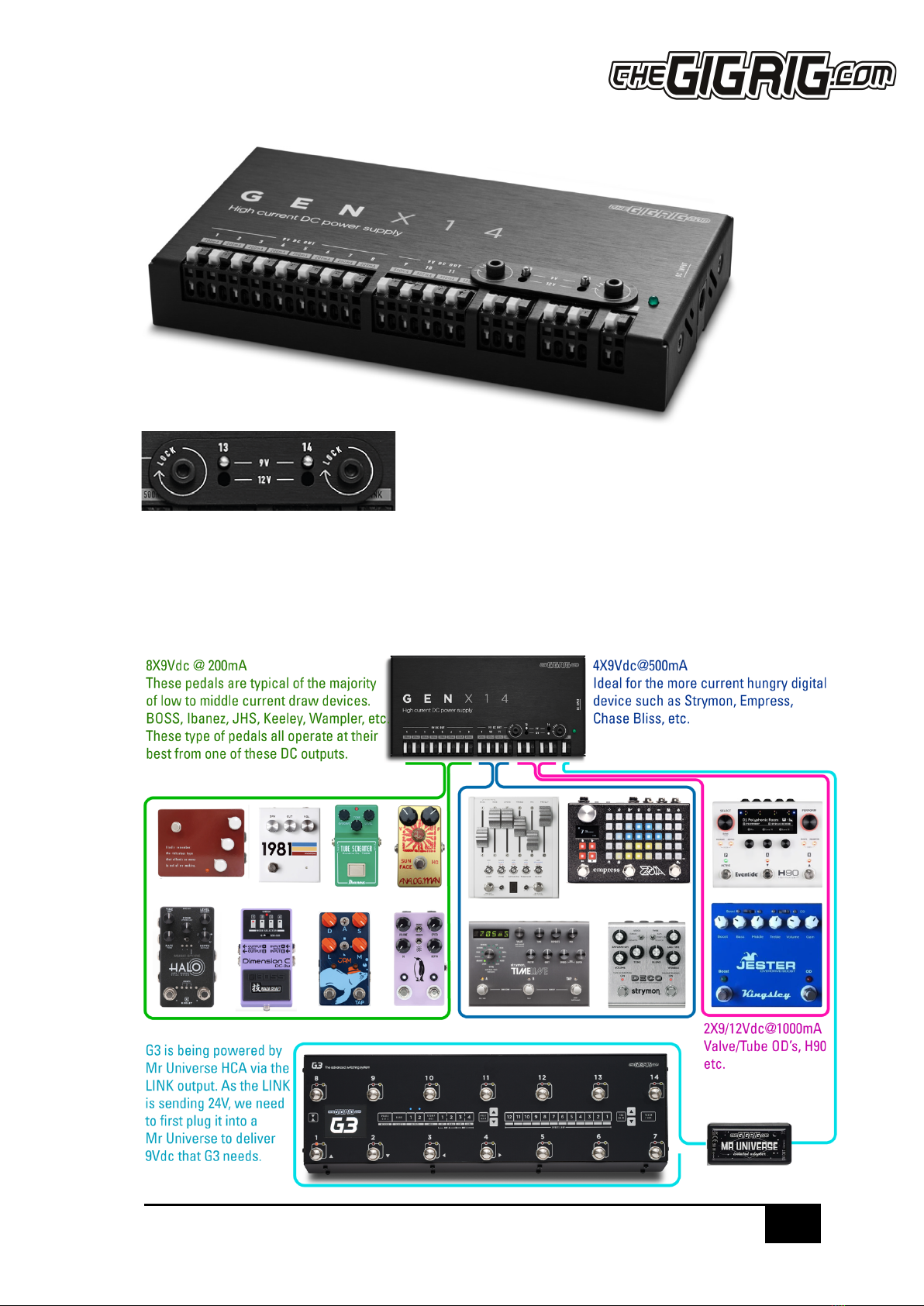

Output Voltages: 8x9Vdc@200mA, 4X9Vdc@500mA, 2x9or12Vdc@1000mA
Current Draw Main Unit: 5.6Amps @ 9Vdc
Input is reverse diode protected
Safety: The GigRig UnderLiner & UnderLiner FS are is designed for indoor use only - Don’t get them wet
Dimensions:
GENX14 – 158Lx82Wx22Dmm (6.22Lx3.22Wx0.87D”)
G24V Power Supply – 132Lx57Wx32Dmm (5.2Lx2.24Wx1.26D”)
Warranty:
The GigRig warrants the product to be free from defects in material and workmanship for a period of 2 years from the original
date of purchase. If the product fails within the warranty period, The GigRig will repair or, at our discretion, replace the product
and cover the cost of return shipping to the original purchaser. This warranty covers defects in manufacturing discovered while
using this product as recommended by The GigRig. This warranty does not cover loss or theft, nor does the coverage extend to
damage caused by misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters. Damage caused
by any of the above circumstances may result in a non-warranty repair fee
Legal:
In the case of malfunction, the purchaser’s sole recourse shall be repair or replacement, as described in the preceding
paragraphs. The GigRig will not be held liable to any party for damages that result from the failure of this product. Damages
excluded include, but are not limited to, the following: lost profits, lost savings, damage to other equipment, and incidental or
consequential damages arising from the use, or inability to use this product. In no event will The GigRig be liable for more than
the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other
warranties, express or implied. By using the product, the user accepts all terms herein.
Disposal:
Return the unit to The GigRig Ltd for disposal or use standard disposal for electrical equipment recommended in your country
Approved. Fully compliant with the RoHS√ standard.
