Textron Klauke MAP215CFM Manual de usuario

MAP215CFM

HE16812_A © 11/2017 R&D-2

Verbindungen mit System

The Power of Partnership

Gustav Klauke GmbH • Auf dem Knapp 46 • D-42855 Remscheid

Telefon ++49 +2191-907-0 • Telefax ++49 +2191-907-141 • www.klauke.com

HE 16819

Gustav Klauke GmbH

Auf dem Knapp 46

t

D-42855 Remscheid

Serialnumber

Hydraulic

Pressure

Check

MAP215CFM

HE16812_A © 11/2017

optional:

BL1840 (RAL40)

NG2

HE.18055_B

)&&,'$*/&)0,&&)0

Model: CFM

This device complies with Part 15 of the FCC Rules and with

Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation

HE 16819

Gustav Klauke GmbH

Auf dem Knapp 46

t

D-42855 Remscheid

WORK SERVICE DON´T DO General

safety rules

batch# e.g. 304711

datecode e.g. L = 2017; N = Jan.

consecutive# e.g. „142“ = tool # 142

datecode

Year Code Month Code Month Code

2017 L Jan. N July V

2018 M Feb. P Aug. W

2019 N Mar. Q Sept. X

2020 P Apr. R Oct. Y

2021 Q May S Nov. Z

2022 R June T Dec. 1

Auf dem Knapp 46

D-42855

Remscheid

304711

142

WARNING

Read all safety warnings, instruc-

tions, illustrations and speciﬁca-

tions provided with this power tool.

Failure to follow all instructions listed

below may result in electric shock,

ﬁre and/or serious injury.

Save all warnings and instructions

for future reference.

MAP215CFM

HE16812_A © 11/2017

404

146,5

116

3 2

118

HE.16815

MAP215CFM

Pressing toolt15 kNt18VDC

WORK SERVICE DON´T DO General

safety rules

123

HE.16819

Gustav Klauke GmbH

Auf dem Knapp 46tD-42855 Remscheid

<70dB <2,5m/s2

+40°C

-10°C

1,7 kg 15 kN

MAP215CFM

HE16812_A © 11/2017 III

WORK SERVICE DON´T DO General

safety rules

Applications

Stainless steel, steel max. 22 mm *

(28 mm upon request)

Copper, copper alloys max. 28 mm *

Multi-layer composite pipe/PEX pipe max. 32 mm*

* These values are system-related

Please contact your system supplier for binding information

Achtung

Beachten Sie die Einhaltung der zum Zeitpunkt der Installation/Verlegung allgemein gültigen Installations/Verlegeanleitungen und der Betriebs-, Bedie-

nungs- und Wartungsanleitungen der Firma KLAUKE einschließlich deren schriftlichen Angaben zum Verwendungsbereich sowie Beachtung der Hinweise

auf die Installations- und Verlegerichtlinien des Systemherstellers.

Bestimmungsgemäße Installation/Verlegung unter Einhaltung der zum Zeitpunkt der Installation/Verlegung geltenden anerkannten Regeln der Technik

sowie aller einschlägigen Gesetze und Verordnungen sind einzuhalten.

Diese Angaben sind systemabhängig. Für verbindliche Informationen wenden Sie sich bitte an Ihren Systemanbieter.

Attention

Please follow the general installation/mapping instructions as well as the operation and Service instructions of the company Gustav Klauke including the

respective written notes on the application range as well as installation and mapping instructions of the system supplier.

Please observe the current generally accepted technical rules as well as all applicable laws and directives for the intended installation/mapping.

These values are system-related. Please contact your system supplier for binding information.

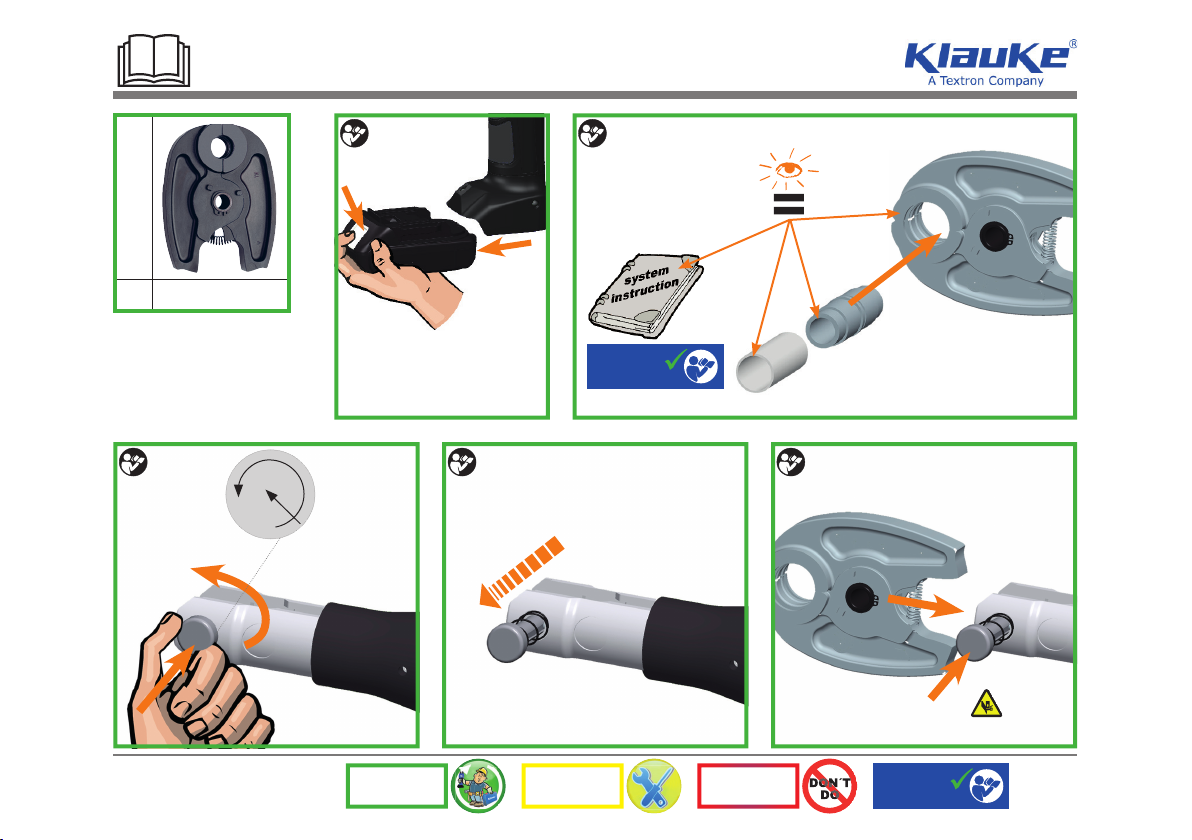

Scope of accessories

Typ SBM UWM WE (MP32)

MAP215CFM

HE16812_A © 11/2017

WORK SERVICE DON´T DO General

safety rules



45°

Typ SBM

General

safety rules

PROFILE

DIM XX

MAP215CFM

HE16812_A © 11/2017

CLICK

WORK SERVICE DON´T DO General

safety rules



PRESS

CLICK

MAP215CFM

HE16812_A © 11/2017

WORK SERVICE DON´T DO General

safety rules



45°

2. 1.

General

safety rules

PROFILE

DIM XX

Typ UWM

Typ WE (MP32)

CLICK



CLICK

MAP215CFM

HE16812_A © 11/2017

CLICK

VII

WORK SERVICE DON´T DO General

safety rules



PRESS

MAP215CFM

HE16812_A © 11/2017

on/off

PRESS

VIII

WORK SERVICE DON´T DO General

safety rules

PRESS

STOP

>350°

350° max.

MAP215CFM

HE16812_A © 11/2017 IX

WORK SERVICE DON´T DO General

safety rules

15 min.

20 sec/5Hz

page XIII

RESTART



MAIL TO:

WEEE-Abholung@

Klauke.Textron.com

SAFETY

2 years or

10.000 cycles

OIL

HE.17537

OIL

Grease

MoS2
