Texas Instruments TPS7A26EVM-021 Manual de usuario

SBVU050–December 2018

TPS7A26EVM-021 Evaluation Module

User's Guide

SBVU050–December 2018

TPS7A26EVM-021 Evaluation Module

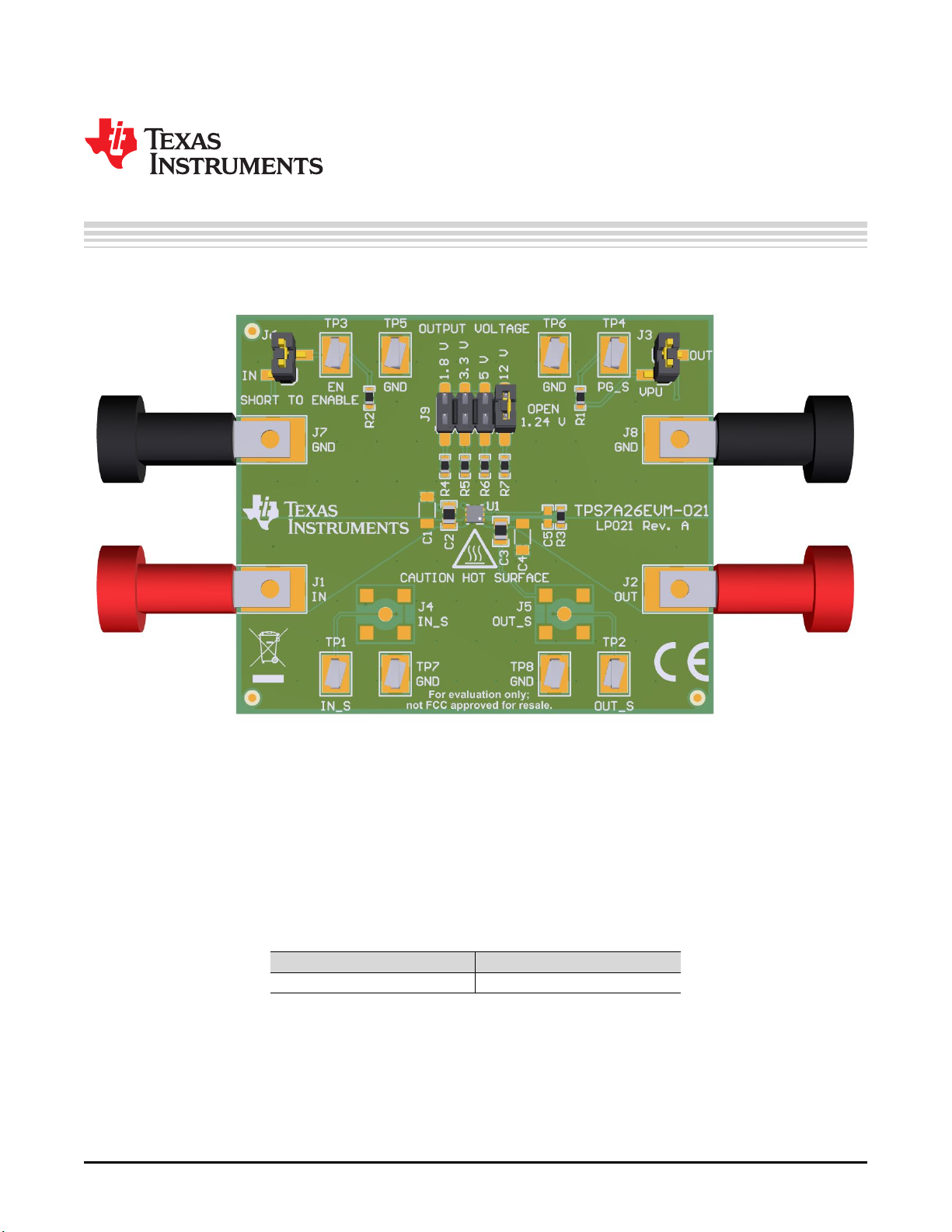

Figure 1. TPS7A26EVM-021 Evaluation Module

This user’s guide describes the operational use of the TPS7A26EVM-021 evaluation module (EVM) as a

reference design for engineering demonstration and evaluation of the TPS7A2601DRV, low-dropout linear

regulator (LDO). Included in this user’s guide are setup and operating instructions, thermal and layout

guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).

Throughout this document, the terms demonstration kit,evaluation board, and evaluation module are

synonymous with the TPS7A26EVM-021.

Table 1 lists the related documentation available through the Texas Instruments web site at www.ti.com.

Table 1. Related Documentation

Device Literature Number

TPS7A26 SBVS290

www.ti.com

2SBVU050–December 2018

Submit Documentation Feedback

TPS7A26EVM-021 Evaluation Module

Contents

1 Introduction ................................................................................................................... 3

1.1 Before You Begin................................................................................................... 3

2 EVM Setup.................................................................................................................... 4

2.1 Input/Output Connectors and Jumper Descriptions............................................................ 4

2.2 Soldering Guidelines ............................................................................................... 5

2.3 Equipment Connection............................................................................................. 5

3 Operation ..................................................................................................................... 5

4 PCB Layout................................................................................................................... 6

5 Schematic..................................................................................................................... 7

6 Bill of Materials............................................................................................................... 8

List of Figures

1 TPS7A26EVM-021 Evaluation Module ................................................................................... 1

2 Assembly Layer.............................................................................................................. 6

3 Top Layer Routing........................................................................................................... 6

4 Bottom Layer Routing....................................................................................................... 6

5 TPS7A26EVM-021 Schematic............................................................................................. 7

List of Tables

1 Related Documentation..................................................................................................... 1

2 TPS7A26EVM-021 BOM.................................................................................................... 8

Trademarks

All trademarks are the property of their respective owners.

www.ti.com

Introduction

SBVU050–December 2018

TPS7A26EVM-021 Evaluation Module

1 Introduction

Texas Instruments' TPS7A26EVM-021 EVM helps design engineers evaluate the operation and

performance of the TPS7A26 family of linear regulators for possible use in their own circuit application.

This particular EVM configuration contains a single low-noise, high-PSRR linear regulator for high-speed

communication systems. The regulator is capable of delivering up to 500 mA to the load with low VIN to

VOUT dropout voltage. For stability, use a 0.47-µF (or larger) output capacitor for the TPS7A26.

1.1 Before You Begin

The following warnings and cautions are noted for the safety of anyone using or working close to the

TPS7A26EVM-021. Observe all safety precautions.

Warning Warning Hot surface. Contact may cause burns. Do not touch.

CAUTION

The circuit module may be damaged by over temperature. To avoid damage,

monitor the temperature during evaluation and provide cooling, as needed, for

your system environment.

CAUTION

Some power supplies can be damaged by application of external voltages. If

using more than one power supply, check your equipment requirements and

use blocking diodes or other isolation techniques, as needed, to prevent

damage to your equipment.

CAUTION

The circuit module is not a finished product or electrical appliance. The module

does not contain current or voltage thresholds for circuit protection. It must be

used by qualified personnel with additional equipment for evaluation only.

EVM Setup

www.ti.com

4SBVU050–December 2018

Submit Documentation Feedback

TPS7A26EVM-021 Evaluation Module

2 EVM Setup

This section describes how to properly connect and setup the TPS7A26EVM-021, including the jumpers

and connectors on the EVM board.

2.1 Input/Output Connectors and Jumper Descriptions

2.1.1 J1 – IN

Input power supply voltage connector. Twist together the positive input lead and ground return lead from

the input power supply, and keep them as short as possible to minimize input inductance.

2.1.2 J2 – OUT

Regulated output voltage connector.

2.1.3 J3 – VPU

Pullup-voltage selector for PG. This EVM is designed so that PG can be pulled up either to VOUT by

shorting J3, or pulled up to another voltage by applying an external voltage to the VPU post.

2.1.4 J4 – IN_S

Input sense.

2.1.5 J5 – OUT_S

Output sense.

2.1.6 J6 – SHORT TO ENABLE

Output enable. To enable the output, connect a jumper to short VIN to EN.

2.1.7 J7 – GND

Input ground return connector.

2.1.8 J8 – GND

Output ground return connector.

2.1.9 J9 – OUTPUT VOLTAGE Set

For convenience, the EVM is prepopulated with four resistor divider options. Place a shunt on J9 next to

the silkscreen label of your desired output voltage.

2.1.10 TP1 – IN_S

Input sense test point.

2.1.11 TP2 – OUT_S

Output sense test point.

2.1.12 TP3 – EN

Enable test point.

2.1.13 TP4 – PG_S

PG test point.

www.ti.com

EVM Setup

SBVU050–December 2018

TPS7A26EVM-021 Evaluation Module

2.1.14 TP5 – GND

Ground test point.

2.1.15 TP6 – GND

Ground test point.

2.1.16 TP7 – GND

Ground test point.

2.1.17 TP8 – GND

Ground test point.

2.2 Soldering Guidelines

To avoid damaging the integrated circuit (IC), use a hot-air system for any solder rework to modify the

EVM for the purpose of repair or other application reasons.

2.3 Equipment Connection

Connect the equipment as shown in the following steps:

1. Set the input power supply up to 18 V (max), and turn the power supply off.

2. Connect the positive voltage lead from the input power supply to IN at the J1 connector of the EVM.

3. Connect the ground lead from the input power supply to GND at the J7 connector of the EVM.

4. Connect a 0-A to 500-mA load between OUT and GND.

5. Disable the output by floating J6.

3 Operation

Operate the equipment using the following steps:

1. Turn on the power supplies.

2. Enable the output by jumping J6 (the EN pin) to VIN.

3. Vary the respective load and input voltage, as necessary, for test purposes.

PCB Layout

www.ti.com

6SBVU050–December 2018

Submit Documentation Feedback

TPS7A26EVM-021 Evaluation Module

4 PCB Layout

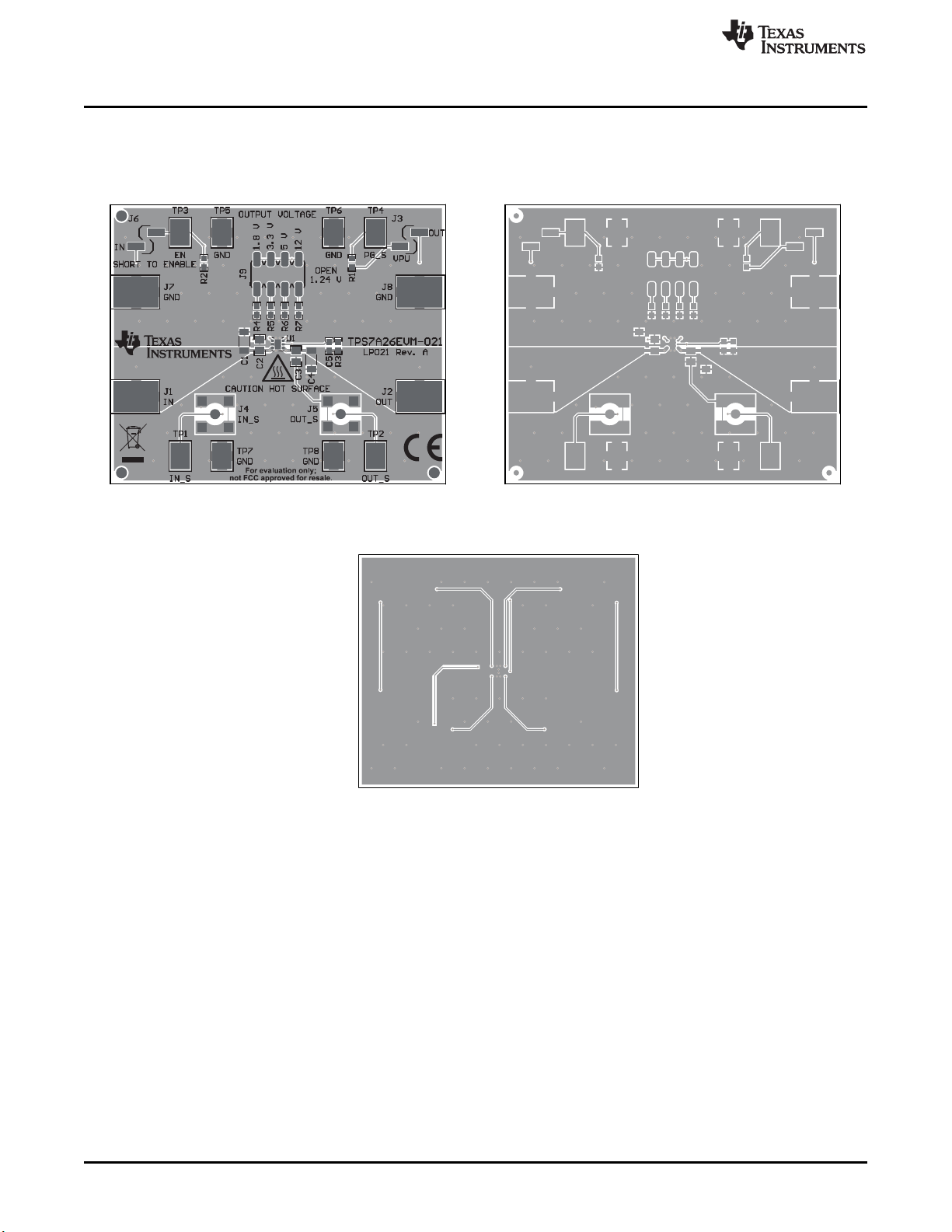

Figure 2 to Figure 4 illustrate the PCB layout for this EVM.

Figure 2. Assembly Layer Figure 3. Top Layer Routing

Figure 4. Bottom Layer Routing

TPS7A2601DRVR

OUT 1

FB/NC 2

PG 3

GND 5

PAD 7

GND

IN_S

DNP J3

TP1

IN_S

OUT

GND

TP2

OUT_S

DNP

2.2uF

DNP

TP4

PG_S

GND

GND GND GND

GND

2.2uF

DNP

2.2uF

0.01uF

DNP

10.0k

TP3

499k

1.10M

301k

165k

57.6k

OUTPUT VOLTAGE

GND

TP7

GND

TP8

GND

TP6

GND

TP5

GND

Vin Up to 18 V

Vout Selected by J9

Iout Up to 500 mA

100k

12 V

5 V

1.8 V

3.3 V

www.ti.com

Schematic

SBVU050–December 2018

TPS7A26EVM-021 Evaluation Module

5 Schematic

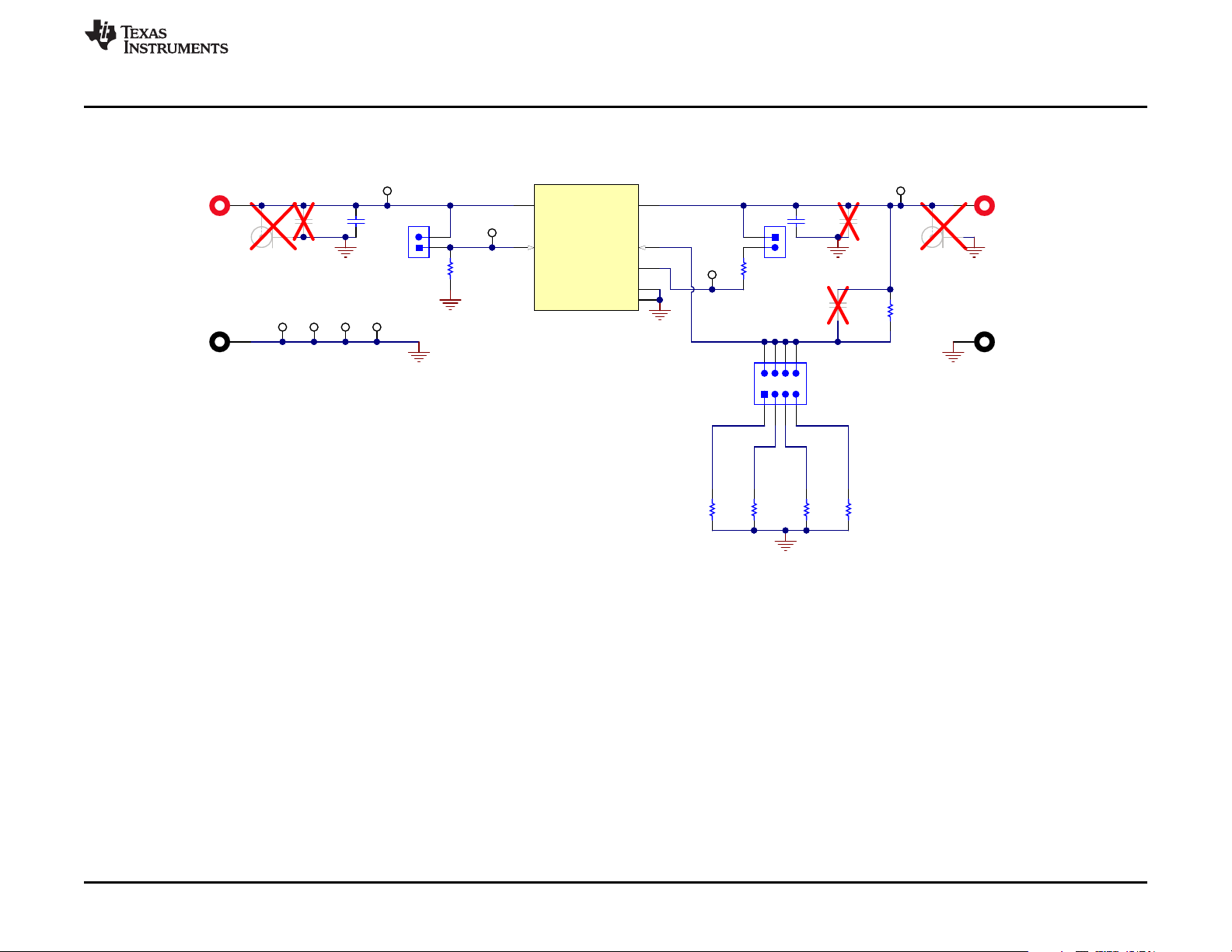

Figure 5 is the schematic for this EVM.

Figure 5. TPS7A26EVM-021 Schematic

Bill of Materials

www.ti.com

8SBVU050–December 2018

Submit Documentation Feedback

TPS7A26EVM-021 Evaluation Module

6 Bill of Materials

The BOM for this EVM is shown in Table 2.

(1) These assemblies are ESD sensitive, observe ESD precautions.

(2) These assemblies must be clean and free from flux and all contaminants. Use of no-clean flux is not acceptable.

(3) These assemblies must comply with workmanship standards IPC-A-610 Class 2.

(4) Unless otherwise noted in the Alternate Part Number or Alternate Manufacturer columns, all parts may be substituted with equivalents.

Table 2. TPS7A26EVM-021 BOM(1)(2)(3)(4)

Designator QTY Value Description Package Reference Part Number Manufacturer Alternate Part

Number

Alternate

Manufacture

!PCB1 1 Printed Circuit Board LP021 Any

C2, C3 2 2.2uF CAP, CERM, 2.2 uF, 50 V, +/- 20%, X7R, 0805 0805 TDK

J1, J2 2 Standard Banana Jack, Insulated, Red 6091 6091 Keystone

J3, J6 2 Header, 2.54 mm, 2x1, Gold, R/A, SMT Header, 2.54 mm, 2x1, R/A,

SMT 878980204 Molex

J7, J8 2 Standard Banana Jack, Insulated, Black 6092 6092 Keystone

J9 1 Header, 2.54mm, 4x2, Gold, SMT Header, 2.54mm, 4x2, SMT 95278-801A08LF FCI

R1 1 10.0k RES, 10.0 k, 1%, 0.1 W, 0603 0603 RCG060310K0FKEA Vishay Draloric

R2 1 100k RES, 100 k, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW0603100KFKEA Vishay-Dale

R3 1 499k RES, 499 k, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW0603499KFKEA Vishay-Dale

R4 1 1.10Meg RES, 1.10 M, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW06031M10FKEA Vishay-Dale

R5 1 301k RES, 301 k, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW0603301KFKEA Vishay-Dale

R6 1 165k RES, 165 k, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW0603165KFKEA Vishay-Dale

R7 1 57.6k RES, 57.6 k, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW060357K6FKEA Vishay-Dale

SH-J1, SH-J2, SH-

J3 3 1x2 Shunt, 100mil, Gold plated, Black Shunt 969102-0000-DA 3M SNT-100-BK-G Samtec

TP1, TP2, TP3,

TP4, TP5, TP6,

TP7, TP8 8 Test Point, Compact, SMT Testpoint_Keystone_Compact 5016 Keystone

U1 1 500mA, 18V, Ultra-Low-IQ, Low Drop-Out Linear Voltage

Regulator With Power Good, DRV0006A (WSON-6) DRV0006A TPS7A2601DRVR Texas

Instruments TPS7A2601DRV

TTexas

Instruments

C1, C4 0 2.2uF CAP, CERM, 2.2 uF, 50 V, +/- 10%, X7R, 1206 1206 C3216X7R1H225K160AB TDK

C5 0 0.01uF CAP, CERM, 0.01 uF, 50 V, +/- 10%, X7R, 0603 0603 C1608X7R1H103K080AA TDK

FID1, FID2, FID3 0 Fiducial mark. There is nothing to buy or mount. N/A N/A N/A

J4, J5 0 Connector, SMA Jack, Vertical, Gold, SMD SMA 142-0711-201 Cinch

Connectivity

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you

permission to use these resources only for development of an application that uses the TI products described in the resource. Other

reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third

party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,

damages, costs, losses, and liabilities arising out of your use of these resources.

TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on

ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable

warranties or warranty disclaimers for TI products.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments TMP468EVM Manual de usuario

Texas Instruments

Texas Instruments TPS60250EVM-185 Manual de usuario

Texas Instruments

Texas Instruments AN-1870 LM26420 Manual de usuario

Texas Instruments

Texas Instruments TAS2572 Manual de usuario

Texas Instruments

Texas Instruments BQ24450EVM Manual de usuario

Texas Instruments

Texas Instruments ADS1261EVM Manual de usuario

Texas Instruments

Texas Instruments LP877451Q1EVM Manual de usuario

Texas Instruments

Texas Instruments TPS56221EVM-579 Manual de usuario

Texas Instruments

Texas Instruments TPS53915 Manual de usuario

Texas Instruments

Texas Instruments DLP LightCrafter Display 4710 EVM Manual de usuario

Texas Instruments

Texas Instruments DRV84 2-EVM Series Manual de usuario

Texas Instruments

Texas Instruments Jacinto7 Manual de usuario

Texas Instruments

Texas Instruments Fly-Buck LM5017 Manual de usuario

Texas Instruments

Texas Instruments DLP5534PROJQ1EVM Manual de usuario

Texas Instruments

Texas Instruments TMS320C6000 DSP Manual

Texas Instruments

Texas Instruments TPS92611-Q1 Manual de usuario

Texas Instruments

Texas Instruments bqSWITCHER bq241 EVM Series Manual de usuario

Texas Instruments

Texas Instruments MSP430FR58 Series Manual de usuario

Texas Instruments

Texas Instruments TPS59650EVM-753 Manual de usuario

Texas Instruments

Texas Instruments TPS62351EVM Manual de usuario

Texas Instruments

Texas Instruments DEM-PCM2912A EVM Manual de usuario

Texas Instruments

Texas Instruments LM267 Series Manual de usuario

Texas Instruments

Texas Instruments TLK3134 XAUI Manual de usuario

Texas Instruments

Texas Instruments ADS1672EVM Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
