EVM User's Guide: DAC80508-04EVM
DAC80508-04 Evaluation Module
Description
The DAC80508-04EVM is an easy-to-use platform
to evaluate the functionality and performance of the
DACx0508 and DACx0504 family of devices. The
DAC80508-04EVM has optional circuits and jumpers
to configure the device for different applications. The
DAC80508 is installed on the EVM. The user can
replace the DAC80508 with the DAC80504.
The DAC80508 and DAC80504 are 16-bit buffered
voltage-output digital-to-analog converters (DAC).
The DAC80508 has 8 DACs, and the DAC80504
has 4 DACs. The devices includes a 2.5-V, 5-
ppm/°C internal reference and a user-selectable gain
configuration giving full-scale output voltages of 1.25
V, 2.5 V, or 5 V. The devices operate from a single
2.7-V to 5.5-V supply, is verified monotonic, and
provides exceptional linearity of ±1 LSB INL.
Get Started
1. Order the EVM.
2. Configure EVM jumpers.
3. Install the DAC805xxEVM GUI from ti.com.
4. Connect USB and external power supplies.
5. Launch the DAC805xxEVM GUI.
Features
• Configurable circuit to evaluate the DACx0508 and
DACx0504 family of devices
• Onboard VDD (5-V or 3.3-V) and VIO (5-V, 3.3-V,
or 1.8-V) support via USB and on-board voltage
regulators
• Option for external reference voltage or on-board
2.5-V reference voltage
• Trigger output is available for synchronous
measurement
• FT4232 easily writes to the DAC using the
DAC805xxEVM GUI
• External SPI connections available
Applications
•Optical networking
•Wireless infrastructure
•Industrial automation
•Data acquisition systems
www.ti.com Description
SLAU920 – NOVEMBER 2023
Submit Document Feedback
DAC80508-04 Evaluation Module 1
Copyright © 2023 Texas Instruments Incorporated
1 Evaluation Module Overview
1.1 Introduction
The DACx050x is a pin-compatible family of low-power, multi-channel, buffered voltage output, digital to-analog
converters (DAC). The DACx050x includes a 2.5-V, 5-ppm/°C internal reference, eliminating the need for an
external precision reference in most applications. A users-selectable gain configuration provides full-scale output
voltages of 1.25 V (gain = ½), 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7-V to 5.5-V
supply, is specified monotonic, and provides high linearity of ±1 LSB INL.
Communication to the DACx050x is performed through a serial interface that operates at clock rates up to
50 MHz. The VIO pin enables serial interface operation from 1.7 V to 5.5 V. The DACx050x flexible interface
enables operation with a wide range of industry-standard microprocessors and micro-controllers.
The DACx050x incorporates a power-on-reset circuit that powers up and maintains the DAC outputs at either
zero-scale or mid-scale until a valid code is written to the device. The devices consume low current of 0.6
mA/channel at 5.5 V, making the devices an excellent choice for battery-operated equipment. A per-channel
power down feature reduces the device current consumption to 15 µA.
This user's guide describes the characteristics, operation, and recommended use cases of the
DAC80508-04EVM. This document provides examples and instructions on how to use the DAC80508-04EVM
board and included software. Throughout this document, the terms evaluation board, evaluation module, and
EVM are synonymous with the DAC80508-04EVM. This document also includes schematics, the reference
printed circuit board (PCB) layouts, and a complete bill of materials (BOM).
1.2 Kit Contents
Table 1-1 details the contents of the EVM kit. Contact the TI Product Information Center at (972) 644-5580 if any
component is missing. Download the latest versions of the related software on the TI website, www.ti.com.
Table 1-1. DAC80508-04EVM Kit Contents
Item Quantity
DAC80508-04EVM board 1
USB micro-B plug to USB-A plug cable 1
1.3 Specification
The EVM is intended to provide basic functional evaluation of the device. The layout is not intended to be a
model for the target circuit, nor laid out for electromagnetic compatibility (EMC) testing. The EVM consists of a
printed-circuit board (PCB), which has the DAC80508 installed.
1.4 Device Information
Table 1-2 lists the devices supported by the DAC80508-04EVM. DACx050x is used as a generic name for these
devices. This document focuses on the DAC80508, which comes pre-installed on the EVM, and the DAC80504.
Table 1-2. DAC80508-04EVM Supported Devices
DACx050x DAC Resolution Number of DACs
DAC60504 12-bit 4
DAC70504 14-bit 4
DAC80504 16-bit 4
DAC60508 12-bit 8
DAC70508 14-bit 8
DAC80508 16-bit 8
Evaluation Module Overview www.ti.com
2DAC80508-04 Evaluation Module SLAU920 – NOVEMBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
2 Hardware
2.1 Hardware Setup
This section describes the overall system setup for the EVM. A computer runs software that communicates with
the FTDI controller onboard using SPI protocol.
2.1.1 Hardware Theory of Operation
The DAC80508-04EVM is connected to the computer through the on-board FTDI digital controller using the
USB cable that is supplied with the EVM. The evaluation board features connectors and test points for all
communication lines, DAC outputs, and supplies. Figure 2-1 shows a block diagram of the DAC80508-04EVM.
DAC80508-04EVM Power Supplies
USB Micro
LDOs
FTDI Controller
Trigger
Level Shifter
Digital
Headers
Supply
Selection
DAC80508
Or
DAC80504
DAC80508
Or
DAC80504
Outputs
Figure 2-1. Theory of Operation Block Diagram
The USB connection provides the 5-V supply to the EVM. Voltage regulators generate 3.3 V and 1.8 V from the
USB 5-V supply. These 3.3-V and 1.8-V supplies are used to power the FTDI controller.
The VDD supply can use the on-board 5-V or 3.3-V supplies depending on the jumper J6 setting. By default,
VDD is connected to the on-board 5-V supply. Alternatively, VDD can be supplied externally through banana jack
J4. Remove the jumper connector on J6 before connecting external supplies to VDD.
The VIO supply can use the on-board 1.8 V or use the same voltage as VDD depending on the jumper J5
setting. By default, VIO is connected to VDD. Alternatively, VIO can be supplied externally through banana jack
J8. Remove the jumper connector on J5 before connecting external supplies to VIO.
The device reference voltage can be supplied via an onboard 2.5-V voltage regulator by shorting jumper J12,
or from an external supply with SMA connector J10. Make sure that the internal reference is powered off before
connecting any other voltage supply to the REF pin.
Each of the DAC outputs have footprints available for capacitor and resistor loads that are unpopulated by
default.
www.ti.com Hardware
SLAU920 – NOVEMBER 2023
Submit Document Feedback
DAC80508-04 Evaluation Module 3
Copyright © 2023 Texas Instruments Incorporated
2.1.2 Jumper Definitions
The jumpers must be connected properly to operate the DAC80508-04EVM. Table 2-1 provides the details of the
configurable jumper settings of the DAC80508-04EVM. Figure 2-2 shows the default jumper connections on the
board.
Table 2-1. DAC80508-04EVM Jumper Definitions
Designator Name Positions
J1 FTDI DIS SHORT 1-2 – FTDI communication is disabled.
OPEN – FTDI communication is enabled (default).
J5 VIO SEL
SHORT 1-2 – VIO is connected to VDD (default).
SHORT 3-4 – VIO is connected to the 1.8-V voltage regulator.
OPEN – VIO is not powered by on-board supplies
No other jumper orientation allowed.
J6 VDD SEL
SHORT 1-2 – VDD is connected to the 5 V from the USB power (default).
SHORT 3-4 – VSSB is connected to 3.3-V voltage regulator.
OPEN – VDD is not powered by on-board supplies.
No other jumper orientation allowed.
J12 VREF = 2.5 V
SHORT 1-2 – Connects the DAC80508 REF pin to the on-board 2.5-V reference.
Make sure the internal reference is powered off before closing this jumper.
OPEN – Open if internal reference or external reference via J10 is used (default)
If an external reference is used, then turn off the internal reference.
Figure 2-2. DAC80508-04EVM Default Jumper Settings
Hardware www.ti.com
4DAC80508-04 Evaluation Module SLAU920 – NOVEMBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
2.1.3 Connector Definitions
Table 2-2 shows the power connector definitions of the DAC80508-04EVM.
Table 2-2. Power Connector Definitions
Designator Definition
J2 SMA connector FTDI Trigger Input
(unpopulated)
J3 USB connector
J4 DAC80508 VDD supply (2.7 V to 5.5 V)
J7 DAC80508 Ground
J8 DAC80508 VIO supply (1.7 V to 5.5 V)
J10 DAC80508 external REF (unpopulated)
Table 2-3 shows output connector definitions for the DAC80508-04EVM.
Table 2-3. Output Connector Definitions
Designator Definition
J13 SMA connector for OUT0 (unpopulated)
J14 SMA connector for OUT3 (unpopulated)
J16 SMA connector for OUT1 (unpopulated)
J17 SMA connector for OUT2 (unpopulated)
Table 2-4 shows output header J11 definitions for the DAC80508-04EVM.
Table 2-4. Output Header J11 Definitions
Pin Definition
2DAC80508: OUT7
DAC80504: LDAC
4DAC80508: OUT6
DAC80504: REFDIV
6DAC80508: OUT5
DAC80504: RSTSEL
8DAC80508: OUT4
DAC80504: GAIN
10 OUT3
12 OUT2
14 OUT1
16 OUT0
1, 3, 5, 7, 9, 11, 13, 15 Ground
www.ti.com Hardware
SLAU920 – NOVEMBER 2023
Submit Document Feedback
DAC80508-04 Evaluation Module 5
Copyright © 2023 Texas Instruments Incorporated
2.1.4 Test Points
The DAC80508-04EVM has a variety of test points available for measuring and debugging purposes. Table 2-5
explains the purpose of each test point.
Table 2-5. DAC80508-04EVM Test Points
Test Point Net Description
TP1 3p3V On-board 3.3-V supply
TP2 1p8V On-board 1.8-V supply
TP3 5V_USB On-board 5-V USB supply
TP4 AD6 FTDI Trigger test point (unpopulated)
TP5, TP6, TP7, TP8 GND Ground test points
TP9 VDD VDD test point
TP10 VIO VIO test point
TP11 VREF REF test point
TP12 OUT0 Dedicated OUT0 test point for measuring OUT noise
TP13 GND Dedicated ground test point for measuring OUT noise
Hardware www.ti.com
6DAC80508-04 Evaluation Module SLAU920 – NOVEMBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
2.2 Hardware Overview
This section details how to configure the EVM for voltage outputs using SPI. The following subsections provide
detailed information on the EVM hardware.
2.2.1 Electrostatic Discharge Caution
CAUTION
Many of the components on the DAC80508-04EVM are susceptible to damage by electrostatic
discharge (ESD). Customers are advised to observe proper ESD handling precautions when
unpacking and handling the EVM, including the use of a grounded wrist strap at an approved ESD
workstation.
2.2.2 Connecting the FTDI Digital Controller
To connect the FTDI digital controller on the EVM board to the computer, align and firmly connect the USB
connector to the J3 connector. Verify the connection is snug; a loose connection can cause intermittent
operation. A 100 mil header (J15) is available for external communication. Table 2-6 lists the J15 pin definitions.
To use external communication, close jumper J1 to disable the connection to the FTDI controller.
Table 2-6. Digital Header J15 Pin Definitions
Pin Definition
2
DAC80508: POCI
DAC80508C: CLEAR
If using the CLEAR version of the
DAC80508, then TI recommends to
install a pull-up resistor to VIO using
R33.
4 CS
6 PICO
8 SCLK
1, 3, 5, 7 Ground
Additionally, the board has a dedicated 100 mil header for the DAC80504 digital pins. The DUT connects to this
header with 0 Ω resistors, which are unpopulated by default. If the DAC80504 is used, then TI recommends to
populate R29, R30, R31, and R32 to connect the GAIN, RSTSEL, REFDIV, and LDAC to the FTDI and digital
header. Table 2-7 lists the pin definitions.
Table 2-7. Digital Header J9 Pin Definitions
Pin Definition
2 GAIN
4 RSTSEL
6 REFDIV
8 LDAC
1, 3, 5, 7 Ground
www.ti.com Hardware
SLAU920 – NOVEMBER 2023
Submit Document Feedback
DAC80508-04 Evaluation Module 7
Copyright © 2023 Texas Instruments Incorporated
3 Software
3.1 Software Setup
This section provides the procedure for EVM software installation.
3.1.1 Software Installation
Note
Do not connect the EVM to the computer while the software is installing.
Download the latest version of the EVM graphical user interface (GUI) installer from the Order and start
development subsection of the DAC80508-04EVM tool folder on TI.com. Run the GUI installer to install the
DAC805xxEVM GUI software on your computer. The software installation automatically copies the required
LabVIEW™ software files and drivers to the computer.
When the DAC805xx GUI is launched, an installation dialog window opens and prompts the user to select an
installation directory. If left unchanged, Figure 3-1 shows that the software location defaults to C:\Program Files
(x86)\Texas Instruments\DAC805xxEVM.
Figure 3-1. Software Installation Path
Software www.ti.com
8DAC80508-04 Evaluation Module SLAU920 – NOVEMBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
The EVM software also installs the Future Technology Devices International Limited (FTDI) USB drivers using
a separate executable file. Figure 3-2 shows the FTDI USB drivers installation window that is automatically
launched after the DAC805xxEVM software installation is complete.
Figure 3-2. FTDI USB Drivers
www.ti.com Software
SLAU920 – NOVEMBER 2023
Submit Document Feedback
DAC80508-04 Evaluation Module 9
Copyright © 2023 Texas Instruments Incorporated
3.2 Software Overview
This section discusses how to use the DAC805xxEVM software.
3.2.1 Launching the Software
If installed in the default directory, then launch the DAC805xxEVM software by searching for DAC805xxEVM
GUI in the Windows® Start menu.

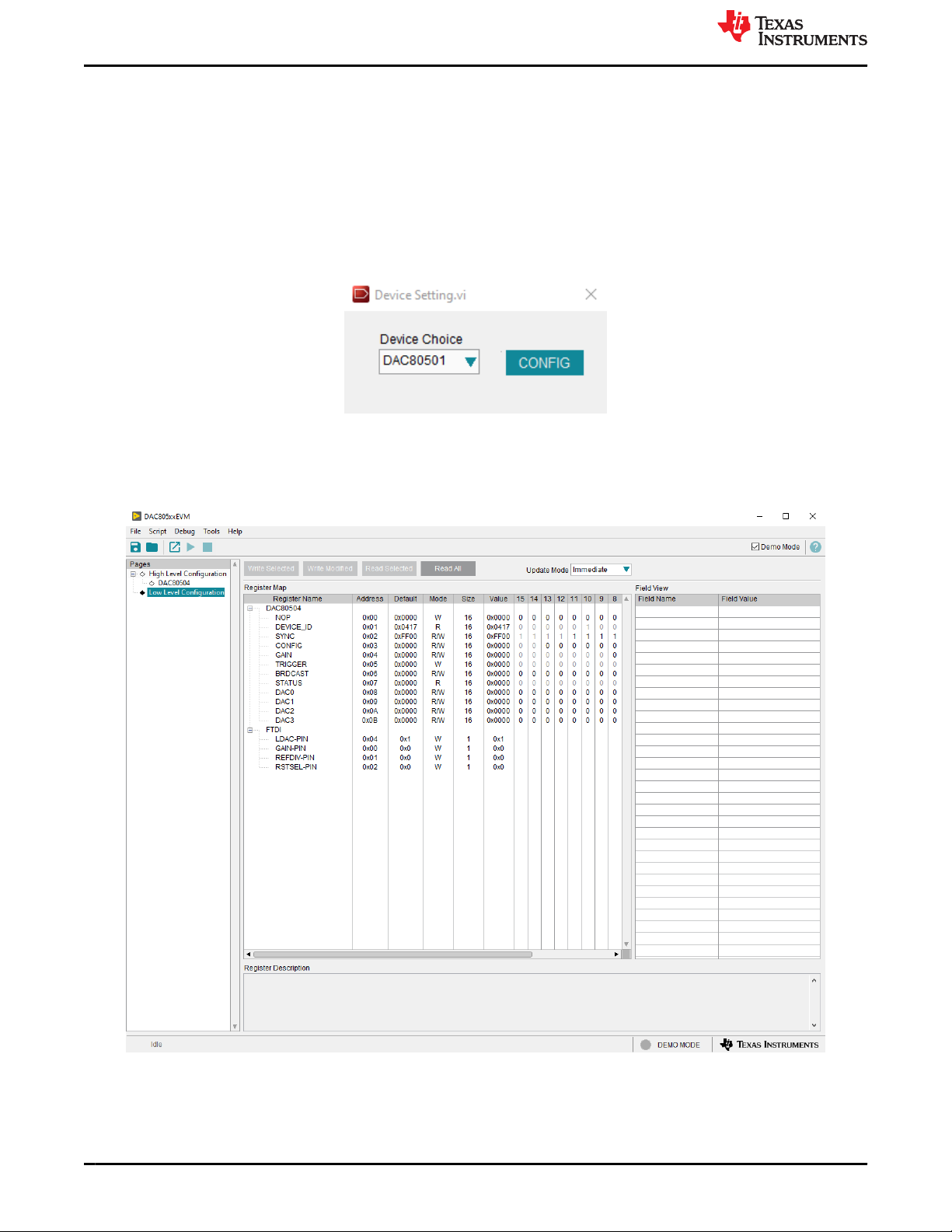

Figure 3-3 shows the Device Setting configuration menu that is present when the GUI is launched. Select either
the DAC80504 or DAC80508 device from the drop-down menu and click CONFIG. The software only supports
one device at a time.
Figure 3-3. DAC805xxEVM GUI Device Settings at Launch
Figure 3-4 shows the GUI after launch with the DAC80504 register map loaded. Figure 3-5 shows the GUI after
launch with the DAC80508 register map loaded.
Figure 3-4. DAC805xxEVM GUI DAC80504 Selection at Launch
Software www.ti.com
10 DAC80508-04 Evaluation Module SLAU920 – NOVEMBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Tabla de contenidos
Otros manuales de Placa madre de Texas Instruments
Texas Instruments
Texas Instruments AFE707EVM Series Manual de usuario
Texas Instruments
Texas Instruments TMP110 Manual de usuario
Texas Instruments
Texas Instruments TPS23753AEVM-235 Manual de usuario
Texas Instruments
Texas Instruments EVMK2G Manual de usuario
Texas Instruments
Texas Instruments bq76925EVM Manual de usuario
Texas Instruments
Texas Instruments UCC21220EVM-009 Manual de usuario
Texas Instruments
Texas Instruments DS125BR800EVM Manual de usuario
Texas Instruments
Texas Instruments LMG3411EVM-029 Manual de usuario
Texas Instruments
Texas Instruments TMUX-8RQX-EVM Manual de usuario
Texas Instruments
Texas Instruments TPS62869EVM-118 Manual de usuario
Texas Instruments
Texas Instruments UCC3817-EVM Manual de usuario
Texas Instruments
Texas Instruments LAUNCHXL-CC1352P-2 Guía de inicio rápido
Texas Instruments
Texas Instruments TAS5706EVM2 Manual de usuario
Texas Instruments
Texas Instruments DRV887 Series Manual de usuario
Texas Instruments
Texas Instruments LM75AEB Manual de usuario
Texas Instruments
Texas Instruments TMUX-24PW-EVM Manual de usuario
Texas Instruments
Texas Instruments TPS746EVM-009 Manual de usuario
Texas Instruments
Texas Instruments DLP LightCrafter Dual DLPC900 Manual de usuario
Texas Instruments
Texas Instruments ADC161S626BEB Manual de usuario
Texas Instruments
Texas Instruments VCA8613EVM Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
Biostar
Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación
