User’s Guide

BOOST-LDC3114 Evaluation Module User's Guide

ABSTRACT

This user's guide describes the characteristics, operation, and use of the BOOST-LDC3114 Evaluation Module

(EVM). Complete schematic diagrams, printed-circuit board layouts, and bill of materials are included in this

document.

Table of Contents

1 Overview..................................................................................................................................................................................2

1.1 EVM Kit Contents...............................................................................................................................................................3

1.2 Compatible Sensors...........................................................................................................................................................3

1.3 Main EVM Elements...........................................................................................................................................................3

2 EVM GUI...................................................................................................................................................................................4

2.1 System Requirements........................................................................................................................................................4

2.2 Installation.......................................................................................................................................................................... 4

2.3 Navigation.......................................................................................................................................................................... 5

2.4 Firmware Updates..............................................................................................................................................................7

3 Schematic................................................................................................................................................................................8

4 Layout...................................................................................................................................................................................... 9

5 Bill of Materials..................................................................................................................................................................... 10

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SNOU181 – FEBRUARY 2021

Submit Document Feedback

BOOST-LDC3114 Evaluation Module User's Guide 1

1 Overview

The LDC3114EVM demonstrates the use of inductive sensing technology to sense and measure the presence or

position of a conductive target object and to detect the press of an inductive touch button. The LDC3114EVM is

controlled by an MSP432, which connects to a host computer.

The EVM is comprised of two boards, the LDC board and the MSP board. This is set up as a boosterpack and

allows the LDC board to be used with a different microcontroller.

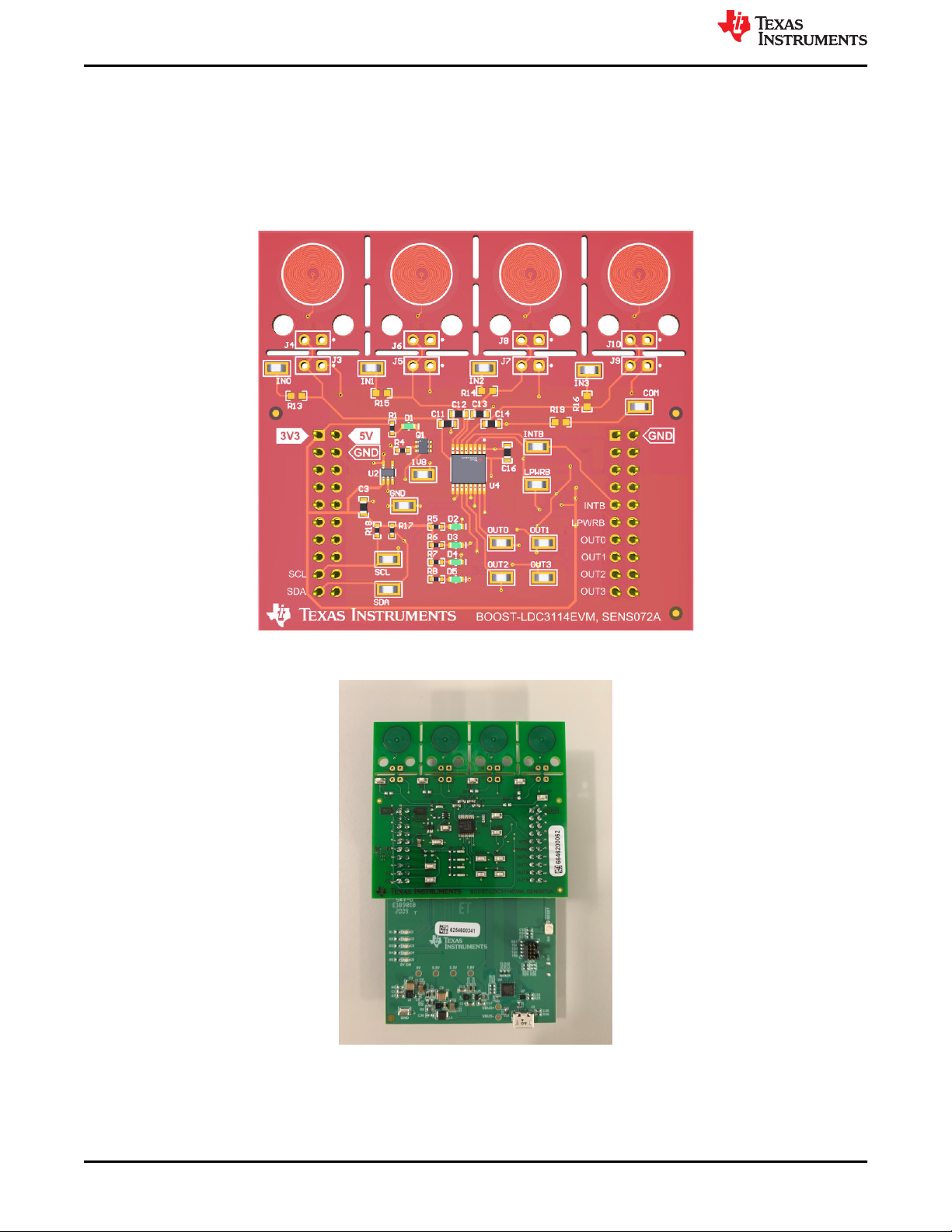

Figure 1-1. BOOST-LDC3114EVM

Figure 1-2. LDC3114EVM and PAMB Controller

Overview www.ti.com

2BOOST-LDC3114 Evaluation Module User's Guide SNOU181 – FEBRUARY 2021

Submit Document Feedback

1.1 EVM Kit Contents

Table 1-1 details the contents of the EVM kit. Contact the nearest Texas Instruments Product Information Center

if any components are missing.

Table 1-1. EVM Kit Contents

Item Quantity

BOOST-LDC3114EVM 1

PAMB Controller Board 1

Micro-USB Cable 1

1.2 Compatible Sensors

The LDC3114EVM includes four identical example sensors that are perforated so they can be removed and

replaced with different sensors by soldering onto the provided header pin locations. The LDCCOILEVM and

LDCTOUCHCOMCOILEVM both have compatible sensors that can be used with the LDC3114EVM. Other

sensors can be connected to the input headers with an unshielded twisted pair of wires.

1.3 Main EVM Elements

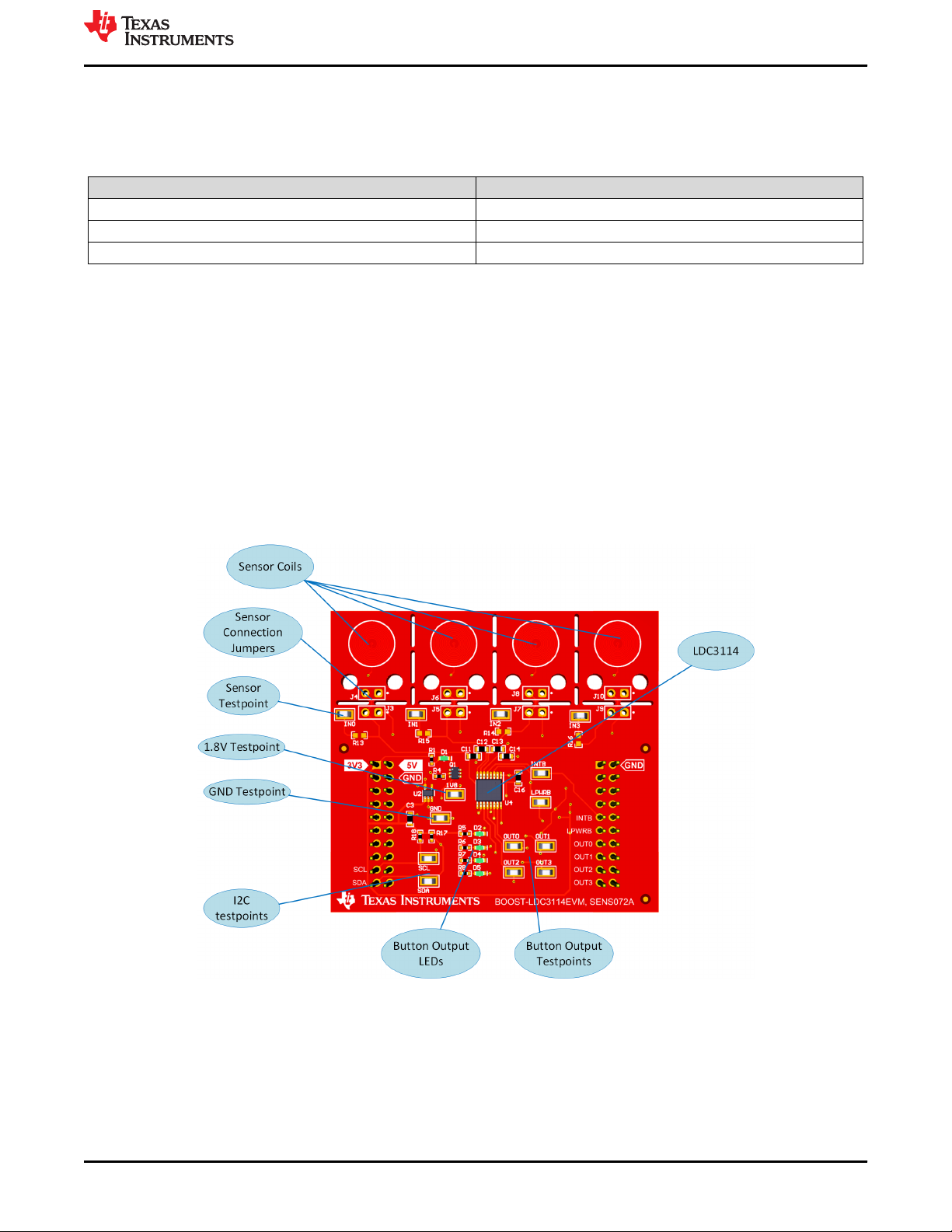

Figure 1-3 shows the layout of the LDC3114EVM and points out various features. The sensor coils are located

on a perforated section of the board so that they can be placed remotely from the sensor or replaced with other,

compatible sensors by using the sensor connection headers.

The LDC3114EVM has multiple test points designated for the power, ground, I2C, and output pins. Additionally,

the button detection LEDs on the output pins are located in the center of the board.

Figure 1-3. EVM Features

www.ti.com Overview

SNOU181 – FEBRUARY 2021

Submit Document Feedback

BOOST-LDC3114 Evaluation Module User's Guide 3

2 EVM GUI

The LDC3114EVM GUI provides direct device register access and data streaming.

2.1 System Requirements

The LDC3114EVM software is compatible with Windows, Mac, and Linux operating systems. The online

software works with Chrome, Firefox, and Safari browsers.

2.2 Installation

The GUI software for the LDC3114EVM runs on TI's GUI Composer framework. The software is available as a

live version that runs in a browser and as a download for offline use.

Download and install the PAMB Controller drivers from https://www.ti.com/lit/zip/sbac253. This is a one-time only

setup.

Access the online version by navigating to https://dev.ti.com/gallery/search/LDC3114EVM_GUI. To access the

offline GUI, mouse over the download icon, select your operating system from the list and follow the installation

instructions.

Figure 2-1. Download Pop-Up

EVM GUI www.ti.com

4BOOST-LDC3114 Evaluation Module User's Guide SNOU181 – FEBRUARY 2021

Submit Document Feedback

2.3 Navigation

For first time use, follow the prompts for TI Cloud Agent Installation:

Figure 2-2. Initial GUI Setup

After successful completion of the previous steps it should read "Hardware Connected" in the bottom left corner.

If the hardware is not recognized, select Options->Serial Port..., then select the correct port and click "Ok".

The main page has the device name and links to other pages in the GUI.

2.3.1 Registers

The Registers page allows the user to read and write to the device registers. Additionally, the Auto Read function

will default to Off, but can be set to the following speeds:

• Every 1 sec

• Every 5 sec

• Every 10 sec

• Every 20 sec

• Every 30 sec

• Every 60 sec

• As fast as possible

Figure 2-3. Registers Page

www.ti.com EVM GUI

SNOU181 – FEBRUARY 2021

Submit Document Feedback

BOOST-LDC3114 Evaluation Module User's Guide 5

2.3.2 Data Plot

In the Data Plot tab the data will be read as fast as the register is set. The graph can be configured as either

Button Data or Raw Data, depending on register settings.

Make sure to select the correct view for the selected data, either Button Data or Raw Data. The data plot can be

saved as a .csv file or cleared by clicking either the "Save Plot" or "Clear Plot" icons.

Figure 2-4. Data Plot

2.3.3 Settings

The Settings page has select register settings that can be controlled directly, as well as GPIO settings.

Figure 2-5. Settings

EVM GUI www.ti.com

6BOOST-LDC3114 Evaluation Module User's Guide SNOU181 – FEBRUARY 2021

Submit Document Feedback

2.3.4 Collateral

The Collateral page is where the user can find links to various resources, including data sheets, application

notes, firmware, and any applicable reports.

Figure 2-6. Collateral Page

2.4 Firmware Updates

If there are issues with the PAMB controller such that it is unable to connect to the GUI or the LEDs do not light

the firmware may need to be re-flashed via batch file.

Before this can be done the PAMB controller must be put back into Device Firmware Upgrade (DFU) mode. The

steps to put the controller into DFU mode are as follows:

1. With the USB cable unplugged, remove the LDC3114 daughter card from the PAMB.

2. Locate the two test points near the PK1 and PK2 header pins.

3. Reconnect the USB cable to power the USB board.

4. With a pair of metal tweezers or wire, short and hold the connection between the PK1 and PK2 test points.

5. With the test points still shorted, press and release the RESET button (SW1) on the PAMB board.

6. If successful, none of the LEDS on the PAMB board will be on.

7. Launch the LDC3114EVM GUI.

8. Navigate to File > Program Device to launch the firmware update. Wait for the firmware to update and do not

disconnect the USB cable or press the RESET button during the update.

9. Once the update is complete the EVM firmware should reboot and connect to the GUI. If it doesn't reconnect

momentarily, press the RESET button OR unplug and plug in the USB cable to reconnect.

www.ti.com EVM GUI

SNOU181 – FEBRUARY 2021

Submit Document Feedback

BOOST-LDC3114 Evaluation Module User's Guide 7
