Tesoro De Leon Instrucciones de montaje

OOPPEERRAATTOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL

"The Name That Means Treasure"

CONGRATULATIONS!

Your new Tesoro DeLeón metal detector is part of a new series of

detectors designed to provide you with many happy hours of enjoyment

in the most rewarding hobby I can think of—treasure hunting. Ahead of

you lie fascinating and exciting experiences as you step into the past—

uncovering artifacts lost by past generations, or as you take pleasure in the

great outdoors with family and friends searching for precious metals. I

wish we could share these experiences with you, and all of us at Tesoro

wish you the best of success.

Your Tesoro detector is capable of meeting your needs in a wide range

of treasure hunting situations. As with any other metal detector, familiar-

ity with this instrument is probably the limiting factor in determining how

successful you can be. I recommend that you read this manual and fully

understand how to operate this detector before attempting to use it in the

field. As you become more familiar with your detector through practice,

your rate of success will increase dramatically.

The DeLeón is a precision electronic instrument that will last for

years if properly cared for. Treat it right and it won’t let you down.

Good Hunting!

Jack Gifford

Under the copyright laws this documentation may not be copied, photocopied, reproduced, translated or

reduced to any electronic or machine-readable form, in whole or in part, without the prior written con-

sent of Tesoro Electronics Incorporated, except in the manner described in this documentation.

Tesoro Electronics, Incorporated

715 White Spar Road

Prescott, AZ 86303

(928) 771-2646

DDEELLEEÓÓNN

OOPPEERRAATTOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL

1 DELEÓN OPERATOR INSTRUCTION MANUAL

GETTING STARTED

UNPACKING THE BOX ..........................................3

INSTALLING THE BATTERY ..................................4

ASSEMBLING YOUR DETECTOR ..........................5

ADJUSTING THE POLE & SEARCHCOIL ............7

QUICKSTART ........................................................8

Prepare for the Quickstart................................................8

Check Display Readings in DISC Mode ..........................9

Adjust SENSITIVITY ......................................................16

Perform Air Test in DISC Mode......................................17

Adjust THRESHOLD ......................................................18

Perform Air Test in ALL METAL Mode ..........................20

Perform BATT TEST ......................................................20

Conclusion......................................................................21

OPERATING TECHNIQUES

Handling Your Detector ..................................................22

Pinpointing a Target ......................................................22

Planting a Test Garden ..................................................23

Recommended Recovery Methods ..........................24-25

GENERAL INFORMATION

Basic Care......................................................................26

Protecting Your Investment ............................................26

OPTIONAL ACCESSORIES ..................................28

Scuff Covers ..................................................................28

Searchcoils ....................................................................28

Headphones ..................................................................29

SPECIFICATIONS ................................................29

CODE OF ETHICS ................................................30

WARRANTY SERVICE ..........................Back Cover

CCOONNTTEENNTTSS

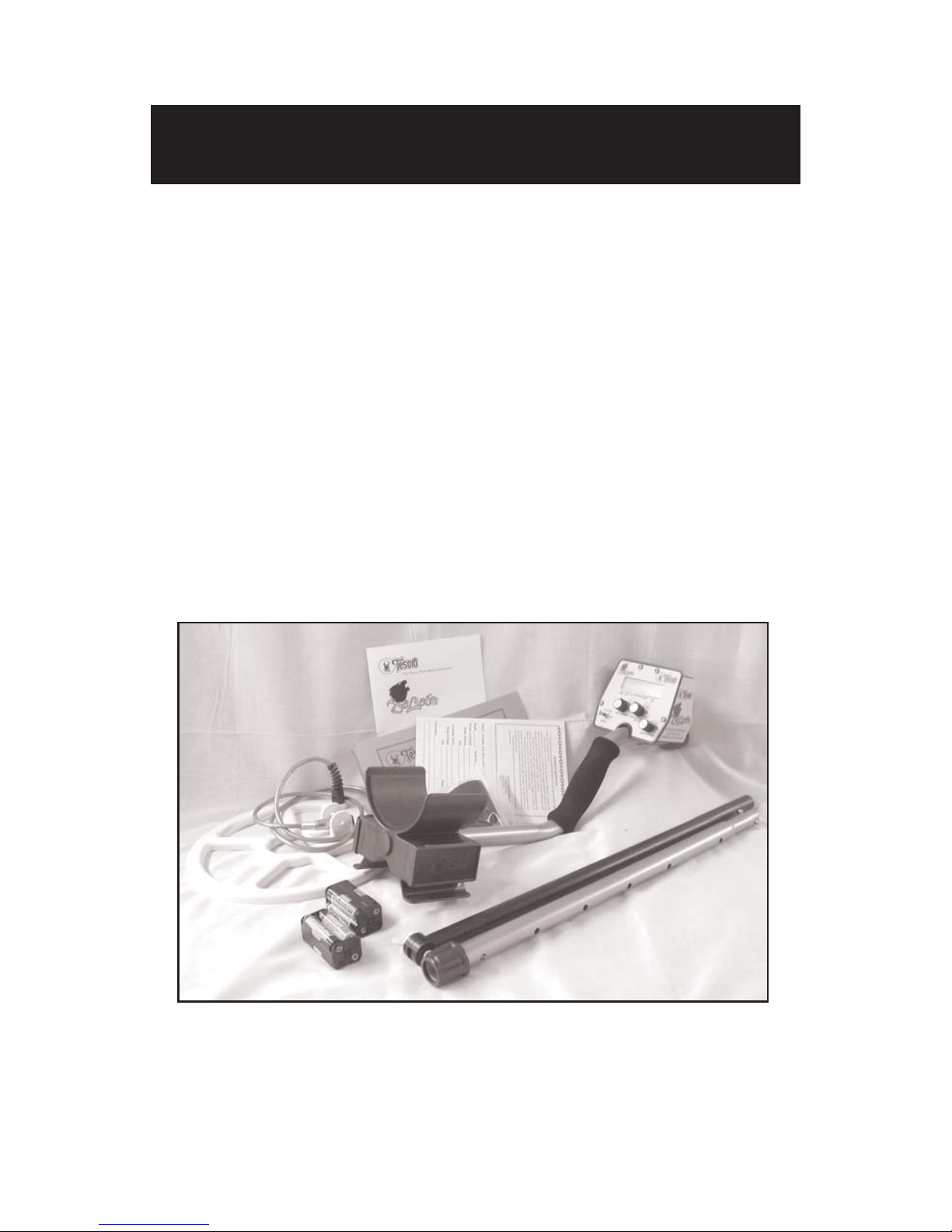

Your DeLeón was shipped with these parts:

1 Upper Pole Assembly

Fully assembled, including upper pole stem with handle grip,

padded arm bracket and control housing.

1 Middle Pole Assembly With Pole Lock

1 ABS Lower Pole Assembly

Fully assembled, complete with two friction washers, mounting

screw, lock washer and thumb nut.

1 9 x 8 Concentric Searchcoil With 3’ Cable

2 Battery Packs, Each With 4 AA Batteries

1 Velcro Arm Strap Set

1 Warranty Card

1 Operator Instruction Manual

If any of these items are missing, immediately contact the Tesoro

Authorized Dealer where you purchased your detector.

Assembling the DeLeón is simple and requires no special tools. Just

install the battery packs, mount the searchcoil on the lower pole assem-

bly, connect the pole assemblies together, wrap the excess cable around

the pole and plug the cable into the control housing. Finally, adjust the

pole length and searchcoil angle and you're ready!

GGEETTTTIINNGGSSTTAARRTTEEDD

UUNNPPAACCKKIINNGGTTHHEEBBOOXX

3 DELEÓN OPERATOR INSTRUCTION MANUAL

INSTALLING THE BATTERY

The DeLeón is powered by 8 AA batteries divided into 2 compart-

ments, which are located in the armrest housing.

Open the battery compartment under the armrest by gently grasping

the bottom edge of the door and pulling outward and upward. (The door

is hinged at the top.)

Remove the batteries by pressing down on the right side of the 4-pack

battery holder so that the left side of the holder will pop up. Pull out the

holder and replace the batteries as needed.

When returning the holder, note the position of the spring clips inside

the armrest housing and make sure that the battery pack contacts fit snug-

ly against the springs. Insert the side with the contacts first and then press

down on the left edge of the battery holder to reseat the holder.

Snap compartment cover to close.

GETTING STARTED 4

1) On the lower pole assembly, remove the mounting screw and thumb

nut from the pole tip.

2) Insert the pole tip between the mounting ears of the searchcoil and

align the holes of the pole tip and washers with those of the mounting ears.

Note: The pole tip should fit very snugly into the mounting ears.

3) Insert the mounting screw through the holes in the mounting ears and

pole tip—entering from the side opposite the cable connection.

4) Install the thumb nut on the mounting screw and tighten by hand.

Note: Do not overtighten the thumb nut. It should be snug but not too dif-

ficult to loosen.

5) On the middle pole assembly, depress the two spring buttons and slide

the middle pole assembly into the upper pole assembly until the spring but-

tons click into the holes, thus locking the two assemblies into place.

Tighten the pole lock to secure the two assemblies together.

AASSSSEEMMBBLLIINNGGYYOOUURRDDEETTEECCTTOORR

5 DELEÓN OPERATOR INSTRUCTION MANUAL

6) Slide lower pole into middle pole until the spring buttons click into

the first set of adjustment holes. Turn pole lock to tighten the assembly

into place.

7) Wrap the cable around the pole leaving enough slack near the search-

coil to permit searchcoil adjustment.

Note: Do not allow the cable to flop loosely over the searchcoil. Since

the detector is sensitive enough to "see"the tiny wires in the cable, a

floppy cable can cause false signals as the searchcoil senses the moving

wires.

8) Plug the male cable end into the female connector on the control

housing and tighten the cable thumb nut. You are finished!

Note: You will want to adjust the pole length and the searchcoil angle to

your preference.

Note: We have included an optional Velcro arm strap with your DeLeón

detector. To install, remove the backing on the two smaller hook patch-

es and press firmly to sides of arm cup. Adjust strap to provide snug

comfortable fit.

GETTING STARTED 6

The pole length should be adjusted so that the detector does not

become uncomfortable or tiring after long periods of use. The detector

grip should rest in your hand with your arm relaxed, your elbow straight

but not locked, with the pole extending out in front of you at the approx-

imate angle shown in the

photo.

You should be able to

swing the detector back and

forth in front of you—using

relaxed shoulder movement—

while keeping the searchcoil as

close to the ground as possible.

This swinging movement is

often called a "sweep."

The searchcoil should not

touch the ground during your

sweep. The pole length should

be adjusted to allow this with-

out having to lift the detector

with your elbow or shoulder.

The searchcoil should rest

about one inch above the

ground while you are standing

erect. The angle of the search-

coil should allow the bottom to

be parallel to the ground.

The pole length is adjusted

by loosening the pole lock,

then depressing the spring but-

tons and extending or shortening the pole until the spring buttons click

into the set of holes that give you the most comfortable pole length.

To adjust the searchcoil angle, simply loosen the searchcoil thumb nut

slightly and move the searchcoil into the desired position. Tighten the

searchcoil thumb nut by hand so that the searchcoil will hold in place.

AADDJJUUSSTTIINNGGTTHHEEPPOOLLEE&&SSEEAARRCCHHCCOOIILL

7 DELEÓN OPERATOR INSTRUCTION MANUAL

QQUUIICCKKSSTTAARRTT

SSEELLFF-GGUUIIDDEEDDTTUUTTOORRIIAALL

GETTING STARTED 8

The Quickstart is designed to teach you how to use your new

DeLeón. It provides a quick and easy means of learning your detector and

the concepts behind all the functions.

You will need the following items:

1) Your fully assembled DeLeón.

2) An Iron target (a small nail or screw will do), an iron wash-

er, a nickel, a zinc penny (1982 or later), a quarter and a cou-

ple of different pull tabs.

3) A nonmetal table top or counter.

Here's what you will do:

1) Check Display Readings in DISC Mode

2) Adjust SENSITIVITY

3) Perform Air Test in DISC Mode

4) Adjust THRESHOLD

5) Perform Air Test in ALL METAL Mode

6) Perform BATT TEST

Prepare for the Quickstart

Place your assembled DeLeón on the nonmetal surface. Make sure

that there are no metal objects near the coil and remove any jewelry from

your hands and wrists.

9 DELEÓN OPERATOR INSTRUCTION MANUAL

Start with the controls as shown in the photo below:

1) THRESHOLD, SENSITIVITY and DISCRIMINATE LEV-

EL knobs turned completely counterclockwise.

2) MODE switch in the DISC setting.

Check Display Readings in DISC Mode

Turn the SENSITIVITY knob from OFF to about 2-3. In the first

couple of seconds, you may or may not hear a slight hum that will fade

away and the display will read TESORO, DELEON and DISC. As long

as these three screens show up, you can be assured that your DeLeón has

started up properly.

Tabla de contenidos

Otros manuales de Detector de metales de Tesoro

Tesoro

Tesoro TEJON Instrucciones de montaje

Tesoro

Tesoro Bandido II Instrucciones de montaje

Tesoro

Tesoro mMAX BANDIDO Instrucciones de montaje

Tesoro

Tesoro LOBO SUPER TRAQ Instrucciones de montaje

Tesoro

Tesoro Mojave Instrucciones de montaje

Tesoro

Tesoro Inca Instrucciones de montaje

Tesoro

Tesoro Deep Search VI Instrucciones de montaje

Tesoro

Tesoro Deep Search VII Instrucciones de montaje

Tesoro

Tesoro VAQUERO Instrucciones de montaje

Tesoro

Tesoro Stingray II Instrucciones de montaje

Tesoro

Tesoro Mayan Manual de usuario

Tesoro

Tesoro Euro Sabre Manual de usuario

Tesoro

Tesoro Compadre Instrucciones de montaje

Tesoro

Tesoro Sand Shark Instrucciones de montaje

Tesoro

Tesoro SILVER uMax Instrucciones de montaje

Tesoro

Tesoro Silver Sabre UMAX Instrucciones de montaje

Tesoro

Tesoro COMPADRE Instrucciones de montaje

Tesoro

Tesoro LOBO Instrucciones de montaje

Tesoro

Tesoro Golden Sabre II Instrucciones de montaje

Tesoro

Tesoro Outlaw Instrucciones de montaje

Tesoro

Tesoro Toltec 100 Instrucciones de montaje

Tesoro

Tesoro TIGER SHARK Instrucciones de montaje

Tesoro

Tesoro Outlaw Instrucciones de montaje

Tesoro

Tesoro Bandido Instrucciones de montaje

Manuales populares de Detector de metales de otras marcas

Garrett

Garrett MAGNASCANNER CS 5000 Manual de usuario

Valex

Valex 1800200 Manual de usuario

Gauss

Gauss MIL MD Manual de usuario

Velleman

Velleman CS130 Manual de usuario

Sears

Sears 321.596370 Manual de usuario

Eriez

Eriez X8 Manual de usuario

Steinberg Systems

Steinberg Systems SBS-MD-22 Manual de usuario

Zircon

Zircon MetalliScanner m60c Manual de usuario

nalanda

nalanda MD027 Manual de usuario

REV Ritter

REV Ritter CB-7005 Manual de usuario

Minelab

Minelab F1A4 Manual de usuario

Fisher Research Labs

Fisher Research Labs F70 Manual de usuario

Steinberg Systems

Steinberg Systems SBS-MD-12 Manual de usuario

GOLDEN MASK

GOLDEN MASK 5 Manual de usuario

Grizzly

Grizzly YM 203 Manual de usuario

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Manual de usuario

Treasure Cove

Treasure Cove Vibra-Probe 560 Manual de usuario

Accurate Locators

Accurate Locators XL16 IMAGER Manual de usuario
