Tescom TEOS 200E PRO 10-20kVA Manual de usuario

USER MANUAL

TEOS 200E PRO 10-20kVA

Βόλου 7, 183 46 Μοσχάτο

Volou 7, 18 346, Moschato, Greece

+30 210 9590080

info@tescom-ups.gr www.tescom-ups.gr

USER MANUAL TEOS 200E PRO 10-20kVA

Βόλου 7, 183 46 Μοσχ

άτο

Volou 7, 18 346, Moschato, Greece

+30 210 9590080

info@tescom-ups.gr www.tescom-ups.gr

USER MANUAL TEOS 200E PRO 10-20kVA

1 Product Description

Congratulations on your choice of the UPS uninterruptible power system (UPS), the UPS

comes in nominal power ratings of 6-20kVA. It is designed to provide conditioned power to

computers and other sensitive electronic equipment.

This chapter gives a brief description of the UPS, including the UPS features, models,

appearance, operating principle and specification.

1.1 Electromagnetic Compatibility

*Safety

IEC/EN 62040-1-1

*EMI

Conducted Emission ......... lEC/EN 62040-2 Category C3

Radiated Emission ............ lEC/EN 62040-2 Category C3

*EMS

ESD .................................. IEC/EN 61000-4-2 Level4

RS .................................... IEC/EN 61000-4-3 Level3

EFT .................................. IEC/EN 61000-4-4 Level4

SURGE ............................ IEC/EN 61000-4-5 Level4

Low Frequency Signals

.............. :IEC/EN 61000-2-2

Warning: This is a product for commercial and industrial application in the second

environment-installation restrictions or additional measures may be needed to prevent

disturbances.

NOTICE:

This is a product for restricted sales distribution to informed partners. Installation restrictions

or additional measures may be needed to prevent radio interference.

Operated the UPS in an indoor enviroment only in an ambient temperature range of

0-40°C(32-104°F). Install it in a clean environment, free from moisture, flammable liquids,

gases and corrosive substance.

This UPS contains no user-serviceable parts except the internal battery pack. The UPS

" �" push buttons do not electrically isolate internal parts. Under no circumstance attempt

to gain access internally, due to the risk of electric shock or burn.

Do not continue to use the UPS if the panel indications are not in accordance with these

operating instructions or the UPS performance alters in use. Refer all faults to your dealer.

Servicing of batteries should be performed or supervised by personnel knowledgeable of

batteries and the precautions. Keep unauthorized personnel away from the batteries. Proper

disposal of batteries is required. Refer to your local laws and regulations for disposal

requirement.

DO NOT CONNECT equipment that could overload the UPS or demand surge current from

the UPS, for example: electric drills, vacuum cleaners, hair dryer, motors and so on.

DO NOT CONNECT equipment that is life related, for example: medical equipment, elevator

USER MANUAL TEOS 200E PRO 10-20kVA

and so on.

Storing magnetic media on top of the UPS may result in data loss or corruption.

Turn off and isolate the UPS before cleaning it. Use only a soft cloth, never liquid or aerosol

cleaners.

1.2 Features

The UPS features include:

--} Providing more high efficient AC power, compared with the previous generation

--} Full digital control technology based on DSP to achieve high reliability and power

function

--} Operation and display with LCD and LED indicators, which can indicate all system

information

--} Fan speed can be auto conditioned according to the loads, input voltage or working

mode

--} Digitally controlled charger current and voltage, compared with the previous generation

which is fixed in hardware

--} Super high power density

1.3 Models

Available models are shown as Table1-1:

Table 1- 1 : Models

Model Nominal Power Model

6KH 6kVA/6kW

10KH 10kVA/10kW Long backup time

15KH 15kVA/15kW mode

20KH 20kVA/20kW

6KS 6kVA/6kW Standard time mode

10KS 10kVA/10kW

USER MANUAL TEOS 200E PRO 10-20kVA

1.4 Appearance

□

l1=dJ

I I

6/10KH

□

l1=dJ

eJCIJCE

I I I I

15/20KH 6/10KS

Fig 1- 1: Front View

.. · .· ..

0 0 0

l..J

6/10KH

USER MANUAL TEOS 200E PRO 10-20kVA

This results in cleaner power being available to other devices in the building not being

protected by the UPS.

1.5.3 Inverter

In normal operation, the inverter utilizes the DC output of the power factor correction circuit

and inverters it into precise, regulated sinewave AC power. Upon a utility power failure, the

inverter receives its required energy from the battery through the DC-to-DC converter. In

both modes of operation, the UPS inverter is on-line and continuously generating clean,

precise, regulated AC output power.

1.5.4 Battery Charger

The battery charger utilizes energy from the DC bus and precisely regulates it to

continuously charge the batteries. The batteries are being charged whenever the UPS is

connected to utility power.

1.5.5 DC to DC Converter

The DC to DC converter utilizes energy from the battery system and raises the DC voltage

to the optimum operating voltage for the inverter. The converter includes boost circuit which

is also used as PFC.

1.5.6 Battery

The 6KS/10KS Standard includes value regulated, sealed lead acid, maintenance free

batteries inside. To maintain battery design life, operate the UPS in an ambient temperature

of 15-25 °C.

1.5. 7 Static Bypass

The UPS provides an alternate path for utility power to the connected load in the unlikely

event of a UPS malfunction. Should the UPS have an overload, over temperature or any

other failure condition, the UPS automatically transfers the connected load to bypass.

Bypass operation is indicated by an audible alarm and illuminated amber Bypass LED. To

manually transfer the connected load from the inverter to bypass, press the " + "

button once.

NOTICE: The bypass power path does NOT protect the connected equipment from

disturbances in the utility supply.

1.6 UPS Working Mode

Normally UPS working mode include normal mode, bypass mode, battery mode, ECO mode,

frequency converter mode, self aging mode.

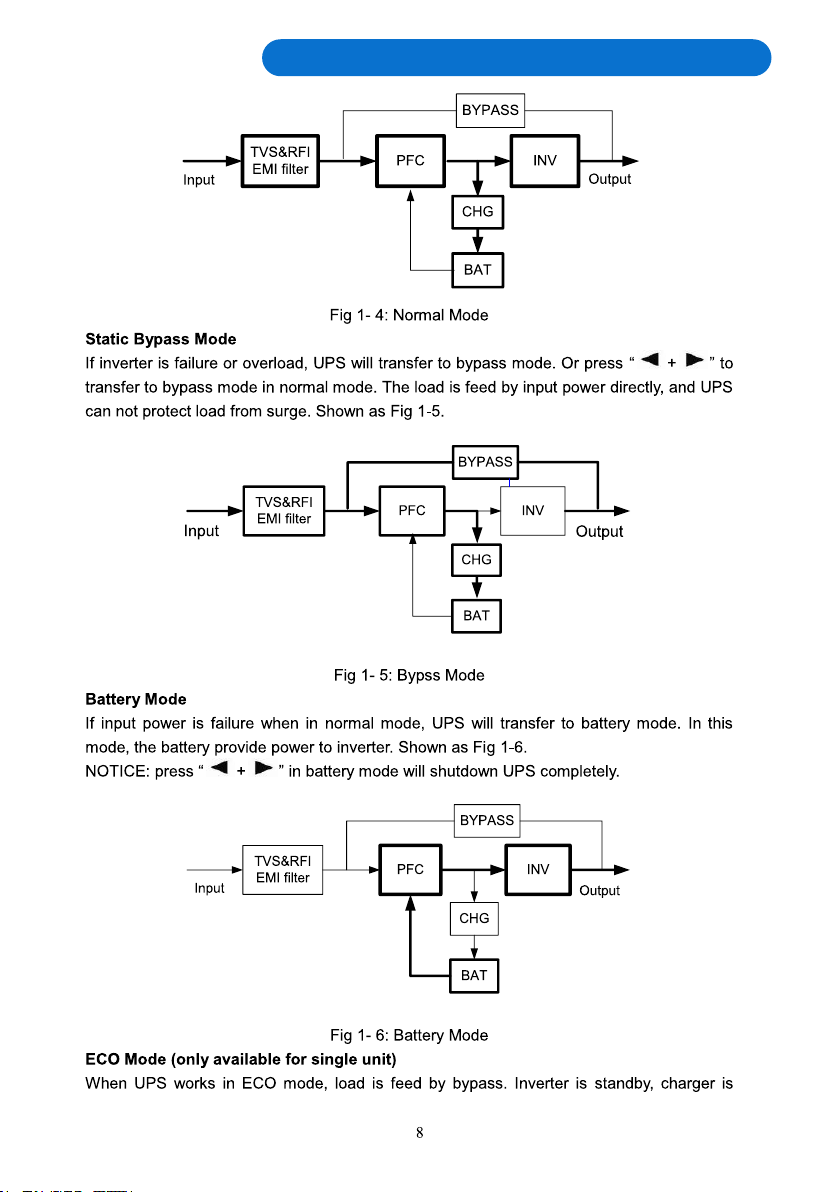

Normal mode:

Shown as Fig 1-4, rectifier supply DC supply to inverter, the load is feed by inverter. Charger

is charging the battery.

USER MANUAL TEOS 200E PRO 10-20kVA
