TERK Technologies TV3 Manual de usuario

TERK TECHNOLOGIES CORPORATION 63 MALL DRIVE, COMMACK, NY 11725 TEL: 800.942.8375 FAX: 516.543.8088 www.terk.com

TV3

MODEL: TV-3

Technical Information:

VHF & UHF

DSS Satellite TV Compatible

Amplifier Gain:

VHF: 15dB adjustable

UHF: 15dB adjustable

Power Supply: AC to DC adapter 110V

Output Impedance:

75 Ohms (75-300 Ohm

matching transformer included)

Operating Bandwidth:

VHF: 54 MHz-216 MHz (Channels 2-13)

UHF: 470 MHz-806 MHz (Channels 14-69)

AUX: 54 MHz-1000 MHz

Features & Benefits:

• Adjustable, ultra low noise amplifier helps to boost

distant signals, or turn down the boost to prevent

stronger signals from overpowering the desired channel.

• Patented TERK Bypass system allows the signal to

bypass the amplifier when it is turned off to help prevent

signal loss for optimum results.

• Built-in Video Selector switch allows you to switch

between broadcast TV and a video source, such as DVD,

VCR or a video game.

• Includes both VHF and UHF capability for reception

of channels 2 through 69

• 6 ft. long 75 Ohm coaxial cable allows the antenna to be

installed on even the largest rear projection televisions

• Includes VHF/UHF band separator and 75-300 Ohm

matching transformer for easy hook-up to any

television set

• Non-skid silicon base ensures maximum stability on

any set-top

Dimensions:

Base: 8"L x 4-1/4"D

Height of base: 2"

Height of base (including UHF loop): 9"

Length of dipoles: Closed 7-1/2", Open 44"

At TERK Technologies we strive to offer the highest quality products to

our consumers. The specifications are subject to change without notice.

TV3

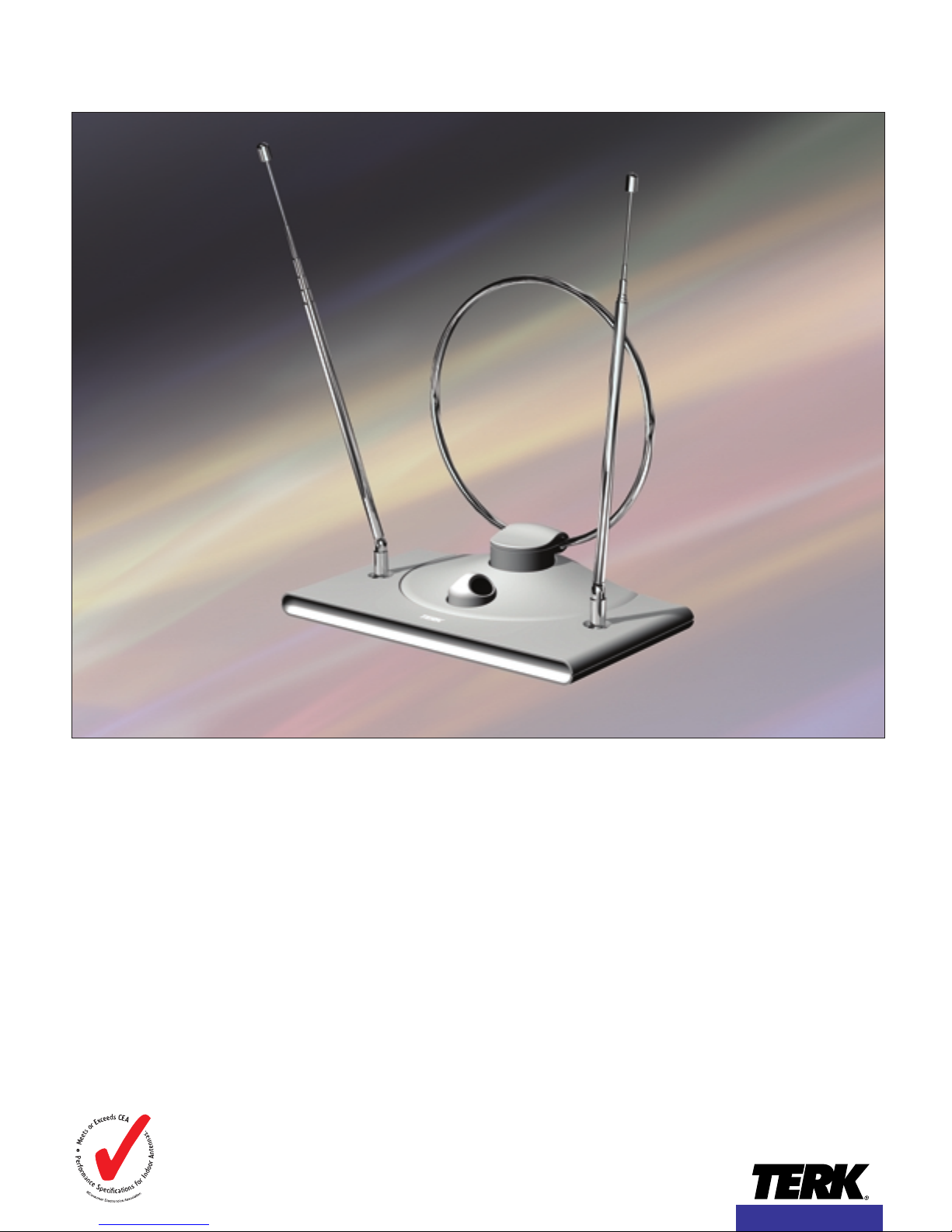

TV3 – Amplified Indoor

TV Antenna with Built-

in Video Selector

Switch

The TV3 antenna is a per-

fect primary or secondary

set-top antenna in suburban

or outlying areas. TV3 offers

the performance of a high-

quality amplified rabbit ear

antenna with the conven-

ience of an integrated video

switch, creating a one-cable

solution for a video game,

DVD player, VCR or other

video component. A 75

ohm coaxial cable and 75-

300 ohm matching trans-

former are included to

ensure compatibility with

any television set, and a

non-skid silicon base adds

maximum stability.

Low-noise Amplifier

with Selectable Bypass

The TV3’s low-noise broad-

band amplifier boosts

weaker signals for maxi-

mum reception range and

clarity. The amplifier features

one-touch adjustment for all

stations, and TERK’s

patented selectable amplifi-

er bypass prevents over-

modulation of stronger

incoming signals. TERK’s

indoor television antennas

are engineered with premi-

um materials resulting in a

durable, high-performance

antenna that will look great

on any TV for years to

come.
