TEREN THD Manual de usuario

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

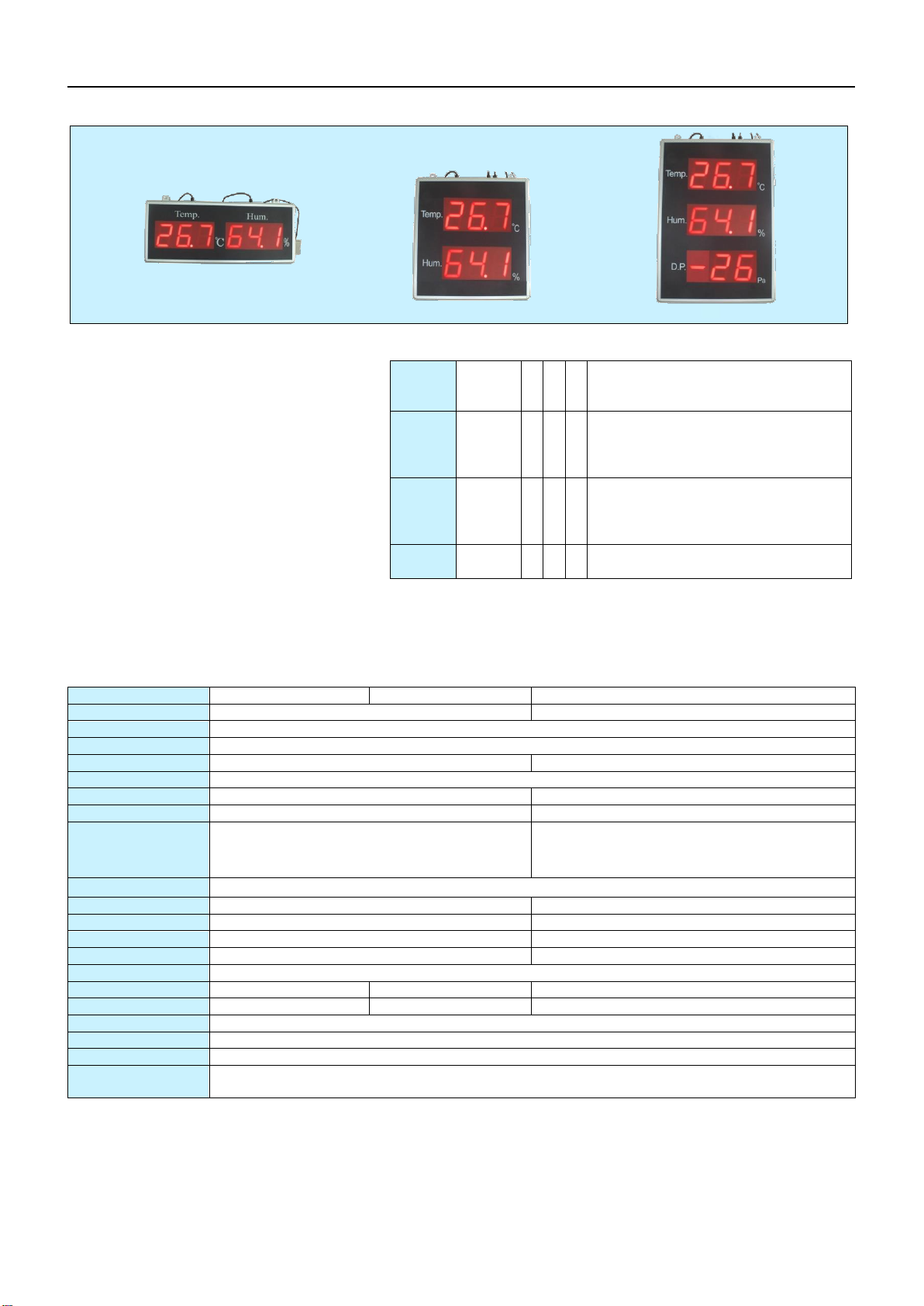

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure

Applications & Features

High accuracy digital sensor, field changeable

without any re-calibration

Large, high light LED display

Multiple inputs and outputs selection

Light and up-to-date enclosure

Single point temperature, humidity or DP

measurement and display

Multiple points temperature, humidity and DP

measurement, display and network data

collection

Compatible to DDC and PLC systems

Models

Model

THD

Temp/Hum Display Screen(Horizontal)

THDV

Temp/Hum Display Screen(Vertical)

THPD

Temp/Hum /DP Display Screen

Input

Remote sensor, 1.5m cable

0-10V/4-20mA input, without sensor

RS485/Modbus RTU input, without

sensor

Output

without any output

0-10V/4-20mA

RS485,Modbus RTU

0-10V/4-20mA, RS485/Modbus RTU

Relay

N/A

1×SPDT+ inside buzzer

All products are factory set to 4-20mAas output default, and can be set to 0-10V by jumper

on the PCB

Specifications

THD

THDV

THPD

Application

Clean room, library, museum, lab, etc.

Clean room, lab, etc.

Founction

Single point or multiple points network data measurement and display

Power

85~265VAC

Consumption

<15W

Display

3 Bit 4 inch red LED

Display Resolution

0.1°C,0.1%RH

0.1°C,0.1%RH,0.1Pa

Display Range

0~50.0°C,0~99.9%RH

0~50.0°C,0~99.9%RH,0~99.9Pa

Display Accuracy

<±0.5°C @5-50°C

<±3%RH@20-80%RH, 25°C

<±0.5°C @5~50°C

<±3%RH@20~80%RH, 25°C

<±1Pa @0~99.9Pa, 25°C

1%FS

Response Time

Temp. 30s, Hum.10s

Temp. 30s, Hum. 10s, DP 5s

Sensor

THD-S T/RH sensor

THD-S T/RH sensor, DPT DP transmitter

Standard Input

2×0-10V/4-20mA(2-10V)

3×0-10V/4-20mA(2-10V)

Standard Output

2×0-10V/4-20mA

3×0-10V/4-20mA

Communication

RS485/Modbus RTU, 9600-n-8-1, support read/output and write/input parameters

Dimension

W715*H285*D50mm

W470*H520*D50mm

W470*H650*D50mm

Weight

3.8kg

4.2kg

5.2kg

Material

Dull silver color aluminum alloy frame, PC panel with PVC film

Protection

IP30

Installation

Wall mount or suspend from ceiling

Buttons &

Functions

Three buttons with parameters calibration, buzzer/relay parameters set, RS485 address set,

input signals/ranges set, output ranges set, LED inspection, restore default set, etc

THD

THDV

THPD

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

Connection

Different models have different electrical terminals. Please wire specific model according to the wiring diagram inside the front

cover.

1. Internal terminal

2. External cable

The internal terminals of the product are connected to the outside facilities through a multi-core external cable.

Different models should have different external cables with different core numbers. Please wire specific model according to

the wiring diagram inside the front cover.

Power cable：Input voltage 110V/220VAC

3. THD/THDV/THPD matched sensors

THD0xx/THDV0xx/THPD0xx has a matched T/RH sensor. The sensor has the same terminals as the THD0xx/ THDV0xx/

THPD0xx. So user can connect the two easily.

THPD0xx also has a matched differential pressure sensor, 4-20ma (2 wires)/0-125Pa (accuracy, ±1Pa). It should connect to

the inside terminal AIN3 with power supply connected to EXC+ (+24V) and the jumper of J13setted to mA position.

4. External universal input signal (default 4~20mA)

External universal input signals use AIN1/2 for THD/THDV and AIN1/2/3 for THPD respectively, J11/12/13 should be at the

Power 24V

Power Common Terminal

Nomal Close Terminal

Common Terminal

Nomal Open Terminal

24V

Input3

J8 RS485 terminal resistor 120Ω

GND

Power(Connect to inside power)

Universal Input Temperature/Humidity Sensor Input

Relay output

RS485

ESDA

ESCL

VDD

SDATA

SCLK

GND

SDQ

Connect

Sensor

Terminal

Short to mA,

Select 4-20mA

signal input.

Short to V,

Select 0-10V

signal input

Output3

Universal Output

Input3 Signal

Jumper

Output3 Signal

Jumper

Short to mA,

Select 4-20mA

signal output.

Short to Vo,

Select 0-10V

signal output

GND

Input2

Input1

GND

Output2

OUT1

Input2 Signal

Jumper

Input1 Signal

Jumper

Output2 Signal

Jumper

Output1 Signal

Jumper

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

mA position for 4-20mA signals and at the V position for 0-10V signals.

If the factory default value is changed, the corresponding parameters such as the parameters in P111, P112, and P113, need

to be modified. See the user instruction for details.

5. MODBUS/RS485 communication

RS485 communication inputs/outputs use terminals A/B/GND and the 120Ω terminal resistance jumper J8.

RS485 interface can be networked with other devices, and can also be used to modify the product parameters. See the

Modbus RTU/RS485 communication register address and instructions for details.

THD/THDV/THPD Modbus Register Address

R/W

Define

Remark

40001, 00000

Product code

40002, 00001

Chanel 1 value

Chanel 1 value, temperature for matched sensor

40003, 00002

Chanel 2 value

Chanel 2 value, humidity for matched sensor

40004, 00003

Chanel 3 value

Chanel 3 value, pressure for matched sensor

Remarks: 40001…PLC ADDRESS (BASE 1) 00000…PROTOCOL ADDRESS (BASE 0). Both address types are

applicable for our products

6. External universal output signal (default 4~20mA)

External universal output signals use OUT1/2 for THD/THDV and OUT1/2/3 for THPD respectively, J1/2/3 should be at the

mA position for 4-20mA signals and at the Vo position for 0-10V signals.

If the factory default value is changed, the corresponding parameters such as the parameters in P091, P092, and P093, need

to be modified. See the user instruction for details.

Installation

●The product is limited to install in indoor environment for wall mount or from the ceiling.

●It has been calibrated in factory. Install the T/RH and pressure sensor away from the screen with the cable downward.

Sensors must be far away from frequent human activity area and source of cold, heat, humidity and air-condition outlet. And

make sure the ventilation of the sensor is good. Please note that the displays are temperature, humidity or pressure at the

location of sensors, not the location of screen. Therefore suitable location of the sensor box is important for using the product

correctly.

●Temperature and humidity sensor cable or pressure sensor cable is 1.5m long preinstalled in factory. It’s not recommended to

extend the cables. But if necessary, user can extend the cables no more than 10m long following connection guideline while

power off the product.

●The product will work normally and steadily after power on about 30s.

●At the side frame of the screen, there are 3 buttons used for parameters setting and calibration. Although the product has

been calibrated in factory, if necessary, the calibration can be operated by experience customer following operating guideline.

●After long period of working, the sensor perhaps will have little drift. User should re-calibrate the sensor in every one or two

years.

●Standard manometer is needed to calibrate the sensor. The manometers must be within warranty period and have high

accuracy (better than 1.0%RH, 0.15℃and 0.25Pa). Otherwise calibration should be invalid. If standard manometers are not

available, we recommend user to replace new sensors. User doesn’t need to re-calibrate these new sensors after replacing old

ones in field. This feature is one of the advantages of the product that other traditional products cannot offer.

Warranty

Device has limited warranty for 18 months

User operation instructions

Buttons and define:●set/confirm ▲(Bit) select ▼adjust

Operation process:

Push ●to enter process and display “P000”,

Push ▲and ▼to enter corresponding code,

Push ●to confirm and then display corresponding parameter,

Push ▲and▼to adjust parameter,

Push ●to confirm and exit process.

Quit process if idle exceed about 10s.

(1)．"P999": Restore default factory settings.

●→▲/▼→999→●

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

(2)．"P485": RS485 address set (default 1, range 1~255, suggested range1~32)

●→▲/▼→485→●→▲/▼→XXX→●“XXX” means setting parameter.

(3)．"P111": Chanel 1 input set

●→▲/▼→111→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●→▲/▼→XXX*4→●→▲/▼→XXX*5→●

“XXX” means:

*1: Input mode( 0=matched sensor, 1=universal analog input 0-10V, 2= Modbus input, 3=universal analog input 4-20mA,);

*2: Input low voltage(0 for 0-10V input, 4 for 4-20mA input)

*3: Input high voltage(10 for 0-10V input, 20 for 4-20mA input);

*4: Input low range;

*5: Input high range (greater than the low range).

J11/12/13 should be at the mAposition for 4-20mAsignals and at the V position for 0-10V signals.

(4)．"P112": Chanel 2 input set

●→▲/▼→112→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●→▲/▼→XXX*4→●→▲/▼→XXX*5→●

Refer P111.

(5)．"P113": Chanel 3 input set

●→▲/▼→113→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●→▲/▼→XXX*4→●→▲/▼→XXX*5→●

Refer P111.

(6)．"P161": Chanel 1 calibrate (default 0.0, range-99.9~+99.9)

●→▲/▼→161→●→▲/▼→XXX→●“XXX” means setting parameter.

(7)．"P162": Chanel 2 calibrate (default 0.0, range-99.9~+99.9)

●→▲/▼→162→●→▲/▼→XXX→●“XXX” means setting parameter.

(8)．"P163": Chanel 3 calibrate (default 0.0, range-99.9~+99.9)

●→▲/▼→163→●→▲/▼→XXX→●“XXX” means setting parameter.

(9)．"P091": Chanel 1 Output set(default 4-20mA, 0-50℃)

●→▲/▼→091→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●

“XXX” means:

*1: Output mode(0: 0-10V; 1: 4-20mA);

*2: Output low range;

*3: Output high range

J1/2/3 should be at the mA position for 4-20mA signals and at the Vo position for 0-10V signals

(10)．"P092": Chanel 2 Output set(default 4-20mA, 0-100%RH)

●→▲/▼→092→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●. Refer P091

(11)．"P093": Chanel 3 Output set(default 4-20mA, 0-125Pa)

●→▲/▼→093→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●. Refer P091

(12)．"P301": Chanel 1 alarm buzzer set(default 0, 10 , 40)

●→▲/▼→301→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●

“XXX” means:

*1: Alarm mode(0: disable; 1: enable);

*2: Alarm low limit;

*3: Alarm high limit;

The alarm mode: out-of-range, < low limit or > high limit. Keep pushing ▼2s to mute buzzer.

(13)．"P302": Chanel 2 alarm buzzer set(default 0, 20 , 80)

●→▲/▼→302→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●. Refer P301

(14)．"P303": Chanel 3 alarm buzzer set(default 0, 20 , 80)

●→▲/▼→303→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●. Refer P301

(15)．"P401": Chanel 1 alarm relay set(default 0, 10 , 40)

●→▲/▼→401→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●

“XXX” means:

*1: Alarm mode(0: disable; 1: enable);

*2: Alarm low limit;

*3: Alarm high limit;

The alarm mode: out-of-range, < low limit or > high limit. Keep pushing ▲ 2s to reset relay.

(16)．"P402": Chanel 2 alarm relay set(default 0, 20 , 80)

●→▲/▼→402→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●. Refer P401

(17)．"P403": Chanel 3 alarm relay set(default 0, 20 , 80)

●→▲/▼→403→●→▲/▼→XXX*1→●→▲/▼→XXX*2→●→▲/▼→XXX*3→●. Refer P401

(18)．"P097": Relay reset delay time (default 3.0 min, range0.0~99.9 min)

●→▲/▼→097→●→▲/▼→XXX→●“XXX” means setting parameter.

(19)．"P801": Chanel 1 display decimal set(default 1, range 0-3)

●→▲/▼→801→●→▲/▼→XXX→●“XXX” means setting parameter.

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal.

(20)．"P802": Chanel 2 display decimal set(default 1, range 0-3)

●→▲/▼→801→●→▲/▼→XXX→●Refer P801

(21)．"P803": Chanel 3 display decimal set(default 1, range 0-3)

●→▲/▼→801→●→▲/▼→XXX→●Refer P801

(22)．"P811": Chanel 1 response time set(default 0, range 0-9)

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

●→▲/▼→811→●→▲/▼→XXX→●“XXX” means setting parameter.

0：500mS，1：1S，2：1.5S，3：2S，4：2.5S，5：3S，6：3.5S，7：4S，8：4.5S，9：5S.

(23)．"P811": Chanel 2 response time set(default 0, range 0-9)

●→▲/▼→811→●→▲/▼→XXX→●Refer P811

(24)．"P811": Chanel 3 response time set(default 0, range 0-9)

●→▲/▼→811→●→▲/▼→XXX→●Refer P811

THD/THDV/THPD Modbus Register Address

R/W

Define

Remark

40001

Product code

40002

Chanel 1 value

Temp. = 40002 data / 10x,x= decimal point

40003

Chanel 2 value

Hum.= 40003 data / 10x,x= decimal point

40004

Chanel 3 value

Press = 40004data / 10x,x= decimal point

40005

Chanel 1 display decimal

set

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal

40006

Chanel 2 display decimal

set

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal

40007

Chanel 3 display decimal

set

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal

...

40016

R/W

Restore default

Write 21845 to restore default

40017

R/W

Chanel 1 output type

0: 0-10Vdc; 1: 4-20mA

40018

R/W

Chanel 1 output low range

40018 data/ 10

40019

R/W

Chanel 1 output high range

40019 data/ 10

40020

R/W

Chanel 1 calibration

40020 data/ 10

40021

R/W

Chanel 1 relay action

0: disable; 1: enable

40022

R/W

Chanel 1 relay low limit

40022 data/ 10

40023

R/W

Chanel 1 relay high limit

40023 data/ 10

40024

R/W

Chanel 1 buzzer alarm

0: disable; 1: enable

40025

R/W

Chanel 1 buzzer low limit

40025 data/ 10

40026

R/W

Chanel 1 buzzer high limit

40026 data/ 10

40027

R/W

Chanel 1 input type

0: matched sensor; 1: external universal analog input

40028

R/W

Chanel 1 input low voltage

40028 data/ 10

40029

R/W

Chanel 1 input high voltage

40029 data/ 10

40030

R/W

Chanel 1 input low range

40030 data/ 10（external universal analog input）

40031

R/W

Chanel 1 input high range

40031 data/ 10（external universal analog input）

40032

R/W

RS485 address

Modbus slave address

40033

R/W

Chanel 2 output type

Refer channel 1

40034

R/W

Chanel 2 output low range

Refer channel 1

40035

R/W

Chanel 2 output high range

Refer channel 1

40036

R/W

Chanel 2 calibration

Refer channel 1

40037

R/W

Chanel 2 relay action

Refer channel 1

40038

R/W

Chanel 2 relay low limit

Refer channel 1

40039

R/W

Chanel 2 relay high limit

Refer channel 1

40040

R/W

Chanel 2 buzzer alarm

Refer channel 1

40041

R/W

Chanel 2 buzzer low limit

Refer channel 1

40042

R/W

Chanel 2 buzzer high limit

Refer channel 1

40043

R/W

Chanel 2 input type

Refer channel 1

40044

R/W

Chanel 2 input low voltage

Refer channel 1

40045

R/W

Chanel 2 input high voltage

Refer channel 1

40046

R/W

Chanel 2 input low range

Refer channel 1

40047

R/W

Chanel 2 input high range

Refer channel 1

40048

R/W

Relay reset delay time

40049

R/W

Chanel 3 output type

Refer channel 1

40050

R/W

Chanel 3 output low range

Refer channel 1

40051

R/W

Chanel 3 output high range

Refer channel 1

40052

R/W

Chanel 3 calibration

Refer channel 1

40053

R/W

Chanel 3 relay action

Refer channel 1

40054

R/W

Chanel 3 relay low limit

Refer channel 1

40055

R/W

Chanel 3 relay high limit

Refer channel 1

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

40056

R/W

Chanel 3 buzzer alarm

Refer channel 1

40057

R/W

Chanel 3 buzzer low limit

Refer channel 1

40058

R/W

Chanel 3 buzzer high limit

Refer channel 1

40059

R/W

Chanel 3 input type

Refer channel 1

40060

R/W

Chanel 3 input low voltage

Refer channel 1

40061

R/W

Chanel 3 input high voltage

Refer channel 1

40062

R/W

Chanel 3 input low range

Refer channel 1

40063

R/W

Chanel 3 input high range

Refer channel 1

...

40084

R/W

Channel1 Modbus input value

06 function，data = value *10

40085

R/W

Channel1 Modbus input value

06 function，data = value *10

40086

R/W

Channel1 Modbus input value

06 function，data = value *10

40087

R/W

Chanel 1 display decimal

set

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal

40088

R/W

Chanel 2 display decimal

set

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal

40089

R/W

Chanel 3 display decimal

set

0: no decimal, 1: one decimal, 2: two decimal, 3: three decimal

40090

R/W

Channel1 response time

0：500mS，1：1S，2：1.5S，3：2S，

40091

R/W

Channel2 response time

0：500mS，1：1S，2：1.5S，3：2S，

40092

R/W

Channel3 response time

0：500mS，1：1S，2：1.5S，3：2S，

Remarks：40001…PLC ADDRESS (BASE 1) or 00000…PROTOCOL ADDRESS (BASE 0)

Both address types are applicable for our products.

RS485- Modbus RTU

Communication setting

1.1 Band rata：9600

1.2 Data：8Bit

1.3 Stop：1

1.4 Parity：None

1.5 Protocol: Modbus RTU

RTU message frame

Address

Function

Code

Data1

…

Data N

CEC high post

CRC low post

Address

Domain

Function

Domain

Information

Data

Wrong Inspection Domain

In the mode of Modbus RTU, message starting with a silent interval of at least 3.5 character times implemented as a multiple of

character times at the baud rate being used on the network (indicated as above).The first field transmitted is the device

address. The allowable characters transmitted for all fields are hexadecimal values 0-9, A-F. Following the last character

transmitted, a similar silent interval of 3.5 character times marks the end of the message and a new message can begin after

this interval.

Modbus Address

The Modbus RTU message frame first field is the device address. Valid addresses are from 0-255. A networked device

continuously monitors the network, including the silent intervals, and when the first field is received (the address) after a silent

interval of at least 3.5 character times, the device decodes it to determine if it is the addressed device.

Slave address can be setting with compatible Modbus RTU software. Default address = 1, suggested 1-32.

Modbus Function

The function code field of the message frame contains 8 binary bits (in RTU Mode) which tells the slave what kind of action to

take. Valid function codes are from 0-127 ( 01H~7FH ). See the relevant Modbus standard.

products support 03H/06H function codes. Appendix is the register address table. Or refer specific product instructions.

THD/THDV/THPD Display Screen For Temp./ Humidity / Diff. Pressure Edition:B/3

03H Read Holding Registers

Sample: Read device（ID=5）registers 00000-00001

Set as shown right.

Slave address：5

Function: 03

Scan rate:1000 ms

Communication codes：

Master / PC to SLAVE：05 03 00 00 00 02 C5 8F

SLAVE to Master / PC：05 03 04 02 B5 00 05 6F AE

06H Preset Single Register

Sample: Set device（ID=5）registers 000001

Set as shown right.

Slave address：5

Function: 06

Set value：0006

Communication codes：

Master / PC to SLAVE：05 06 00 01 00 06 59 8C

SLAVE to Master / PC：05 06 00 01 00 06 59 8C

Shenzhen TEREN Control Technology Co. Ltd.

Add: 3F, 2nd Industrial Zone, Nankeng, Longgang

District, Shenzhen,Guangdong,P.R.CHINA

Tel: 0755-23935155 Fax: 0755-23935156

web: www.teren.com.cn

TEREN website Alibaba shop

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Pantalla de proyección de otras marcas

FART PRODUKT

FART PRODUKT Standard SCREEN Manual de usuario

Draper

Draper E Series Manual

Elite Screens

Elite Screens Elite Tripod Series Manual de usuario

Laarhoven

Laarhoven Companion II Manual de usuario

Renogy

Renogy RMS-LFPS-US Manual de usuario

Da-Lite

Da-Lite ExecutiveElectrol Manual de usuario

Samsung

Samsung S*H65* Manual de usuario

FONESTAR

FONESTAR PPTR-43100-FA Manual de usuario

Slide Clear

Slide Clear Varro XL Manual de usuario

Elite Screens

Elite Screens M85XWS1-SRM Manual de usuario

OS РХ-090Н Manual de usuario

Niko

Niko 10-845 Manual de usuario

Speaka Professional

Speaka Professional 2357532 Manual de funcionamiento

Sima

Sima XL-72 Manual de usuario

Jasic

Jasic EVO 2.0 ET-200P Manual de usuario

Elite Screens

Elite Screens Starling 2 Series Manual de usuario

InFocus

InFocus SC-WALL GRY-92H Manual

Barco

Barco OverView MVL-615 Manual de usuario
