Tennant Speed Scrub ES KIT 2701 Manual de usuario

KIT NO. 605555

2701/3301 Speed Scrub EStKIT

Page 1 of 4

Speed Scrub

605556 Rev. 00 (08–98) Tennant Company Printed in U.S.A

630136 Pump, 24V 1

630385 Fitting, Nipple 3/4” 1

630145 Timer, 24V 1

210044 Valve, Check 1

630419 Switch, Rocker 1

578720 Splashguard, Switch 1

130738 Light, Indicator 1

578008000 Screw, M5X.8x30 1

601490 Fitting, Bulkhead 1

140283 Nut, 10–24 Nylock 1

150415 Fitting, Elbow 1/4mX3/8H 1

25160 Tubing 5/8ODx3/8ID .5 ft

25160 Tubing 5/8ODx3/8ID 1.25 ft

140310 Clamp, Hose 4

630138 Filter, Screen 1

603166 Switch, Float 1

605551 Harness, ES Wire 1

604858 Asm., Wire #90 Red 1

604859 Asm., Wire #84, #86 PInk 1

605552 Asm., Wire #51, #53, #55 Black 1

130041 Wire Tie 4

630440 Decal, Filter Remove 1

INSTALLATION INSTRUCTIONS:

(Installation Time: 1 hour)

TOOLS REQUIRED: Standard & Philips Screwdriver,

Electric Drill w/ 1/8”, 1/4”, 7/16”, 1/2”, 11/16” & 1-3/8” Drill Bits

& 1/4” NPT Tap.

FOR SAFETY: Before installing kit, dis-

connect positive (+) battery cable from

batteries.

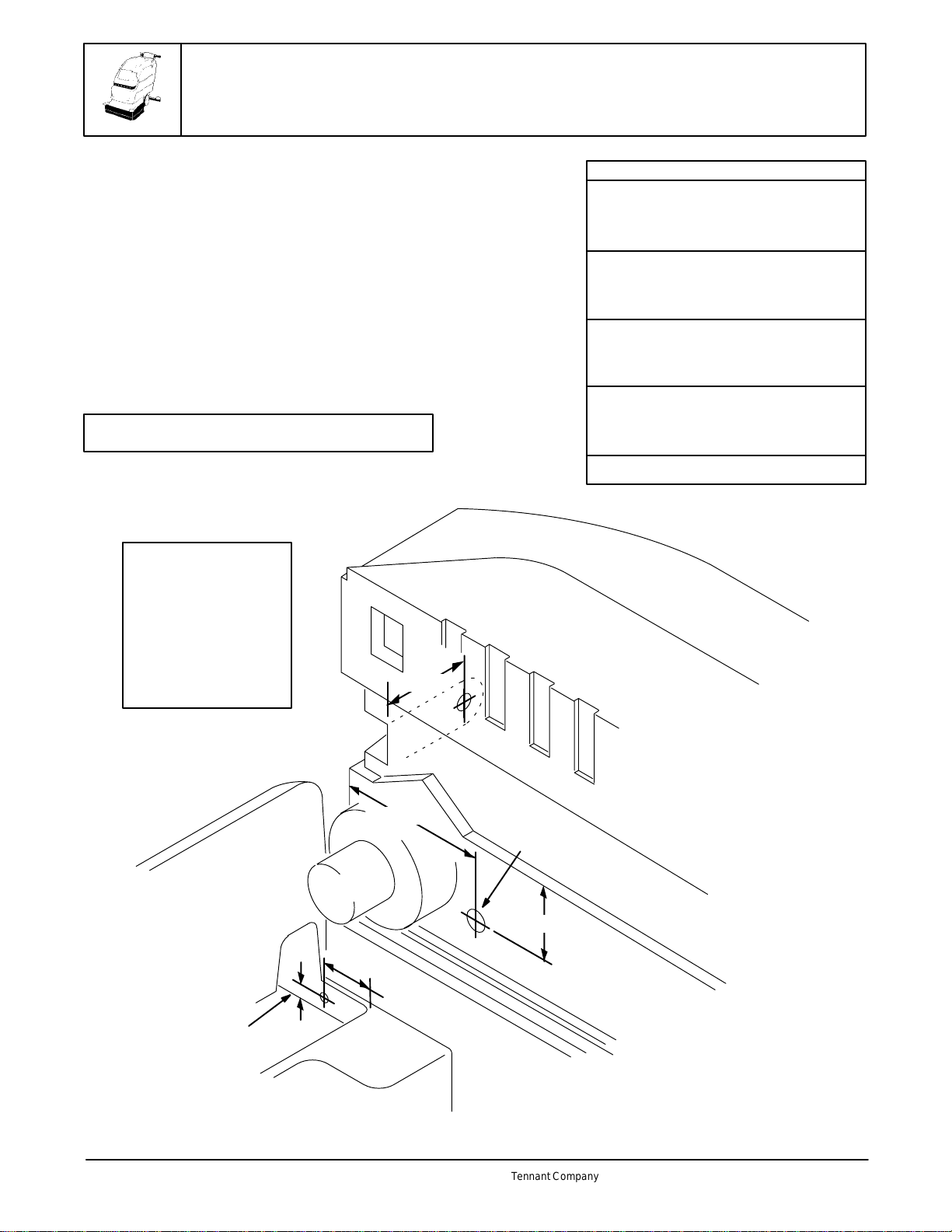

STEP 1: Drill holes as indicated.

KITS CONTENTS

Hole Sizes:

A= 1-3/8” hole

B= 11/16” hole

C= 7/16” hole

NOTE: After drilling

hole (C), thread hole

with a 1/4” NPT tap.

4.0”

Tank Lip

VACUUM

MOTOR

1.25”

4.75”

4.25”

9.25”

Drill Pilot Hole

Home

Page 2 of 4

KIT NO. 605555

ES KIT

605556 Rev. 00 (08–98) Tennant Company Printed in U.S.A

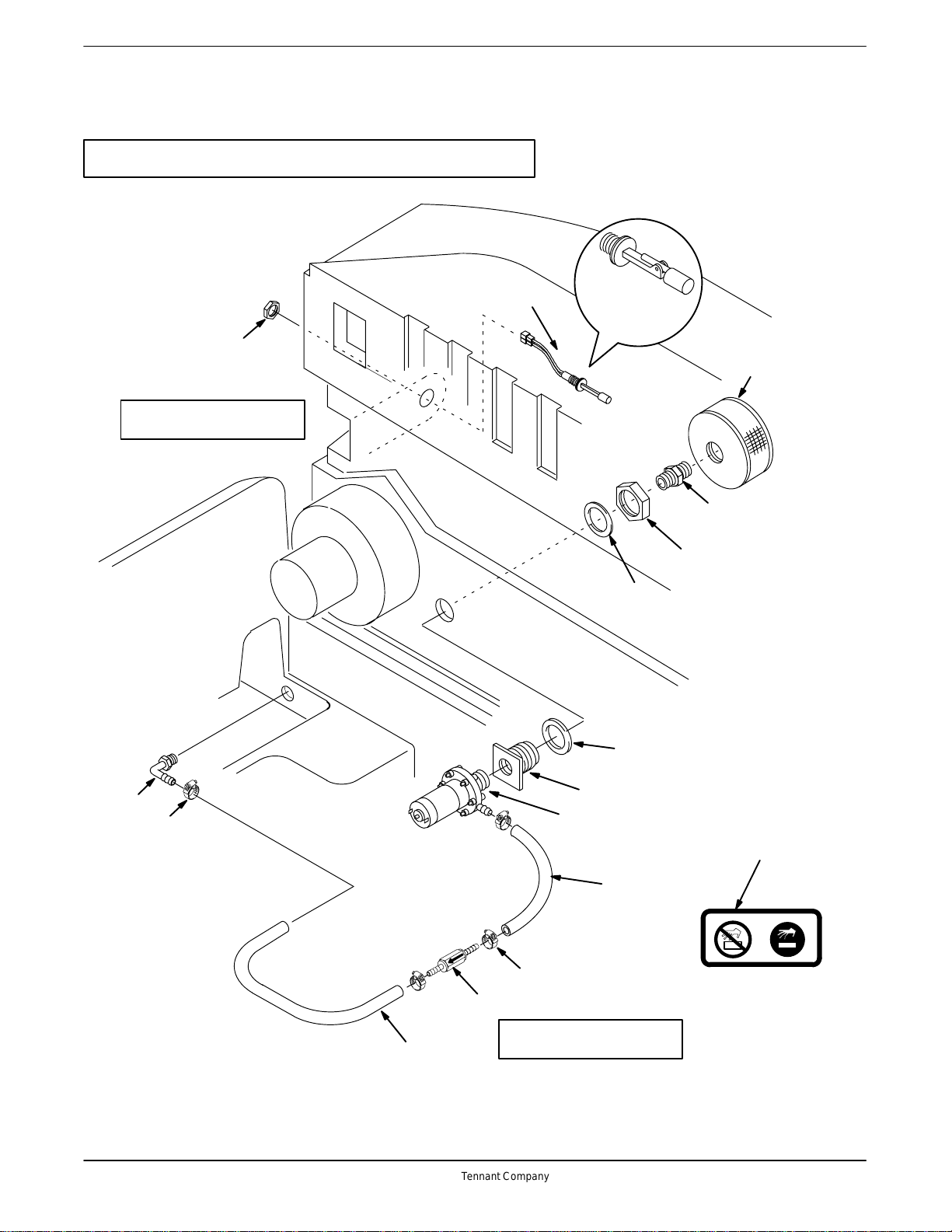

STEP 2: Install ES Components as Shown.

IMPORTANT:

Float switch must

be positioned as

shown when tank

is closed.

Float

Switch

Bulkhead

Clear

Washer

Bulkhead

Rubber

Seal

Bulkhead

Nut

Hex Nipple

Screen

Filter

Float

Switch

Nut

ES Pump

Tubing .5 ft

Check Valve

Hose Clamp

Tubing 1.25 ft

Elbow

Fitting Hose

Clamp

NOTE: Point arrow on check

valve in the direction as shown.

NOTE: Use pipe sealing tape

for all threaded connections.

Place decal on clear

Recovery Tank Lid.

Home

Page 3 of 4

KIT NO. 605555

ES KIT

605556 Rev. 00 (08–98) Tennant Company Printed in U.S.A

STEP 3: Drill holes as indicated.

A= .125”hole

B= .5”hole

STEP 4: Install ES components as shown.

NOTE: If your rear cover

panel does not have

knock outs for the ES

components, you must

order ES rear panel cover

#606276.

ES Switch ES Switch

Splashguard

ES Light

Timer

Screw

Nut

NOTE: Posi-

tion ES Switch

with the brass

terminal up.

2.5”

7.0”

Existing Main

Wire Harness

Hole

5.0”

Rear Cover

Panel

Home

Page 4 of 4

KIT NO. 605555

ES KIT

605556 Rev. 00 (08–98) Tennant Company Printed in U.S.A

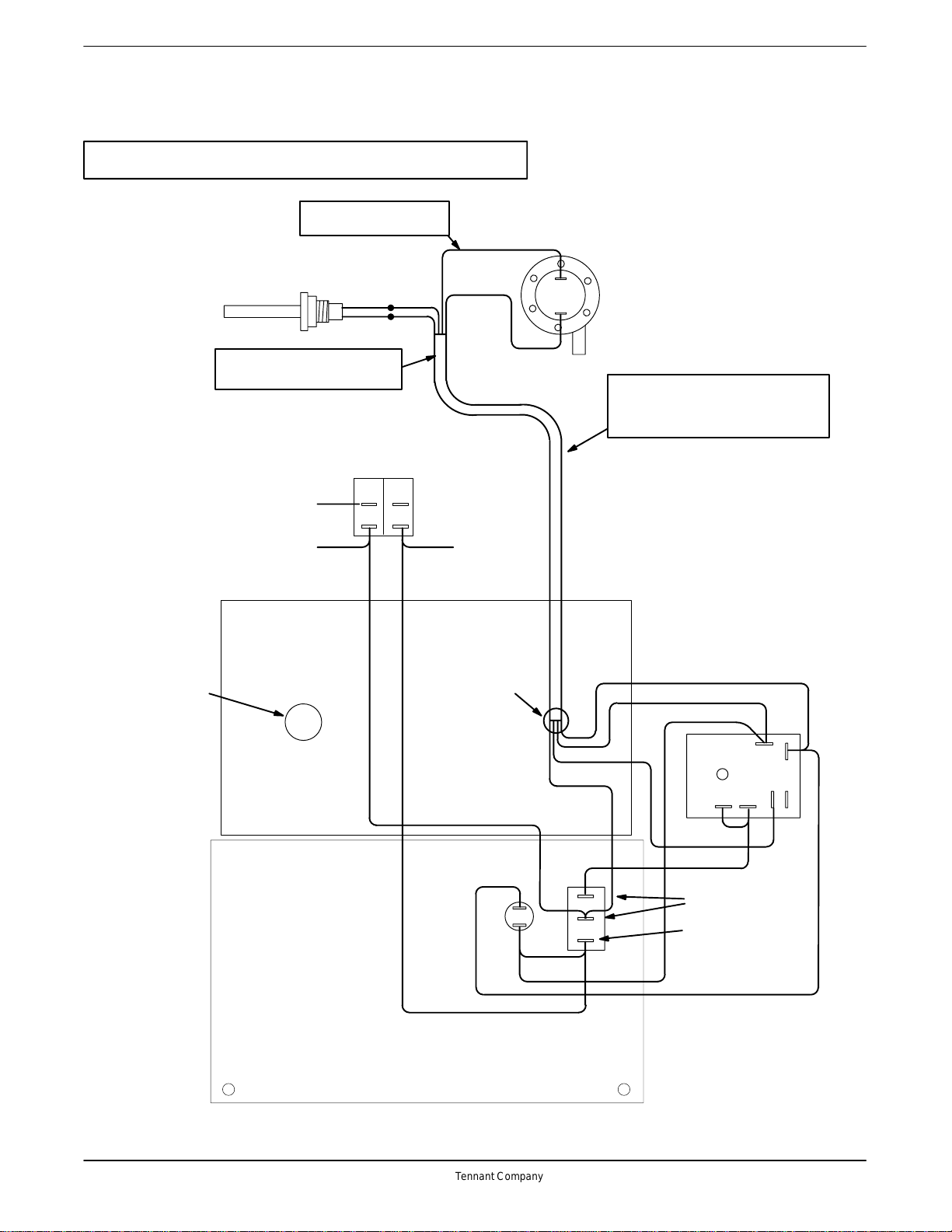

STEP 5: Connect ES Wiring as Shown.

BACKSIDE VIEW OF

REAR PANEL COVER

ES PUMP

FLOAT SWITCH

TIMER

ES SWITCH

ES LIGHT

ES WIRE HARNESS NOTE: Route ES wire harness up to

control console. Follow along ma-

chine’s main wire harness. Secure ES

wire harness with wire ties provided.

NOTE: Route

ES wire harness

up through

drilled hole in

control console.

RED

GREEN

BLK

WHITE

BLACK

NOTE: Secure ES wire harness

to ES pump with wire tie.

CONTROL CONSOLE

GRN

51 BLK

90 RED

GRN

Brass Terminal

Copper Terminals

NOTE: Secure white wire

to ES pump with wire tie.

MAIN POWER SWITCH

53 BLK

55 BLK 90 RED

RED

BLACK

55 BLK

86 PINK

84 PINK

GREEN

WHITE

BLKRED

RED

Main Wire

Harness hole

in control

housing

WHITE

Home
