Tennant S30 Manual de capacitación

IB 9013363 (03- 2015) 1

INSTRUCTION BULLETIN

No. 9013363

Machine: S30/S30 X4/

S30 XP

Published: 03- 2015

Rev. 00

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9013364

SYNOPSIS:

This kit contains the parts needed to install a filter box strap kit on S30/S30 XP/S30 X4 sweepers

(serial numbers 006501 or higher).

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 10 minutes)

PREPARATION:

1. Park the machine on a clean level surface,

turn off the machine, remove the key, and set

the parking brake.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

2. Unlatch and open the hopper cover. Support

the hopper cover open with the hopper cover

prop rod.

3. Remove the existing star knobs, straps, M8

hex screws, and flat washers from the filter

cover. Discard the star knobs, straps, M8 hex

screws, and flat washers. (Fig. 1)

NOTE:Do not remove / replace either M8 stud

(5) on the upper pre- filter box unless the existing

M8 stud(s) is / are damaged.

INSTALLATION:

1. Install a rubber strap (2) onto each star knob

(1). (Fig. 1)

2. Use an M8 hex screw (3) and flat washer (4)

to each both rubber strap (2) / star knob (1)

assembly from the previous step onto the filter

cover. (Fig. 1)

3. Place the filter cover onto the upper pre- filter

box and use the star knobs (1) to secure the

filter cover to the upper pre- filter box.(Fig. 1)

IB 9013363 (03- 2015)2

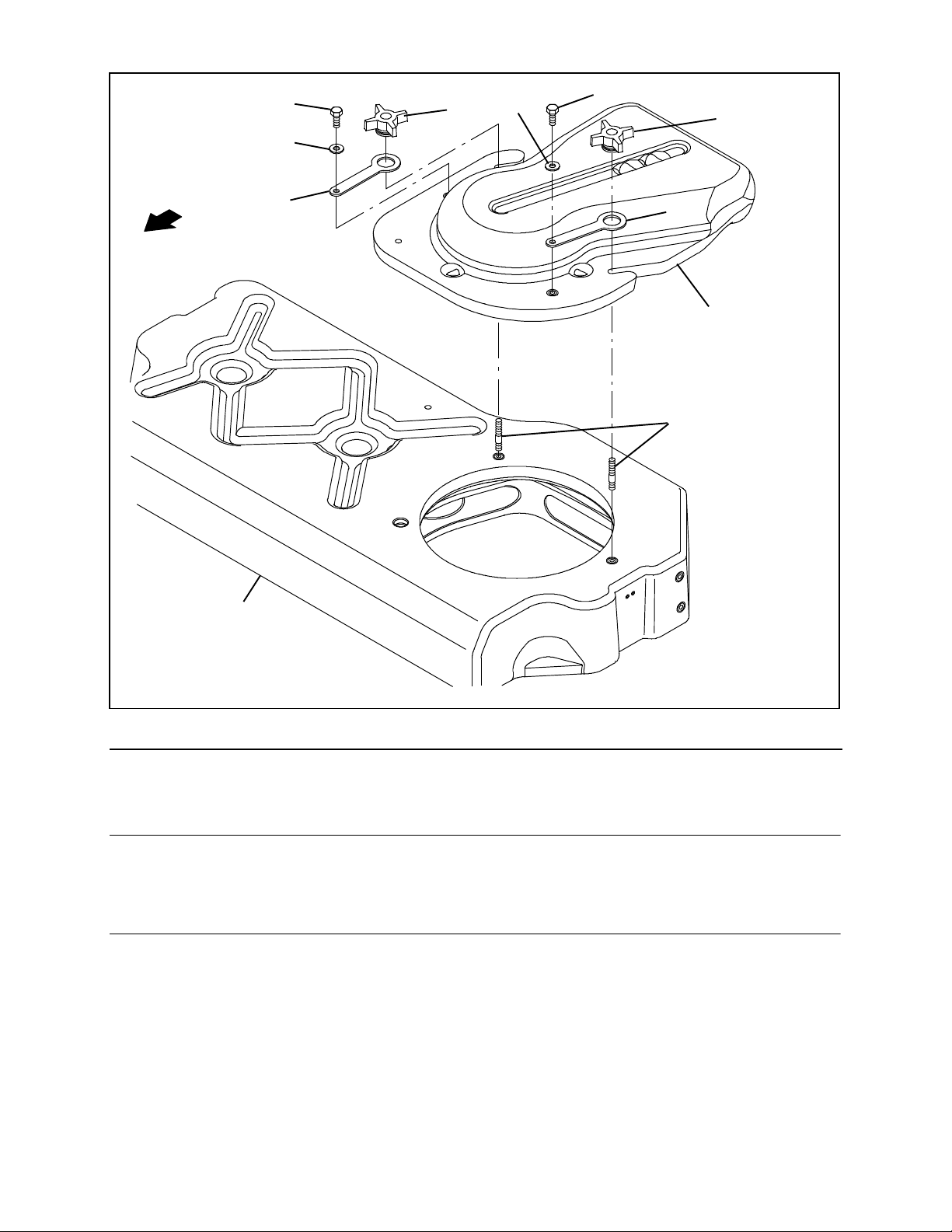

FRONT

5 (Replace only

if damaged)

Filtercover

Upper

pre- filter box

FIG. 1

Bill of Materials for Strap Kit, Knob, Fltr Box [S30] - 9013364

Ref.

Tennant

Part No. Description Qty.

11048335 Knob, Star, 2.75d 4ear 1.1l M8x1.25 2

2 1048353 Strap, Rbr 2

3 15675 Screw, Hex, M8 X 1.25 X 16, SS 2

4 01685 Washer, Flat, 0.38b 0.88d .08, SS 2

51049860 Stud, M8 X 1.25 [55.0] 2

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
