Tennant 9045218 Manual de capacitación

IB 9045218 (12- 2021) 1

INSTRUCTION BULLETIN

No. 9045218

Machine: S16

Published: 12- 2021

Rev. 00

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9045202

Kit installation must be performed by TennantTrue



service or an authorized service provider.

SYNOPSIS:

This kit contains the parts needed to install a deluxe seat on S16 sweepers.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1 hour)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components

such as batteries and fluids in an environmentally safe way according

to local waste disposal regulations.

Always remember to recycle.

PREPARATION:

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

1. Lift the operator seat open and secure the

seat into the fully open position.

2. Disconnect the battery cable from the

machine.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

3. Disconnect the wire harness from the seat

switch. (Fig. 1)

FIG. 1

IB 9045218 (12- 2021)2

4. Remove the hardware securing the upper

operator platform to the seat channel and

carefully lift the upper operator platform/

operator seat from the seat channel. Set all

mounting hardware aside. (Fig. 2)

FIG. 2

5. Remove the operator seat from the upper

operator platform. Set the upper operator

platform aside. Discard the operator seat and

all mounting hardware.

INSTALLATION:

1. Install the seat switch (24) into the operator

seat (22). (Fig. 3)

2. Use two pan screws (26) and two spacers

(25) to install the adjustable slide track (30)

onto the operator seat (22). (Fig. 3)

3. Use two pan screws (26) and two spacers

(25) to install the slide track (29) onto the

operator seat (22). (Fig. 3)

FRONT

FIG. 3

IB 9045218 (12- 2021) 3

FRONT

Seat

channel Seat spring

mounting

bracket

Mounting

plate

FIG. 4

4. Use one ball stud (2) to install the gas spring

(3) onto the seat channel. (Fig. 4)

5. Use another ball stud (2) and hex nut (27) to

install the gas spring (3) onto the seat spring

mounting bracket. (Fig. 4)

IB 9045218 (12- 2021)4

FRONT

11*

17 18

Seat

channel

Mounting

plate

*NOTE: Use jam nuts (11) to adjust latch angle

(9) and loosen M5 hex screws (6)/M5 hex nuts

(8) to adjust position of latch (5) in slotted holes

in seat channel. Tighten M5 hex screws/M5 hex

nuts when finished adjusting latch.

FIG. 5

6. Use two M5 hex screws (6), two flat washers

(7), and two M5 hex nuts (8) to install the

latch (5) onto the seat channel. (Fig. 5)

7. Install the yellow handle grip (1) onto the seat

latch handle (15). (Fig. 5)

8. Press both nylon snap in bushings (14) into

the latch bracket (12). (Fig. 5)

9. Insert the latch handle (10) through the nylon

snap in bushings (14) pressed into the latch

bracket (12) in the previous step. (Fig. 5)

10.Thread one hex jam nut (11) onto the latch

handle (10). (Fig. 5)

11. Insert the latch angle (9) onto the latch handle

(10) and thread the remaining hex jam nut

(11) onto the latch handle to secure the latch

angle. (Fig. 5)

12.Orient the notch in the seat latch handle (15)

onto the latch handle (10) and use one

SEMS M6 hex screw (1), one sleeve (20), one

flat washer (21), and one M6 hex nut to install

the seat latch handle (15) onto the latch

bracket (12). (Fig. 5)

13.Use one cotter pin (17) and one flat washer

(16) to secure the latch handle (10) inside the

seat latch handle (15). (Fig. 5)

14.Install the latch angle (9) onto the latch (5)

and use two SEMS M8 hex screws (13) to

install the seat latch assembly assembled in

the previous steps onto the seat channel.

(Fig. 5)

15.Close the seat channel onto the machine and

adjust hardware so the latch (5) secures the

seat channel closed and allows the seat

channel to be opened/raised when the handle

is pulled to release the seat channel. (Fig. 5)

16.Use four hex nuts (27), four flat washers (28),

and four bolt retention nuts (4) to install the

operator seat (22) onto the upper operator

platform. (Fig. 6)

17.Use saved hardware to install the operator

platform/operator seat (22) onto the seat

channel. (Fig. 6)

18.Connect the wire harness to the seat switch

(29). (Fig. 6)

19.Reconnect the battery cable to the machine.

IB 9045218 (12- 2021) 5

FRONT 23

Upper operator

platform

Seat channel

FIG. 6

IB 9045218 (12- 2021)6

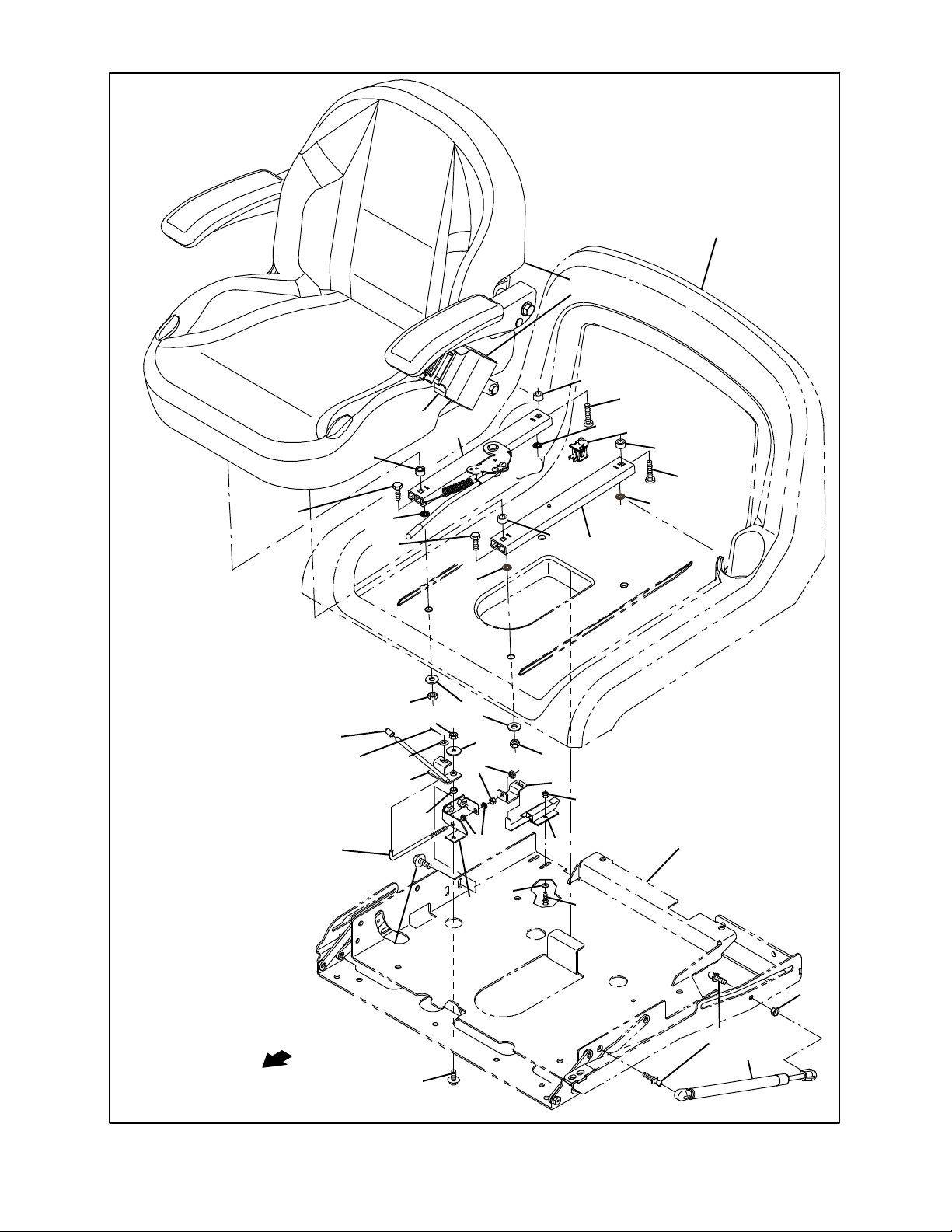

Bill Of Materials For Seat Kit, Deluxe, CI [S16] - 9045202

Ref.

Tennant

Part No. Description Qty.

11202957 Grip, Handle, .25d .60l Yel 1

2 1012878 Stud, Ball, .39d .31- 18 2

3 14464 Gas spring, 35lb, 8.0strk 1

4 1077073 Nut, Push, Bolt Retention, Stl, 5/16 Thrd 4

5 1025736 Latch 1

624199 Screw, Hex, M5 X 0.80 X 16, SS 2

7 19065 Washer, Flat, 0.19b 0.44d .05, Pl, 08 2

8 09739 Nut, Hex, Lock, M5 X 0.80, Nl, SS 2

9 1200999 Angle, Latch 1

10 1203958 Handle, Latch 1

11 32520 Nut, Hex, Jam, .25- 20 2

12 1203946 Bracket Wldt, Latch 1

13 1020341 Screw, Hex, M8 X 1.25 X 20, SS, SEMS 2

14 80921 Bushing, Snap- In, 0.25b 0.31d 0.08th Nyl 2

15 1253493 Handle Wldt, Latch, Seat 1

16 01684 Washer, Flat, 0.27b 0.69d .05, SS 2

17 08085 Pin, Cotter, Hair, 0.31d .058 Wir 1

18 08712 Nut, Hex, Lock, M6 X 1.00, Nl, SS 1

19 1034731 Screw, Hex, M6 X 1.00 X 16, SS, SEMS 1

20 1205764 Sleeve, P/M, 0.25b 0.38d 0.1l [430ss] 1

21 29570 Washer, Flat, 0.28b 1.00d .06, Stl 1

o22 1201428 Seat, Dlx, W/ Armrests & Orange Seatbelt 1

Y23 1248442 Seatbelt, Orange, Retractable, Afmkt 1

Y24 1048955 Switch, Seat, No [Delta 6440- 04] 1

25 1051052 Spacer, Rnd, .38b .88d .38l 4

26 1073048 Screw, Pan, Phl, .31- 18 X 1.50, G2 4

27 32983 Nut, Hex, Lock, .31- 18, Nl 5

28 1017218 Washer, Flat, 0.32b 1.00d .12, SS 4

29 1077067 Track, N- Lkg, Seat, 12.5l, No Stud 1

30 1077071 Track, Locking, 12.5l, No Stud w/Handle 1

31 76955 Screw, Hex, .31- 18 X 1.00, G5 4

TENNANT COMPANY

10400 Clean Street

Eden Prairie, MN 55344- 2650
