TENDZONE Clear k4 Manual de usuario

Illustration

Thank you for purchasing our product. Please read this manual to be familiar with the

product.

Note: this manual is written to provide all the relevant information for the series of

models. Due to the different signal configurations, the actual product configuration

may differ from the instructions.

V4.0

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this product near water.

6. Clean only with dry cloth.

7. Do not block ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,heat registers,stoves,or other

products(including amplifiers)that produce heat.

9. Do not defeat the safety purpose of the grounding-type plug.A grounding type plug has two

blades and a third grounding prong.The third prong is provided plug does not fit into your

outlet,consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched,particularly at plugs,convenience

receptacles and the point where they exit from the product.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with equipment rack,stand or table designed to provide adequate mechanical

strength,heat dissipation and securement to the building structure.

13. Unplug this product during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel.Servicing is required when the product has

been damaged in any way,such as power-supply cord or plug is damaged,liquid has been spilled or

objects have fallen into the product,the product has been exposed to rain or moisture,does not

operate normally,or has been dropped.

Explanation of Graphical Symbols:

Lightning Bolt:Hazardous Live voltages present when this unit is in operation.Do not touch

terminals marked with this symbol while the unit is connected to live power.

Exclamation Point: Replace components(i.e. fuses)only with the values specified by the

manufacturer. Failure to do so will compromise safe operation of this unit.

Hazardous Moving Fan Blades: Remove power before servicing and keep away from moving

fan blades.

WARNING - To reduce the risk of fire or electric shock, do not expose these products to rain or

moisture. These products must not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on these products.

WARNING - MAINS Powered Products employ Safety Grounding and must be connected to a

MAINS socket that is properly grounded to provide a protective earthing connection.

CAUTION - Unless you are a professional technician, you can not perform any service that is not

included in the operating instructions. Before opening the product, the professional must first

disconnect the mains power.

CAUTION -Any installation and removal procedures for physical equipment are only applicable

to professional technicians and must comply with all local regulations.

Table of Content

Illustration............................................................................................................................................1

Important Safety Instructions.............................................................................................................. 2

I.Device Architecture...........................................................................................................................5

II. Software Instructons....................................................................................................................... 6

2.1 Menu Bar and Toolbar...........................................................................................................8

2.1.1 File..............................................................................................................................8

2.1.2 Local Settings.............................................................................................................8

1) RC panel configuration...........................................................................................8

2) Dante control...........................................................................................................8

3) Version selection................................................................................................... 10

4) Channel setting......................................................................................................10

5) Device List............................................................................................................ 11

6) Connect................................................................................................................. 11

7) Disconnect.............................................................................................................11

8) Center Control Command Generator Operation...................................................11

2.1.3 Device Settings.........................................................................................................14

1) User Manager........................................................................................................14

2) Scene Manager......................................................................................................15

3) Network Settings...................................................................................................16

4) Serial Settings....................................................................................................... 16

5) Set Voice tracking................................................................................................. 17

6) GPIO..................................................................................................................... 20

7) Device Update.......................................................................................................26

2.1.4 Help.......................................................................................................................... 26

1) Help document......................................................................................................26

2) About.....................................................................................................................26

2.2 Audio input module.............................................................................................................27

2.2.1 Input source.............................................................................................................. 28

2.2.2 Exp/Gate...................................................................................................................29

2.2.3 EQ.............................................................................................................................30

2.2.4 Compress..................................................................................................................31

2.2.5 AGC..........................................................................................................................32

2.3 Auto Mixer.......................................................................................................................... 33

2.3.1 Gain-Sharing Automixer.......................................................................................... 33

2.3.2 Gating Automixer.....................................................................................................34

2.4 Feedback Canceller............................................................................................................. 37

2.5 AEC..................................................................................................................................... 38

2.6 Audio output module...........................................................................................................39

2.6.1 From......................................................................................................................... 40

2.6.2 Speaker Manager......................................................................................................40

2.6.3 Limiter...................................................................................................................... 42

2.7 USB Play&Rec....................................................................................................................43

2.8 Mixer Matrix....................................................................................................................... 44

2.8.1 Dante send setting.................................................................................................... 45

(1) Remote input channel sending Settings.............................................................. 45

(2) Local input channel sending Settings..................................................................45

Ⅲ.FAQ...............................................................................................................................................47

I.Device Architecture

This series includes two major products products: one is those without Network audio

transmission function, namely Clear k4(4-In,4-Out), Cleark8(8-In,8-Out), Clear k12(12-In,8-Out)

and Clear k16(16-In,12-Out) which have different number of input and out interface ;another one

is those with Network audio transmission function, namely Clear D8(8-In,8-Out), Clear

D12(12-In,8-Out) , Clear D16(16-In,12-Out) and Clear D16A(16-In,16-Out)--（No USB function）.

This series could be applied in conference room multimedia classroom,concert hall and command

center etc..

Note: take Clear D16(16-In,12-Out) as example

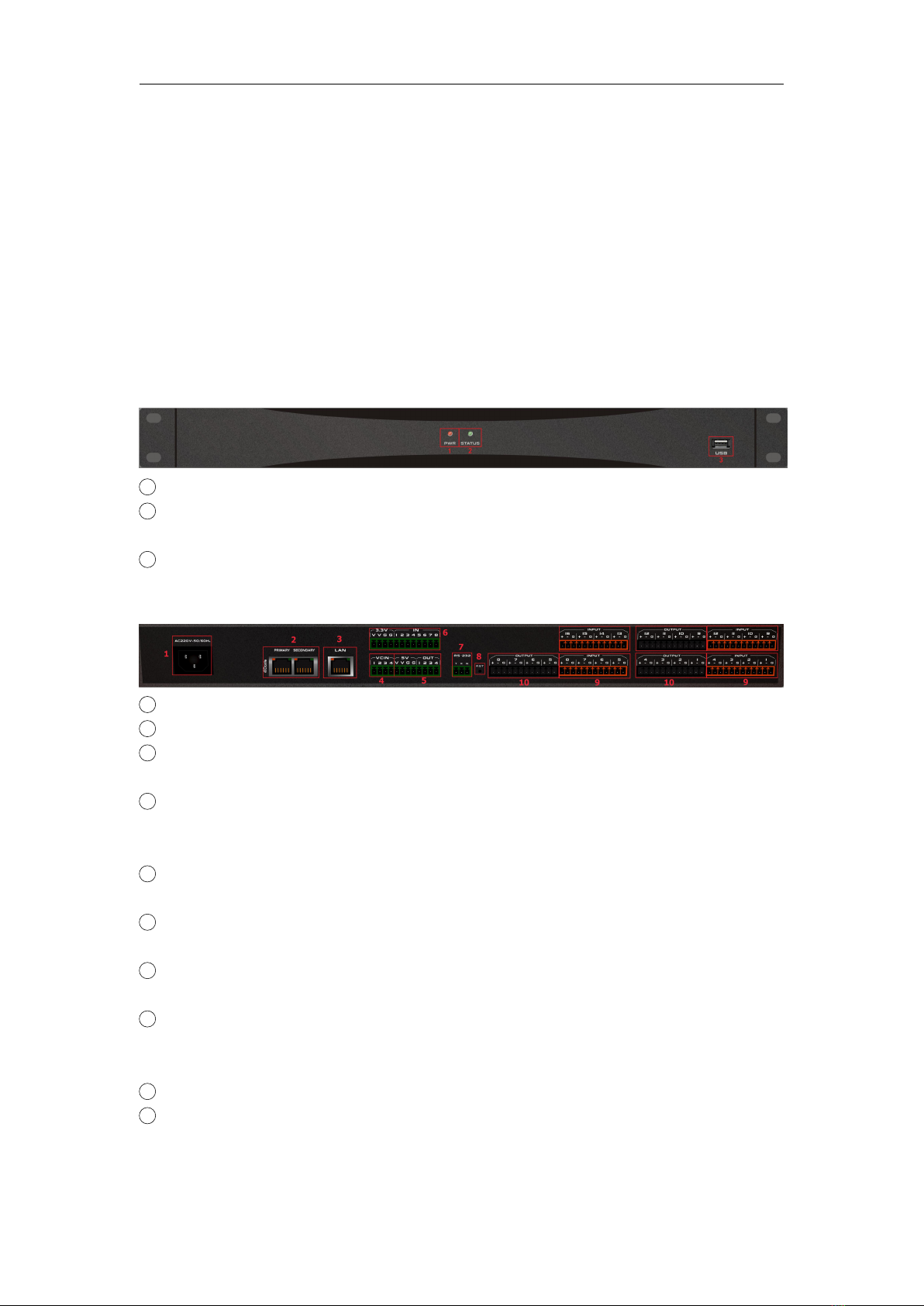

The front panel of device：

1Power indicator: after the power supply is switched on, light indicates power status;

2Status indicator: the system will run normally if the indicator is flickering and the indicator

will be ON for a long time during upgrading;

3USB: USB interface, support USB disk MP3 playback and recording.

The rear panel of device:

1AC220V: power plug, supporting AC 220V power supply, 50Hz

2Dante PRIMARY/SECONDARY: network audio transmission interface.

3LAN: network interface, connect PC, on-line editing and command receiving and sending

control;

4VCIN: Corresponding to the GPIO configuration interface input 1 ~ 4 interface, can be

configured for analog or logic control, configured for analog access to the wall panel for analog

voltage volume control, configured as logic when the general I / O port;

5GPIO OUT: Corresponding to the GPIO configuration interface output 1 ~ 4 interface, logic

control, connect the external control circuit

6GPIO IN: Corresponding to the GPIO configuration interface input 5 ~ 12 interface, logic

control, connect the external control circuit

7RS232: communication interface, to connect the external central control equipment / support

camera tracking;

8RESET: Restore the factory setting button. Method: hold down the RESET button when

power is off, and then power up. After 15 seconds of starting the processor, the STA indicator on

the panel flashes for 5 times, and RESET successfully;

9INPUT: Analog audio MIC \ LINE input interface,balanced phoenix interface;

10 OUTPUT: Analog audio output interface, balanced phoenix interface.

II. Software Instructons

This software: supports win7, win10 or higher version operation system. Before installation,

please make sure you have already DoNet the Framework3.5 or higher version. Then, in the IP

address of PC, there is at least an address fallen into the same network segment as the device IP

address (the default IP address of device factory is 192.168.10.10). Otherwise, the device can be

queried only and cannot be normally connected. If the PC is not provided with IP address fallen

into the same network segment as the device, please refer to the correct setting in the notes for

using the device for the first time in FAQ hereinafter.

After the PC software is properly installed, the starting interface is as shown in Figure 1

Figure 1

- Menu bar and tool bar: the menu bar contains various function menus of the software, and the

tool bar displays function menus in common use.

- Copy / paste: parameter copy between channels or parameter copy between same functional

module. The interface choice box is red, indicating that the module can conduct copy / paste

operations.

- Channel parameter control area: indicating parameters of various functional modules of each

channel. The choice box is red, indicating that the module can conduct copy / paste operations.

- Input channel grouping setting/control area: This group contains two grouping types, Group

and DCA, each type consisting of 4 groups.

For example: set the Group group. Click button 1 under Group, and a check box will appear in the

upper right corner of the input channel. Check the channel that needs to be added to Group1. The

setting is completed. When controlling Group1 grouping, press the “Group”button. In the

pop-up dialog box, the grouping channel of Group and DCA will be displayed at the same time.

Adjusting the mute and fader of Group1 channel can simultaneously control all input channels that

have been set to join Group1 at the same time.

- Output channel grouping setting/control area: The function is the same as above.

- Input / output channel control area: to display the electrical level and gain of each channel,

select any channel, and the corresponding specific parameters will be displayed in Module 3; part

of the hidden channel can be switched with ;When the channel choice box is red, the channel

can conduct copy / paste operations. When the channel choice box is blue, the parameters of the

current channel are displayed in Module (3) .

- Status bar: to display the current DSP occupancy factor, login status and connection status of

the connecting machine.

2.1 Menu Bar and Toolbar

2.1.1 File

- New: Create a new editing file. The parameters are configured in the factory.

- Open: Load a saved scene.

- Save as: Save the current configuration to the local disk..

- Chinese/English: To switch the Language interface

- Exit: Close the software.

2.1.2 Local Settings

1) RC panel configuration

Enter the RC panel configuration interface. Click the

button. For details, please

refer to the help document.

2) Dante control

A. Dante setting

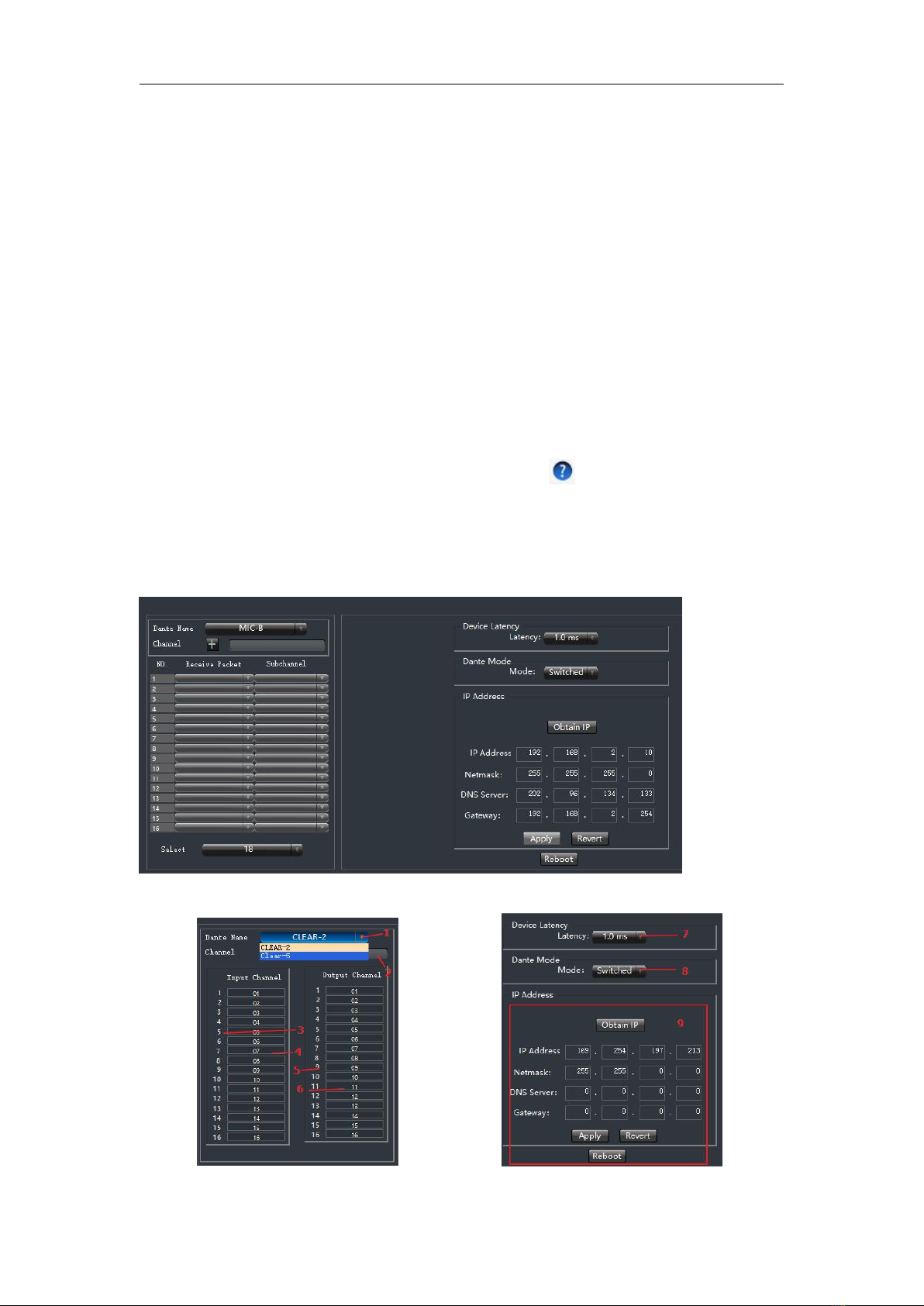

Figure 2

1. Dante name: click the drop-down list box corresponding to Dante name of the

receiving party, Dante equipment of the receiving party can be selected.

2. Dante name modification column: modify the currently selected Dante device

name.Click the channel named extension button .Figure 2 (left) shows the

information of the input and output channels of Dante devices.

3. Dante input channle number: cannot be modified.

4. Dante input channle name: can be modified.

5. Dante output channle number: cannot be modified.

6. Dante output channle name: can be modifide.

7. Device delay: Dante device delay setting of the receiver.click the corresponding

drop-down arrow to select the delay parameter, which contains 5 delay

parameters.which are 0.25ms, 0.5ms, 1ms, 2ms and 5ms respectively.

8. Dante mode: mode selection of Dante device of receiving part. click the

corresponding drop-down arrow to select the type of Dante mode, which contains

two modes, which are Switched and Redundant respectively.

9. IP address: Set and get the IP address of Dante device of the receiver.There are

two ways to set the IP address of Dante device, namely, to obtain the IP

automatically and to enter it manually.

Note: after selecting the Settings of any IP, the [restart] button must be clicked

immediately, so that the IP of Dante device can be saved and effective.

B. Dante receiving setting

Set up each Dante input channel of Dante device selected in Dante's name, and

receive signals from the output channel of Dante device specified.

Figure 3

1. Dante input channle: Dante receiving party input channle of Dantenumber,cannot

be modified.

2. Receive network packets ：Click the drop-down box to display all searchable

online Dante devices in the current network. By selecting this Dante name, you can

establish the connection that send and receive

3. Subchannel: click the drop-down box to display all the output channels of the

Dante device, and finally determine the connection of the specific channel.

4. Network card selection: Network card options for Dante devices in netword..

Note: Dante's sending setting is shown in chapter 2.8.1

3) Version selection

View the functions of this series of products, you can switch to the corresponding

software interface.

4) Channel setting

Conduct sorting, grouping and hiding operations to the input and output channel.

Sorting: fix 1 ~ N channel; to view the position of the corresponding channel.

Name: select the channels to be sorted, adjust the corresponding position by pressing the up key

and the down key, and modify the name of corresponding channel.

Category: display channel attributes, and cannot be modified.

Display: selected display, otherwise hide the channel.

Grouping: display the channel information in groups.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
