Tenda Wireless NetworkAdapter User Guide
Tenda Wireless NetworkAdapter User Guide
Copyright Statement
is the registered trademark of Shenzhen
Tenda Technology Co., Ltd. All the products and product
names mentioned herein are the trademarks or registered
trademarks of their respective holders. Copyright of the whole
product as integration, including its accessories and software,
belongs to Shenzhen Tenda Technology Co., Ltd. Without prior
expressed written permission from Shenzhen Tenda
Technology Co., Ltd, any individual or party is not allowed to
copy, plagiarize, reproduce, or translate it into other
languages.
All photos and product specifications mentioned in this manual
are for references only. Upgrades of software and hardware
may occur; Tenda reserves the right to revise this publication
and to make changes in the content hereof without obligation
to notify any person or organization of such revisions or
changes. If you would like to know more about our product
information, please visit our website at
http://www.tendacn.com.
Tenda Wireless NetworkAdapter User Guide
-1-
Contents
Chapter 1 Product Overview............................................3
1.1 Package Contents (For references only) ............................. 3
1.2 LED Overview..................................................................... 3
1.3 Product Features ................................................................ 4
1.4 Applications ........................................................................ 4
1.5 Before Getting Started ........................................................ 5
1.6 Disable other manufacturers’wireless network adapters ..... 5
1.7 Maintenance ....................................................................... 7
Chapter 2 Installation Guide ............................................8
2.1 Hardware Install.................................................................. 8
2.2 Software Install ................................................................... 8
Chapter 3 Use System Built-in Wireless Utility................13
3.1 Connect to a Wireless Network --Windows®7 .................. 13
3.2 Connect to a Wireless Network --VISTA............................ 15
Tenda Wireless NetworkAdapter User Guide
-2-
3.3 Connect to a Wireless Network --Windows®XP................ 19
Chapter 4 Tenda UI Guide.............................................24
4.1 Station mode (Client Mode)............................................... 24
4.1.1 Available Networks ...........................................25
4.1.2 Link Information................................................28
4.1.3 Network Profile .................................................29
4.1.4 Advanced .........................................................42
4.1.5 About ...............................................................43
4.1.6 Help .................................................................44
4.2 AP mode........................................................................... 44
4.2.1 Config AP.........................................................46
4.2.2 Advanced .........................................................47
4.2.3 Access Control List...........................................48
4.2.4 Associate List ...................................................50
4.2.5 AP Mode under Windows 7 ..............................51
Appendix 1 Glossary .....................................................53
Appendix 2 How to Set WPS .........................................57
Appendix 3 How to connect with PSP ............................66
Appendix 4 FAQ ...........................................................72
Appendix 5 Notification of Compliance...........................78
Tenda Wireless NetworkAdapter User Guide
-3-
Chapter 1 Product Overview
Thank you for choosing this Tenda wireless adapter!
The Tenda wireless adapter supports IEEE wireless standards, and is
able to quickly process file transfer, video, multi-media and other
applications that require higher bandwidth.
This Tenda wireless adapter also integrates wireless configuration
program, which makes it easy and quick to set up the wireless client.
Besides, Soft AP is supported for fast wireless network establishment,
and WPS encryption supported for you to quickly encrypt and secure
your wireless network.
All in all, the Tenda wireless adapter is easy-to-use, and of robust
signal, long transmitting distance.
1.1 Package Contents (For references only)
One Wireless network adapter
Resource CD (with driver and user manual)
1.5-meter USB extension cable
1.2 LED Overview
The adapter comes with a status LED, which displays a solid light
while functioning properly and a blinking light while transferring data.
Tenda Wireless NetworkAdapter User Guide
-4-
1.3 Product Features
Supports soft AP feature
Automatically sense network and adjust transmission rate;
Comes with 2 operating modes: Infrastructure and Ad-Hoc;
Access secure networks using WEP, WPA-PSK or
WPA2-PSK;
Wi-Fi Protected Setup™(WPS) for easy connection to a
wireless network;
Compatible with Windows XP, Windows 2000 Vista,
Windows7, MAC and more;
1.4 Applications
The Tenda adapter delivers powerful, fast and reliable wireless
access to your desktop or notebook computer. It is ideal for use by or
in:
1. corporate staff who want to stay connected to Internet while moving
around;
2. ancient buildings, places rented or for temporary use where wiring
is such a big mess, a huge cost or hard to reach;
Tenda Wireless NetworkAdapter User Guide
-5-
3. business or individual always in need of network topology changes;
4. business or individual who wants to have a wireless network
established fast and simple without the mess of wiring.
1.5 Before Getting Started
1. Before installing and using this product, please peruse the entire
user guide.
If you have a built-in wireless adapter, please disable it in
Device Manager before installing this Tenda adapter.
Also, if you have previously installed a different
manufacturer's adapter or a different model Tenda
adapter, make sure the software and driver are
uninstalled before installing the new software. Some
utilities may cause a conflict with the new software.
1.6 Disable other manufacturers’wireless network adapters

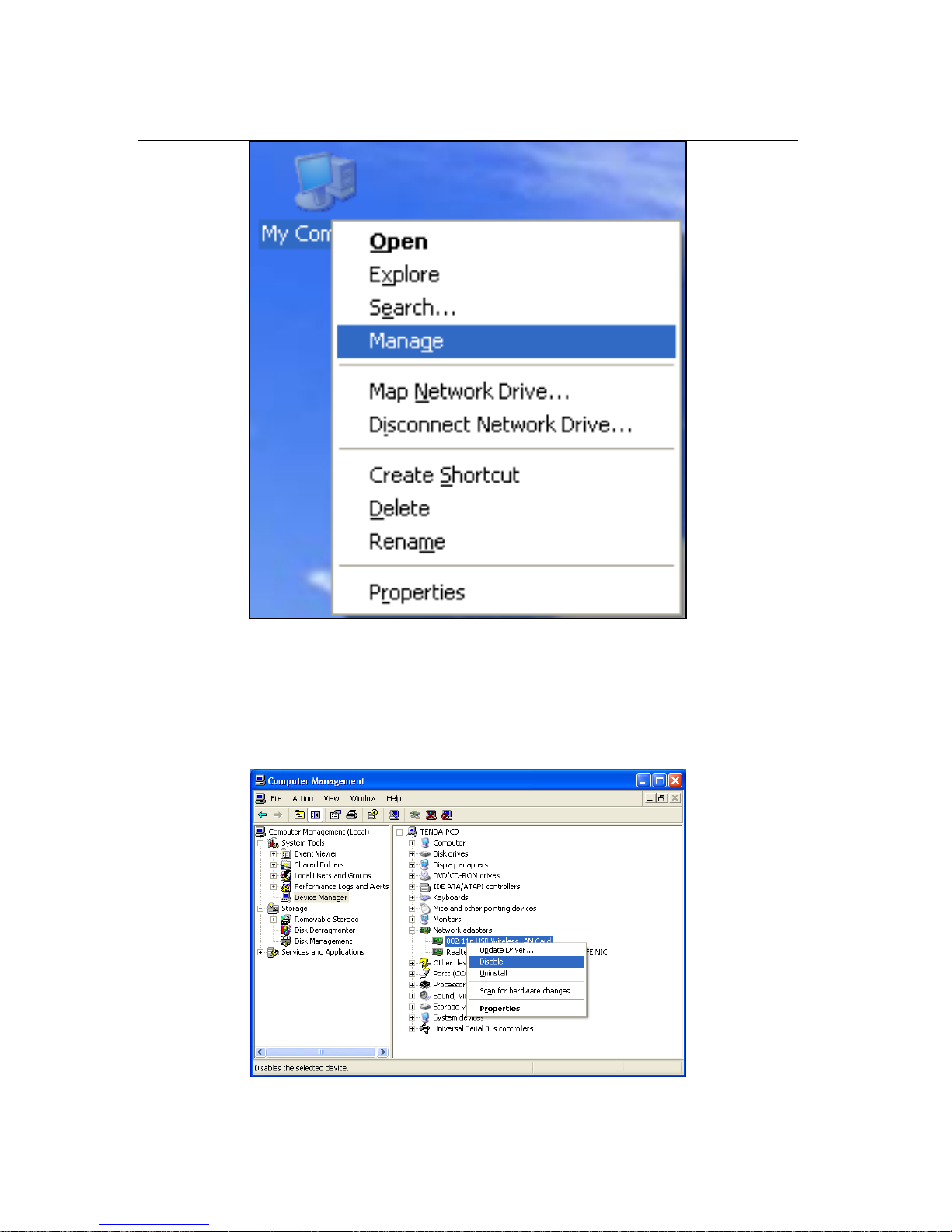

1. Right click “My Computer”and select “Manage”
Tenda Wireless NetworkAdapter User Guide
-6-
2. On the Computer Management screen ,select“Device Manager”－
“Network adapters”, and right click the network adapter you want to
disable and click “Disable”
3. Click the “Yes”button on the dialogue box to disable the network
Tenda Wireless NetworkAdapter User Guide
-7-
adapter.
1.7 Maintenance
Observe the following to ensure the product continuously stays in
good condition.
1. Keep the device away from humidity and water;
2. DO NOT expose the device to corrosive substances (such
as acid and alkali, etc)
3. DO NOT expose the device to sunshine or other heat
sources;
Contact Tenda technical staff if you are running into problems that you are
not able to solve.
Tenda Wireless NetworkAdapter User Guide
-8-
Chapter 2 Installation Guide
The CD that comes in the package includes both driver and software,
which can be installed automatically. This section will walk you
through the installation process.
Software install and operation instructions are illustrated in Windows®
7. If you have a different operating system, the screenshots on your
computer will look similar to the following examples.
2.1 Hardware Install
Turn on your computer and insert the Tenda adapter into an available
USB port on your computer.
2.2 Software Install
1 If the Found New Hardware Wizard appears, click Cancel and then
use the quick install CD to install the driver and software.
