Telefunken S590NIC Manual de usuario

• S 590 NIC •

Manuel

d’utilisation•

User

manual.

Manuel

d’utilisation•

User

manual.

Recto S 590 NIC 26/06/96 10:35 Page 1

CP.

SP/LP

ZOOM

-/--

456

987

A - Z Z - A

VCR

-/--

456

987

A - Z Z - A

RC 1360

SP/LP

<< > >>



ZOOM



_

LR 06 - AA LR 06 - A

2 x LR06 (AA) - 1,5 V

c10 0 ZO E TFK 26/06/96 10:39 Page 1

television set

safety precautions

SAFE USE OF THE EQUIPMENT

10 cm

5 cm 10 cm

10 cm 10 cm

1. TO TURN ON

LEAVE ROOM FOR VENTILATION

AVOID HEAT, WATER, DIRECT

SUNLIGHT.

Do not place audio loudspeakers

near to television. The magnets

in the speakers could cause

patches of colour to appear

on the screen.

To ensure your personal safety and the efficient operation of your

equipment, please follow the advice given below :

Télévision sets need ventilation to avoid overheating which can

cause damage to the components. The ventilation slots at the

back of the set should not be covered up by curtains, small covers,

newspapers, etc… There must be enough room in built-in cabinets

to allow for the cooling air to circulate. The set should not be

placed directly next to heating.

This appliance is designed for use in dry areas. If occasionally you

should whish to operate it outdoors (for example, on the balcony

or veranda), you must insure that it is protected against all forms

of moisture (dew, rain, splashed water).

A cold set may be switched on in a warm room only after any

condensation which may happen to be on the screen has

evaporated. Never remove the cabinet back. Have your aerial

installed by an authorised dealer or service technician.

In the evenings, after the TV programmes, or in case of a

prolonged absence, it is recommended that the appliance be

switched off using the main power switch. Remove the power

plug from the wall outlet under the following conditions :

1. During a thunderstorm. It is also recommended that you

disconnect the aerial plug.

2. If you find a burning smell or smoke emerging from the set.

Additional information :

Your TV set is adequately shielded to prevent emission of X-rays.

Work by non-qualified technicians, modification of the high

voltage setting or the replacement of the tube with a model that

does not comply with the manufacturer’s specifications may lead

to a considerable increase in X-ray radiation.

A set changed in any of the above ways no longer satisfies the

initial specifications and should not be put back into service.

2. CARE OF THE EQUIPMENT

3. DEMAGNETISATION

The screen should be cleaned with liquid glass cleaner.

• Never use abrasive cleaners.

• To clean the front and the cabinet of your equipment use a soft cloth dipped in mild detergent. The use of

strong solvents such as white spirits or alcohol based products could damage your equipment.

• Clean the vents on the rear panel of your set regularly.

The earth’s magnetic field may have an effect on your television by causing patches of colour to appear on the

screen. If this happens :

• Switch off the television with the on-off button ;

• Wait a few minutes and then press again to switch on.

This allows the screen to be demagnetised automatically. If patches of colour are still visible repeat the procedure.

The pages of this publication are printed on recycled paper.

c10 000 PREC E TFK 26/06/96 10:43 Page 3

PROGRAMME

Set-up - Preferences -

Browse - Clock - Lock -

Tuning - AV1 - AV2 - AV3.

SOUND

Loudspeakers - Sound settings - Headphone - AV

(Audiovisual).


Picture - Format.

TELETEXT / TOPTEXT / FASTEXT

PERSONAL ADJUSTMENTS

and scrolling back through the menus.

TO REMOVE THE MENU DISPLAY

or to display programme information, the type of sound

transmission (MONO, STEREO or DUAL), the programme

name and number, and the time, if the programme has

teletext.

PICTURE FREEZE

ZOOM FUNCTION

TO CALL UP PREVIOUSLY VIEWED PROGRAMME

TO CALL UP ALL PROGRAMMES IN TURN

VOLUME

- Horizontal movement in the menus

- –/+ adjustments of other functions.

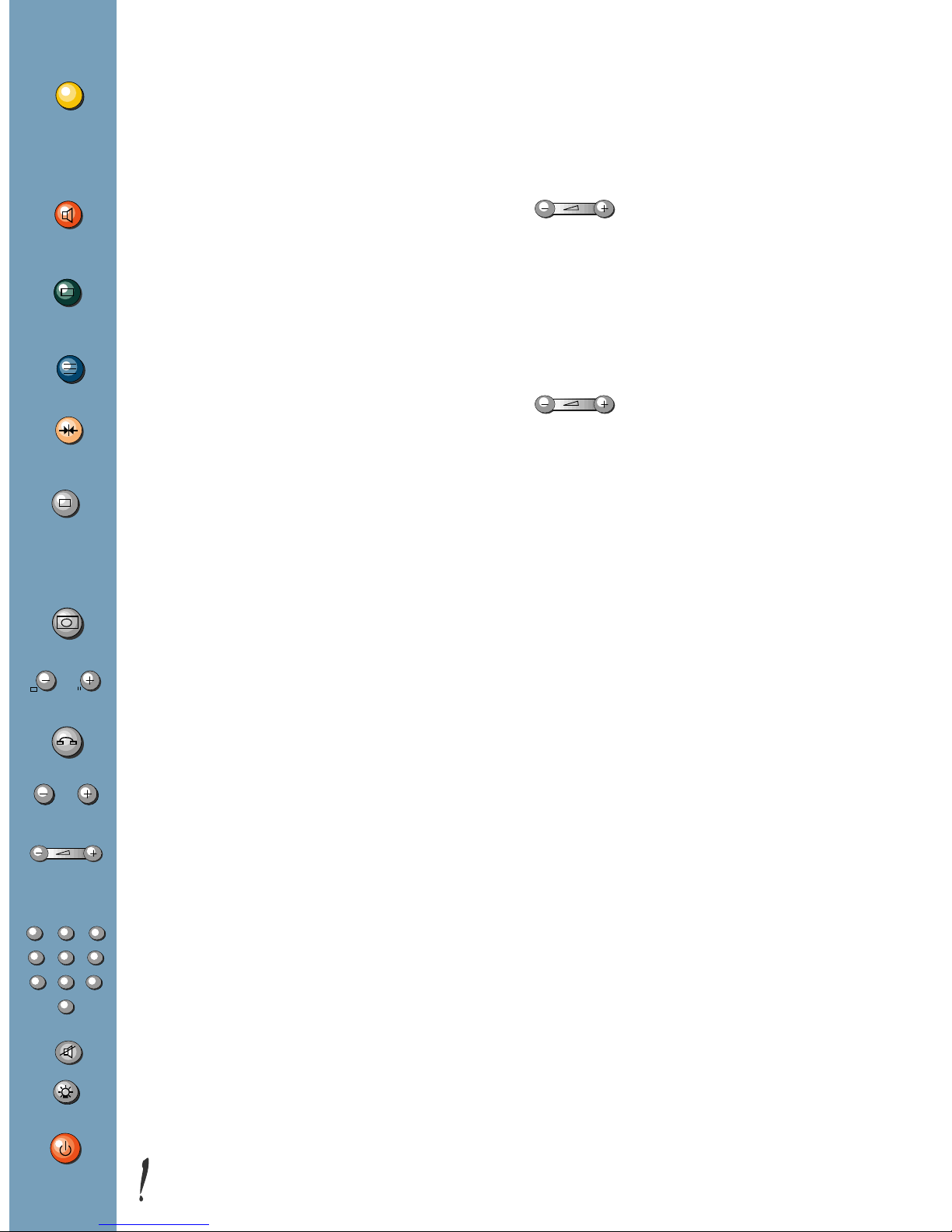

Keys 1 to 0 are used to :

- Select the programmes (from 1 to 99)

- Enter the channels numbers

- The 0 key is used to call AV inputs 1, 2 and 3.

MUTE

TO LIGT UP THE REMOTE CONTROL BUTTONS

STAND-BY

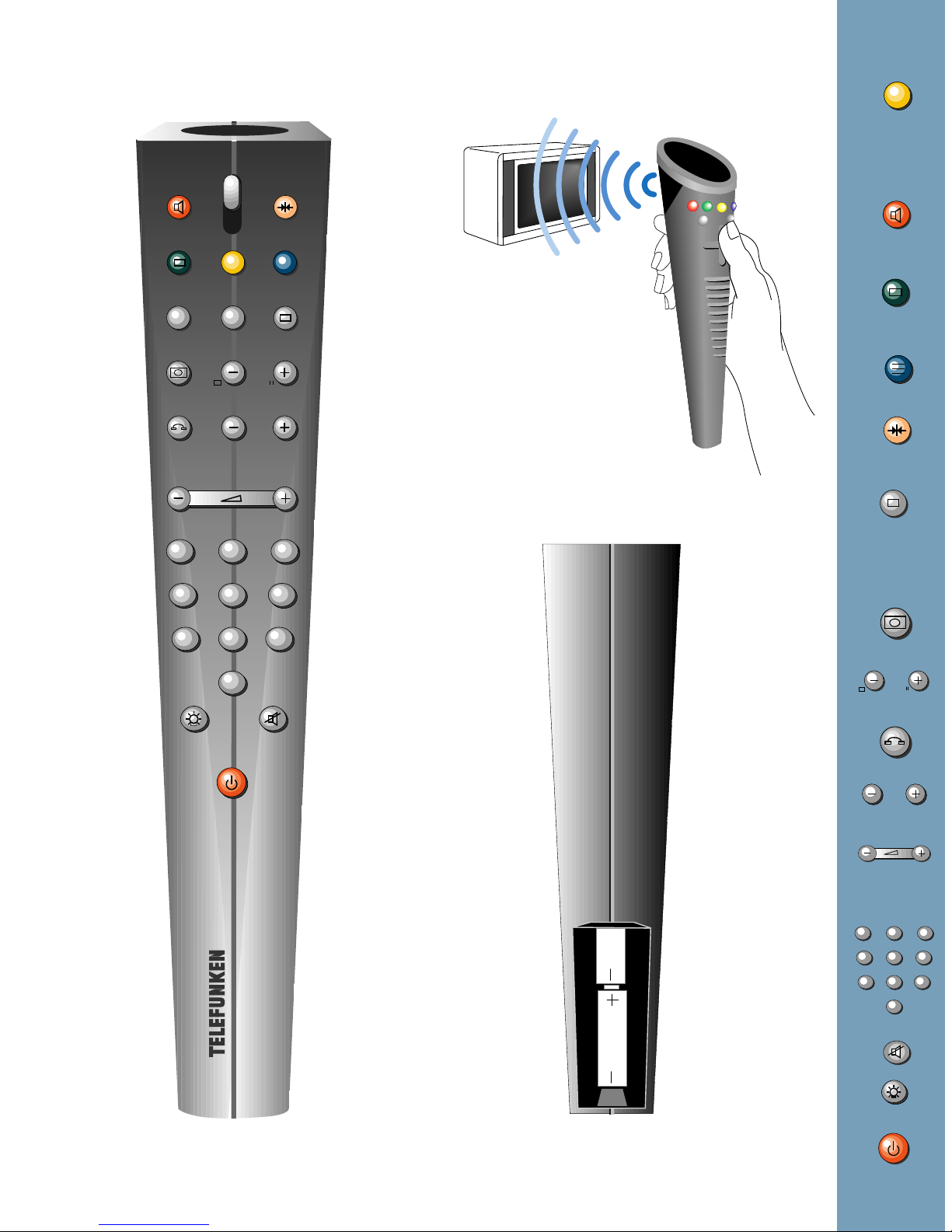

To operate your television set by remote control, the

selector switch TV/VCR must be on TV position.

When a red, green or yellow button is pressed for the first

time, the contents of the menu are displayed at the top of

the screen and the menu of the function selected is

displayed at the bottom of the screen.

A horizontal movement in the menus

selects the required function on the contents

line if it has not been already selected.

- The selected function is displayed in the same colour as

the button pressed (red, green, yellow).

- The line selected in the menus is displayed in characters

two times as high and in the same colour.

Press the coloured button repeatedly to move down

through the menus selecting different lines.

Make any adjustments.

Changes are saved when you quit the menus.

CONNECTIONS AND COMMANDS 5

AUTO-PROGRAMMING 6/7/8

Switching on - Automatic search of stations -

Programme organiser - New region

INSTALLATION 8/9

Volume limitation - Menu language -

Programme number display - Time reference -

Preferences

PICTURE ADJUSTMENTS 10/11

Picture - Light sensor - Format

SOUND ADJUSTMENTS 11/12

Loudspeakers - Headphone - AV

DAY TO DAY OPERATION 13/14

Switching on/Selecting programmes - Browse

OTHER FUNCTIONS - EXTRAS 15/18

Clock - Child lock - Lock

CONNECTIONS 19/21

Units connected - Calling up audiovisual programmes

TELETEXT 22/24

Calling up Teletext - Options - Alarm - How to select -

Subtitles - New flash

MANUAL PROGRAMMING 25/26

Norm - Decoder - Channel/Cable - Programme -

Fine Tuning - Station name - Store/Erase

contents

remote control

functions

remote control

using

CP.

SP/LP

ZOOM

-/--

456

987

A - Z Z - A

c10 0 ZO E TFK 26/06/96 10:39 Page 2

television set

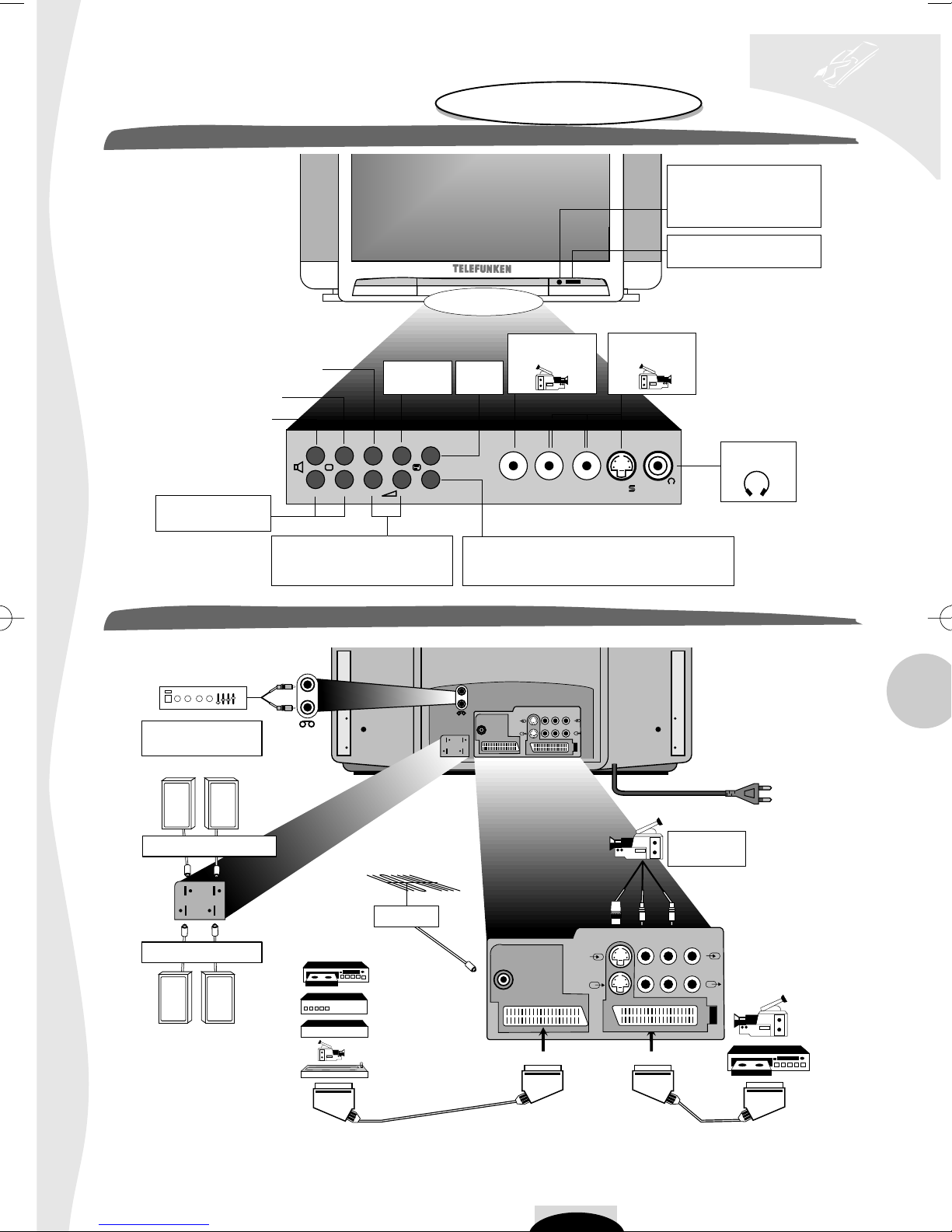

connections and commands

On/Standby light :

Grenn = On

Red = Standby

Press briefly to restart automatic 

channel setting to reinstall in the event a change 

in transmitter or in a new area installation.

Volume adjustments 

and horizontal cursor 

movement in menus.

PAV

- P + - + VIDEO L AUDIO R VIDEO VHS

Headphone

socket

Programme

Selection

Socket VIDEO

and audio

Socket S-VIDEO

and audio

Display

PICTURE (green key)

SOUND (red key)

PROGRAMME (yellow key)

Audiovisual

On/Off switch

INSTALL

Press the center of

the panel to open.

Video recorder

and/or

Decoder

and/or

Satellite receiver

or

Camcorder

or

PC or video

games console

Camcorder

or

VHS or S-VHS

Video recorder

AV 2

AV 1

Ψ75

(OUT L)

(OUT R)

AV 2

AV 1

Ψ75

HiFi

Amplifier

Surround loudspeakers

Main loudspeakers

(OUT L)

(OUT R)

VHS or S-VHS

Camcorder

S-Video Video Audio

(IN)

(OUT)

S-Video Video Audio

(IN)

(OUT)

Aerial*

FRONT CONTROLS

CONNECTIONS

For further details,

see page 19.

c10 00 BRANCH E TFK 26/06/96 10:42 Page 5

Turn on the television set main power.

The WELCOME menu is displayed.

If it is not,

Press the INSTAL button on the television set key pad.

You have a choice of 7 languages for the menus.

Briefly press the remote control button number for the

language you require.

The following menu is displayed.

Check that the aerial cable satellite and/or video (if applicable)

are connected to your television set and switched.

If you do not want automatic search, see Manual

Programming, page 25.

Press briefly to quit the menu.

Start automatic channel setting by pressing the (+) button.

Searching for stations and saving them in the memory depends

on the language chosen from the «Welcome» menu.

Priority is given to searching for the national standard channels,

then those of other countries:

English: PAL I.

French: SECAM LL’

Other languages: PAL BG.

AUTO-PROGRAMMING is completed when the cursor is at the

extreme right.

Automatic channel setting can be stopped by pressing the

button

When the automatic search is completed, the

Programme Organiser menu appears.

Follow the instructions at the bottom of the menu for help

(grey background).

WELCOME

television set

auto-programming

This set is equiped with an automatic station search system which is used for :

• Searching for all the stations received in your region and storing them in memory

• Automatically searching for the name of the station

• Automatically allocating a programme number.

WELKOM

Make sure that the aerial cable and decoder (if any) are

connected to this TV set.

To auto-program, press the (+) key.

To exit, press the (TV) key.

AUTO - PROGRAMMING

Searching for stations

10 stations found

This menu is used to :

• change the programme number,

• change the station number,

• delete a programme.

Programme Organiser

AUTO-PROGRAMMING

WELCOME

BIENVENUE

WILLKOMMEN

BIENVENIDO

BENVENUTO

VÄLKOMMEN

WELKOM

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

SVENSKA

NEDERLANDS

Press

Appuyer

Drücken

Pulse

Premere

Tryck

Druk op

key number

sur la touche

Sie die Taste

tecla numero

il tasto

knapp nummer

knop nummer

[1]

[2]

[3]

[4]

[5]

[6]

[7]

Programme Organiser

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

01 BBC 1

02 BBC 2

03

04 

05

06

07

08

INSTALL

A-Z

c10 1 AUTO PROG E TFK 26/06/96 10:46 Page 6

television set

auto-programming

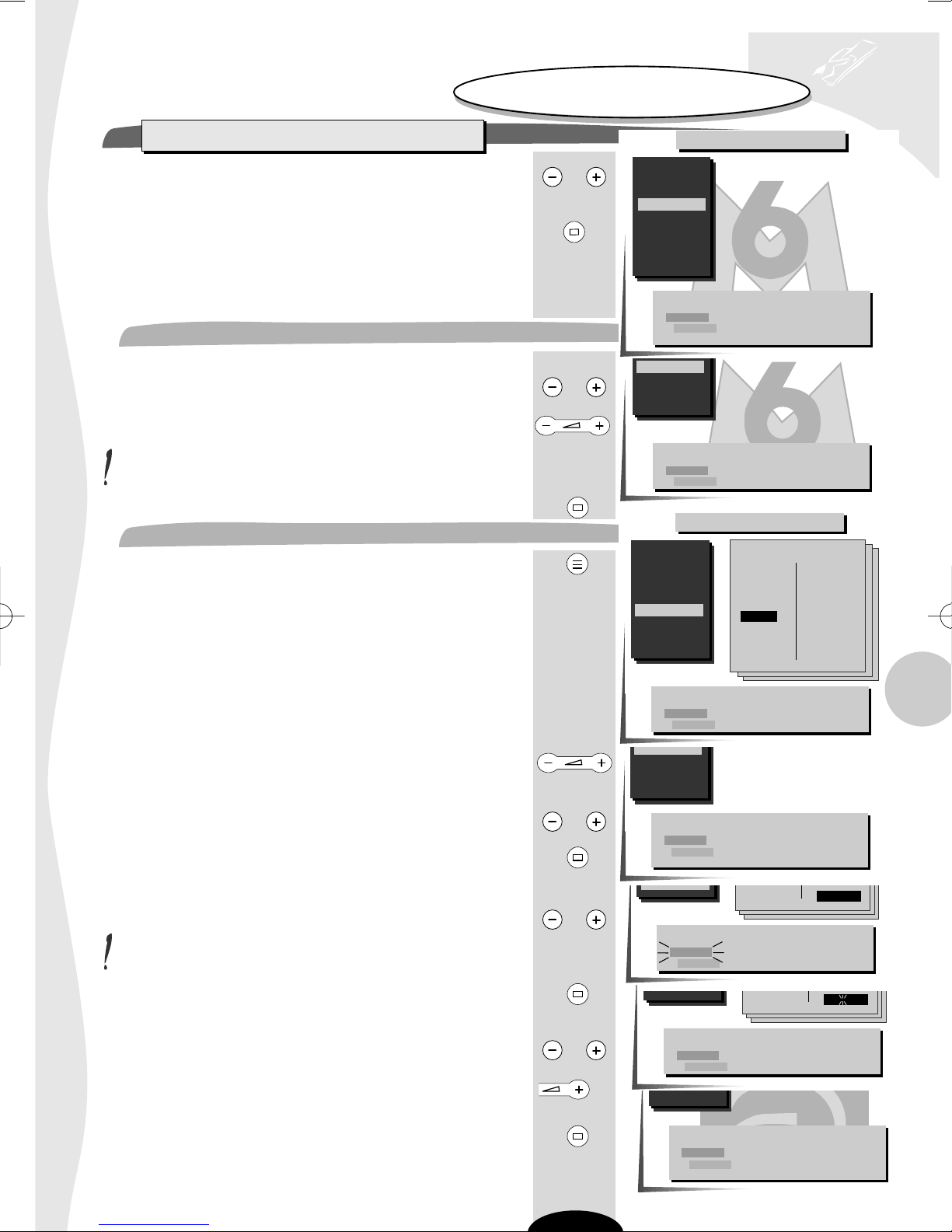

Zap to check that the stations found are correctly numbered

and named as you want than:

• IF YES ➡press briefly:

the menu disappears and is replaced by the picture of the

programme selected.

• IF NO ➡you make changes as follows

Select the programme number to be changed.

Bring the cursor to the new programme number.

You may also use the number buttons 0 to 9.

Confirm the change (green button).

Press the blue button briefly.

A list of station names per country appears

France & Belgique

Deutschland

Italia & Schweiz

Scandinavia

España & Portugal

United Kingdom

Nederlands & etc.

Select the country you require.

If the name appears in the list displayed,

select the name

Confirm the selection (green button).

If the name does not appear in the list displayed,

select the "- - - - - -"line

You have 6 characters to enter a station name

To enter a station name,

Press the green button briefly and

the first character flashes.

Select the first character of the new name.

Enter the next character

and repeat the process up to the last character.

Confirm your choice (green button).

The new name is

stored in the memory and the list disappears.

- The programme number

- The station name

Programme Organiser



06

07

08

Moving PR 06 CANAL+ to PR 04

+, -, 0..9 Give it another number

Green Confirm change

Red Cancel change

08

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

+, - Next/Previous position

PR+, PR- Select a character

Green Confirm new name

Red Cancel new name

- - - - - - -

CHILD



C N N S-

08

+, - Next/Previous position

PR+, PR- Select a character

Green Confirm new name

Red Cancel new name



- - - - - - -

CHAN



CHILD

C N N

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

06 MOVIES

07

08

Programme Organiser

01 

02 

03

04

05

06

07

08

+, - Next/Previous name page

PR+, PR- Select a new name

Green Confirm new name

Red Cancel new name

United Kingdom

SKYONE

DISCOV

UKGOLD

SKYSPO

BRAVO

ESPORT

S-NEWS

M T V

EUNEWS

- - - - - - -

BBC 1

BBC 2

I T V

CHAN 4

CHAN 5

SKY +

M-GOLD

M-CHAN

CHILD

C N N

To help you, follow the instructions

at the bottom of the menu

(grey background).

Programme Organiser

PR+, PR- Select the station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

01 

02 

03

04 

05

06

07

08

c10 1 AUTO PROG E TFK 26/06/96 10:46 Page 7

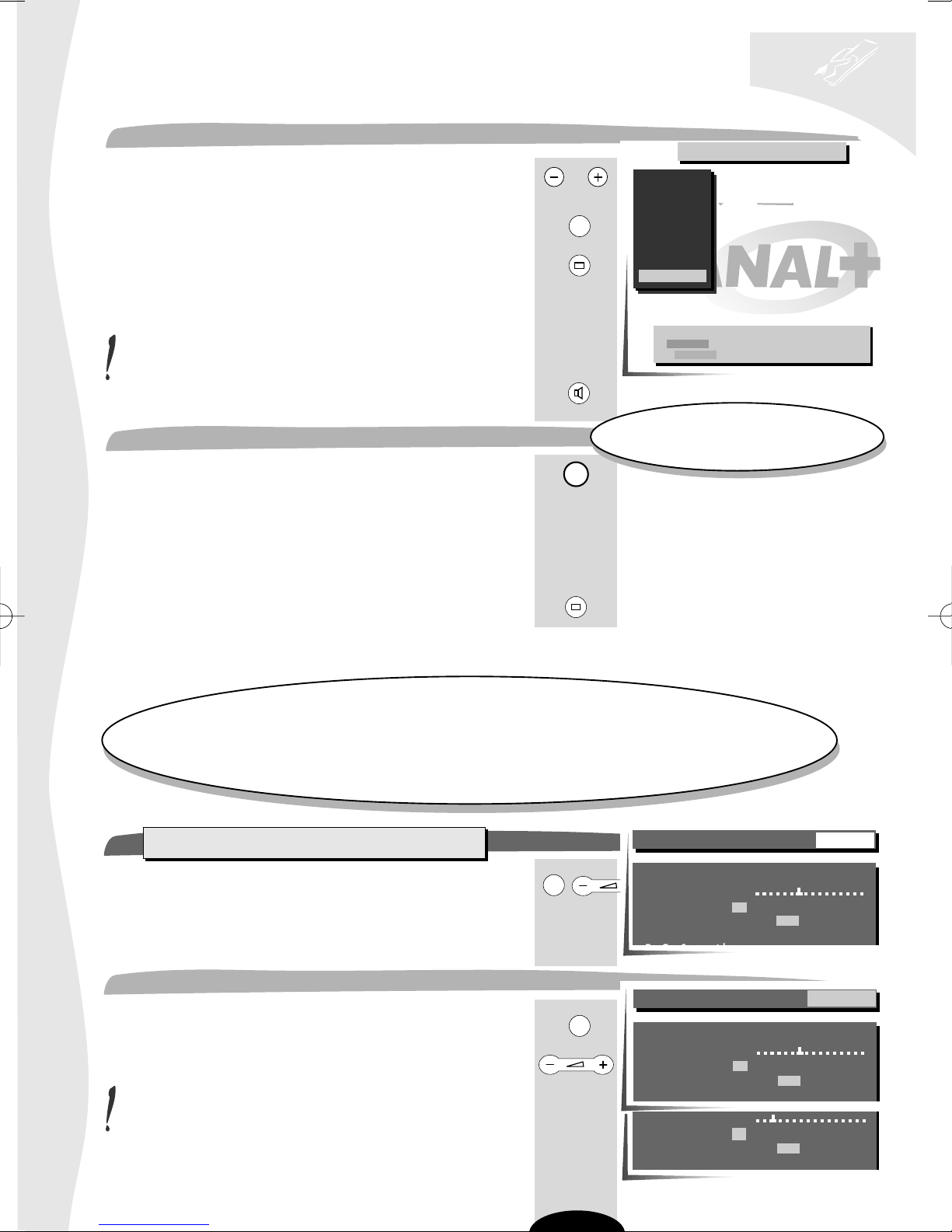

Select the programme to be deleted.

Press the yellow button.

Confirm your choice (green button).

The programme is deleted

the previous programme is selected.

You may cancel these various operations.

To do so, briefly press the red button.

• Press the television set INSTALL button.

• Start the automatic search again.

then

• Reorganise the programmes.

To do this, proceed as shown previously.

Erase the menu.

Press the yellow button then the (–) button.

The SET-UP menu is displayed

Select the Max. Volume line (yellow button).

Set the maximum volume with the cursor.

The volume cannot be set to zero when using this function.

TO DELETE A CHANNEL

TO CHANGE REGION

television set

auto-programming

installation

SET-UP

Maximum Volume Limitation

Turn on the television set by pressing

one of the buttons from 1 to 9.

Par ce menu, vous pouvez :

• Limiter le volume sonore maximum.

• Modifier la langue des menus (allemand, espagnol, français, anglais, italien, suédois).

• Obtenir l'affichage du numéro de programme regardé.

• Mémoriser le numéro de programme de référence horaire.

With this menu you may:

• Limit the maximum volume.

• Change the menu language (German, Spanish, French, English, Italian, Swedish, Dutch),

• Permanently display the number of the programme being viewed,

• Store the time reference programme number.

Programme Organiser

01 BBC 1

02 BBC 2

03

04

05

06

07

08

09 CANAL+

Erase PR 04 CANAL+

Green Confirm erase

Red Cancel erase

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

EFC ti

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume



Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

Max. Volume



Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

INSTALL

c10 1 AUTO PROG E TFK 26/06/96 10:46 Page 8

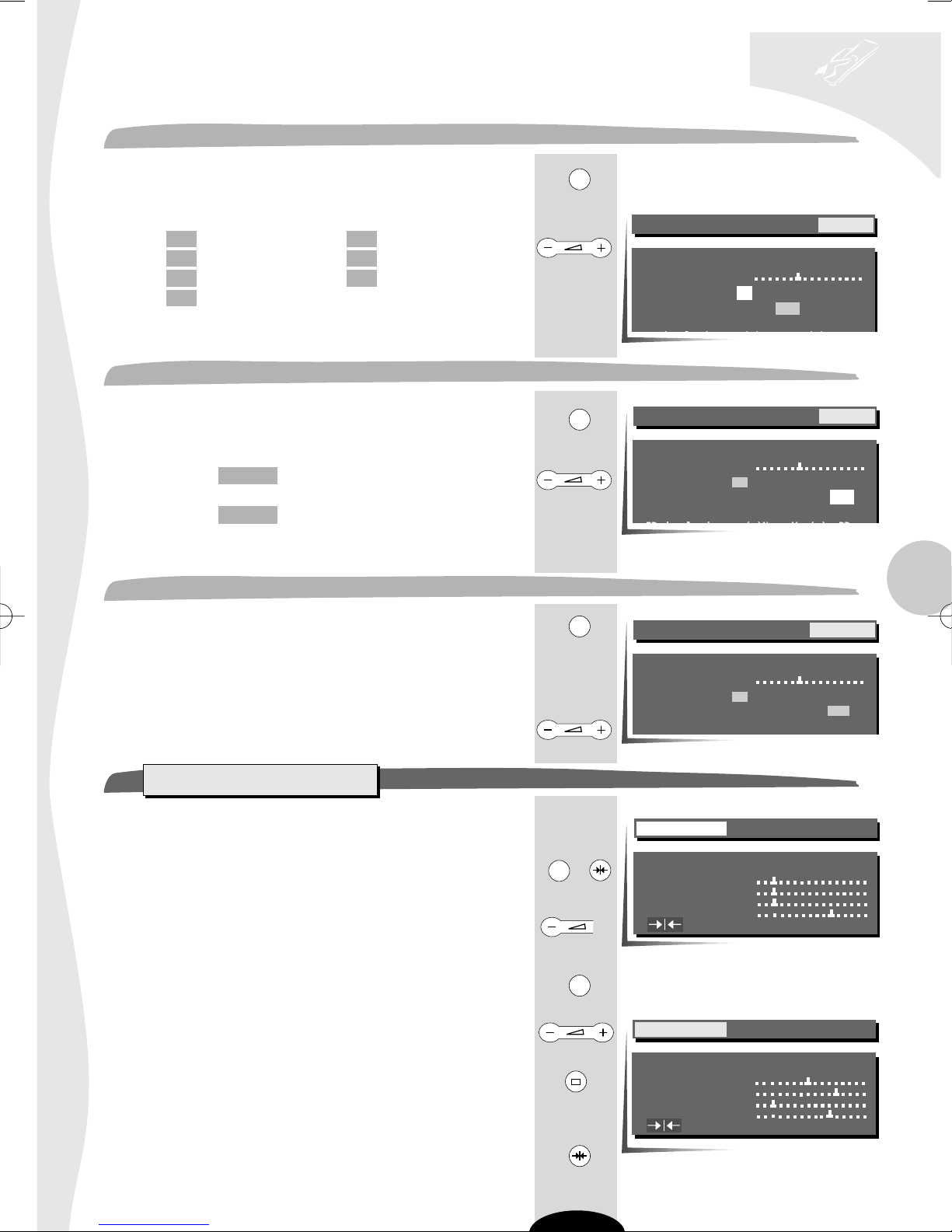

television set

installation

Select the Language line (yellow key).

Select

All the menus will be displayed in the language selected.

Select the Programme Display line (yellow key).

Select : On : the programme number

is permanently displayed

Off : no permanent display.

Select the Time reference (yellow key).

The television set internal clock must be set.

This synchronises automatically when the television set is

turned on to a programme broadcasting Teletext, you can

opt to select any one of the 4 channels - BBC1, BBC2, ITV, CH4.

Select the corresponding programme number.

This menu enables you to save your preferred settings.

Press the yellow or pink key repeatedly to return to the

Menu contents line.

Press to display the PREFERENCES menu.

Select the line required with the yellow key.

Set with the key.

Erase the menu.

To return to your preferred settings at any time,

press the pink key.

Menu language

Programme number display

Time reference

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

dld () ()

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume

Language GB F D E I S NL

Programme Display Off On

Time reference PR 01

IR d l d ( )N Y ( ) PR

PREFERENCES SET-UP

Volume



Brightness

Colour

Contrast

resets to these preferences

TELEFUNKEN

PREFERENCES

GB : English

F : French

D : German

E : Spanish

I : Italian

S : Swedish

NL : Dutch

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume

Language GB F D E I S NL

Programme Display Off On

Time reference

PR 01

PREFERENCES SET-UP

Volume 

Brightness

Colour

Contrast

resets to these preferences

TELEFUNKEN

c10 2 unPIP ZO DM E TFK 26/06/96 10:52 Page 9

Press the green key.

The PICTURE menu is displayed :

PICTURE is selected.

If this is not the case, select the Contents line using the

green key and Picture with the key.

Select the Brightness line (green key).

Adjust the brightness.

Repeat the same procedure to select and adjust the Colour,

Contrast and Sharpness.

The TINT line only appears if the source is

NTSC from an AV1, AV2 or AV3 audio-visual programme.

television set

picture adjustments


Colour



Contrast

Sharpness

Digital Mastering Off On

Light Sensor Off On

Tint

You may adjust the picture

settings at any times.

Select FORMAT.

The following menu is displayed:

FORMAT

Select the Zoom line (green key).

You may select Off : normal format

Zoom 1 : enlarged format

Zoom 2 : super enlarged format

In 4/3 format, in Zoom 1 or Zoom 2, an additional line

(Picture lift) appears.

You may choose between a higher or lower framing,

for example, for sub-titled programmes.

Select Picture lift (green key),

then set your picture lift.

TELEFUNKEN

Zoom Off Zoom 1 Zoom 2

Format 4/3 16/9 Auto

Picture lift Down(-) Up(+)

Zoom

TELEFUNKEN

Zoom OFF Zoom 1 Zoom 2



Format 4/3 16/9 Auto

Picture lift Down(-) Up (+)

This function is used to obtain a better quality picture.

Select the Digital Mastering line (green key)

Select the option required.

When changing channels, Digital Mastering automatically

returns to On.

This function is used to vary the contrast of the television

according to ambient lighting.

Select the Light Sensor line (green key).

Press briefly to make selection : On : function active

Off : function not active

Digital Mastering

Light Sensor

PICTURE PIP FORMAT

TELEFUNKEN

Brightness

Colour

Contrast

Sharpness

Digital Mastering Off On

Light Sensor Off On

TELEFUNKEN

PICTURE FORMAT

Zoom Off Zoom 1 Zoom 2

Format  4/3 16/9 Auto



PICTURE PIP FORMAT

TELEFUNKEN

Brightness

Color

Contrast

Sharpness



Digital Mastering Off On



Light Sensor Off On

TELEFUNKEN

Brightness



Colour

Contrast

Sharpness

Di it l M t i Off O

PICTURE PIP FORMAT

TELEFUNKEN

Brightness

Colour

Contrast

Sharpness

Digital Mastering Off On

Light Sensor Off On

c10 2 unPIP ZO DM E TFK 26/06/96 10:52 Page 10

Otros manuales para S590NIC

Tabla de contenidos

Otros manuales de TELEVISOR de Telefunken

Telefunken

Telefunken TK2929STX Manual de usuario

Telefunken

Telefunken WS2868N Manual de usuario

Telefunken

Telefunken TK1429X Manual de usuario

Telefunken

Telefunken TE24550B40Q2D Manual de usuario

Telefunken

Telefunken TE39PNDB42V2D Manual de usuario

Telefunken

Telefunken TKP2177ST Manual de usuario

Telefunken

Telefunken TFK 22 DS 19 B Manual de usuario

Telefunken

Telefunken TKP2198USM Manual de usuario

Telefunken

Telefunken TKP2939ST Manual de usuario

Telefunken

Telefunken DF321C Manual de usuario

Telefunken

Telefunken 40FAG8030 Manual de usuario

Telefunken

Telefunken TK3429STX Manual de usuario

Telefunken

Telefunken UMBRA40UHD Manual de usuario

Telefunken

Telefunken TFLS425090FHDB Manual de usuario

Telefunken

Telefunken TE24550B42V2E Manual de usuario

Telefunken

Telefunken TE32550S27YXH Manual de usuario

Telefunken

Telefunken DF421C Manual de usuario

Telefunken

Telefunken TFK 22 DSCT 20 WB Manual de usuario

Telefunken

Telefunken 75TU6200 Manual de usuario

Telefunken

Telefunken TE32555B45V2D Manual de usuario

Telefunken

Telefunken TE24550S27YXD Manual de usuario

Telefunken

Telefunken TFL65FHD200BC Manual de usuario

Telefunken

Telefunken TTV-149 Manual de usuario

Telefunken

Telefunken TE32550B42V2H Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
