Teleco Motosat65 Instrucciones de montaje

INSTALLATION GUIDE

AND USER MANUAL

Information

Congratulations on your purchase! MotoSat is among the most technologically advanced

products in the field of satellite TV reception. This handbook has been prepared to provide

information on how to install, use, maintain and technical specifications your MotoSat.

For additional information, please contact your local dealer or directly the manufacturers:

TELECO s.p.a.

Via E. Majorana 49

48022 LUGO (RA)

Web site: www.telecogroup.com

Technical attendance: 899.899.856

TELECO .p.a. declines all responsibility for any errors contained in this manual. All the

contained information are up to the dates of printing and of the above-mentioned software

revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by

the development of its products.

TELECO WARRANTY

Teleco guarantees its satellite dishes and terrestrial antennas against any

material and/or construction fault and defect. The warranty offered by

TELECO is limited to the free-of-charge replacement or repairing of any

parts that are deemed faulty by TELECO. The warranty is applicable for a

period of 3 YEARS starting from the product purchase date; however, it will

only be considered valid if the Customer is able to produce a written document

(invoice or tax receipt) showing the purchase date.

The following is excluded from the TELECO warranty:

a. Damages caused by incorrect installation and/or use and/or maintenance

b. Damages resulting from product alterations not authorised by Teleco

c. Damages resulting from the use of spare parts different from original

Teleco parts

d. Damages resulting from repairs carried out by personnel not

authorised by Teleco

e. Normal part wear;

f. Expenses incurred for spare parts transport between the Customer's

and the service centre

g. Damages that may occur during transport:

the Customer shall always be responsible for transport risks.

…and then drill the outside wall.

Set the drilling jig in place. Drill in the

middle of the jig (page 22)

Using a dia. 42 cutter, drill the inside

wall first…

Caution:

Mount the antenna away from the vehicle

roof edge to avoid overhanding the roof

line when travelling.

The Motosat antenna must be installed

near a vertical wall where the wall outlet

can be fitted

Installation instructions

Insert the mast roof mounting bracket in

the dia. 42 hole bored in the roof, making

sure you apply a layer of silicone under

the ring nut.

Fasten the ring nut using self-tapping

screws. Place the rubber gasket over the

ring nut. ( Screws not supplied )

Secure the pipe lead to the roof using

the ring nut and its wedge-shaped spacer.

Caution: the antenna must be in

horizontal position. The wedge-shaped

spacer is used to set the antenna in the

horizontal position even if the roof is

inclined.

Lock the collar on the wedge spacer

by applying the 2 screws (not supplied).

3,5 x 32

Introduce the

nut in its seat

on the back of

the wall outlet

Tight the locking ring nut

This mast locking device must be

screwed tight every time you wish to

secure the antenna in the desired position.

To turn or lift the mast, loosen this ring

nut.

Spread a thin film of Vaseline inside the

seal and introduce the mast

Fit the upper part of the wall outlet without

tightening all the way

Fix the outlet unit to the wall

Cut the antenna cable to the proper length and

apply the connector as shown on Figure. Make

sure no wire of the braiding touches the core of

the cable

Introduce the coaxial cable in the special

slot (A) and lead it out of rear bottom side

of Motosat (B)

Engage Motosat in the antenna support

tube until the tube holes are aligned with

the Motosat holes.

Fix Motosat to the antenna support tube

with the special screws.

Connect the cables as

shown in figure

Verify that the

coaxial cable

does not

obstruct the

screw hole.

Green

WhiteBrown

Coax

Receiver Sat

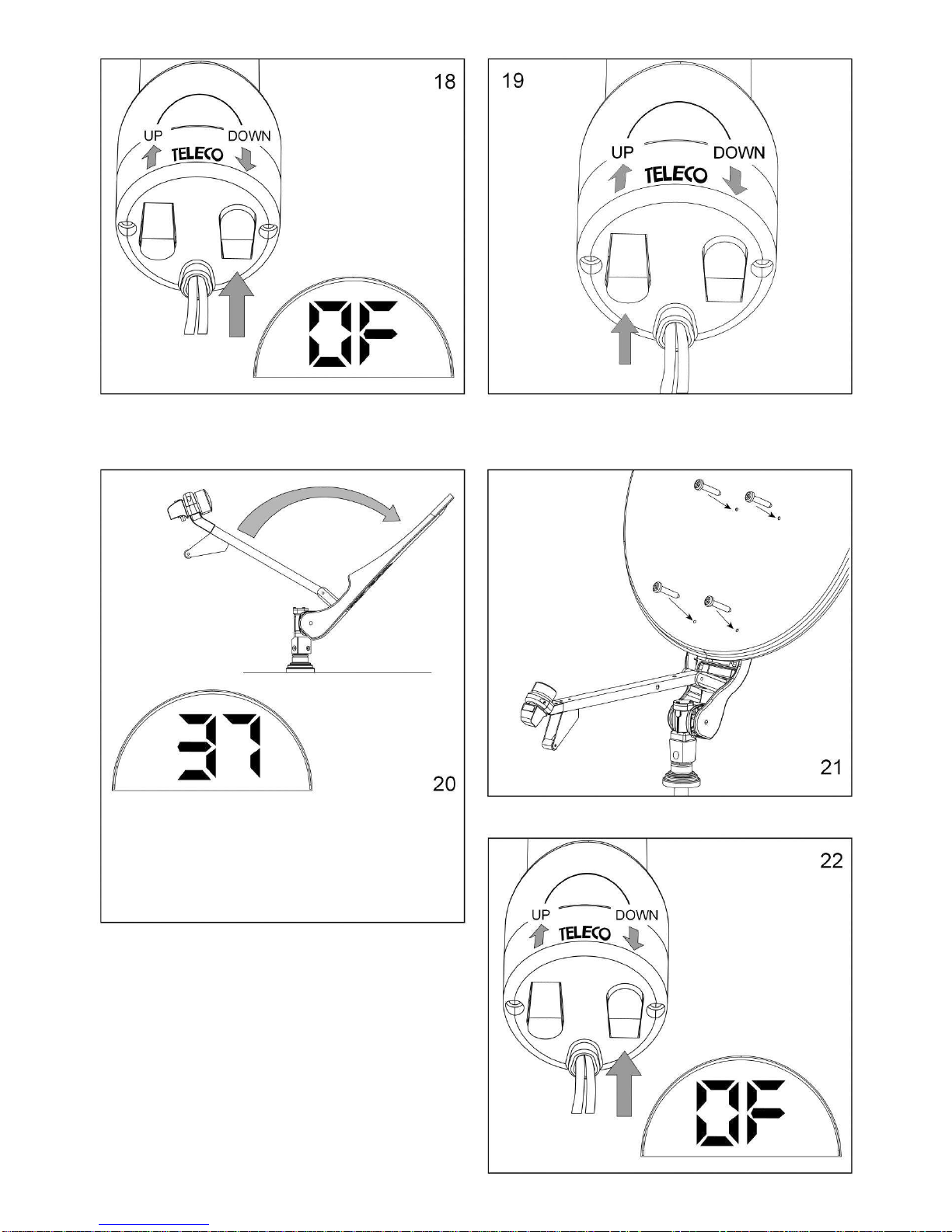

Press the UP button until a sequence of

beep sounds is obtained.

The antenna becomes automatically

positioned to facilitate installation (the

display reading is 37°).

Press the DOWN button until the

display reads OF.

Press the

DOWN button

until the display

reads OF.

Fasten the

antenna to the

arm as shown

in the figure.

Make sure that

the antenna is

exactly in its

stowed

position. Place

the sticker on

the mast in

such a way

that you can

quickly lock the

antenna in the

right position

before every

start.

The antenna must be absolutely installed according to fig. 24, i.e.,

the disc must be bent to the rear of the vehicle.

Check that the antenna has been

lowered to the required travelling

position (fig.24) and glue the steel

plate below the LNB shim to the

roof with jointing compound or

double-sided adhesive tape.

Important information for proper antenna tracking

Before performing antenna tracking operation, make sure you have positioned your vehicle

so that the view towards the South (where Satellite signals come from) is free from any nearby

obstacle (trees, houses, etc.). This way, the antenna will be free to receive signals coming

from the satellite.

RIGHT

POSITION

WRONG

POSITION

1) It is also important to know that satellites do not transmit with the same intensity throughout

Europe, so if you are outside the reception area, your Motosat search might be unsuccessful.

2) The reception areas for each Satellite can be found on the main magazines dealing in this

line of business. Also remember that the larger the dish, the more reception area is

available

3) Make sure that the vehicle battery is sufficiently charged, if the voltage drops below

11.5 volts the electronic circuit protection prevents MotoSat antenna to move.

1) Turn on the SAT receiver and TV set following the instructions provided by their

respective manufacturers.

2) Hold down the “UP” button until 3 beep sounds are emitted by MotoSat. The

antenna will go up to the latest stored position setting

MotoSat will automatically store the latest antenna elevation value to facilitate

pointing operations.

3) Slowly turn the mast to the south until TV signals are displayed on the screen.

4) If you haven’t been able to find a TV signal, check the elevation reached on the

display and compare it with the value shown in table 17. If necessary, use the “UP”

and “DOWN” buttons to correct elevation.

NOTE: the elevation reading on the display may be not accurate because of poor

levelling of the parked vehicle.

5) Slowly turn the mast to the right/left until TV signals are displayed on the screen.

6) To optimise reception, fine-tune both the elevation (with the “UP” and “DOWN”

buttons) and azimuth (mast).

OPERATING INSTRUCTIONS
