Teko Astra-361 Instrucciones de instalación

Astra-361

Water Leak Detector

User Instruction*

Sales:

Controlex GmbH

Philosophenweg 31-33

47051 Duisburg,Germany

+49 (0) 203/393 91 188

info@controlex.eu

www.controlex.eu

Warranty service and

technical support:

TEKO-TD

Prospekt Pobedy str. 19

420138 Kazan, Russia

+7(843) 261-55-75

[email protected]z

www.teko.biz

Made in Russia

Rev. 361-v1_0_instr_EN

1 FUNCTION

The detector is designed for detection of water

leak events and sending “Alarm” notification via

two-wire alarm loop (signaling zone) to control

panel or wireless detectors Astra-3321 and

Astra-Z-3345 operating in transmitter mode

(hereinafter “TRA”).

Detector is not designed for distilled water lea-

kage detection.

2 SPECIFICATIONS

Power supply voltage, V.…………from 2,5 to 30

Current consumption, mA, max:

- in stand-by mode with

supply voltage of 2.5 V..............................0,001

- in stand-by mode with

supply voltage of 15 V...............................0,003

- in stand-by mode with

supply voltage of 30 V.................................0,01

- at “Alarm” notification issue........................... 5

Overall dimensions, mm.....................45×13×13

Operating Conditions

Temperature range, °С...............from 0 to + 50

3 DELIVERY SET

Delivery set contains holders and fasteners

(dowel –2 pcs., screw –2 pcs.).

4 INSTALLATION LOCATION

Detector is located on the floor in supposed

place of water accumulation in case of leakage.

5 INSTALLATION PROCEDURE

1) Remove cover

2) Make markings

on the selected

place of installa-

tion using detector

body

3) Replace cover

4)Perform wiring (see par.6)

5)Make operability test (see par. 7)

Mounting holes

6 WIRING

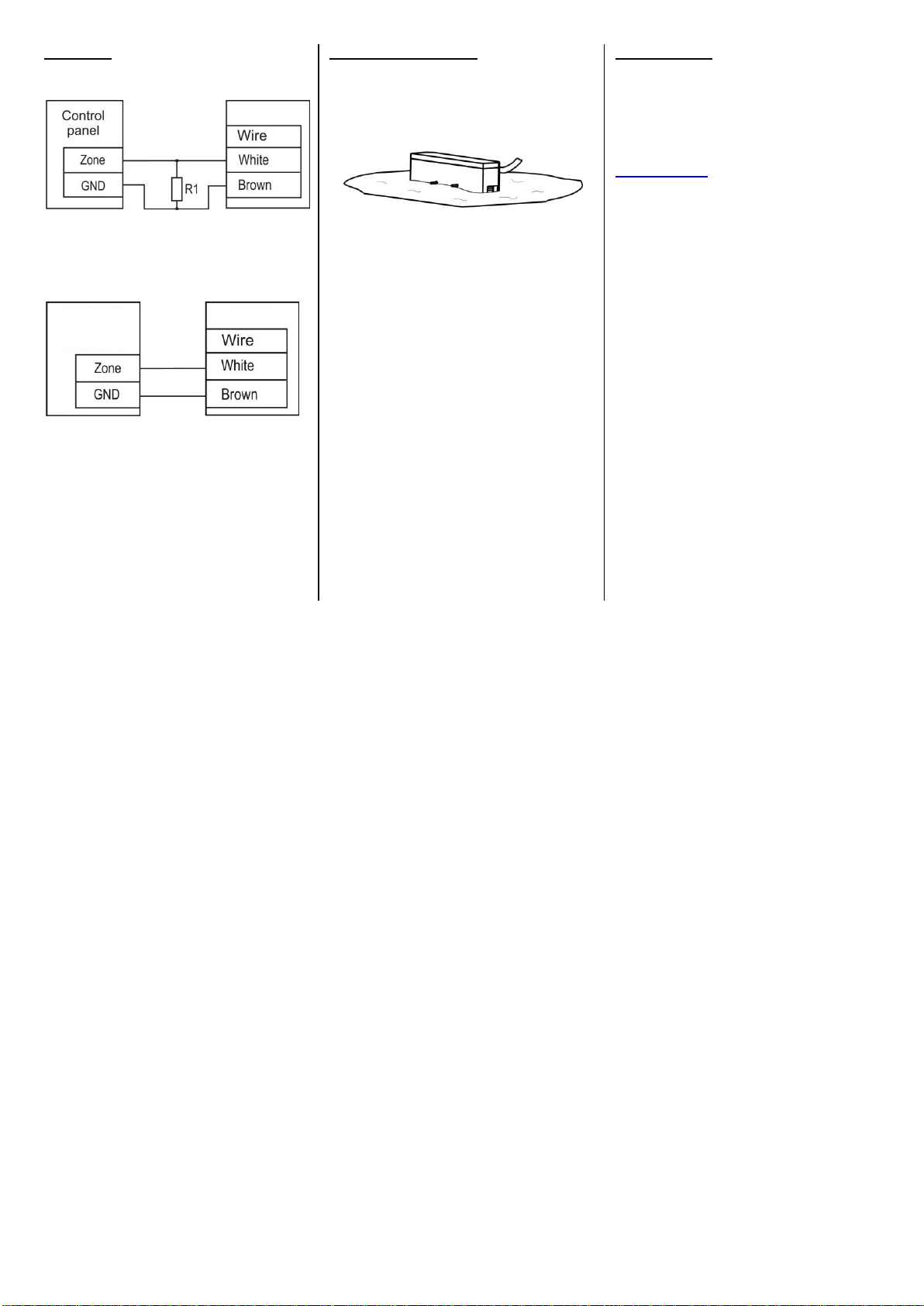

1) Detector connection to control panel (CP)

R1 –resistor (nominal value depends on control

panel type, for Astra-712/x –3,9 kOhm).

2) Detector connection to TRA Astra-3321 or

Astra-3345

ATTENTION! Zone circuit current should not

exceed 50 mA in order to avoid detector dam-

age.

7 OPERABILITY TEST

1) Power CP or TRA up.

2) Check detector operability by simulating

water leakage. Water level should not be lower

than the level of detector contacts.

3) Make sure "Alarm" notification is issued by

CP or TRA (indicator flashes once).

8 WARRANTY

The operation warranty period is 2 years from the date

of operation start-up but no longer than 2 years 6

months from the date of manufacturing subject to the

requirements of Operating Manual.

*For more detailed information refer to detector

Operating Manual available for free from

www.controlex.eu.

TRA

Astra-361
