Teka LMD 504 Manual de usuario

Operating instructions

(Translation of the original operating instructions)

TEKA - LMD 504

TEKA Absaug- und Entsorgungstechnologie GmbH, Millenkamp 9, D-48653 Coesfeld,

Tel.: +49 2541-84841-0, E-Mail: info@teka.eu,www.teka.eu

Table of contents

1. General 3

2. Description of the system elements 4

2.1. Illustration of the system elements 4

2.2. Functionality of the system 5

2.3. Intended use 5

2.4. Residual risk 5

3. Safety instructions 6

3.1. Definition of the hazard symbols 6

3.2. General safety instructions 6

4. Storage, transport and installation of the device 7

5. Commissioning 7

5.1. Connecting an extraction element 7

5.2. Electrical connection 7

6. Operating the system 8

6.1. Explanation of the operating elements 8

6.2. Connection of an external control 8

7. Maintenance 9

7.1. Reset to maintenance state 9

7.2. Replacing the prefilter mat 10

7.3. Replacing the particle filter 11

7.4. Replacing the activated carbon / the activated carbon cassette 11

7.4.1. Replacing the activated carbon 12

7.4.2. Replacing the activated carbon cassette 14

8. Dismantling / Disposal 14

9. Diagnostics and troubleshooting 15

10. List of spare parts 16

11. Technical data 16

12. EC declaration of conformity 17

13. Training protocol 18

14. Maintenance intervals 19

14.1. Usage-related maintenance 19

14.2. General maintenance 19

14.2.1. Visual inspection of the device 20

14.2.2. Functional test of the device 20

14.2.3. Electrical test of the electrical lines and earthing connections 21

BA_LMD-504_20230808_EN

08.08.2023

1. General

Congratulations on purchasing the product from TEKA.

Our engineers ensure that our devices reflect the state of the art through continuous development.

Nevertheless, misuse or misconduct can endanger your safety. Please observe the following for a

successful use of the device:

Only authorised and instructed personnel can carry out transport, operation,

maintenance and repair of the device. The operator must ensure that the operating

personnel take note of these instructions.

Please read these instructions before operating the device, and observe the safety

precautions to avoid injury!

Store this manual in a safe place! These instructions are to be regarded as a component

of the product!

Adhere to all product notes!

Modifications or conversions that the operator carries out at the device without the

consent of the manufacturer, can lead to new safety hazards or to the loss of warranty

claims.

Observe the manufacturer’s instructions. Contact the manufacturer in case of any

uncertainty:

Tel: +49 2541-84841-0

E-mail: [email protected]

BA_LMD-504_20230808_EN

08.08.2023

2. Description of the system elements

2.1. Illustration of the system elements

Installation example:

Z.Nr. 13153701

Pos.1

Pos.2

Pos.3

Pos.4

Pos.5

Pos.6

Pos.7

Operating panel of the control

Particle filter housing

Activated carbon housing

Turbine housing

Silencing housing

Particle filter

Prefilter mat (inserted into particle filter)

Pos.8

Pos.9

Pos.10

Pos.11

Pos.12

Pos.13

Activated carbon cassette

Suction nozzle

Exhaust grille

Mains cable with plug

Connection for external control unit

Swivel castor

BA_LMD-504_20230808_EN

08.08.2023

2.2. Functionality of the system

The filter unit serves to suck off and filter polluted air (according to the intended use). First of all, the

coarse particles are separated at the prefilter mat in the filter section of the unit. The subsequent particle

filter cleans even fine smokes and dusts. The activated carbon filter absorbs gases and unpleasant

odours. An automatic filter monitoring indicates when a cleaning or a replacement of the filters is

necessary. The purified air is led back into the working room.

2.3. Intended use

The device is intended for commercial use. If the device is made publicly accessible, it must never be

operated unsupervised by authorized personnel, authorized by the operator.

The filter unit is intended for extraction and filtration of fumes that result from lasers or soldering jobs.

WARNING

Improper use can damage parts and be a danger to life and limb!

The device must not be used for the extraction of oil-laden welding fume, explosive dust

and gases, hybrid mixtures, glowing or burning substances, gases, water, etc. The

device must not be operated in explosive zones.

Dangers arising from fire.

If the sucked medium is combustible fume or dust, the operator must determine

beforehand which fire protection measures are to be taken.

2.4. Residual risk

CAUTION

Danger due to possible hazardous materials in the exhaust air flow.

Because the unit does not monitor the quality of the air in the exhaust air flow, we

recommend that you always guide the exhaust air flow exiting our unit to areas (e.g. to the

outside into the open air) in which there is no danger to any living being. To do this, it is

necessary to fit a suitable exhaust air line at the filter unit.

BA_LMD-504_20230808_EN

08.08.2023

3. Safety instructions

3.1. Definition of the hazard symbols

The device is constructed according to the state of the art and the recognised safety regulations.

Nevertheless, during use threats to life and limb of the user or other persons may arise. The impairment

of the machine or other property are also possible. In these instructions we warn by using corresponding

indications.

WARNING

These instructions are made in case of risks that can lead to injury or death.

CAUTION

These instructions are made in case of risks that can lead to injury.

NOTICE

These instructions are made in case of risks that can lead to material damages.

Information notes are no hazard warnings; they call attention to useful information.

3.2. General safety instructions

WARNING

Dangers arising from improper use / unauthorised operations.

The operator must ensure that their authorised personnel are familiar with all the safety

indications in this manual in advance. The operator is responsible for ensuring that all work

is carried out by authorised and qualified personnel. We therefore recommend using the

training protocol on the last page for that purpose (see chapter “Training protocol”).

Laymen are allowed to operate the device after having received the necessary instructions.

But they are not allowed to carry out any installation, repair or maintenance work.

Dangers arising from fire.

In case of fire, if possible, switch the unit immediately off or disconnect it from the power

supply. Fire extinguishing measures which the operator is obliged to determine beforehand

must be initiated immediately.

WARNING

Dangers arising from electricity.

The operator must ensure that electrical plants and equipment are only built, modified and

maintained by a qualified electrician or under the direction and supervision of a qualified

electrician. Do not work on components if you are not sure that these are disconnected. If

necessary, disconnect the device from the electric power supply and secure it against

unauthorized restarting.

BA_LMD-504_20230808_EN

08.08.2023

4. Storage, transport and installation of the device

WARNING

Risk of injury from tilting or unmounted components when stored or transported.

The device must be secured against tilting and slipping when it is stored or transported. Do

not stand under or next to the floating load. Lift trucks, forklift trucks and transport cranes

must have a sufficient minimum load bearing capacity. Pay attention to uneven grounds

during the transport. Avoid jerky pushing.

Dangers arising from titling or functional impairments at its destination.

The unit may only be set up on a suitable surface. The surface must be vibration-free and

horizontal. The operator must check the bearing capacity of the surface. As soon as the unit

has reached its intended destination, the brakes of the castors must be activated.

NOTICE

Damage or functional impairment of the unit due to climatic influences.

The unit must be stored in a dry place and protected against moisture during transport. As a

matter of principle, the filter unit is not designed to be installed outside.

5. Commissioning

WARNING

Dangers arising from a defective condition of the unit.

Make sure that the measures described in this chapter are completed before the

commissioning of the unit. All doors of the unit must be closed and all necessary connections

must be attached before turning the unit on. Do not operate the unit if any components are

defective, missing or damaged. Check the orderly condition of the unit before switching it on.

The unit must not be operated without a filter element.

NOTICE

Damaged supply lines.

Make sure that the supply lines are protected against damage by forklift trucks and similar

events. Protect all supply lines from heat, moisture, oil and sharp edges.

5.1. Connecting an extraction element

For extracting the contaminated air - according to the intended use - the provided extraction element

(e.g. suction arm, suction hose, ...) must be connected at the suction nozzle (see chapter 2.1)

5.2. Electrical connection

NOTICE

Electric malfunction possible in cause of an incorrect power supply.

Pay attention to the admissible supply voltage. Please observe the specifications on the type

plate.

BA_LMD-504_20230808_EN

08.08.2023

● Reconnect the mains cable (see chapter 2.1) to the power supply.

6. Operating the system

6.1. Explanation of the operating elements

Control functions, setting options for programs, menu navigation, error messages, etc. are

described in the enclosed operating manual of the unit control. There is also an explanation of the

elements of the control panel.

6.2. Connection of an external control

There is the possibility to control the unit from extern. For this purpose, a connection is provided on the

unit (see chapter 2.1).

Connection plug type:

“Sub-D9”

Number of pins:

Pin-Nr.

Designation

Explanation

1, 2

Start contact

In order to switch on the filter unit, a contact has to be connected

between pin 1 and pin 2. The unit is switched out when the contact

is opened.

When the follow-up time is activated, the unit switches off

after the preset period of time.

3, 4

External message

“Operation”

Pin serves for the evaluation of the operational control.

(NO: normaly open)

5, 6

External message

“Fault”

Pin serves for the evaluation of an fault indication.

(NO: normaly open)

Increase of the

speed of the turbine

(option)

In order to increase the performance of the turbine, a contact has

to be connected between pin 7 and pin 1.

(optional, and only for units with up to 2 x 1,2kW turbines)

Reducing of the

speed of the turbine

(option)

In order to reduce the performance of the turbine, a contact has to

be connected between pin 8 and pin 1.

(optional, and only for units with up to 2 x 1,2kW turbines)

BA_LMD-504_20230808_EN

08.08.2023

7. Maintenance

In accordance with national regulations, the operator is obliged to carry out repeat and functional tests.

Unless otherwise specified by national regulations, we recommend regular visual inspections and

functional tests of the device as described in the chapter “Maintenance intervals”.

You find the chapter “Maintenance intervals” at the end of the document. The general

maintenance (visual inspection, etc.) is also explained there.

In the chapter “Maintenance intervals” there is information on the maintenance intervals of the filter

elements. But these are only recommendations. Depending on the application (multi-shift operation,

dust generation, ...) it may be necessary for the operator to change the maintenance intervals.

In this chapter the maintenance work which is caused by wear caused during operation is described.

WARNING

Work on the open system entails the risk of electrical shock or accidental restart the

system. Both pose a danger to life and limb.

When cleaning and servicing equipment during the replacement of parts or when changing

to another function, set the device to maintenance condition first (see chapter “Reset to

maintenance state”).

A recommissioning of the device must only occur if it is ensured that the device is

functionally equivalent to the original state.

CAUTION

Hazards to the respiratory tracts are possible due to contact with contaminated filter

elements.

All maintenance work must only be carried out in well-ventilated rooms and while wearing an

appropriate respiratory mask! We recommend: respiratory protection half mask DIN EN

141/143 protection level P3. For all maintenance work ensure a cautious handling of filter

elements and components in order to avoid whirling up dust.

The operator is obliged to store and dispose of the collected dust in accordance with national or

regional regulations. For all maintenance or cleaning work please refer to the applying

environmental regulations. Pollutants and filter elements must be disposed of or stored according

to the regulations as well. If you have any doubts, we recommend contacting a disposal

contractor in your area.

7.1. Reset to maintenance state

● Switch off the unit. Unplug the mains plug. Secure the unit against unauthorized restarting

during maintenance.

● After completion of all maintenance work the unit can be reconnected to the power supply.

BA_LMD-504_20230808_EN

08.08.2023

7.2. Replacing the prefilter mat

The prefilter mat is installed upstream to the particle filter and separates the coarse particles. This

extends the service life of the particle filter.

The prefilter mat must be changed after a certain number of operating hours. The time depends on the

amount of accumulated dust, and therefore cannot be determined beforehand. At the latest, the prefilter

mat must be changed when changing the particle filter.

CAUTION

Whirling up dust is possible.

The prefilter mat is a disposable filter element. Do not try to clean the filter element.

● Open the service door of the particle filter housing (see chapter 2.1).

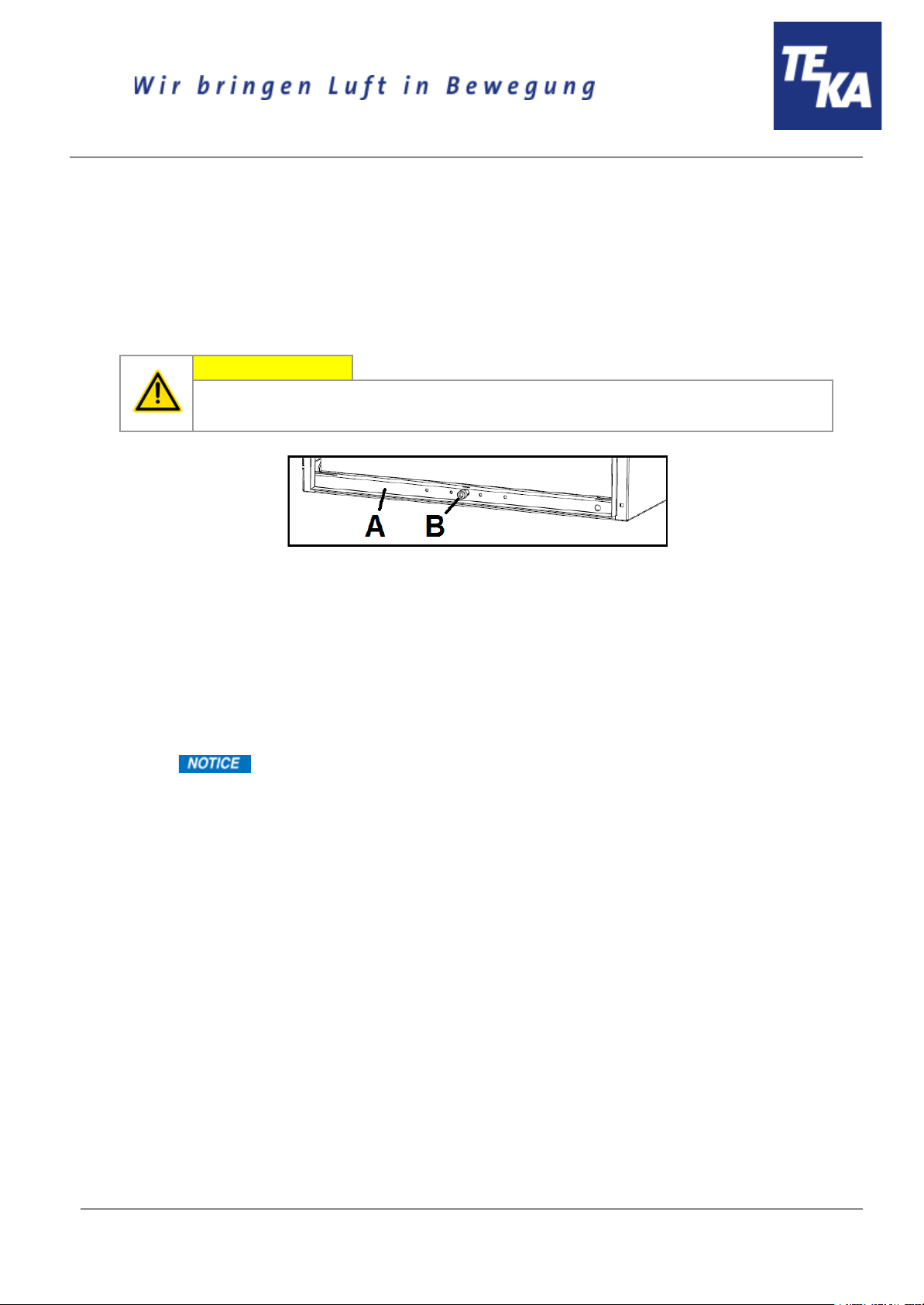

● Lower the lifting device (A) by turning the clamping screw (B). Therefore, use the hexagon key

that is located on the right of the clamping screw.

● Carefully pull the particle filter (see chapter 2.1) out of the housing.

● Remove the prefilter mat from the particle filter and dispose of or store it according to the

regulations.

● Put a new prefilter mat into the particle filter.

Only use TEKA spare filters. Otherwise the proper functioning of the unit is

not guaranteed.

● Push the particle filter back into the particle filter housing as far as it will go.

● Elevate the lifting device by turning the clamping screw so that the particle filter is pressed

tightly against the above housing.

● Close the service door.

BA_LMD-504_20230808_EN

08.08.2023

Tabla de contenidos

Otros manuales de Campana de ventilación de Teka

Teka

Teka DHB-60 Manual de usuario

Teka

Teka Pertecta4 DLH 985 Manual de usuario

Teka

Teka DH ISLA 120 Manual de usuario

Teka

Teka CC 85 Series Manual de usuario

Teka

Teka INTEGRA 66750 Manual técnico

Teka

Teka VIROLINE SMART Manual de usuario

Teka

Teka DVF 67670 TBL Manual de usuario

Teka

Teka DV-80 GLASS Manual de usuario

Teka

Teka DHX T ISLA Manual de usuario

Teka

Teka DH2 ISLA 80 Series Manual de usuario

Teka

Teka dg-2 Manual de usuario

Teka

Teka DVN 64030 TTC BK Manual de usuario

Teka

Teka DLH 686 Manual de usuario

Teka

Teka DH2 ISLA 85 Series Manual de usuario

Teka

Teka DVT 68660 TBS Manual de usuario

Teka

Teka DE 60.2 Manual de usuario

Teka

Teka DG 50 Series Manual de usuario

Teka

Teka DVI 88-G1 Series Manual de usuario

Teka

Teka DM 75 Series Manual de usuario

Teka

Teka DH2-90 Manual de usuario

Teka

Teka TL-62 Manual de usuario

Teka

Teka DG 80/85 Series Manual de usuario

Teka

Teka DG3 ISLA 80 Series Manual de usuario

Teka

Teka RFH 15200 O2C Manual

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
