tedee Nordic Adaptor Instrucciones de montaje
tedee nordic adapter | page 1www.tedee.com
INSTALLATION GUIDE
AND USER MANUAL
tedee nordic adapter
Read installation guide and user manual and learn how
to assemble the adapter in a safe and proper manner.
EN
page 2 | tedee nordic adapter www.tedee.com
table of contents
table of contents
quick start with tedee nordic adapter
set of items – what’s in the box?
what’s NOT in the box (but is needed)?
setup – 3 easy steps
step 1: PREPARE your door
step 2: INSTALL the adapter
step 3: INSTALL tedee lock
additional and technical information
technical information
technical support
Page 2
Page 3
Page 4
Page 5
Page 6
Page 6
Page 12
Page 15
Page 20
Page 20
Page 20
tedee nordic adapter | page 3www.tedee.com
Page 2
Page 3
Page 4
Page 5
Page 6
Page 6
Page 12
Page 15
Page 20
Page 20
Page 20
quick start with tedee nordic adapter
tedee nordic adapter setup - go to page 6
3 easy steps
Tedee nordic adapter can be tted to any
door equipped with a lock that works with
Scandinavian prole cylinders.
It’s a part of tedee set. It’s customized for tedee
lock to make your door smart.
This booklet will give you an overview of the
basic features of tedee nordic adapter and
will help you walk through the setup in 3 easy
steps.
PREPARE
your door
INSTALL
the adapter
INSTALL
tedee lock
1 2 3
page 4 | tedee nordic adapter www.tedee.com
set of items – what’s in the box?
tedee nordic adapter
tailpiece with cam other items
1. Lock stabilizer
2. Mounting holes
3. Adapter shaft
4. Groove and hole
5. Cam
6. Tailpiece
7. Plate
8. Plate mounting
screws (2x)
41
2
3
8765
tedee nordic adapter | page 5www.tedee.com
what’s NOT in the box (but is needed)?
necessary to prepare
step 1 and step 2
step 3
RULER PHILLIPS
SCREWDRIVER
2x PLIERSTIME (15-30 MIN)
TEDEE LOCK ALLEN KEY
page 6 | tedee nordic adapter www.tedee.com
setup - 3 easy steps
step 1: PREPARE your door
1Remove the mounting screws that keep your old knob escutcheon in the door lock.
rotate
counter-clockwise
tedee nordic adapter | page 7www.tedee.com
setup - 3 easy steps
2Remove the old knob escutcheon from the door lock.
remove
Note: the lock escutcheon on the other side of the door is xed with the screws you
just removed. Make sure to prevent it from falling off either with a tape, or just hold it
with your hand.
OLD ESCUTCHEON
MOUNTING
SCREWS (2x)
page 8 | tedee nordic adapter www.tedee.com
setup - 3 easy steps

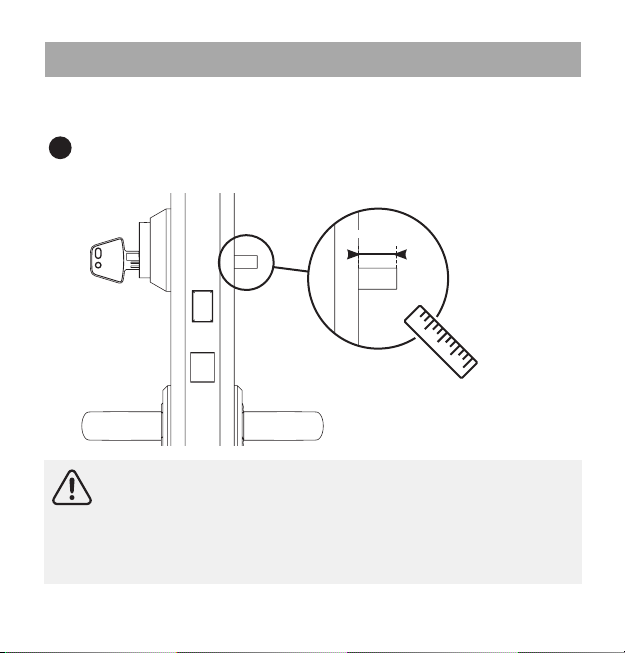

1Please, check if the tailpiece sticks out from the door leaf. Measure it with a ruler.
If it’s between 3mm and 12mm, proceed directly to step 2.
If it’s less than 3mm you should remove the tailpiece and replace it with a new one provid-
ed in the tedee nordic adapter box. Check the next pages to learn how to do it.
If it’s more than 12mm you should shorten the tailpiece using pliers. Check the next pages
to learn how to do it.
OLD TAILPIECE
RULER
measure
3 mm - 12 mm
tedee nordic adapter | page 9www.tedee.com
setup - 3 easy steps
1
2
Remove mounting screws that hold the plate.
Remove plate that
holds the tailpiece
and remove the old
tailpiece.
OLD
TAILPIECE
PLATE OLD PLATE
MOUNTING
SCREWS (2x)
PLATE
MOUNTING
SCREWS (2X)
remove
remove
[OPTION A] If tailpiece sticks out less than 3mm
rotate
counter-clockwise
<3 mm
page 10 | tedee nordic adapter www.tedee.com
setup - 3 easy steps
3Replace the old tailpiece with a new one from the tedee nordic adapter box.
Then place back the plate (old or a new one) and secure it with the mounting screws.
Note: please measure the tailpiece once again and make sure that your it sticks out from
the door leaf more than 3mm but less than 12 mm.
If it does, proceed to step 2.
PLATE
SCREWS
insert
NEW
TAILPIECE
