Techno Trade L2D Guía de inicio rápido
L2D converter
IFSF protocol with LON interface
to DART protocol with RS-485 interface
TECHNICAL GUIDE
Review date: 1 December, 2021
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 2 from 22
CONTENT
PURPOSE OF THE DOCUMENT ..............................................................................................................................3
TECHNICAL FEATURES...........................................................................................................................................4
Appointment ................................................................................................................................................. 4
Technical characteristics................................................................................................................................ 5
Communication ............................................................................................................................................. 5
CONNECTIONS.......................................................................................................................................................6
Connectors overview..................................................................................................................................... 6
Connection diagram ...................................................................................................................................... 8
MECHANICAL DIMENTIONS ................................................................................................................................11
USER INTERFACE .................................................................................................................................................12
S1 and S2 buttons........................................................................................................................................ 12
Indication LEDs ............................................................................................................................................ 12
LEDs for X9 connector ................................................................................................................................. 12
Control keys................................................................................................................................................. 13
CONFIGURATION.................................................................................................................................................14
Menu description ........................................................................................................................................ 14
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 3 from 22
PURPOSE OF THE DOCUMENT
This Technical Guide is intended for studying of L2D converter. It contains basic information regarding its
appointment, technical characteristics, software features, set-up parameters and operation modes.
Information regarding connection to specific fuel dispensers and correspondent configuration of L2D
controller can be received upon request to Technotrade LLC company.
During the system development process given Technical Guide is also expanded and updated and new
chapters are added. Latest version of this Technical Guide can be downloaded from the L2D converter web-
page: https://www.technotrade.ua/ifsf-lon-dart-converter.html.
Technotrade LLC hereby permits reproduction of this document as may be required by any of the
customers or OEMs wishing to use it.
This document has been carefully prepared and is believed to be accurate. However, Technotrade LLC, its
employees and its agents do not assume responsibility for its use either directly or indirectly. Technotrade
LLC shall not be liable for technical or editorial errors or omissions which may appear in this document.
Technotrade LLC reserves a right to make changes to this document at any time without notice. Prospective
users of this document should contact Technotrade LLC at the time they wish to use L2D converter together
with their products to become aware of any updates that may apply.
In case if you find any mistakes, omissions in this document or have any suggestions on improvements to
this document, please feel free to e-mail them to our support mailbox: support@technotrade.ua. We will
be grateful to you for this valuable information.
All technical questions regarding the L2D converter are welcome to be asked on support mailbox:
support@technotrade.ua. Our support team will be glad to help you.
Also, you can call to us or visit us on:
Technotrade LLC
Ukraine, 04114 Kiev, Priorska str. 10, office 1
Tel: +38-044-502-46-55, +38-044-502-46-77
Web: www.technotrade.ua
Mail: mail@technotrade.ua
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 4 from 22
TECHNICAL FEATURES
Appointment
L2D converter converts from IFSF protocol with LON interface to any dispenser, which supports DART
protocol with RS-485 interface and backwards. It allows POS systems and forecourt controllers, which use
only IFSF-LON, to communicate with any dispenser using DART communication protocol. L2D device is
absolutely transparent in communication providing only conversion of the protocol and interface, so the
POS system thinks that it communicates with IFSF-LON dispenser, no changes from POS are needed.
L2D interface converter can be applied with any POS system able to work with IFSF protocol LON interface
for provision of control over dispensers.
L2D converter is an embedded device that successfully transforms IFSF-LON communication from POS into
DART protocol. It is designed to connect any type of IFSF-LON compatible POS to a non-IFSF dispenser.
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 5 from 22
Technical characteristics
##
PARAMETER
VALUE
1
Power supply voltage
100 V –270 V AC
2
Sealing
IP20
3
Material
ABS Plastic
4
Temperature range
from 0°C to +40°C
5
Weight
0.45 kg
6
Overall dimensions
160 x 95 x 55 mm
Communication
##
PARAMETER
VALUE
1
Input protocol for connection to POS
IFSF
2
Interface for POS connection
LON
3
Output protocol for dispensers
DART
4
Interface for dispenser connection
RS-485
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 7 from 22
Connector X15
X15 is the connector where the main power is connected to L2D.
CONNECTOR
DESCRIPTION
E
Earth
N
Neutral
L
Line
CAUTION! High voltage is supplied to the device. A potential of shock hazard exists. Always connect and
disconnect the power terminals only when the main power supply is turned off!
Connector X8
X8 is the connector for RS-485 interfaces of the dispenser using DART protocol.
PINS
DESCRIPTION
1
Line A in RS-485 interface
2
Line B in RS-485 interface
3
Common for connection to cable shield or foil
4
-
5
-
Connector X9
LON interface connector for connection to LON network of POS. As the LON interface is two-wire
differential there is no polarity of the terminals.
PINS
DESCRIPTION
1
Earth
2
Line A
3
Line B
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 8 from 22
Connection diagram

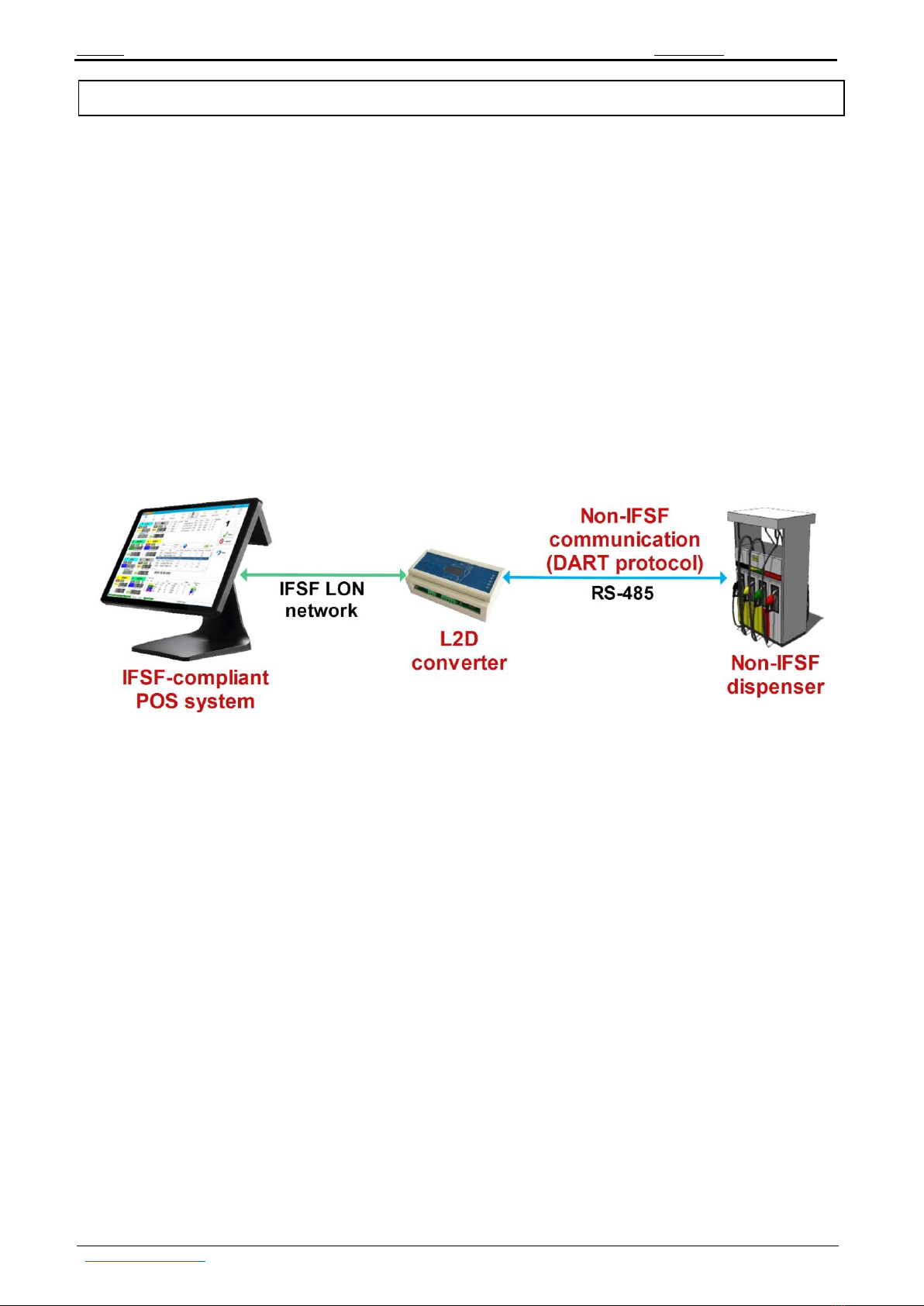

The below diagram describes graphically the way of connecting L2D for bridging the DART dispenser with
the IFSF-LON network where the POS systems(s) and the other fuel dispensers are.
