Charging station for charging electric vehicles

Operating

instructions

Table of contents

CE mark and declaration of conformity....... 3

Contact address .................................................. 3

Service instructions ........................................... 3

Introduction ......................................................... 4

Intended use..................................................................... 4

Symbols used in this manual .................................... 5

Symbols used on the unit........................................... 5

Warning signs in this manual ................................... 6

Safety information ............................................. 7

Safety instructions for people with

pacemakers..................................................................... 9

Identiﬁcation of the product variants.......... 10

Operating elements and connections .......... 11

Device overview............................................................... 11

LED status indicator....................................................... 12

RFID reader and brightness sensor ....................... 14

MID energy meter........................................................... 14

Charging process ................................................ 15

Autostart charging mode............................................ 15

Authorised charging mode ........................................ 16

Stopping the charging process................................ 17

Seings on the charging station.................... 18

Access via WLAN hotspot .......................................... 18

Export charging processes......................................... 20

User RFID card registration........................................ 21

Activate authorised charging .................................... 22

Faults and fault conditions .............................. 23

Shuing down and restarting the charging

station.................................................................. 24

Maintenance and cleaning............................... 25

Disposal ................................................................. 26

The information provided in this document has

been checked with great care. However, no liability

or guarantee can be assumed that all information

is complete, correct and up-to-date at all times.

You can ﬁnd the current version of the manual in

PDF format in the download area of the TechniVolt

homepage.

All contents of this document, in particular text,

photographs and graphics, are protected by

document, even in part, requires the wrien approval

of the publisher.

TechniSat is a registered trademark of:

TechniSat Digital GmbH

Julius-Saxler-Str. 3

D-54550 Daun, Germany

TechniVolt is a registered trademark of:

TechniVolt GmbH

Julius-Saxler-Str. 3

D-54550 Daun, Germany

Feedback on this manual

If you have any suggestions for a beer design or

if you are missing information in the instructions,

please send your suggestions to:

techdoc@technivolt.de

CE mark and declaration of conformity

2238001000100 - 20220714

CE mark and declaration of conformity

The TECHNIVOLT charging station has the CE mark.

TechniSat hereby declares that the TECHNIVOLT 1100,

TECHNIVOLT 1100 SMART and TECHNIVOLT 2200 SMART

equipment complies with Directive 2014/53/EU. The full text of

the EU conformity declaration is available at the following Internet

address:

TECHNIVOLT 1100: hp://konf.tsat.de/?ID=23268

TECHNIVOLT 1100 SMART: hp://konf.tsat.de/?ID=23268

TECHNIVOLT 2200 SMART: hp://konf.tsat.de/?ID=23268

Contact address

TechniSat Digital GmbH

Julius-Saxler-Straße3

D-54550 Daun, Germany

Web www.technisat.de

Service instructions

This product is quality-tested and furnished with the legally-

speciﬁed warranty period of 24 months from the date of purchase.

Please keep your receipt as proof of purchase. In the event of

warranty claims, please contact the product dealer.

For questions relating to the operation of the device, please

contact our

TechniVolt End Customer Hotline

Tel. 0049-3925 9220 1272

Introduction

20220714- 2238001000100

Introduction

This manual describes the operation of the following charging

station models:

TECHNIVOLT 1100

TECHNIVOLT 1100 SMART

TECHNIVOLT 2200 SMART

and is aimed at people who want to use a TECHNIVOLT charging

station.

The following text explains how the charging station is connected

to the electric vehicle to charge it.

These operating instructions are an integral part of the product

and must be kept safely for its entire service life.

Intended use

The TECHNIVOLT charging station is a power supply unit for

electric vehicles, intended for connection to an AC mains supply.

The charging station is designed exclusively for charging electric

vehicles using charging mode 3 (Mode 3 in accordance with

standard IEC 61851-1. Connecting other devices is not permied.

The connection to the electric vehicle is established using a

permanently aached type 2 vehicle connector charging cable

according to standard IEC 62196-2.

The TECHNIVOLT charging station is a piece of equipment

that is permanently installed (surface-mounted) and intended

for installation at locations with restricted access (e.g. private

properties, company car parks, depots).

The intended use of this device always includes compliance with

the operating instructions (see "Operating conditions" on page 74).

Any use of the TECHNIVOLT charging station that is not in

accordance with its intended use is not permied and will result in

the exclusion of warranty, guarantee, and liability.

Introduction Introduction

2238001000100 - 20220714

Symbols used in this manual

Symbol Meaning

General warning symbol

Warns about electrical danger

Indicates tips and recommendations

•Bullet point/List entry

;A condition has been met.

hStep

1, 2, 3...n Steps with a ﬁxed sequence

Result of a step

Symbols used on the unit

Safety signs are axed to the charging station and must be

complied with.

Symbol Meaning

Read the installation instructions before you open

the charging station or start installation of the

charging station.

A dangerous electrical voltage may be present

inside the charging station aer opening the

housing.

The device bears the CE mark - on Page 3.

Introduction

20220714- 2238001000100

Warning signs in this manual

The following symbols and warning signs are used in this manual

and must be observed. Warnings prevent life-threatening or fatal

injuries. Observe all notes and follow all instructions.

WARNING

Indicates a dangerous situation that can lead to death or severe

injury if not avoided.

CAUTION

Indicates a hazardous situation with low risk which, if not avoided,

may result in minor or moderate injury or damage to property.

DANGER

Indicates a danger that can lead to death or severe injury if not

avoided.

NOTE

Indicates an important piece of information and/or special feature

relating to speciﬁc steps and circumstances.

Introduction Safety information

2238001000100 - 20220714

Safety information

These operating instructions must be safely retained for

consultation at a later date.

The manufacturer accepts no liability for damage caused by

inappropriate handling or by failure to comply with the safety

precautions.

•Do not continue using the device if you are unsure whether it

is functioning correctly, or if you suspect it may be damaged. In

this case, switch it o! Switch the line and residual current circuit

breaker to OFF. Contact your local distributor.

DANGER

Danger to life from electrical power.

There is an immediate danger to life by electrocution if you touch

live parts.

hFor your own protection, please read through the safety

instructions carefully prior to installation.

hFollow all safety instructions.

hFailure to follow the safety instructions may result in death

or serious injury.

WARNING

Never allow persons (including children) with limited physical,

sensory or mental capacities, or with a lack of experience and/or

knowledge, to use the electrical equipment unsupervised!

hFailure to observe this warning may result in death or

serious injury.

Safety information

20220714- 2238001000100

•The ambient temperature must be between –25 °C and +50 °C,

out of direct sunlight, and the relative humidity must be between

5% and 95%. The charging station may only be used within these

operating conditions.

•Do not expose the charging station to direct jets of water, such as

that from a garden hose or high-pressure cleaner.

•Do not store any objects above the charging station. Falling objects

can damage the charging station.

•The device is intended only for charging electric vehicles that can

be charged without ventilation.

•Observe vehicle-speciﬁc features during the charging process. This

information can be found in your vehicle's manual.

•The electric vehicle must be parked in such a way that the

charging cable can be connected to the electric vehicle without

any diculty. The charging cable must not be under mechanical

strain, and must rest on the ﬂoor.

•Wind the charging cable around the charging station when

charging is complete. Do not leave it on the ﬂoor. There is a risk

that you might drive over the charging cable and/or the charging

plug with the vehicle, thus causing damage.

•The charging station must not be used with a cable extension,

thus avoiding the risk of ﬁre or electric shock.

•Vehicle adapters must not be used to connect a vehicle coupling

to a vehicle connector.

•A damaged charging station must be immediately taken out of

service.

•A damaged charging cable or charging plug must be replaced

immediately by a qualiﬁed electrician.

•The charging station may only be repaired by a qualiﬁed electrician.

Safety information Safety information

2238001000100 - 20220714

•When repairing the charging station, only system parts approved

by the manufacturer may be used.

•Signs and markings axed by the manufacturer must not be

altered, removed, or made unrecognisable.

•It is forbidden to make any changes to the housing, the charging

cable, or the internal circuitry. In the event of non-compliance, any

liability or warranty claims shall be void.

Safety instructions for people with pacemakers

Electromagnetic ﬁelds can inﬂuence and interfere with a pacemaker

or an implantable deﬁbrillator (ICD).

We recommend that people ﬁed with a pacemaker or deﬁbrillator

consult their doctor before using this product.

Identiﬁcation of the product variants

20220714- 2238001000100

Identiﬁcation of the product variants

The TECHNIVOLT charging station is available in dierent versions,

which dier electrically and are equipped with dierent functions.

Identify your product using the item no. on the type plate.

Variants

TECHNIVOLT

Charging

cable

Length Item no.

Charging

power MID

1100 5 m 0000/6300 11 kW No

7.5 m 0007/6300 11 kW No

1100 SMART 5 m 0000/6301 11 kW Yes

7.5 m 0007/6301 11 kW Yes

2200 SMART 5 m 0000/6302 22 kW Yes

7.5 m 0007/6302 22 kW Yes

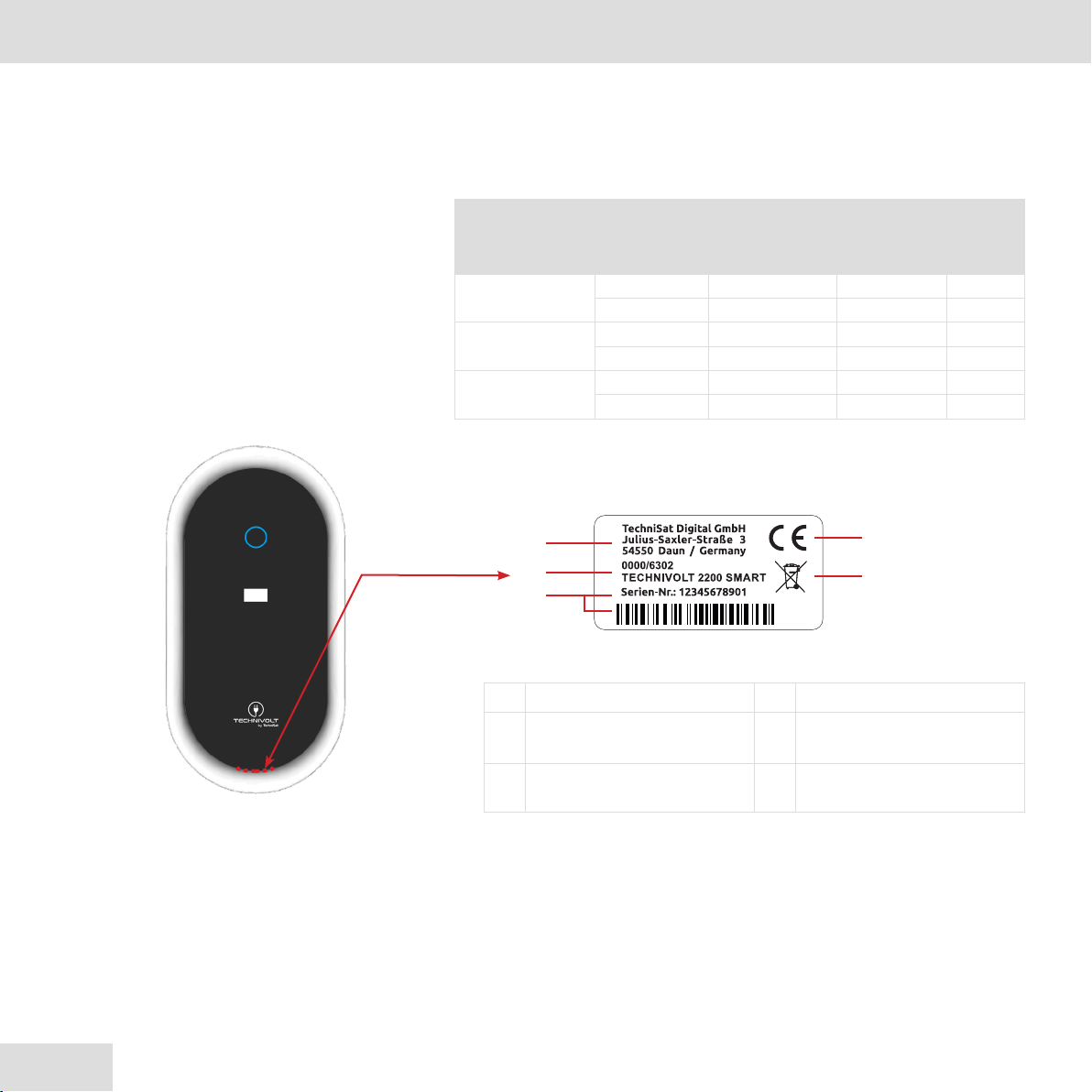

The type plate is located on the front of the charging station,

below the front glass panel. The following image shows all the

details on the type plate.

❶Manufacturer ❹CE marking

❷Item no. and model

designation

❺Disposal instructions

❸Serial number

(bar code)

❹❹

❶❶

❸❸

❷❷❺❺

Otros manuales para 1100

Este manual sirve para los siguientes modelos

Otros manuales de Cargador de baterías de automóvil de Technivolt

Technivolt

Technivolt 100 Manual de usuario

Manuales populares de Cargador de baterías de automóvil de otras marcas

ULTIMATE SPEED

ULTIMATE SPEED ULGD 3.8 A1 Manual de usuario

HYPERVOLT

HYPERVOLT Home 3.0 Manual de usuario

Growatt

Growatt THOR 11AS-S/P Manual de usuario

Ingeteam

Ingeteam Ingerev Garage Manual de usuario

DEFA

DEFA Power 715000 Manual de usuario

iTechworld

iTechworld iTECHDCDC20 Manual de usuario

EM2GO

EM2GO Take Manual de usuario

Booster

Booster TRUCK PAC ES1224 Manual de usuario

Teison

Teison TS-PEC-002 Manual de usuario

Schumacher

Schumacher SI-200A Manual de usuario

YingLi

YingLi YLEV50A-L3 Manual de usuario

ABL

ABL eMH1 WALLBOX Manual de usuario

GARO

GARO LS4 Wallmounted Guía de inicio rápido

CTEK

CTEK MXS 5.0 CHECK Manual de usuario

Hama

Hama 54183 Manual de usuario

Cartrend

Cartrend DP 4000 Manual de usuario

Ryobi

Ryobi P131 Guía de configuración

FLUXE

FLUXE M3P U Series Manual de usuario
