TechniSat TechniVision 22 HD Manual de instrucciones

Quick start manual

and warranty documentation

TechniVision 22/26/32 HD

1 Illustrations

Rear of TV

TechniVision 22 HD

(connections, attachment, cover)

Rear of TV

TechniVision 22 HD

1 Antenna input

(DVB-C, DVB-T, analogue)

2 LNB Input (DVB-S)

3 Common Interface

4 USB port

5 DC socket

6 S-Video input

7 Audio input (R, L)

(S-Video, Video and

component input)

8 Video input

9 Component input

10 Cable guide

11 Stand attachment cover

12 HDMI input 2

13 HDMI input 1

14 Audio output digital (S/P

DIF electrical)

15 Headphone output

(3.5mm jack plug)

16 Audio input (VGA/DVI)

(3.5mm jack plug)

17 VGA connection

18 Scart socket (EuroAV)

1110

141312 1516 17 18

Rear of TV

TechniVision 26/32 HD

(connections, cover)

Rear of TV

TechniVision 26/32 HD

1 USB port

2 Common Interface

3 LNB Input (DVB-S)

4 Antenna input

(DVB-C, DVB-T, analogue)

5 S-Video input

6 Audio input (R, L)

(S-Video, Video and

component input)

7 Video input

8 Component input

9 Mains power switch

10 Mains power connection

11 Stand attachment cover

12 HDMI input 2

13 HDMI input 1

14 Audio output digital

(S/P DIF electrical)

15 Headphone output

(3.5mm jack plug)

16 Audio input (VGA/DVI)

(3.5mm jack plug)

17 VGA connection

18 Scart socket (EuroAV)

119 10

141312 1516 17 18

Remote control

Remote control code

On/Standby

Sound on/off

Numeric keys

Recording

SFI

Page up

Back

TV/Radio mode

Rewind

Info

Fast forward

Programme +/- Volume +/-

Menu Zoom/Format

Function keys

Stop

Arrow keys Pause / playback

Function selection

Option selection

Page down

DVR mode

Sleep timer

Language selection

PaT

Genre

Teletext

Freeze frame / Jogshuttle

Timer

Front of TV

Display

Front of TV

(Display)

Display

IR receiver

LED

Important instructions

2 Please read this first

Dear customer,

This quick start manual simply describes the most important connection options and the

basic operating steps required for you to quickly get started operating the TechniVision 22,

TechniVision 26 or TechniVision 32.

Please also definitely comply with the notes on safety provided under Point 2 of the

instruction manual, appropriate use, operation, power consumption in standby mode and

during operation as well as transport of and cleaning the television. You will also find

information provided in this section about disposal of the packaging and the television. The

manufacturer’s declaration is also provided in this section.

2.1 Intended use

> Connection to mains power 230V/50Hz (TechniVision 26 / 32 HD and TechniVision 22

HD via mains power unit supplied) or to 12 V DC power (TechniVision 22 HD)

> The TV set is intended only for the reception and playback of picture and sound signals.

> The TV is only suitable for connection to audio and video devices, antenna units and

computers that meet DIN standards and have a CE mark.

Use is permitted in private and commercial situations in dry rooms and under supervision.

> Any other use is expressly forbidden.

2.2 Manufacturer’s declaration

The TV meets the following requirements:

> the EU directive 2006/95/EC (low voltage directive)

- EN 60065

> the EU directive 2004/108/EU (EMC directive)

- EN 55013, EN 55020, EN 61000-3-2

and bears the CE mark.

2.3 Important instructions

Please observe the following instructions in order to avoid any safety risks, prevent damage

to the TV, and help contribute to environmental protection.

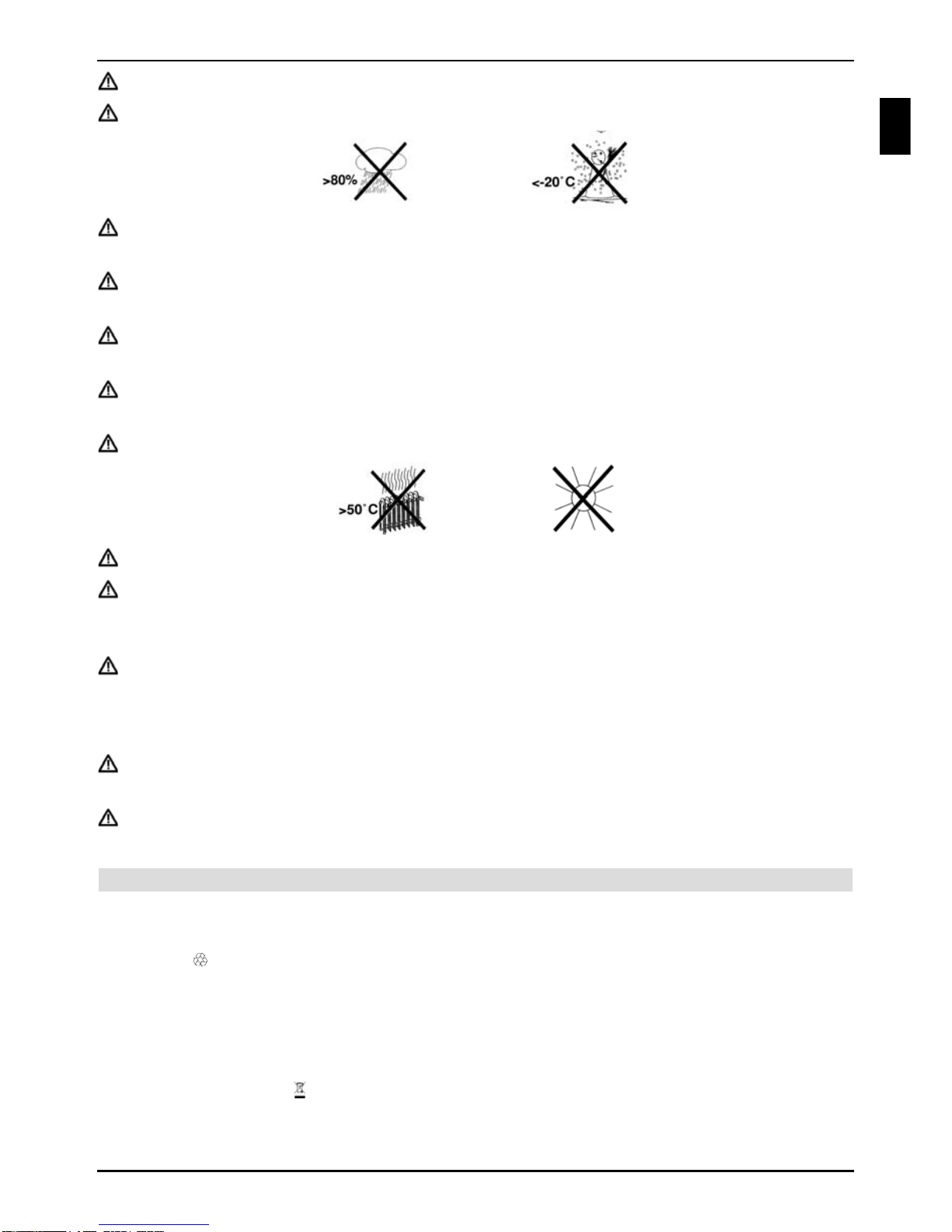

2.3.1 Safety

For your own protection you should read the safety notes carefully before using your new

TV. The manufacturer accepts no liability for damage caused by inappropriate handling, or

by non-compliance with the safety precautions.

Do not open the receiver housing under any circumstances!

Touching parts that conduct high voltages can be fatal!

Any necessary repairs to the receiver should only be carried out by qualified personnel.

Only operate the receiver in a temperate climate.

Do not switch on the TV immediately after delivery or transportation in cold weather;

wait until it reaches room temperature.

Do not expose the set to dripping or sprayed water. If water gets into the unit,

immediately remove the mains plug and advise the service department.

Do not place the TV on a narrow shelf or in small cabinets; ensure a minimum

ventilation gap of 10cm around the unit.

The set has ventilation slits to allow heat to escape from the inside of the set. Do not

cover the ventilation slits with objects such as newspapers, tablecloths etc.

Do not operate sources of heat near the TV that can additionally heat it up.

Do not place objects over the ventilation slits.

In thundery weather and when the set is not to be used for an extended period or

during absence you should remove the mains and antenna plugs from the set.

Overvoltage can damage the TV.

In the event of a noticeable defect on the set, if a smell is produced or if smoke comes

out, if there are severe malfunctions, if there is damage to the power cable or to the

casing and if liquids penetrate the set, pull the mains plug out immediately and contact

the service department.

In the event of a power failure the TV should be isolated from the mains power by

pulling out the plug or by switching the set off.

During long absences the TV should be switched off. This extends the lifetime of the

screen and saves energy.

2.3.2 Disposal

The packaging material used for your TV consists entirely of recyclable materials. Please

sort the components appropriately and dispose of them in line with your local waste disposal

regulations .

At the end of its useful life span, this receiver may not be disposed of with your regular

household waste. It must be taken to a recycling collection point for electrical and electronic

equipment.

This is indicated by the symbol on the product, the operating manual or the packaging.

Important instructions

The materials can be re-cycling in accordance with their labelling.

By ensuring that valuable raw materials are re-used you can make a valuable contribution

towards protecting our environment.

Please contact your local authority for the location of the nearest recycling point.

Please ensure that flat batteries removed from the remote control and electronic waste are

not sent to your regular household refuse site, but are correctly disposed of either in special

bins for problem waste, or at collection points in the retail trade.

2.3.3 Power consumption in Standby and during operation

The TV’s power consumption in standby and during operation depends on the settings you

select, the functions you use and the devices inserted/attached such as CI modules or USB

storage media.

Thus you can reduce power consumption during operation by e.g. only inserting/attaching CI

modules and USB storage media if they are actually going to be used. Power consumption

during operation is also influenced by the selected picture mode and backlighting setting

(Main menu > Settings > Picture Settings). The higher the backlighting is set, the

higher the power consumption too.

As the TV is not fully in standby mode during the automatic software download (Main

menu > Settings > Service Settings > Software Update) for the relevant period,

power consumption can be reduced by disabling this function. Power consumption is also

influenced by the standby clock and fast start functions.

Important instructions

3 Remote control

3.1 Changing the battery

> Open the cover on the battery compartment at the rear of the remote control by

pushing it in the direction of the arrow and then lifting it off.

> Insert the supplied batteries, ensuring that the poles are the right way around

(indicator visible in battery compartment).

> Close the battery compartment again.

3.2 Remote control code

By switching over the remote control option it is possible to use this remote control to

operate a TechniSat television and two TechniSat receivers using the same coding.

> Hold down the remote control code button to switch over the remote control option

and press the OK button as often as necessary until the LED for the desired remote

control option (TV, SAT1 or SAT2) flashes briefly.

The currently set remote control code will be displayed, as the appropriate LED

flashes, while pressing a button.

Remote control

Connecting

4 Connecting

a Connecting the satellite antenna using the LNB input.

b Connecting the cable connection (digital and/or analogue) or the DVB-T antenna to the

antenna input on the television.

c Connecting the television to a BluRay/DVD player using an HDMI cable or a cinch

components cable with the cable adapter.

Connecting the digital audio output to Hi-Fi stereo equipment or surround sound equipment.

TV/Radio

BluRay / DVD
