Technics SL-EH760 Manual de usuario

AD0002035C2

Compact Disc Player

SL-EH760

Traverse Deck:RAE0152Z-1 Mechanismseries

Colour

(S)..........SilverType

Area

(E)..........Europe.

SPECIFICATIONS

1. Note

Refertotheservice manual for Model No. SA-EH760 (OrderNo. AD0002037C2)for information on

Packaging.

2. Handling Precautions forTraverse Deck

Thelaserdiodeinthetraverse deck (optical pickup)may break downduetopotential difference

causedbystaticelectricityofclothes or humanbody.

Sobecareful ofelectrostaticbreakdownduring repairofthetraverse deck (optical pickup).

2.1. Handling oftraverse deck (optical pickup)

1. Donotsubject thetraverse deck (optical pickup)tostatic

electricityas itisextremelysensitivetoelectrical shock.

2. To protect thelaserdiodeagainst electrostaticbreakdown, short

theflexibleboard(FFCboard)withacliporsimilarobject. Referto

Fig.2-1.

3. Take carenottoapplyexcessivestress totheflexibleboard(FFC

board).

4. Donotturnthevariableresistor(laserpoweradjustment). Ithas

alreadybeenadjusted. Referto Fig.2-1.

Fig.2-1.

2.2. Grounding forelectrostaticbreakdownprevention

2.2.1. Humanbodygrounding

Use theanti-staticwriststraptodischargethestaticelectricityfrom your body. Referto Fig.2-2.

Fig.2-2.

2

2.2.2. Worktablegrounding

Putaconductive material (sheet) or steel sheeton thearea wherethetraverse deck (optical

pickup)isplaced, and ground thesheet. Referto Fig.2-3.

Fig.2-3.

Caution:

Thestaticelectricityofyourclothes will notbegroundedthrough

thewrist strap.

Sotake carenottolet yourclothes tough thetraverse deck (optical

pickup).

3. Precaution of LaserDiode

CAUTION:

Thisproduct utilizes alaserdiodewiththeunitturnedon, invisible

laserradiation isemittedfromthepickup lens.

Wavelength:780 nm

Maximumoutputradiation powerfrompickup:100 W/VDE

Laserradiation frompickup unitissafetylevel, butbesurethe

followings:

1. Donotdisassemblethepickup unit, since radiation fromexposed

laserdiodeisdangerous.

2. Donotadjust thevariableresistoron thepickup unit. Itwas

alreadyadjusted.

3

3. Donotlookat thefocuslensusing optical instruments.

4. Recommend nottolookat thepickup lensforalong time.

4. Location of Controls

5. Operation Checks and Component Replacement

Procedures

4

/

5.1. Checking forthemainP.C.B.

-Check themainP.C.B. as shownbelow.

5

/

5.2. Checking fortheoperation P.C.B.

-Follow the(Step1) -(Step3) ofitem5.1.

/

6

/

-Check theoperation P.C.B. as shownbelow.

/

5.3. Checking fortheCD servoP.C.B.

-Follow the(Step1) -(Step3) ofitem5.1.

7

/

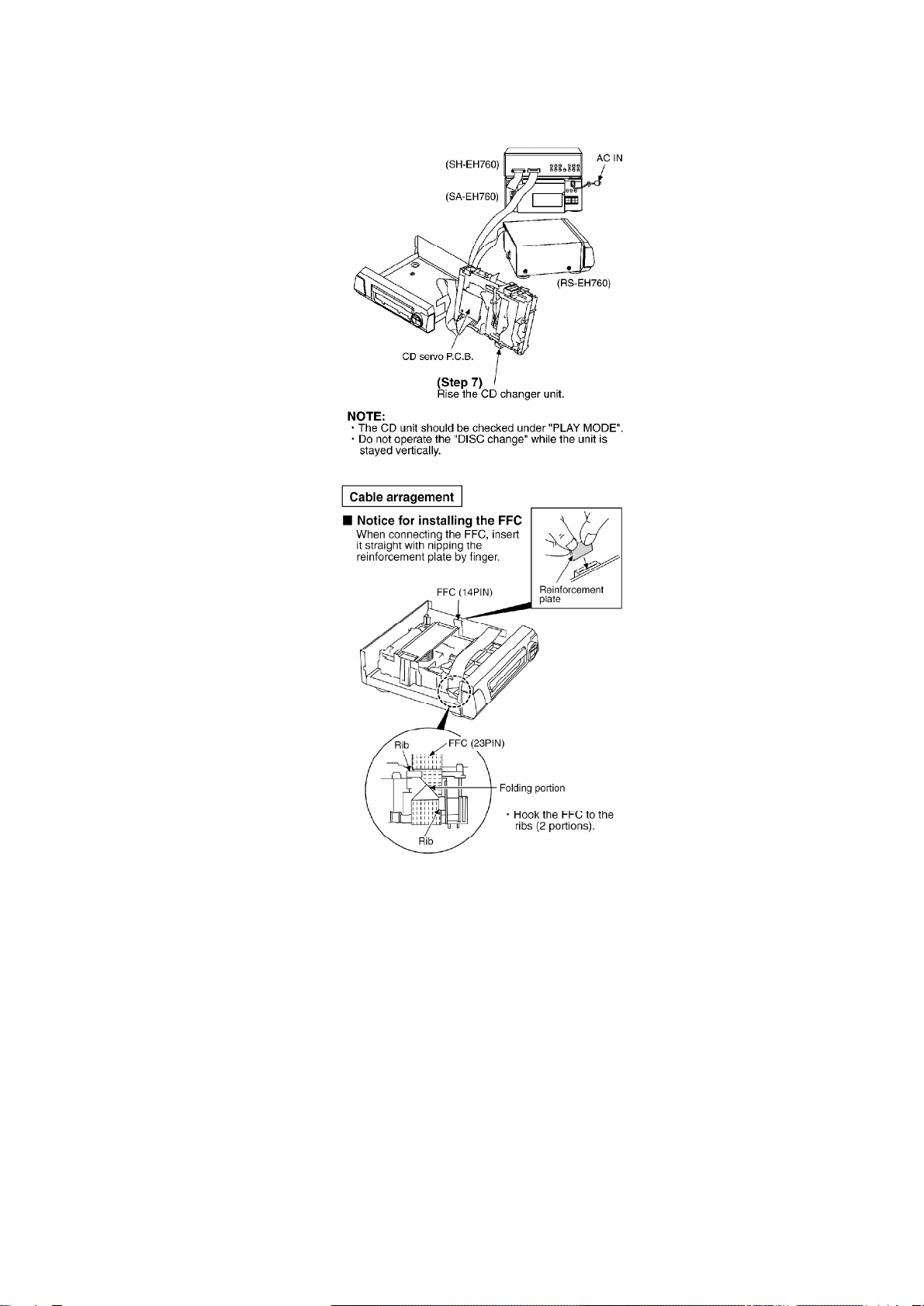

-Check theCD servoP.C.B. as shownbelow.

8

/

5.4. Replacementforthetraverse deck ass’y

-Follow the(Step1) -(Step3) ofitem5.1.

-Follow the(Step1) -(Step4) ofitem5.2.

9

10
